D292105.16c.fm Configure Inspection Chapter 5: Setup 5- 33 Register Master Image 1. After setting the image optimization, press Register Live Image as Master . 2. Image the target a nd touch the Tr i g button. 3. Check t…
5-32 TM-403 User’s Guide
Configure Inspection D292105.16c.fm
3. Touch Auto Brightness Adjustment. Touch OK.
4. Touch Focus Adjustment. If Auto focusing is selected, the focus position is
adjusted automatically. If Manual focusing is selected, the focus indicator will be
displayed. Adjust focus as desired. Touch OK.
5. Touch Next to proceed to “STEP2”.
Step 2:
Vision
Setup
CONFIGURE
MONITOR
D292105.16c.fm Configure Inspection
Chapter 5: Setup 5- 33
Register Master Image
1. After setting the image optimization, press Register Live Image as Master.
2. Image the target and touch the Trig button.
3. Check the image displayed on the monitor and touch the Register button. Touch
OK.
4. Touch Next to proceed to “STEP3”.
Step 2:
Vision
Setup
CONFIGURE
MONITOR
5-34 TM-403 User’s Guide
Configure Inspection D292105.16c.fm

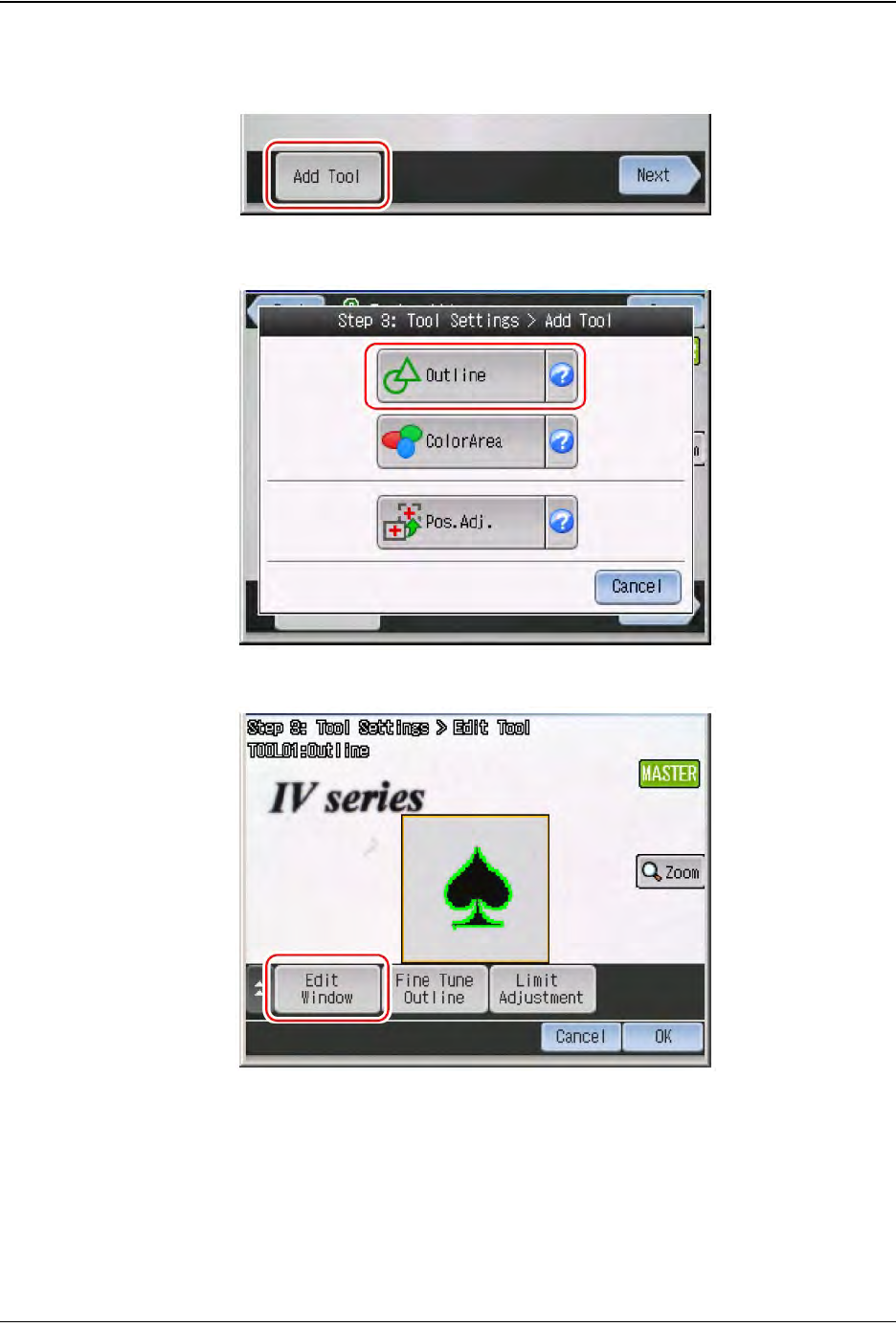

Setup Outline Detection Tool
1. Touch the Add Tool button.
2. Select Outline.
3. Touch Edit Window.
Step 2:
Vision
Setup
CONFIGURE
MONITOR
