D292105.9b.fm System Alarm Messages
Chapter 7: Troubleshooting 7-15
Heat Sealer Inactivity System Alarm
If the Taper is inactive for 40 minutes or longer, the Heat Sealer is automatically disabled. Once
that occurs, if a user attempts to run a job, or use Continuous Advance, Pocket Advance or Man-
ual Seal a Heat Sealer Inactivity system alarm will activate.
When this occurs, tape advance stops, a beep sounds and a warning appears on the HMI.
To clear the Heat Seal Inactivity System Alarm, wait for the heat shoes to reach their set point
and then press CONTINUE to clear the alarm and resume operation. The current temperature is
displayed on the system alarm message.
Note: If the user presses Continue and then attempts to move tape through the sealer
before the temperature has reached the set point, the Temperature Out Of Range system
alarm will appear, prompting the user to wait until the sealer temperature is correct.
7-16 TM-403 User’s Guide
System Alarm Messages D292105.9b.fm
Low Cover Tape System Alarm
The Low Cover Tape sensor is located on the Cover Tape Arm. It
detects when the cover tape supply on the Cover Tape Reel is
below a preset minimum.

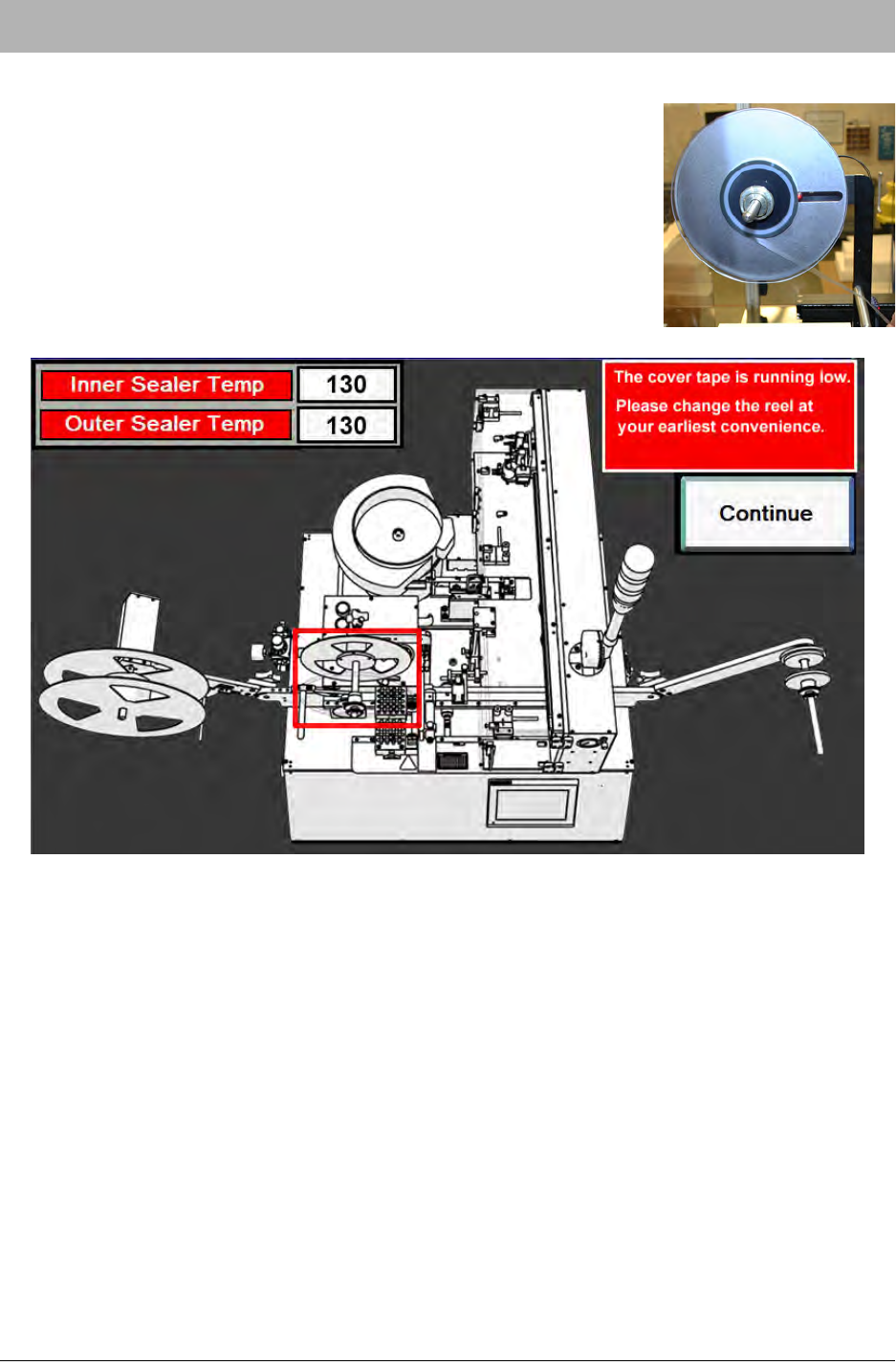

If an operator attempts to start a job when the cover tape level is
below the sensor, operation will not begin. Instead a beep will
sound and a Low Cover Warning message will appear on the
HMI.
The operator can either resolve the warning by loading a full reel of cover tape or ignore the
warning and push START again to continue with the current level of cover tape.
Note: The Low Cover Tape warning will only appear once during a job. If the user ignores
the message and continues operation, the TM-402 will continue taping until the job is fin-
ished or the cover tape is empty.
D292105.9b.fm System Alarm Messages
Chapter 7: Troubleshooting 7-17
Job Quantity Inadequate System Alarm

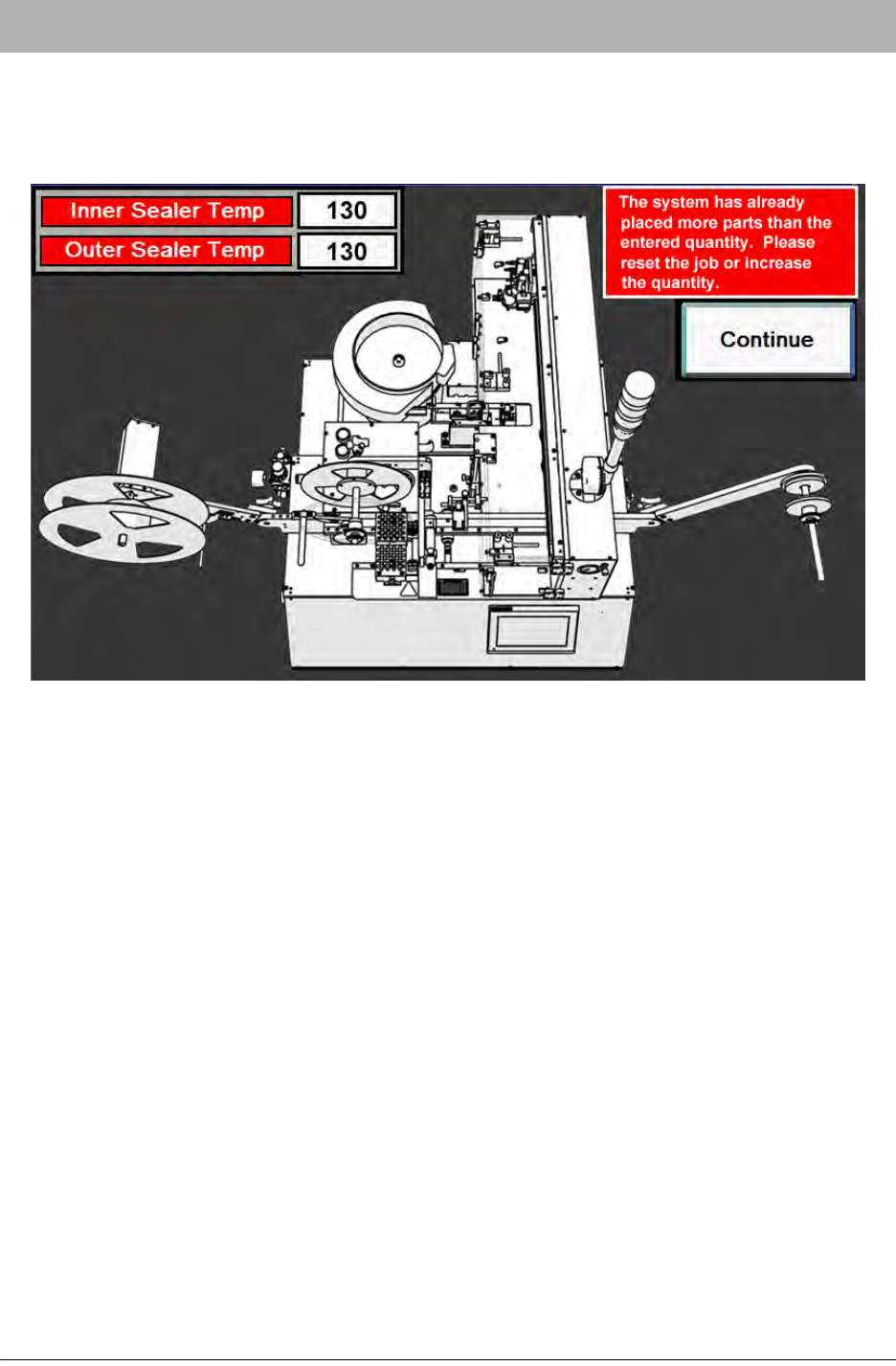

If during the course of a job, the operator changes the job quantity to less than the amount of
parts that have already been processed a Job Quantity Inadequate message will appear on the
HMI.
The operator can resolve the warning by either resetting the job or increasing the job quantity.
Push Continue to clear the alarm message and resume processing.
