5-38 TM-403 User’s Guide
Configure Inspection D292105.16c.fm

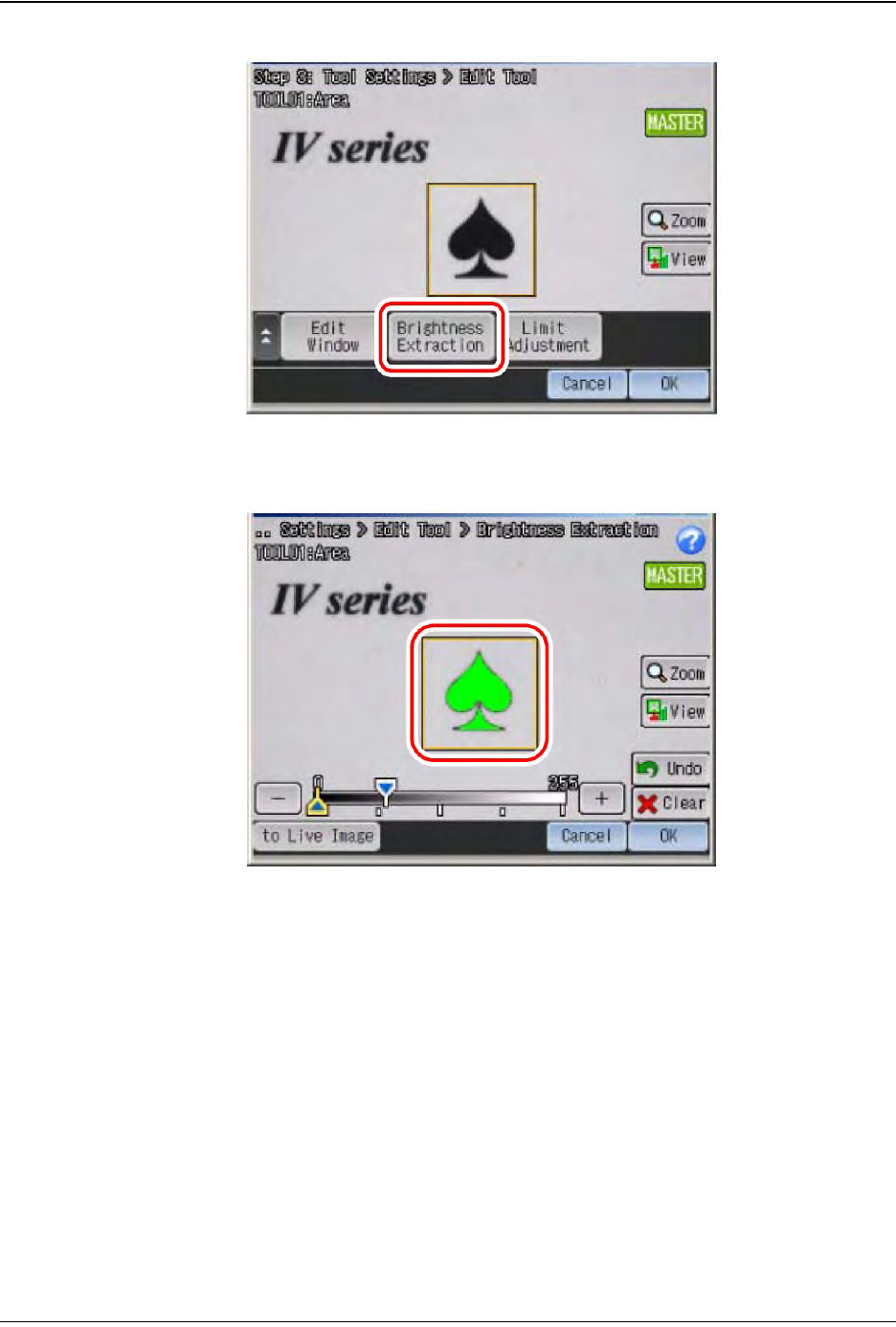

5. Touch the Brightness Extraction button.
6. Touch the brightness area to be the reference of judgment for the Area tool, then
touch OK.
Step 2:
Vision
Setup
CONFIGURE
MONITOR
D292105.16c.fm Configure Inspection
Chapter 5: Setup 5- 39

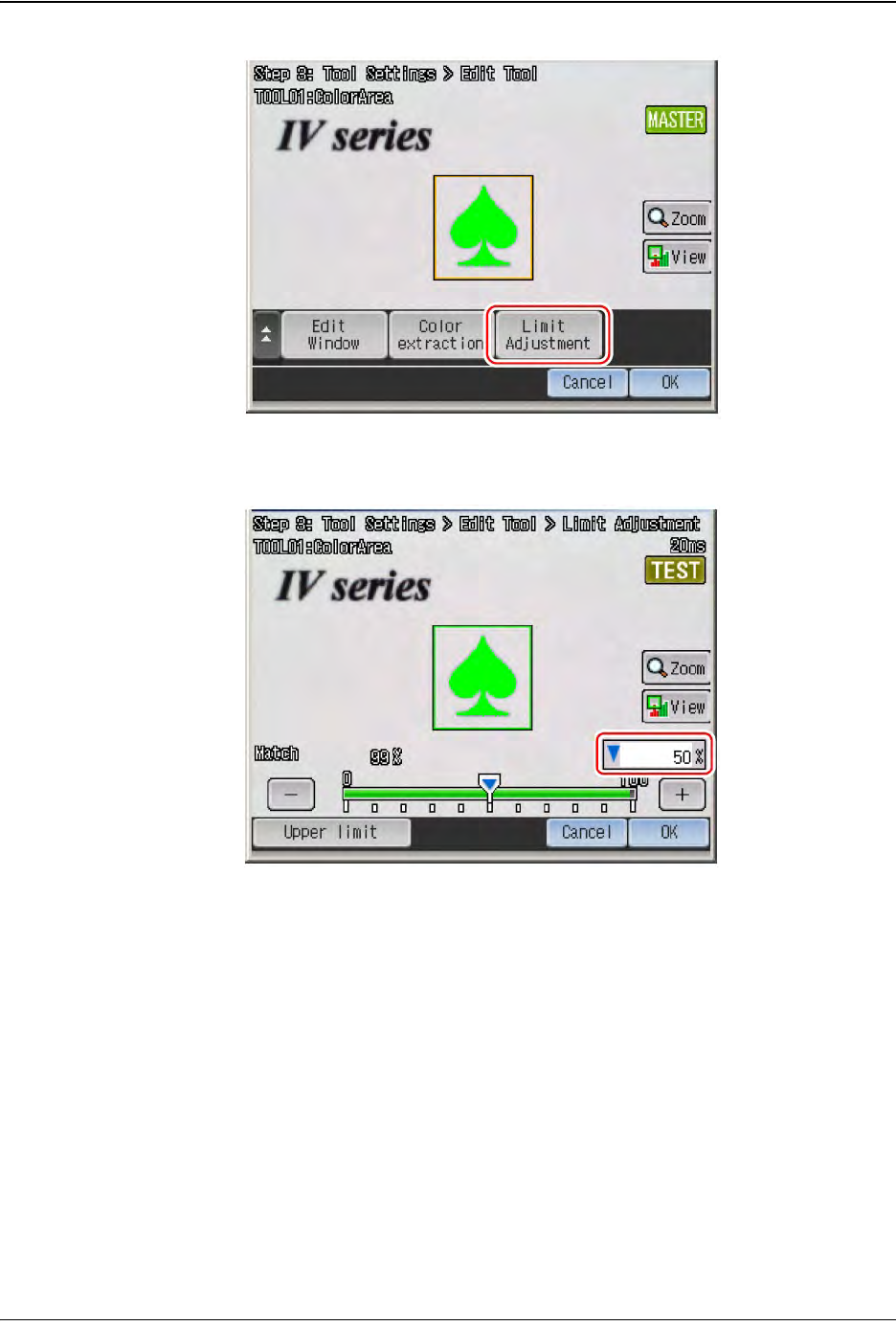

7. Touch the Limit Adjustment button.
8. Set the threshold to judge OK and NG, then touch OK. The display will return to
the main screen for the Color Area/Area tool.
9. Touch OK, then touch Next to proceed to “STEP4”.
Step 2:
Vision
Setup
CONFIGURE
MONITOR
5-40 TM-403 User’s Guide
Configure Inspection D292105.16c.fm
Setup Position Adjust Detection Tool

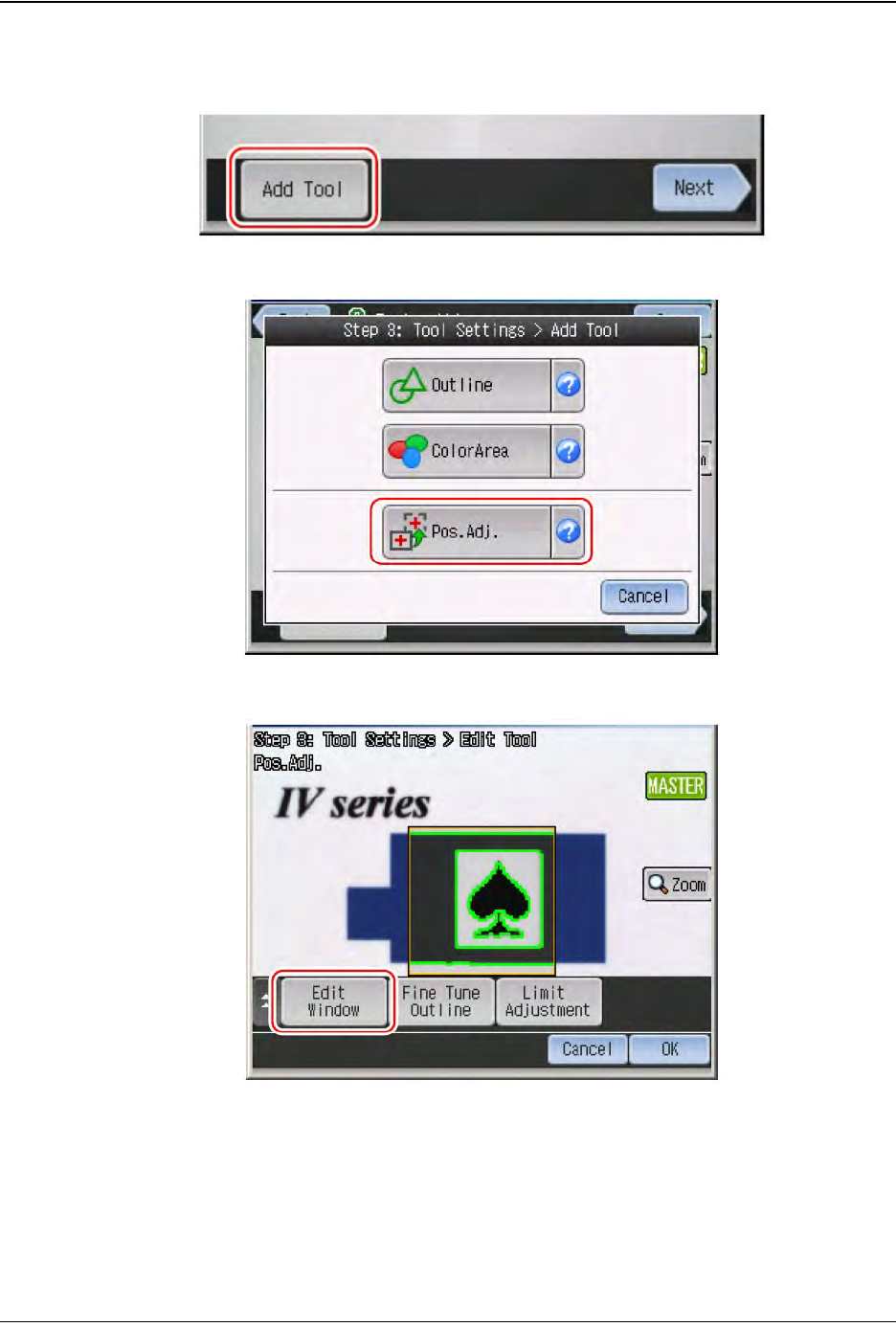

1. Touch the Add Tool button.
2. Touch the Pos.Adj. button.
3. Touch the Edit Window button.
Step 2:
Vision
Setup
CONFIGURE
MONITOR
