D292105.6a.fm Introduction Chapter 3: Human Machine Interface 3-3 Each tab cont ains a variety of toggle buttons and open fields. Press any field to open a numeric or alpha-numeric keyp ad and enter the appropriate info …
3-2 TM-403 User’s Guide
Introduction D292105.6a.fm
Introduction
This chapter gives an overview of the TM-402 Human Machine Interface (HMI), defining the but-
tons, screens and setting options that allow the operator to customize the TM-402’s performance
to their taping needs.
Note: Proceed to Chapter 4: Setup for instructions on how to configure the HMI and to
Chapter 5: Operation for instructions on how to run a job
Touch Screen
The user interacts with the TM-402 through a touch screen HMI which is located on the front of
the machine below the taper. Touching the HMI screen has the same effect as a left click with the
mouse. Although only lightly touching the buttons or data fields is necessary for activation, the
action is referred to as “pressing” in this manual.
Note: Use care when operating the touch screen and do not use any objects other than a
finger to touch the screen. A stylus can also be used to click the various buttons.
HMI Tabs
When the TM-402 is powered on, the user interface opens to the Job Tab. The Job Tab is pic-
tured above as it appears when the motors have been homed.
The Tab Menu is located on the left side of all screens. There are five tabs on the TM-402 HMI:
Job, Taper, Head, Bowl and Run. These tabs allow the user to configure pick head, taper, bowl
feeder and job settings and to run jobs.
To navigate between tabs, press the desired tab name on the Tab Menu and the selected tab will
open. The active tab button is shaded blue. In the example on the above, the Job Tab is
selected.
D292105.6a.fm Introduction
Chapter 3: Human Machine Interface 3-3
Each tab contains a variety of toggle buttons and open fields. Press any field to open a numeric
or alpha-numeric keypad and enter the appropriate information.
3-4 TM-403 User’s Guide
Job Tab D292105.6a.fm
Job Tab

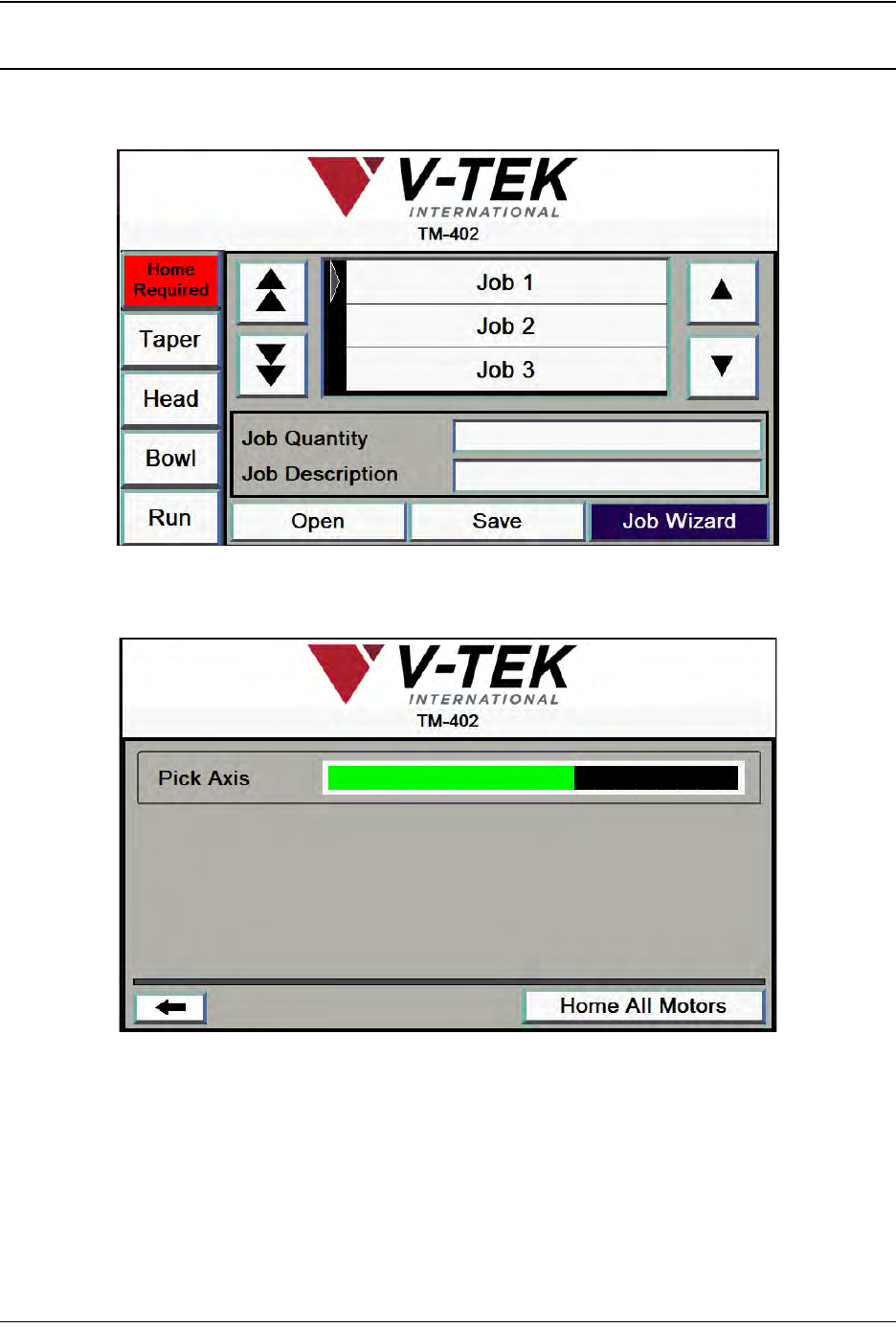

When the TM-402 is initially powered up, the HMI will open to the Job Tab with a red Home
Required button at the top of the Tab Menu and the other tab buttons grayed out.
Homing motors should be done following every system power up or emergency stop. Press
Home Required to open the Homing Status window.
Press the Home All Motors button to begin the homing sequence. Homing progress is displayed
in the Pick Axis Motor Status Bar.
