D292105.16c.fm Configure Inspection Chapter 5: Setup 5- 45 Setup Output 1. T ouch the output line to assign the output fu nction. Set the output functions as follows: • OUT1 = Busy • OUT2 = T ot al St atus • OUT3 - OUT8 …
5-44 TM-403 User’s Guide
Configure Inspection D292105.16c.fm

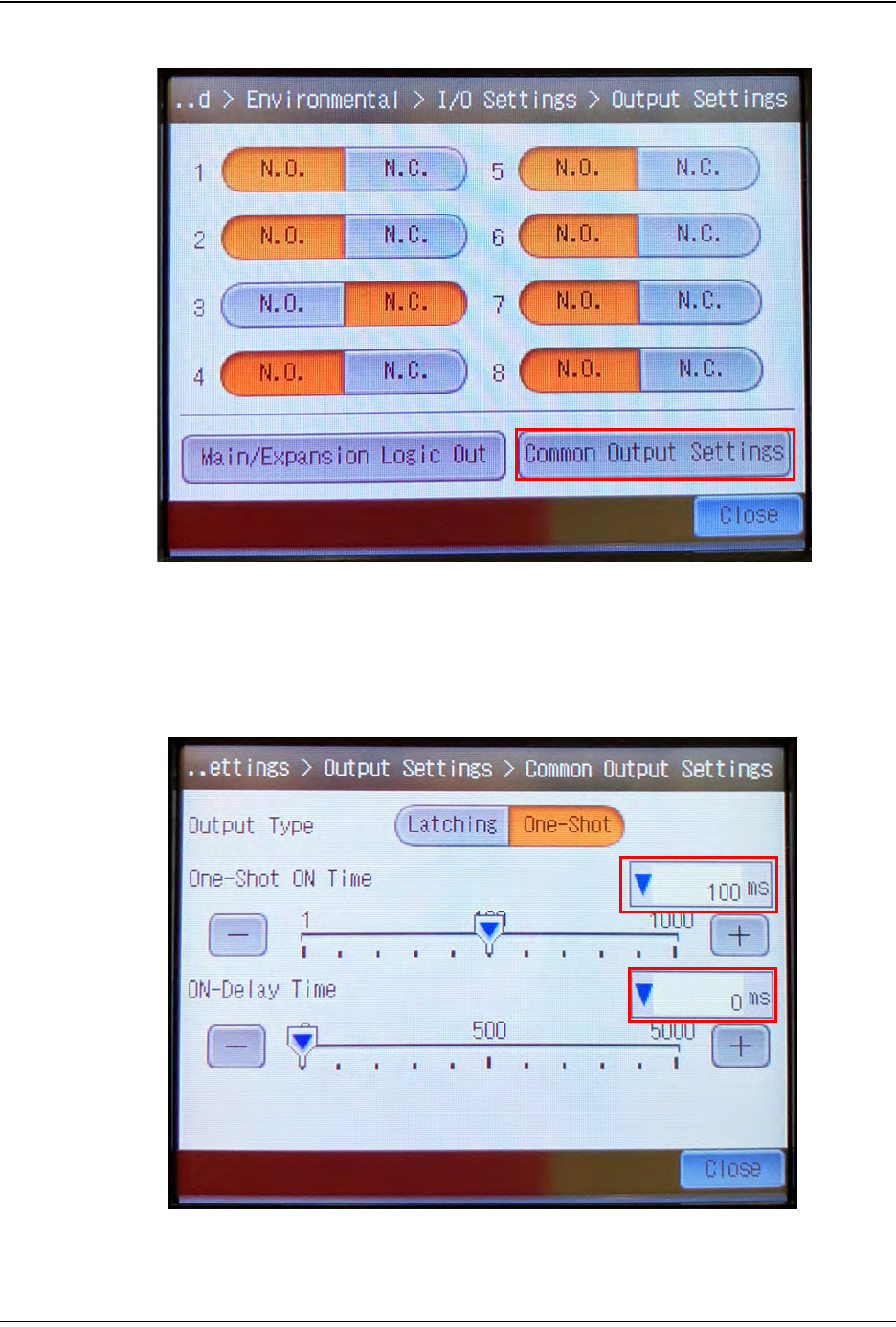

4. In the Output Settings screen, touch the Common Output Settings button.
5. In the Common Output Settings screen, adjust settings as follows:
• One-Shot ON Time = 100 ms
• ON-Delay Time = 0 ms
Step 2:
Vision
Setup
CONFIGURE
MONITOR
D292105.16c.fm Configure Inspection
Chapter 5: Setup 5- 45
Setup Output

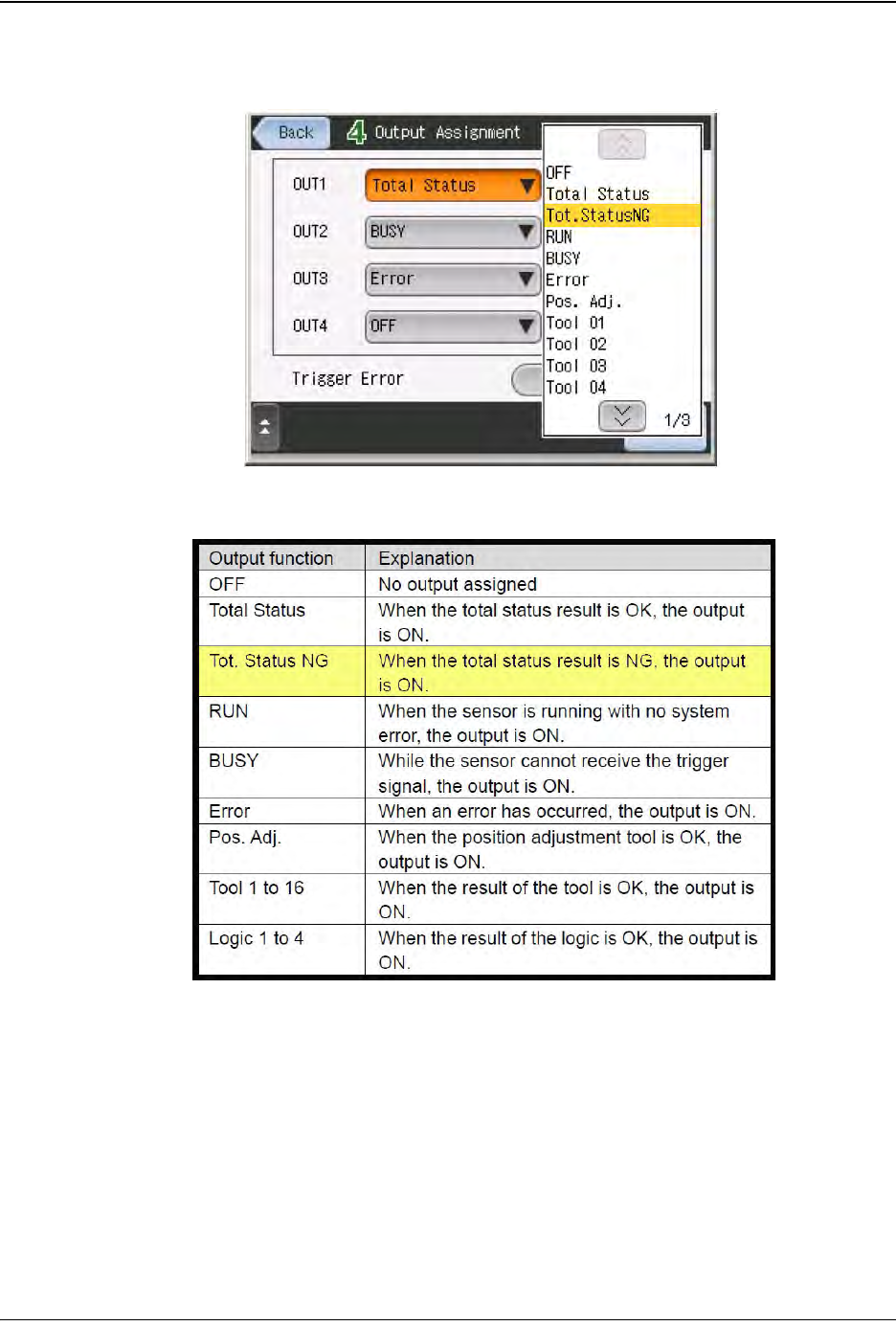

1. Touch the output line to assign the output function.
Set the output functions as follows:
• OUT1 = Busy
• OUT2 = Total Status
• OUT3 - OUT8 = OFF
Step 2:
Vision
Setup
CONFIGURE
MONITOR
5-46 TM-403 User’s Guide
Configure Inspection D292105.16c.fm

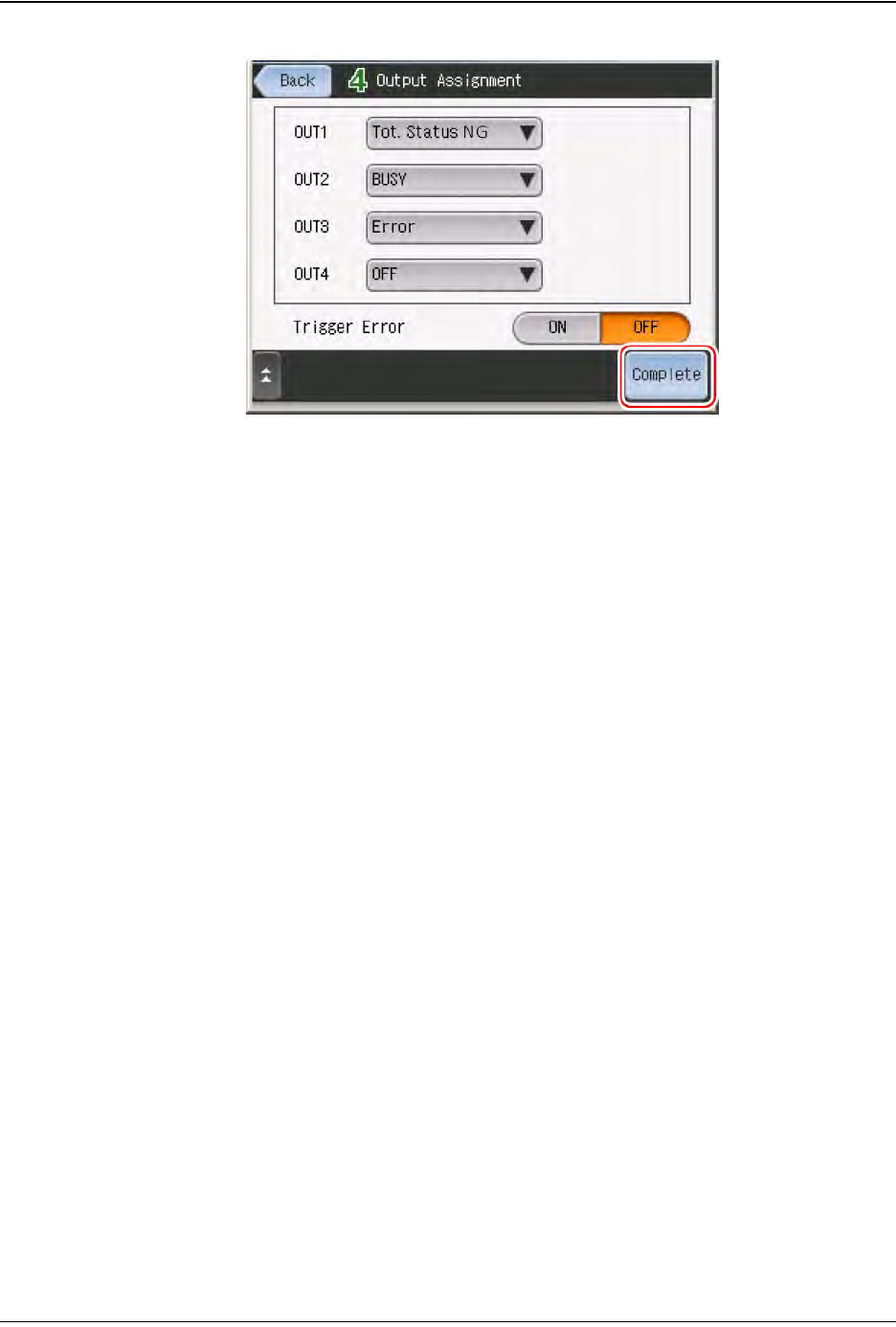

2. After the setting is completed, touch Complete, then touch Yes.
