6-4 TM-403 User’s Guide Preparing to Ru n a Pre-programmed Job D292105.8b.fm Pr eparing to Run a Pr e-pr ogrammed J ob The initial set-up and configu ration of a new job are covered in Chapter 4: Setup . This chapter dis…
D292105.8b.fm Quick Start: Running a Job
Chapter 6: Operation 6- 3
7. Setup Vision.
• Open the Taper Tab on the HMI and advance to the second screen.
• Ensure camera is ON. Configure inspection as needed.
Note: To configure vision inspection, see Chapter 4: Setup.
8. Run the Job.
• On the HMI, select the Run Tab then press Run.
• Load/unload parts and reels as needed.
Caution!
V-TEK® Incorporated takes no responsibility for the safety of TM-402 if it is
used for any purpose other than the intended purpose as specified in this
User’s Guide.
Quick
Start
6-4 TM-403 User’s Guide
Preparing to Run a Pre-programmed Job D292105.8b.fm
Preparing to Run a Pre-programmed Job
The initial set-up and configuration of a new job are covered in Chapter 4: Setup. This
chapter discusses the procedure for setting up existing jobs, running a job and routine
operator tasks.
Caution: Users should always wear protective eye wear when operating
or maintaining the TM-402.
Power up the System
1. Power up the machine by turning the Main Power Switch, which is
located on the right side of the machine, to the ON position.
2. Press the blue Reset button on the left side of the machine.
Home Motors
Note: The TM-402 only needs to be homed once after each power up or emer-
gency stop. Once the motors have been homed, they remain homed until the
machine is powered down.

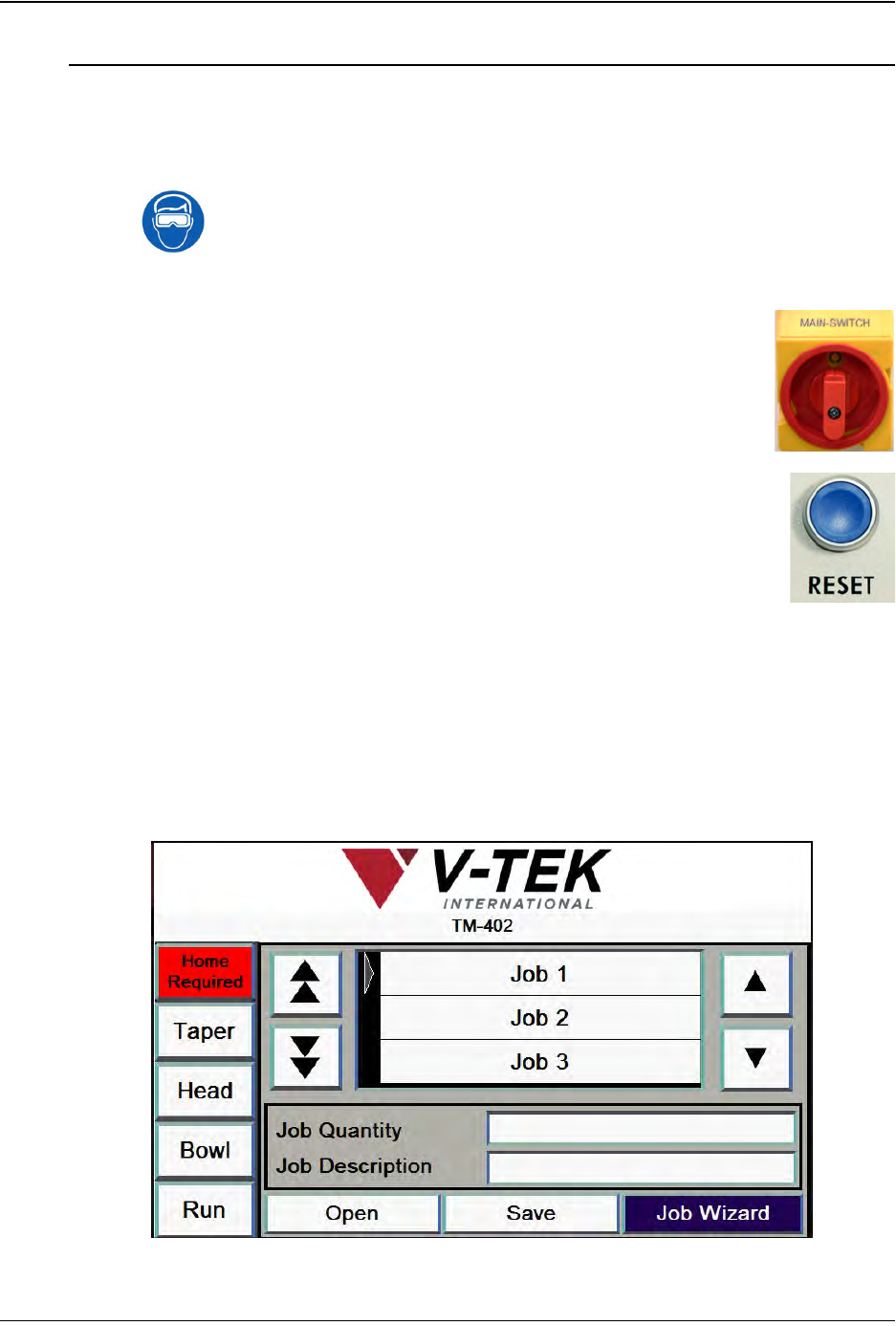

1. The HMI will open to the Job Tab with a red Home Required button at the top of
the Tab Menu and the other tab buttons grayed out. Press Home Required to
open the Homing Status window.
Step 1:
Power
Up
Step 2:
Home
Motors
D292105.8b.fm Preparing to Run a Pre-programmed Job
Chapter 6: Operation 6- 5
2. Press the Home All Motors button.
The motor homing sequence begins with the nozzle moving slowly upwards (Z
Axis movement). After about a three second delay, the pick head will begin to
move slowly to the right towards the taper (X Axis movement).
The pick head homing sequence will continue until the nozzle has risen to its
highest position and then returned to home and the head has moved all the way to
the right and then returned to home.

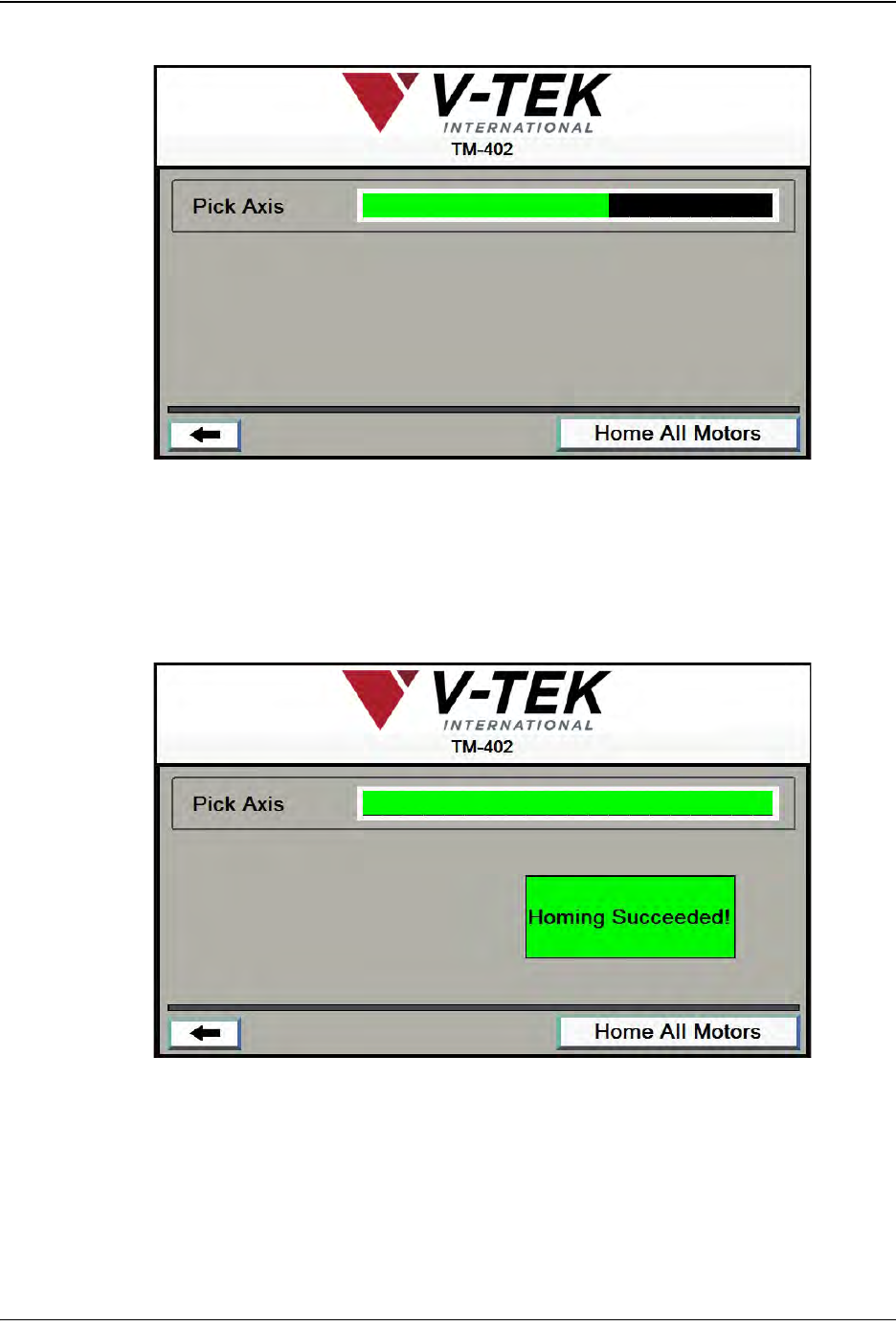

Homing progress is displayed as a green bar in the Pick Axis Motor field of the
Homing window. Once the nozzle and head have stopped moving, homing is
complete. A Homing Succeeded! message will appear on the bottom of the
screen.
Step 2:
Home
Motors
