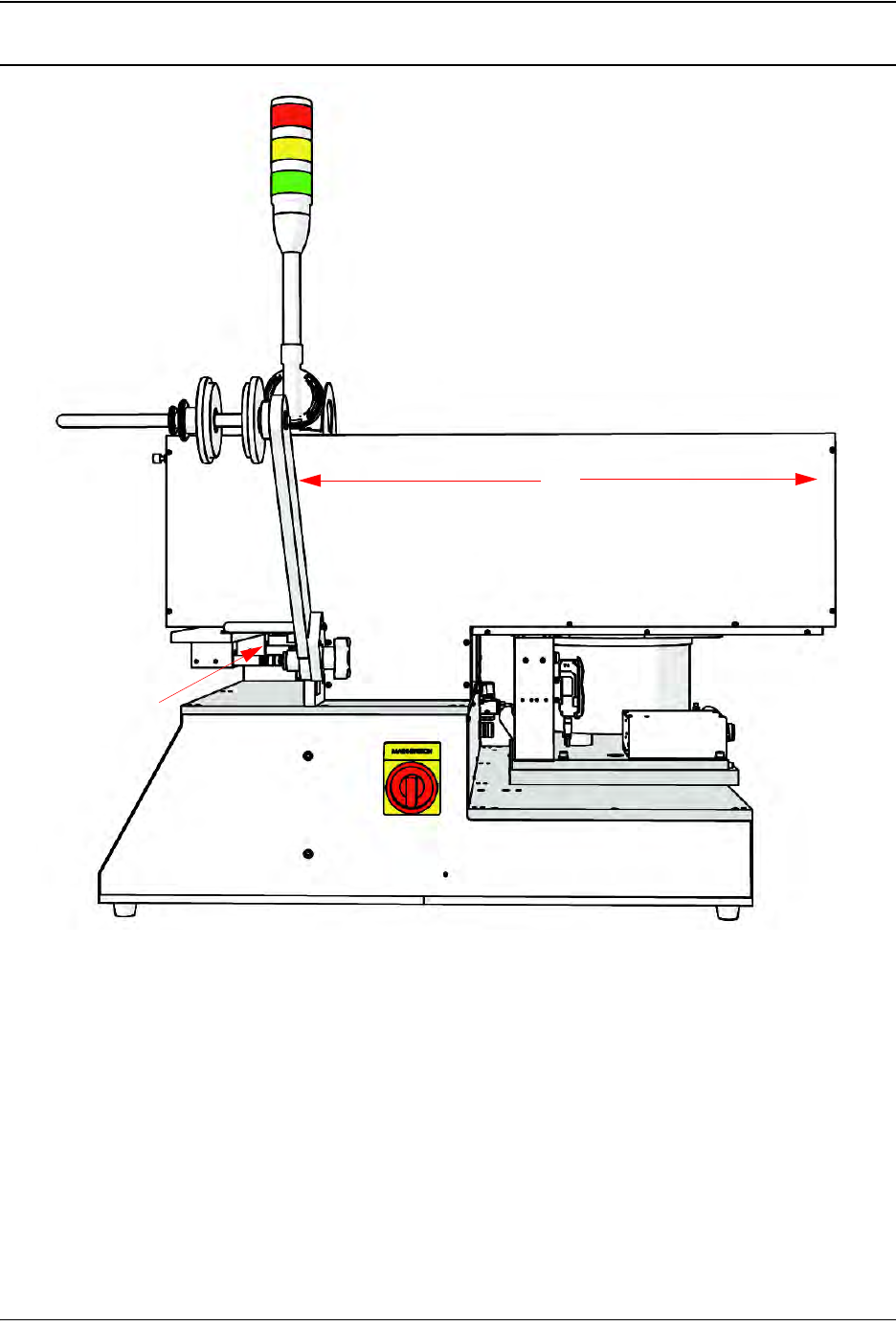

D292105.5b.fm Right Side View
Chapter 2: TM-403 Overview 2-3
Right Side View
A. Tower Light E. Taper Input
B. Pick & Place Head Enclosure F. Bowl Feeder
C. Carrier Tape Arm G. Main Power Switch
D. Carrier Tape Arm Adjustment Knob
C
A
D
G
B
F
E

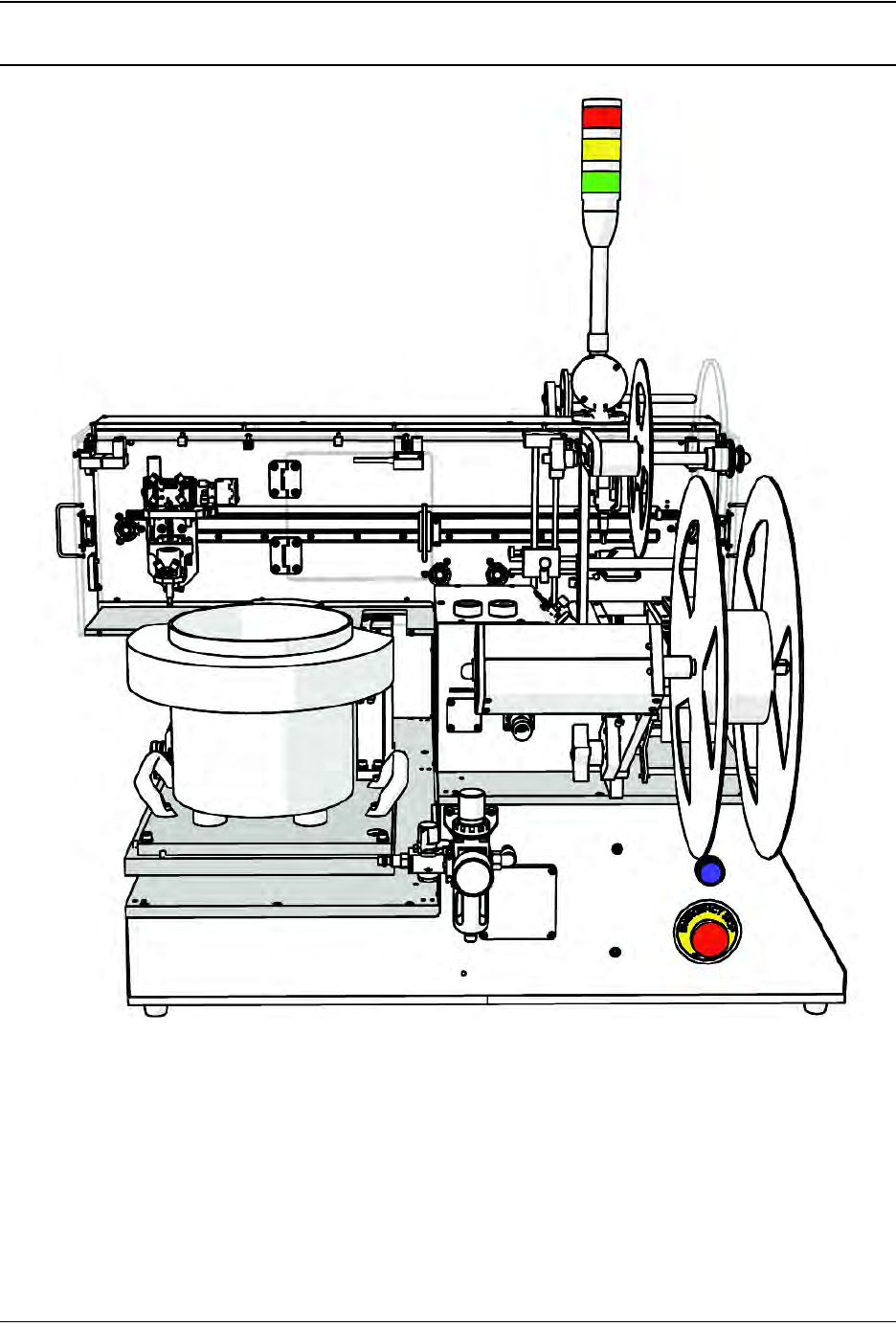

2-4 TM-403 User’s Guide
Left Side View D292105.5b.fm
Left Side View
A. Pick & Place Head Assembly G. Take-up Arm
B. Enclosure Doors (3) H. Cover Tape Arm
C. Bowl Feeder I. Tower Light
D. Air Regulator J. Heat/PSA Sealer
E. Take-up Motor Connection K. Reset Button
F. Take-up Arm Adjustment Knob L. Emergency Stop Switch
I
H
B
G
L
E
J
B
F
K
D
B
A
C
D292105.5b.fm Back View
Chapter 2: TM-403 Overview 2-5
Back View
A. Carrier Tape Arm K. Pick Head Jog Buttons
B. Carrier Arm Adjustment Knob L. Heat/PSA Sealer
C. Main Power Switch M. Bowl Feeder
D. Fuse Holders (Bowl application only) N. Amplitude Adjustment Knobs
E. Pick Head Enclosure O. Ethernet Connection
F. Tower Light P. Keyence Monitor Connection
G. Pick & Place Head Assembly Q. Bowl Feeder Power Connection
H. 2D Vision System R. Air Pressure Regulator
I. Taper Assembly S. Take-up Arm
J. Cover Tape Arm T. Power Receptacle
A
C
E
D
F
G
J
L
B
Q
H
I
K
K
O
P
M
R
S
T
N
