Introduction
Contents
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .ii
Theory of Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iii
Machine Details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iv
Intended Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .v
Operator Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .vii
Safety Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .viii
Safety Warning Labels. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xi
Contact Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xii
Introduction D292105.2a.fm ii
Introduction

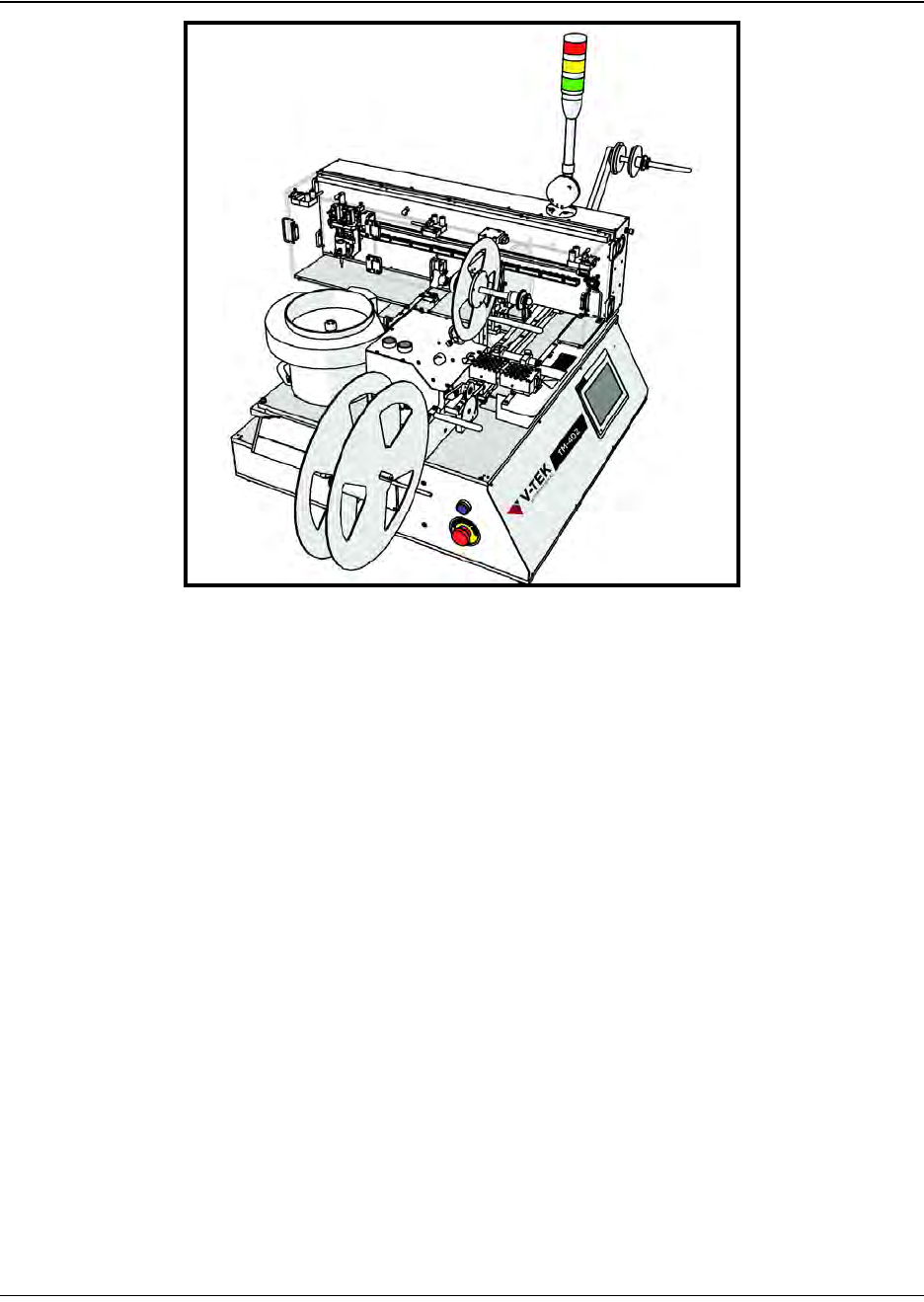

Thank you for purchasing the TM-402 Component Handling Machine. The TM-402 is a table-
top pick and place tape and reel machine with vision, designed for use in production environ-
ments for electronic devices. This machine accepts devices loaded in a bowl feeder. It features a
2D over tape vision system for component verification. A touch screen interface simplifies the
setup process, and minimizes set up time and operator intervention for fast, easy functioning.
Standard Features:
• Touch screen operator interface for easy setup and operation
• Bowl input, Tape output
• Ability to rotate components +/-90° or 180°
• Innovative universal adjustable heat and PSA sealer
• Software controlled advance movement of carrier tape (2mm to 144mm pitch)
• Adjustable track assembly for tape widths 8mm to 72 mm
• 2D Vision over tape inspection for Mark, Orientation and Empty Pocket Detection.
• User-friendly safety enclosure with multiple access points provides easy access with
minimal downtime
• Automatic Jam in Track and Low Cover Tape Detection Sensors
