Service Work
3.6.9 Replacing the Lifting Table Stabilizer (Stabilizer Unit) [00358684-xx] Modular PCB Conveyor System
Service Manual SIPLACE X Series 169
Installation and adjustment
Insert and twist the new stabilizer (5) until the plunger
just touches the actuator (1), so that the lifting table
can be gently moved upwards.
Using the torque wrench:
Secure this position with the locknut (2) tightened to
8Nm.
Check whether the stabilizer has been fixed onto the
mounting block with the locknut and that the stabilizer
plunger has a gap of approx. 0.1 mm to the actuator
(gap in untriggered mode). In this default setting, the
lifting table should move up gently.
If this is not the case, loosen the locknut and turn the
stabilizer approx. one rotation into the mounting
block.
Fit the lifting table plate.
Start SITEST and move the lifting table up.
The lifting table should move up gently i.e. you should
not hear the PCB clamping device audibly locking
into place and no clamping device error messages
should be issued.
Check the speed of the lifting table cylinder and cor-
rect where necessary.
Service Work
Modular PCB Conveyor System 3.6.10 Replacing the Lifting Table Solenoid Valve [00358663-xx]
170 Service Manual SIPLACE X Series
3.6.10
3.6.10 Replacing the Lifting Table Solenoid Valve [00358663-xx]
Replacing the Lifting Table Solenoid Valve [00358663-xx]
Removal/installation
Switch off the compressed air supply and release the air at the pneumatic unit filter.
Loosen the screws fastening the connection plug and then unplug it.
Remove the compressed air connections.
Fit the new solenoid valve and reconnect the electrical and compressed air systems.
Fit the complete lifting table into the machine again.
Check the speed of the lifting table and correct where necessary.

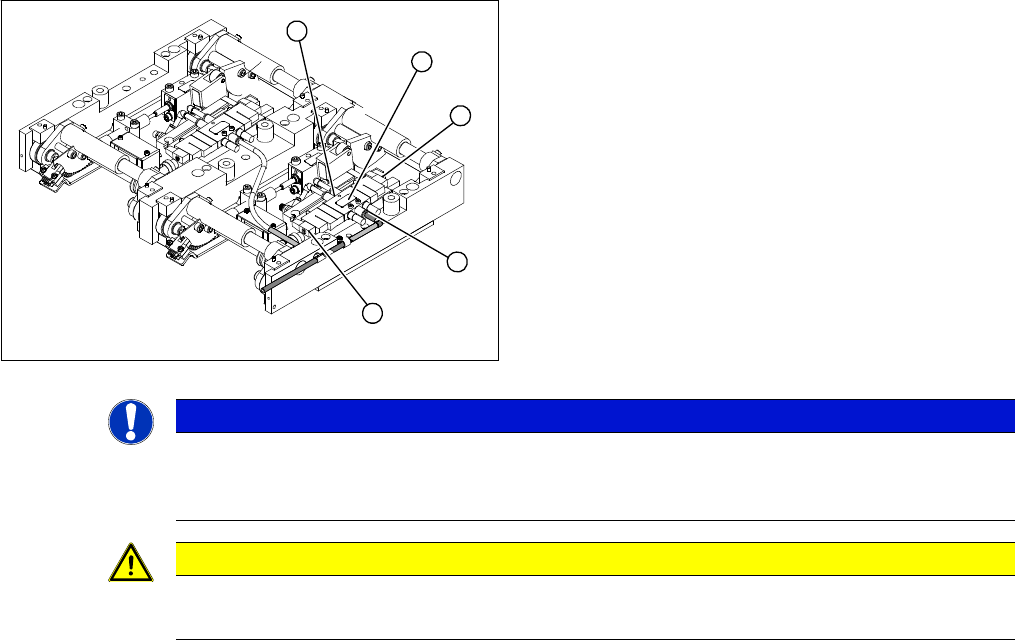

1. Solenoid valve with two fastening screws
2. Connection plug
3. Compressed air connections
Move the PCB conveyor to the position which gives
you best access to the lifting table.
Move the Y gantries into the area outside the PCB
conveyor.
Switch off the machine and secure it to prevent unau-
thorized reactivation.
Loosen the screws fastening the lifting table plate and
remove the lifting table plate from the lifting table unit.
NOTICE
Removing the lifting table
You may wish to completely dismantle the lifting table, to give you better access to the solenoid
valves.
CAUTION
Heavy machine part!
When removing the lifting table, remember it is heavy (17.5 kg).
Service Work
3.6.11 Replacing the Lifting Table Fork Light Barrier [00363079-xx] Modular PCB Conveyor System
Service Manual SIPLACE X Series 171
3.6.11
3.6.11 Replacing the Lifting Table Fork Light Barrier [00363079-xx]
Replacing the Lifting Table Fork Light Barrier [00363079-xx]
Parts
Light barrier for track A – dual conveyor [00363079-xx]
Light barrier for track B – dual conveyor [00363080-xx]
Light barrier for track A – single conveyor [00363111-xx]
Light barrier for track B – single conveyor [00363113-xx]
Removal/installation
1. Connection cable for the conversion board of the lift-
ing table
2. Two fork light barriers (distance measuring system
lane A and B)
3. Conversion board of the lifting table (under the cover)
Move the PCB conveyor to the position which gives
you best access to the lifting table.
Move the Y gantries into the area outside the PCB
conveyor.
Switch off the machine and secure it to prevent unau-
thorized reactivation.
Loosen the screws fastening the lifting table plate and
remove the lifting table plate from the lifting table unit.
Loosen the two screws (2) fastening the fork light bar-
rier.
Remove the cover from the conversion board of the
lifting table (3).
Unplug the lifting table conversion board.
Fit the new fork light barrier and reconnect to the
electrical system.
