3.8.2 Replacing the Cable Tree and ODU Connector [03006855-xx]
Replacing the Cable Tree and ODU Connector [03006855-xx]

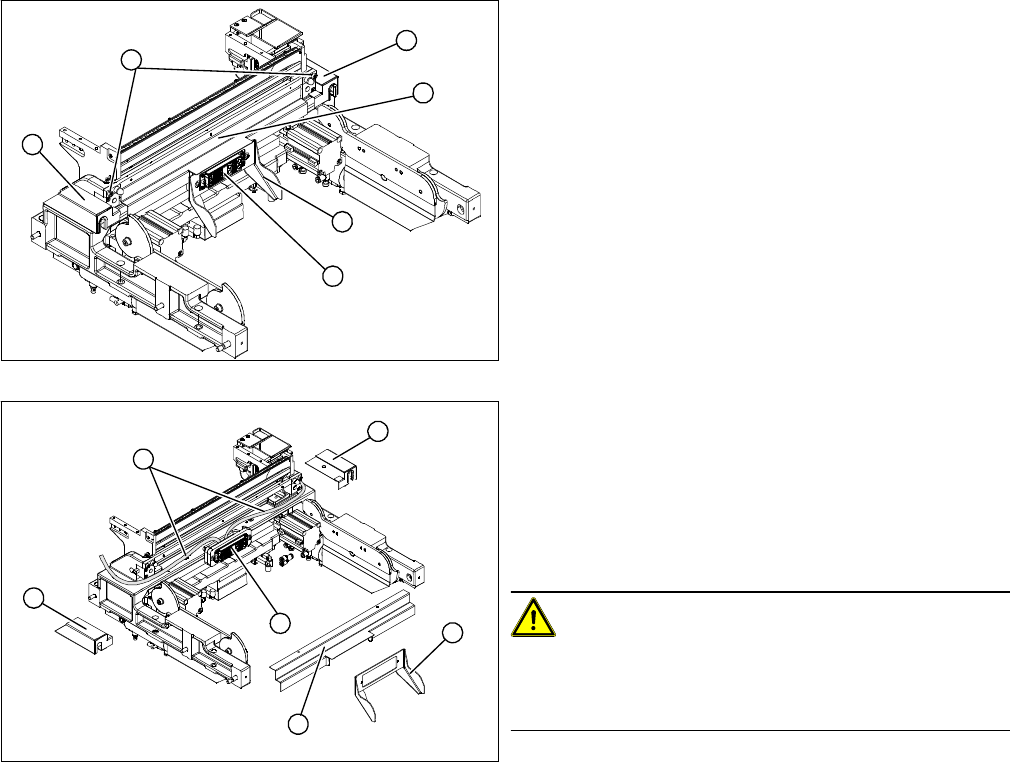

Overview
1. ODU connector with cable tree
2. Cover
3. Centering bar
► Remove the complete COT insert from the machine
and place it on a suitable surface.
► Remove the slider (5) on the ODU connector (1).
► Loosen the screws fastening the covers (2) and re-
move the covers (2).
► Loosen the screws fastening (4) the centering bar (3).
► Remove the centering bar (3).
► Loosen the fastening screws on the ODU connector
(1).
► Unthread and then disconnect the electrical and com-
pressed air connection cables (2).
► Remove any cable ties and the spiral hose..
► Note how the cables are run.
CAUTION!
Check how the cables are run!
Make sure that the cables attached to the ODU connector
are not under strain!
► Install the new ODU connector (1) and reconnect to
the electrical and compressed air systems.
► Run the cables and hoses, using the spiral hose and
cable ties.
► Fit the centering bar (3), the covers (4) and the slider
(5).
1
2
3
4
5
2
4
1
5
4
3
2
Service Work
3.8.3 Replacing the Undocked Component Trolley Short-Stroke Cylinder [03002876-xx] COT Insert HF R2
Service Manual SIPLACE X Series 205
3.8.3
3.8.3 Replacing the Undocked Component Trolley Short-Stroke Cylinder [03002876-xx]
Replacing the Undocked Component Trolley Short-Stroke Cylinder [03002876-xx]
Overview
Removal/installation
1. Undocked short-stroke cylinder for the component
trolley
NOTICE!
The COT insert can remain fully assembled and does not
need to be removed from the machine.
1
1
► Loosen the screw fastening the cover (2).
► Disconnect the compressed air connection (3) from
the short-stroke cylinder (1).
► Loosen the two screws (4) fastening the short-stroke
cylinder.
► Install the new short-stroke cylinder (1) and recon-
nect to the compressed air system (3).
► Run the cables and hoses again under the cover (2).
Make sure you do not damage the cables and hoses.
1
4
3
2
Service Work
COT Insert HF R2 3.8.4 Replacing the Control Valve [03005828-xx]
206 Service Manual SIPLACE X Series
3.8.4
3.8.4 Replacing the Control Valve [03005828-xx]
Replacing the Control Valve [03005828-xx]
Removal/Installation
3.8.5
3.8.5 Replacing the Docked Component Trolley Round Cylinder [03002255-xx]
Replacing the Docked Component Trolley Round Cylinder [03002255-xx]
Overview
1. Control valve
► Remove the complete COT insert from the machine
and place it on a suitable surface.
► Unplug the electricity and compressed air cables
from the control valve (1).
► Loosen the fastening screws and remove the control
valve (1).
► Install the new control valve (1).
► Reconnect to the electrical and compressed air sys-
tems.
► Fit the complete COT insert in the machine.
1
1. Docked component trolley round cylinder
2. Cam disc unit
► Remove the complete COT insert from the machine.
1
2
2
1
