Settings
Conveyor Settings 5.4.3 Setting the Fixed Conveyor Edge (from SW701)
326 Service Manual SIPLACE X Series
5.4.3
5.4.3 Setting the Fixed Conveyor Edge (from SW701)
Setting the Fixed Conveyor Edge (from SW701)
5.4.3.1
5.4.3.1 General Notes
General Notes
Setting the Fixed Conveyor Edge
The fixed conveyor side is always set in the standard mode with right side fixed. You need to set a value
of 38.8 mm between the conveyor base and the fixed conveyor side, with the help of a gauge.
▪ [03054247-xx] Gauge for fixed conveyor edge DT/ET HS60/D4
▪ [03054248-xx] Gauge for conveyor edge distance DT HS-60/D4
Teach the fixed side with the software and store the value.

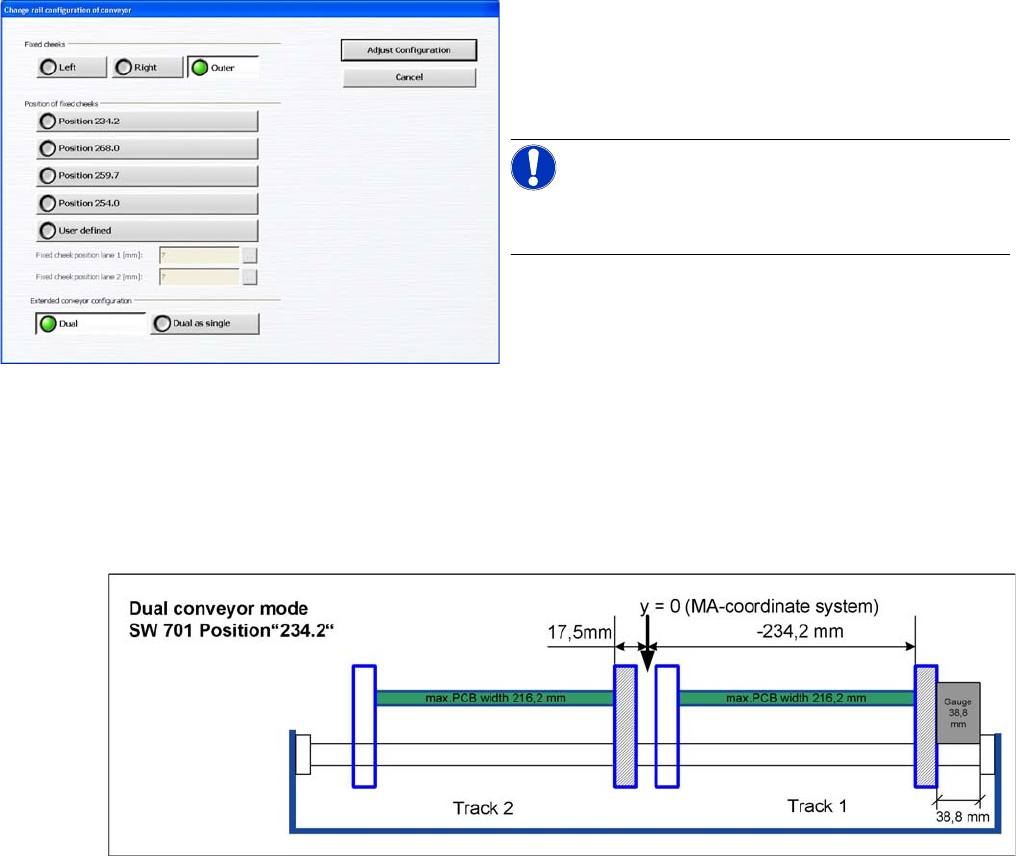

Setting the fixed conveyor side
When using dual conveyors in the X4I, the fixed conveyor
side can be set as required i.e. the left or right side, or the
outer edges of each conveyor for i-placement. The com-
patibility to the other machines can be set via predefined
values in the SW (see diagram).
NOTICE!
This menu is accessible from operator level Service (cus-
tomer)!
Settings
5.4.3 Setting the Fixed Conveyor Edge (from SW701) Conveyor Settings
Service Manual SIPLACE X Series 327
Values
The measurement is performed between the side flange and the fitting flange of the mounting frame (see
also the "Example X-Series")
Example of X series
Setting the "fixed conveyor side" in SIPLACE X, HF series
Machine Single conveyor
Standard width
508 (460) mm
Dual conveyor
Standard width
250 (216) mm
Quad lane
Standard width
114 mm
HF series 19 (43) mm 4.5 (38.8) mm
X series / D3
up to July 2007
19 (43) mm 4.5 (38.8) mm
X series / D3
from July 2007
16 (40) mm 4.5 (38.8) mm 2 mm
X4I 16 (40) mm 4.5 (38.8) mm 2 mm
Machine Single conveyor
Standard width
460 mm
Dual conveyor
Standard width
216 mm
HS-60 34.5 mm 30.5 mm
S27 HM 34.5 mm 30.5 mm
D4 34.5 mm 30.5 mm
D1/D2 34.5 mm 30.5mm
NOTICE
Only with SITEST
The fixed conveyor side should be adjusted only with the SITEST software and the width ad-
justment devices. This ensures that the conveyor sides are in their correct positions (parallel)
i.e. that the conveyor runs straight.
Settings
Conveyor Settings 5.4.3 Setting the Fixed Conveyor Edge (from SW701)
328 Service Manual SIPLACE X Series
Shaft fixtures (bearing flange)
▪ After teaching the fixed conveyor side, you need to recalibrate the PCB reference corner, to prevent
fiducial errors during placement.
NOTICE
Versions
Since July 2007, X machines with single conveyors use a new version of the shaft fixtures
(bearing flange) with a width of 15 mm, instead of 12 mm. The setting for standard single con-
veyors changes with this new version, to 40 mm.
(1) Bearing flange – first version 12 mm (2) Bearing flange – new version 15 mm
NOTICE
Only with software
The fixed conveyor side may only be adjusted via software and with the width adjustment de-
vices. This ensures that the conveyor sides are in their correct positions (parallel) i.e. that the
conveyor runs straight.
