Description of the Circuit Boards
6.2.4 DIP Switch on the Vision Board Gantry
Service Manual SIPLACE X Series 369
6.2.4
6.2.4 DIP Switch on the Vision Board
DIP Switch on the Vision Board
6.2.4.1
6.2.4.1 DIP Switch on the Vision Board (Digital Version 01)
DIP Switch on the Vision Board (Digital Version 01)
* Not all gantries may be available, depending on the machine type.
6.2.4.2
6.2.4.2 DIP Switch on the Vision Board (Digital Version 02)
DIP Switch on the Vision Board (Digital Version 02)
* Not all gantries may be available, depending on the machine type.
S Gantry* Comments
1 2 3 4
1OF
F
OF
F
OF
F
OF
F
Boot - CAN processor 16 bit on sub board
2OF
F
OF
F
OF
F
OF
F
Reset - CAN processor 16 bit on sub
board
3OF
F
ON OF
F
ON P0 - Gantry address switch 1
4OF
F
OF
F
ON ON P1 - Gantry address switch 2
5OF
F
OF
F
OF
F
OF
F
WPE - Write protect enable, currently OFF
6OF
F
OF
F
OF
F
OF
F
CAN R - Switch terminator CAN bus
7ONONONONTest 1 - CAN 1 MBit/s --> ON
8ONONONONTest 0 - CAN group --> ON
S Gantry* Comments
1 2 3 4
1OF
F
OF
F
OF
F
OF
F
Reset - CAN processor
2OF
F
ON OF
F
ON PID0 address switch 1 -> gantry
3OF
F
OF
F
ON ON PID1 address switch 2 -> gantry
4OF
F
OF
F
OF
F
OF
F
CAN R - switch for the terminal resistor on
the CAN bus
5ONONONONSpeed: ON = 1 Mbit/s, OFF = 500 Kbit/s
6ONONONONCAN ID - for X machine ON
Description of the Circuit Boards
Conveyor 6.3.1 Conveyor Control TSP 301
370 Service Manual SIPLACE X Series
6.3
6.3 Conveyor
Conveyor
6.3.1
6.3.1 Conveyor Control TSP 301
Conveyor Control TSP 301
6.3.1.1
6.3.1.1 Jumper Settings for TSP 301
Jumper Settings for TSP 301

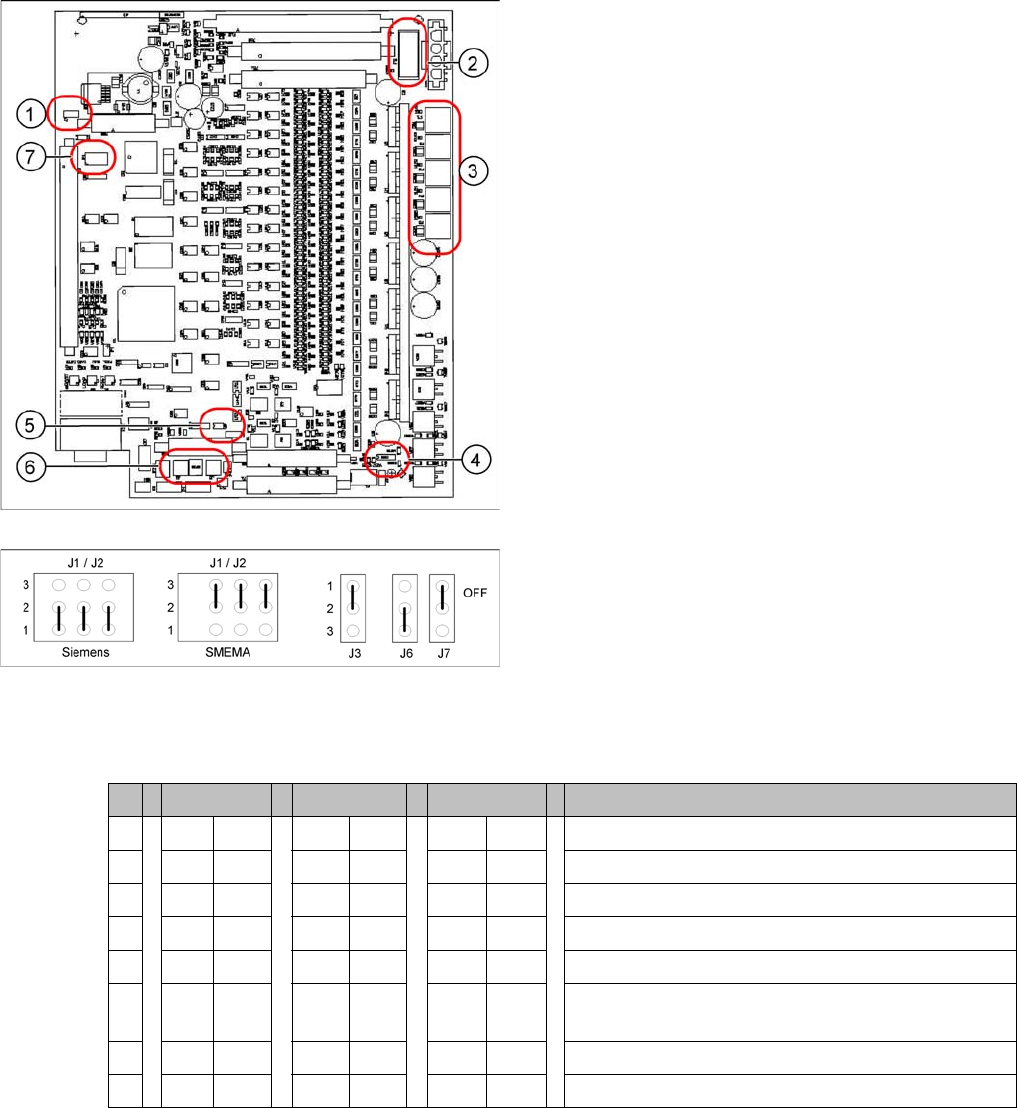

DIL switch S4 at TSP 301
* Switches 1 and 2 set the hardware ID 5 for D4 machines and hardware ID 6 for X4I, X series, HF and
D3.
1. J7 CAN bus 1 terminating resistor
2. F6 Main Fuse TSP 301
3. F1 - F5 Fuses for the conveyor motors
4. J3 interference loop
5. J6 CAN bus 2 terminating resistor (not used)
6. J2, J1 downstream/upstream station
7. S4 DIL switch
Jumper J1, J2 "downstream/upstream station" at TSP
301
▪ J1 upstream station
▪ J2 downstream station
▪ J3 interference loop (EMERGENCY STOP on pro-
ductivity lift also switches the placement machine off)
▪ J6 CAN bus 2 terminating resistor (not used)
▪ J7 CAN bus 1 terminating resistor
S X4I D4 X/D3/HF Comments
1* ON ON ON ON
2* OFF ON OFF ON = SIPLACE D4, OFF: SIPLACE X, HF, D3, X4I
3 OFF OFF OFF OFF= clamping sensor is no longer used
4ONONOFF OFFONON = Quad lane, OFF: Standard conveyor
5 OFF OFF OFF Not in use
6 OFF ON OFF OFF ON OFF: Standard conveyor, ON: Quad
lane (conveyor sides, outer fixed)
7 OFF OFF OFF Not in use
8 OFF OFF OFF Not in use
Description of the Circuit Boards
6.3.1 Conveyor Control TSP 301 Conveyor
Service Manual SIPLACE X Series 371
6.3.1.2
6.3.1.2 Conveyor Control TSP 301 with Siemens Interface
Conveyor Control TSP 301 with Siemens Interface
TSP 301 SMEMA --> Siemens
1. 10-pin connector for SMEMA interface
X3: predecessor station
X4: successor station
2. Connection for Siemens interface
X1: predecessor station
X2: successor station
NOTICE!
Standard / option
The SMEMA interface is the standard and the Siemens
interface optional for all X machines.
The Siemens interface is the standard and the SMEMA
interface optional for all D machines. An adapter is re-
quired for the SMEMA interface when used on D1/2/4
machines.
WARNING!
Irreparable damage to the TSP board!
The 10-pin locking clip plug of SMEMA connections must
be disconnected from the TSP 301!
Firmware: no modification required
Following modification are necessary for using the Sie-
mens interface:
► Jumper J1/J2: need to be moved (see following dia-
gram).
► Disconnect the connector X3 and X4 on the TSP 301!
► Connect the Siemens interface cable on the connec-
tor X1 and X2.
Jumper J1 and J2 (Siemens/SMEMA)
