3.9.3 Replacing the Articulated Joint on the Short-Stroke Cylinder [03000518-xx] Cutter

Service Manual SIPLACE X Series 215

3.9.3

3.9.3 Replacing the Articulated Joint on the Short-Stroke Cylinder [03000518-xx]

Replacing the Articulated Joint on the Short-Stroke Cylinder [03000518-xx]

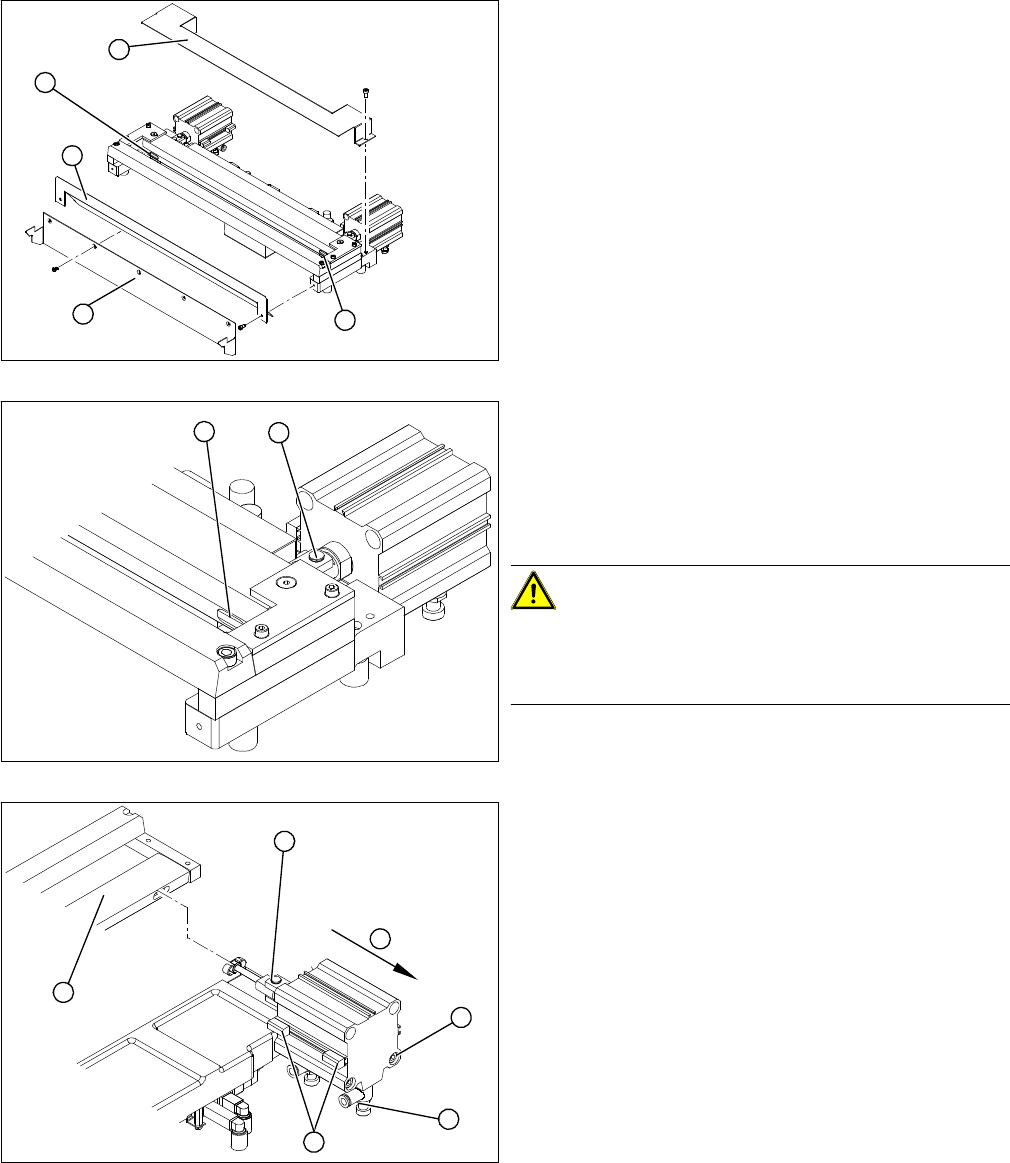

Removing the articulated joint

► Dismantle the COT insert and the cutter.

► Remove the protective plate (2) and the baffle plate

(3).

► Remove the cover plate (1).

► Remove the caps (4) on the fastening screws.

1. Articulated joint on the short-stroke cylinder

2. Fastening screw on moveable blade.

► Loosen the screw (2) holding the moveable blade.

CAUTION!

Risk of injury!

There is a risk of injuring yourself on the cutting edge of

the blades.

► Use a permanent marker to mark the exact installa-

tion position of the proximity switch (1) on the short-

stroke cylinder. Mark the hoses.

► Loosen the screws fastening the two inductive prox-

imity switches (1) to the short-stroke cylinder.

► Remove the compressed air connections (2) on the

short-stroke cylinder.

► Remove the two screws (3) holding the short-stroke

cylinder.

► Pull the short-stroke cylinder (4) and the articulated

joint screwed into it (5) out of the cutter set (6).

Service Work

Cutter 3.9.3 Replacing the Articulated Joint on the Short-Stroke Cylinder [03000518-xx]

216 Service Manual SIPLACE X Series

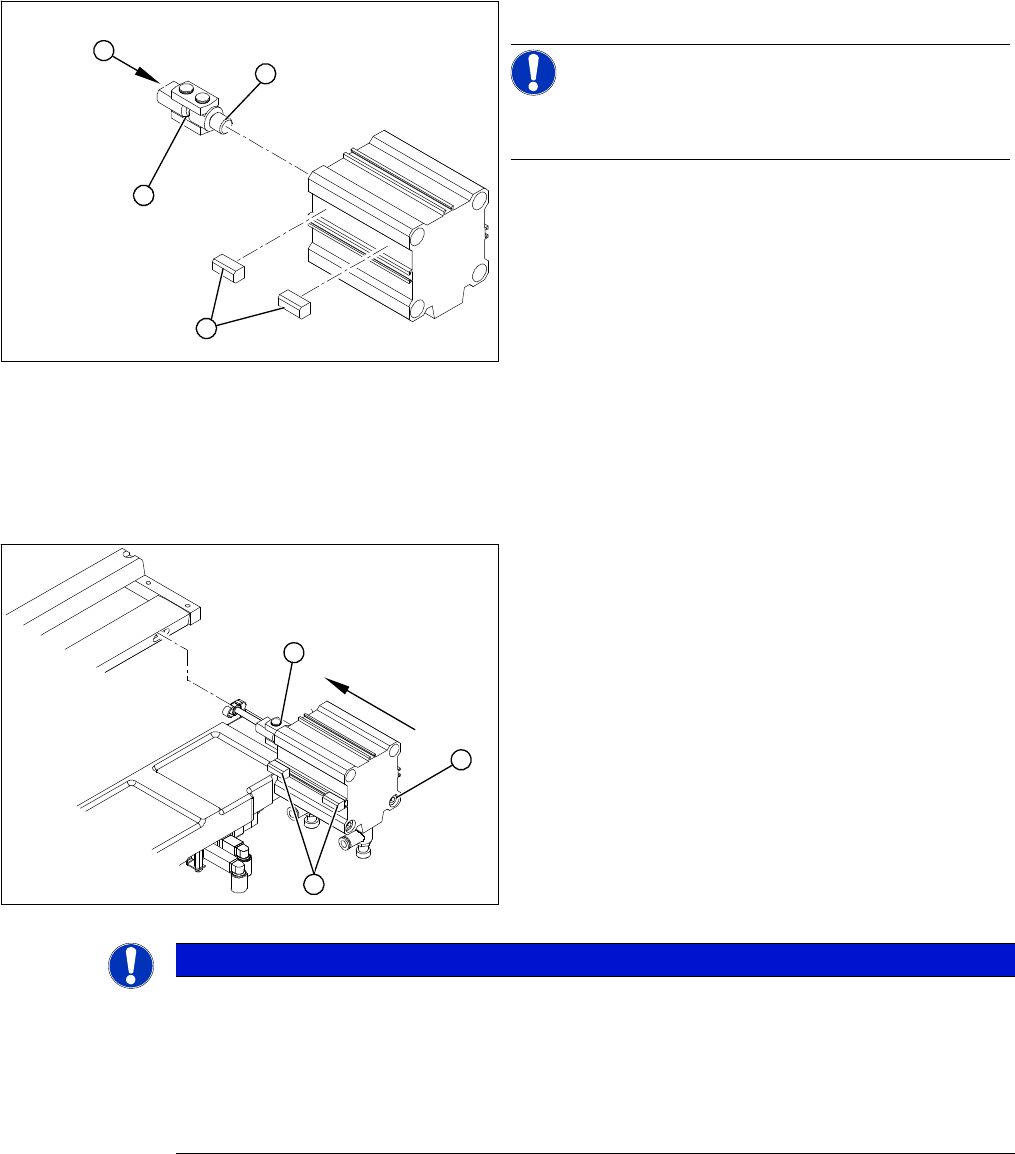

Installing the articulated joint

► Unscrew the articulated joint (1) from the cylinder.

NOTICE!

The threaded pin is secured with Loctite no 241. You will

need somewhat more strength than usual to loosen it.

► Apply a small amount of Loctite no. 241 to the thread

(2) of the new joint.

► Screw the articulated joint (1) into the short-stroke

cylinder.

► Turn the articulated joint in its installation position (3).

Once the cylinder is installed, the slot in the moveable

blade prevents the articulated joint from turning.

► Copy the exact installation position of the proximity

switch (4) onto the new short-stroke cylinder (e.g.

with a feeler gauge, fine-tipped marker pen).

► Install the proximity switch (1) precisely in the position

you marked with the permanent marker.

► Place the prepared cylinder into the cutter, in the cor-

rect rotary position of the articulated joint (2).

► Fasten the cylinder in this position, with the two

screws provided (3).

► Connect the compressed air hoses to the cylinder in

the correct allocation.

► Check the gap between the leading edge of the tape

deflector and the "empty-tape baffle, inside".

► Check the switching points of the proximity switches.

NOTICE

If the tapes are not cut correctly.

If the tapes are not cut correctly, even though the switching points have been set properly and

the short-stroke cylinder has been exchanged - complete with the one-way restrictor - the cause

of the problem may be:

► Incorrect compressed air level

► Leaking compressed air connection or Y-socket union

Service Work

3.9.4 Replacing the Control Unit Cutter

Service Manual SIPLACE X Series 217

3.9.4

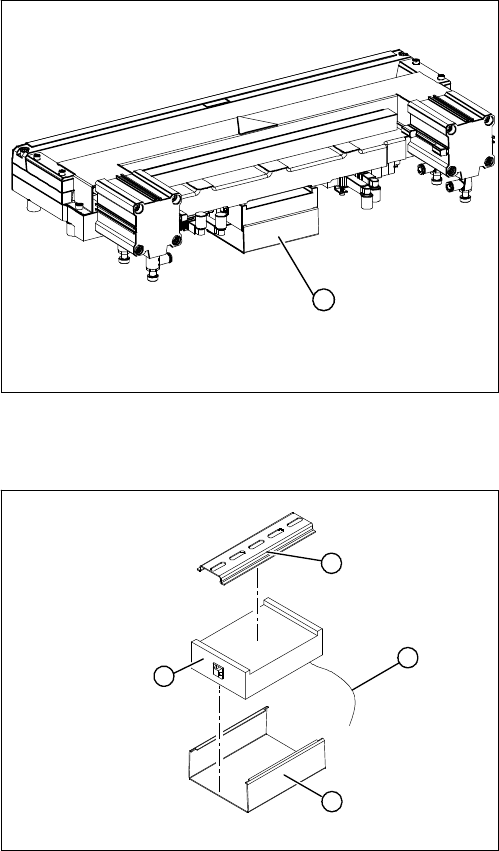

3.9.4 Replacing the Control Unit
