Settings 5.4.1 Adjusting the Tension of the Conveyor T oothed Belt Conveyo r Settings Service Manual SIPLACE X Series 319 5.4 5 . 4 C o n v e y o r S e t t in g s Conveyor Settings 5.4.1 5 . 4 . 1 A d ju s t in g t h e T…
Settings
Nozzle Changer Setting 5.3.2 Jumpers on the Nozzle Changer
318 Service Manual SIPLACE X Series
5.3.2
5.3.2 Jumpers on the Nozzle Changer
Jumpers on the Nozzle Changer
The jumper X10 needs to be set at the following nozzle changers:
▪ Nozzle changer basic structure CPx/all assembly - short [03103649-xx]
▪ Nozzle changer basic structure CPx/all assembly - long [03103514-xx]
Overview
Setting
► Set the correct value for your head type and software.

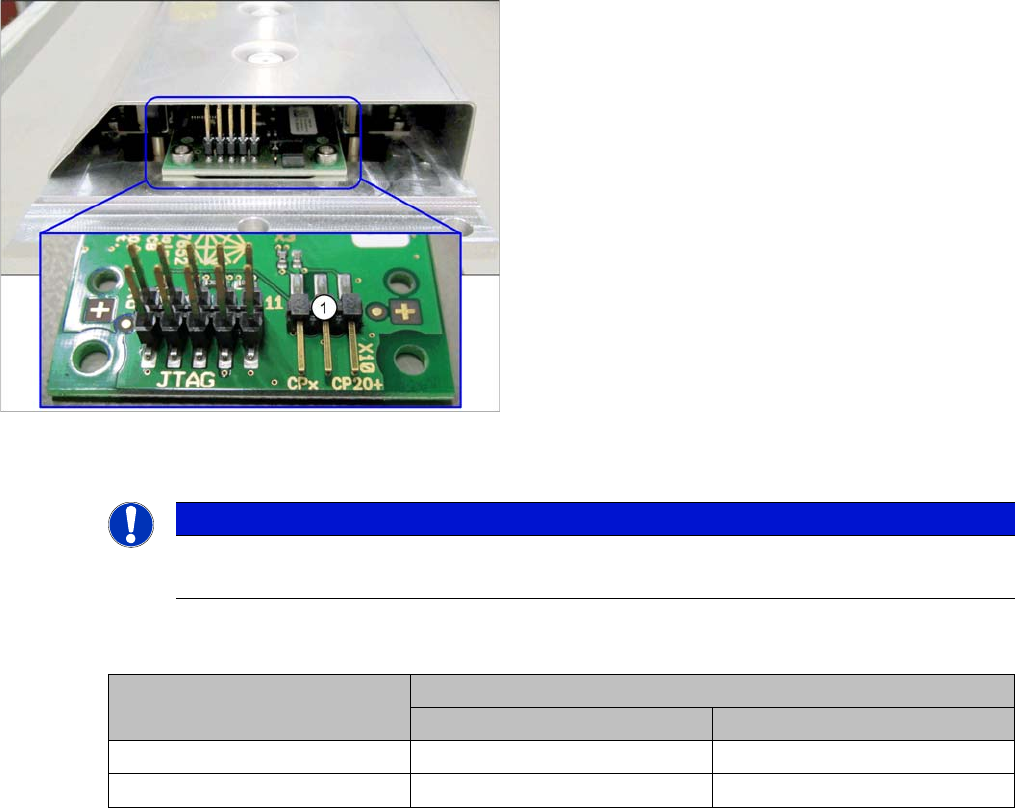

Nozzle Changer CP20P - Jumper X10
Jumper X10
See also
6.6.2 Nozzle Changer Main Board C&P20P [03107652-xx] [ ➙ 380]
1. Jumper X10
NOTICE
Before installation
Due to the design, this setting must be performed before installation in the machine.
Head Jumper position
SW <= 706.x SW >= 707.x
CPx, DLM 1-2 1-2 or 2-3
C&P20 P --- 2-3 (factory settings)
Settings
5.4.1 Adjusting the Tension of the Conveyor Toothed Belt Conveyor Settings
Service Manual SIPLACE X Series 319
5.4
5.4 Conveyor Settings
Conveyor Settings
5.4.1
5.4.1 Adjusting the Tension of the Conveyor Toothed Belt
Adjusting the Tension of the Conveyor Toothed Belt
NOTICE
Measuring at strand center
The belt tension is measured at the strand center (i.e. the longest distance between the two
deflection pulleys).
Measuring and setting the tension of the conveyor
toothed belt
1. Deflection pulley with slot
2. Measuring point of the belt tension measuring device
► Each conveyor section contains a deflection pulley
(1), that can be moved. The tension of the conveyor
toothed belt can be adjusted by moving this deflection
pulley.
► Position the measuring point of the belt tension de-
vice at the strand center (i.e. the longest distance be-
tween the two deflection pulleys) of the conveyor
toothed belt.
► Set the tension of the conveyor toothed belt accord-
ing to the following values.
NOTICE
Different frequencies
The tension frequencies per area may vary according to the different belt guides. The belt ten-
sion always remains the same.
Settings
Conveyor Settings 5.4.1 Adjusting the Tension of the Conveyor Toothed Belt
320 Service Manual SIPLACE X Series
Measuring and setting the belt tension for the width adjustment
1 Adjustment unit 4 Toothed drive belt for adjusting the width /
measuring the belt tension
2 Spindle with toothed wheel
3 Width adjustment stepping motor 5 Transport direction
Width adjustment motor
The belt is tensioned by means of cams on the idler pul-
leys. The idler pulleys are located on the left and right of
the motor.
1. Loosen the cam shaft on the idler pulley and set the
belt tension.
