4-9 4 aily operation 6 F eed the gauze roll through the guides. While keeping the parallelism between the left and right, feed the gauze roll thr ough the guides as shown in the figure on the right. 63406-N3-00 c …
4-8
4
aily operation
5.1 Using the same roll size
1
Open the cover.
1. On the Setup screen, press the [SW Prod.
Position] button and select “Mask Setup”.
2. When the DOOR LOCK lamp turns off,
open the cover.
c
operation. Use it only when you want to stop the
machine immediately in case of emergency.
n
NOTE
When a mask of 736 x 736 or larger is used, remove it.
2
Remove the used up gauze roll
from the take-up shaft.
With the used up gauze roll kept pushed
leftward, remove it from the take-up shaft
(lower shaft) along with the shaft holder fit
into the right end of the used up gauze roll.
3
Fit the roll core remaining on the
upper roll shaft onto the take-up
roll shaft.
Remove the empty roll core by pushing it to
the left along with the shaft holder fit into
the right end.
Then, press-fit the empty roll core into the
take-up shaft (lower shaft).
4
Insert the shaft holder into a new
gauze roll.
Remove the shaft holder inserted into the
right end of the used up gauze roll and insert
it into the right end of a new gauze roll.
63404-N3-00
n
NOTE
On Lane 2, the direction of inserting the shaft holder is
opposite, so use caution.
n
NOTE
Pay special attention to the gauze roll feed direction
when inserting the shaft holder into a new gauze roll.
5
Fit the new gauze roll onto the
upper roll shaft.
While pushing the gauze roll to the left, fit it
onto the upper roll shaft. Make sure that the
guide on the shaft holder is engaged
securely.
Inserting the shaft holder.
Step 4
Shaft holder
Gauze roll feed direction
4-9
4
aily operation
6
Feed the gauze roll through the
guides.
While keeping the parallelism between the
left and right, feed the gauze roll through
the guides as shown in the figure on the
right.
63406-N3-00
c
gauze roll.
7
Attach the top end of the new
gauze roll onto the roll core
inserted onto the take-up shaft.
Fasten the top end of the new gauze roll
with an adhesive tape or similar item so that
both ends feed in parallel with each other.
After that, turn the take-up shaft 2 or 3
rotations to wind up the gauze roll.
8
Close the safety cover and cancel
the emergency stop.

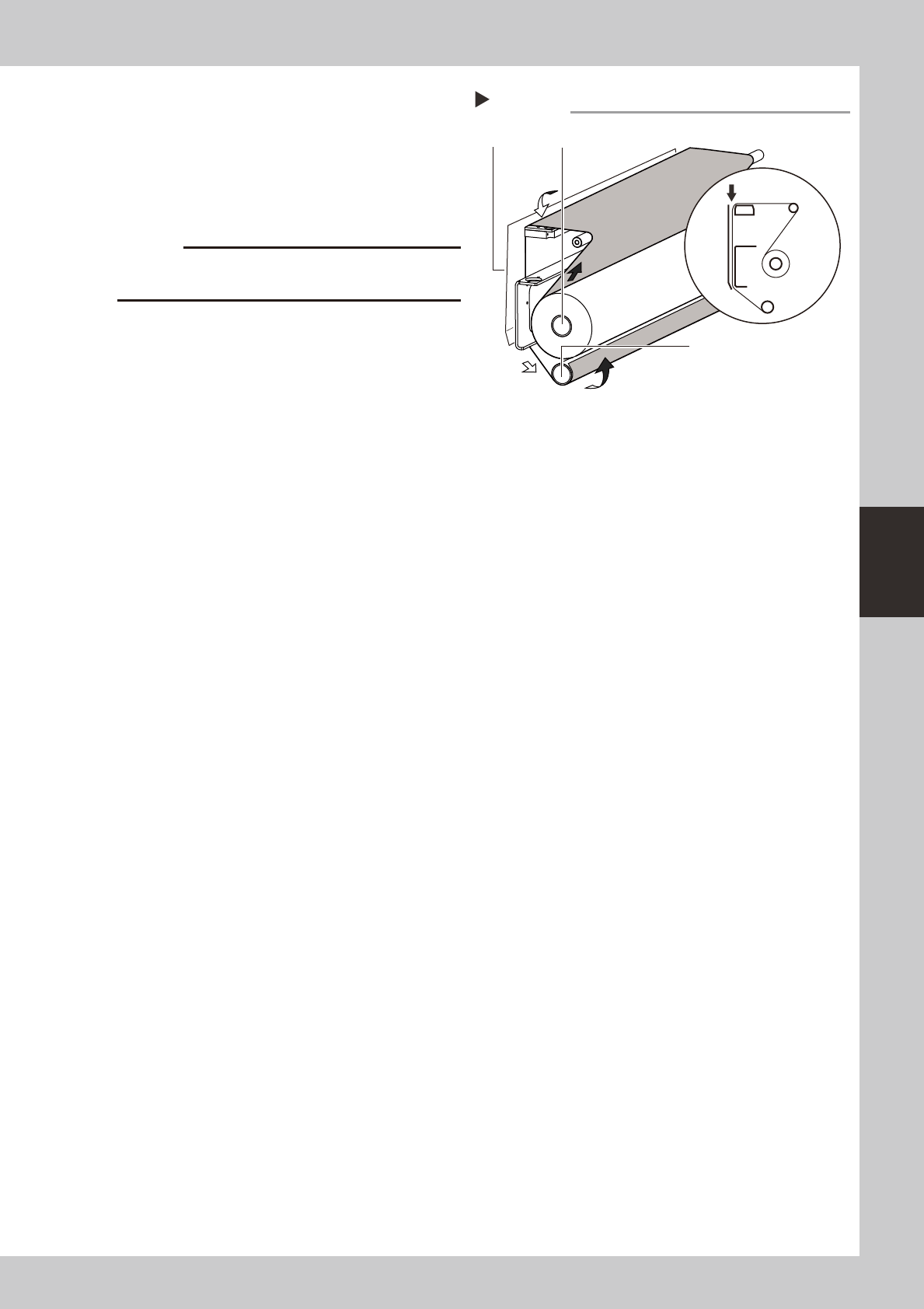

Feeding the gauze roll through the guides.
Step 6
Take-up shaft
New gauze roll
Rear cover
4-10
4
aily operation
5.2 Changing the roll size
If the roll size needs to be changed during the setup work, it is necessary to use a special cleaner width change
unit (option).
n
Cleaner width change unit
Part No. Part name Notes
KHT-M36C0-00X ROLL UNIT 530 Shaft holder 2 sets, roll core, plate (for 530 mm)
KHT-M36C0-A0X ROLL UNIT 440 Shaft holder 2 sets, roll core, plate (for 440mm)
KHT-M36C0-B0X ROLL UNIT 360 Shaft holder 2 sets, roll core, plate (for 360mm)
KHT-M36C0-C0X ROLL UNIT 260 Shaft holder 2 sets, roll core, plate (for 260mm)
1
Open the cover.
1. On the Setup screen, press the [SW Prod.
Position] button and select “Mask Setup”.
2. When the DOOR LOCK lamp turns off,
open the cover.
c
operation. Use it only when you want to stop the
machine immediately in case of emergency.
2
Cut the roll sheet.
Remove the roll from the wind-up side (lower
side) and cut the roll sheet.
63406-N3-00
3
Remove also the roll from the feed
side (upper side).
Remove the roll from the feed side
completely in the same manner as
described for the wind-up side.
c
If a roll having a different size is used without
flow out or the cleaning effect to lower.
Always replace the plate with a one having an
appropriate size.
4
Remove the plate.
Use an Allen wrench to remove the plate
that becomes the cleaning solvent blow out
port.
63407-N3-00

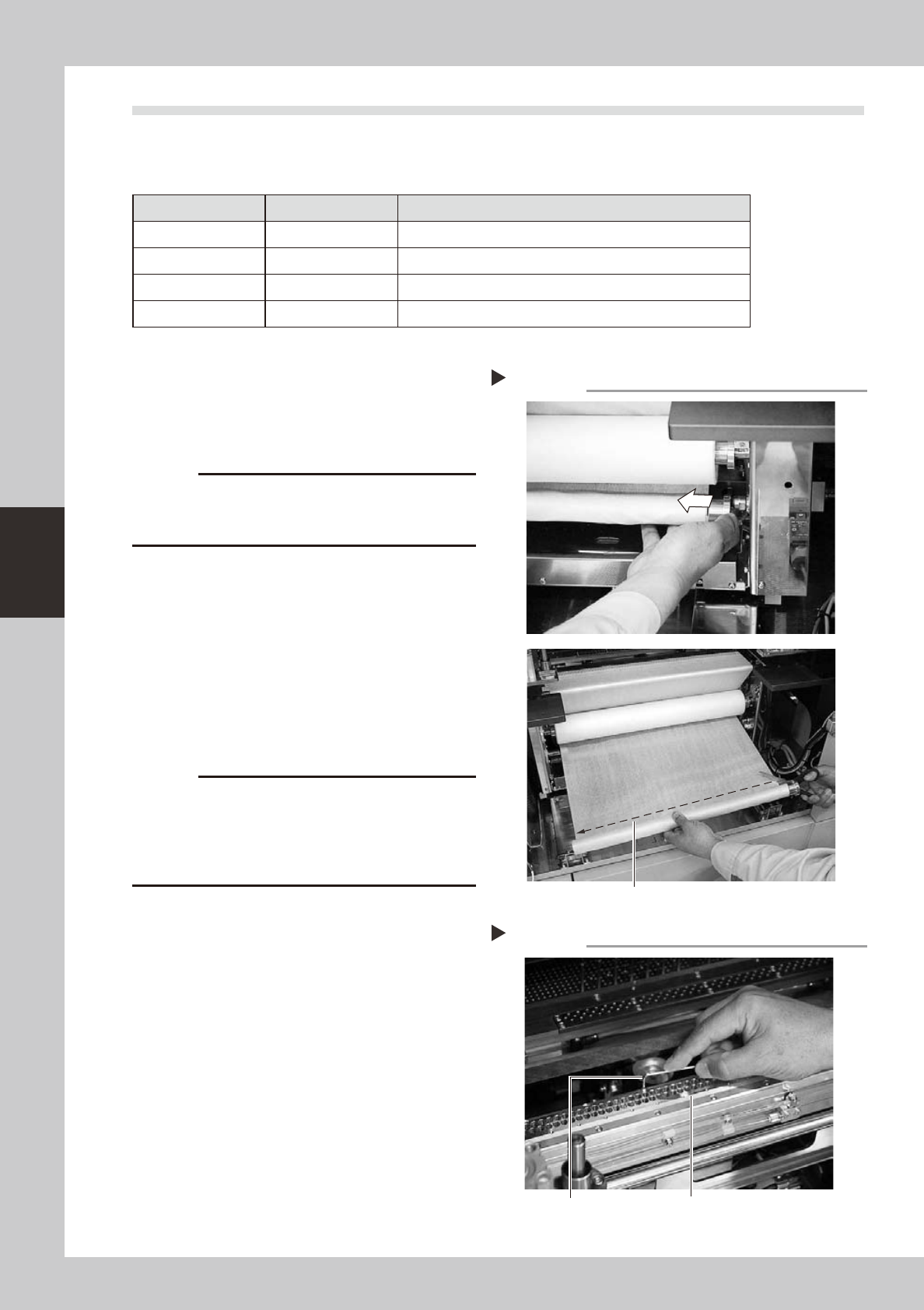

Removing the roll sheet.
Step 2
Cut the roll sheet.
Removing the plate.
Step 4
Plate
Allen wrench
