1-4 1 Part names and functions Setup cover Opening this cover enters a state that allo ws non-stop changeov er . Before opening this cover to c hange the matrix plate or backup pins, make sure the DOOR LOCK lamp is OFF .…
1-3
1
Part names and functions

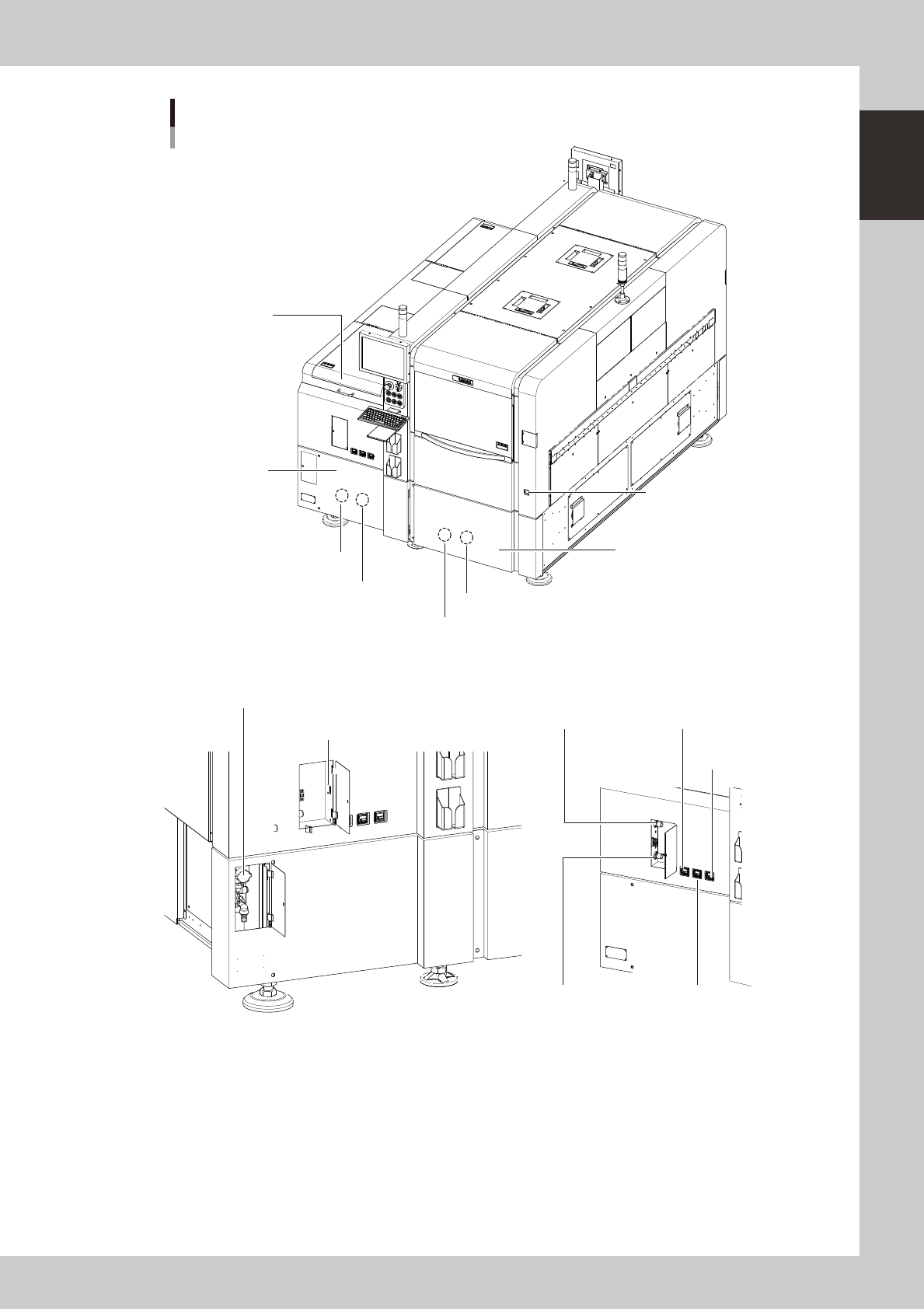

YSP20 main unit
As viewed from rear of RL (right-to-left flow) machine
Cleaner vaccum
pressure gauge
Main pressure gauge (1)Main air pressure regulator (1)
Main pressure gauge (2)Main air pressure regulator (2)
USB port
Rear lower right panel
Rear lower left panel
Air supply/shut-off switch
Setup cover
Edge clamp
pressure gauge
Previous Interface (Lane 2)
Previous Interface (Lane 1)
Next Interface (Lane 2)
Next Interface (Lane 1)
63102-N3-00
1-4
1
Part names and functions
Setup cover
Opening this cover enters a state that allows non-stop changeover. Before opening this cover to change the matrix plate
or backup pins, make sure the DOOR LOCK lamp is OFF. Keep this cover closed during operation.
Pressure gauge, pressure regulator, air supply/shut-off switch
Indicates and adjusts the air pressure supplied to the machine. For details, see Appendix 1.1, "Air regulator unit".
USB port
· Machine for right-to-left flow: USB port is located on the rear left side.
· Machine for left-to-right flow: USB port is located on the front left side.
Connect to this port when using a USB memory to back up board data stored in the machine. Always close this panel
before operating a USB memory after inserting it into the port.
Cleaner negative pressure gauge
Shows the negative pressure for the cleaner.
Rear lower right panel
The machine-to-machine interface connector (labeled “NEXT”), servo controller, I/O board, and relay panel are located
behind this panel. Keep this panel closed during operation.
Rear lower left panel
The machine-to-machine interface connector (labeled “PREVIOUS”) and blower unit (blower motor and inverter) are
located behind this panel. Keep this panel closed during operation.
n
NOTE
For details on the machine-to-machine interface connectors, see Appendix 1.3, “Connection between machines”.
1-5
1
Part names and functions
2. Operation panels and data input units
Standard machines are equipped with an operation display, operation panel buttons, a keyboard and a
mouse on the front and rear (option) of the machine, to operate the machine and make data settings.
Front operation panel and keyboard
Upper door (safety cover)
Mouse
Keyboard
Operation display
Operation panel
buttons
63103-N3-00
c
Store the mouse in holder when not in use or it may drop and be damaged.
