4-26 4 aily operation l Monitor: Main T he [Monitor]-[Main] tab screen shows you the real-time production status such as the board count and c ycle time. Displaying this screen during production is hand y . All informa…
4-25
4
aily operation
2. Setup status area
Displays the current setup status of the mask and cleaner unit. The color of status bar changes if an error
occurs.
[Monitor]-[Production] tab
Setup status area
Mask
Cleaner
No mask is clamped
(Mask is not used)
Mask is clamped (green) Mask is not clamped (red)
(Mask is used)
Cleaner is used (green)Cleaner is not used
OK NG
No Use
No Use
OK
64424-N3-00
TIP
If an error has occurred on the entire machine then the entire area background is displayed in blue.
3. Detailed information area
This shows a list of all items displayed in the setup status area.
4-26
4
aily operation
l

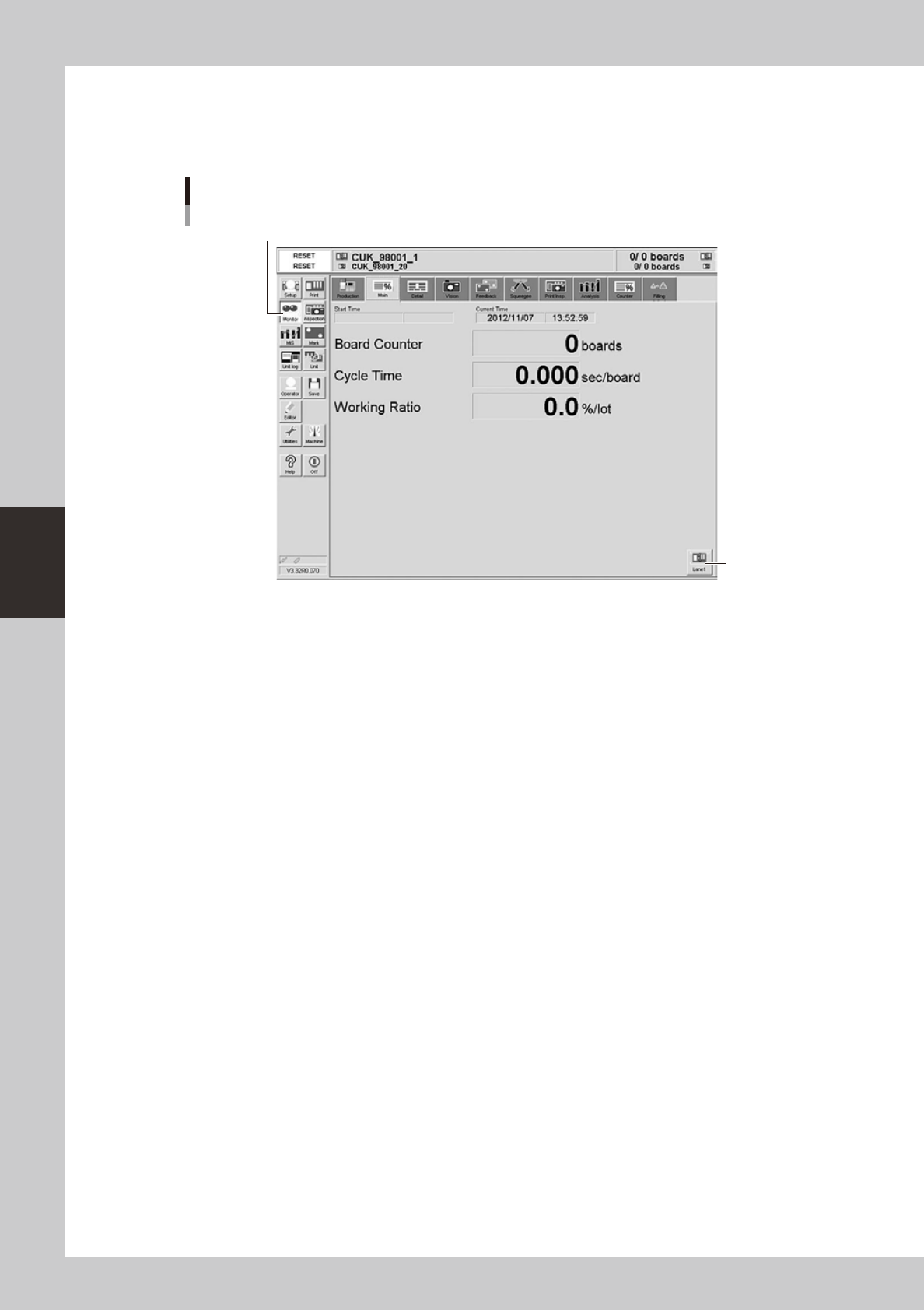

Monitor: Main
The [Monitor]-[Main] tab screen shows you the real-time production status such as the board count and cycle time.
Displaying this screen during production is handy. All information will be cleared when the board type is changed.
[Monitor]-[Main] tab
[Monitor] button
[Lane] button
64415-N3-00
Start Time
Shows the date and time that the board data currently being produced was changed.
Current Time
Shows the current date and time (system clock time in the machine).
Board Counter
Displays the number of boards produced after changing to the current board data.
Cycle Time
Shows the average (seconds/board) of the solder printing time per board. This data is updated when solder printing is
completed. The cycle time includes the fiducial mark recognition time when used. The board transfer time and stop time
(time stopped with error or [STOP] button) are not included.
Working Ratio
This is the machine unit's working ratio. This ratio is not affected by the status of the upstream and downstream
machines, and is calculated with the following expression.
(Cumulative printing time + cumulative board transfer time)
÷
[(production completion time - setup completion time)
- cumulative standby time]
×
100 = working ratio (%)
Cumulative printing time: Total time that machine is operating
Cumulative board transfer time: Total board transfer time (loading/unloading)
Cumulative standby time: Total time that the upstream or downstream machine stands by
Production completion time: Time when changed to next production board or time power was turned off
Setup completion time: Time that the [START] button was pressed and operation started
4-27
4
aily operation
l

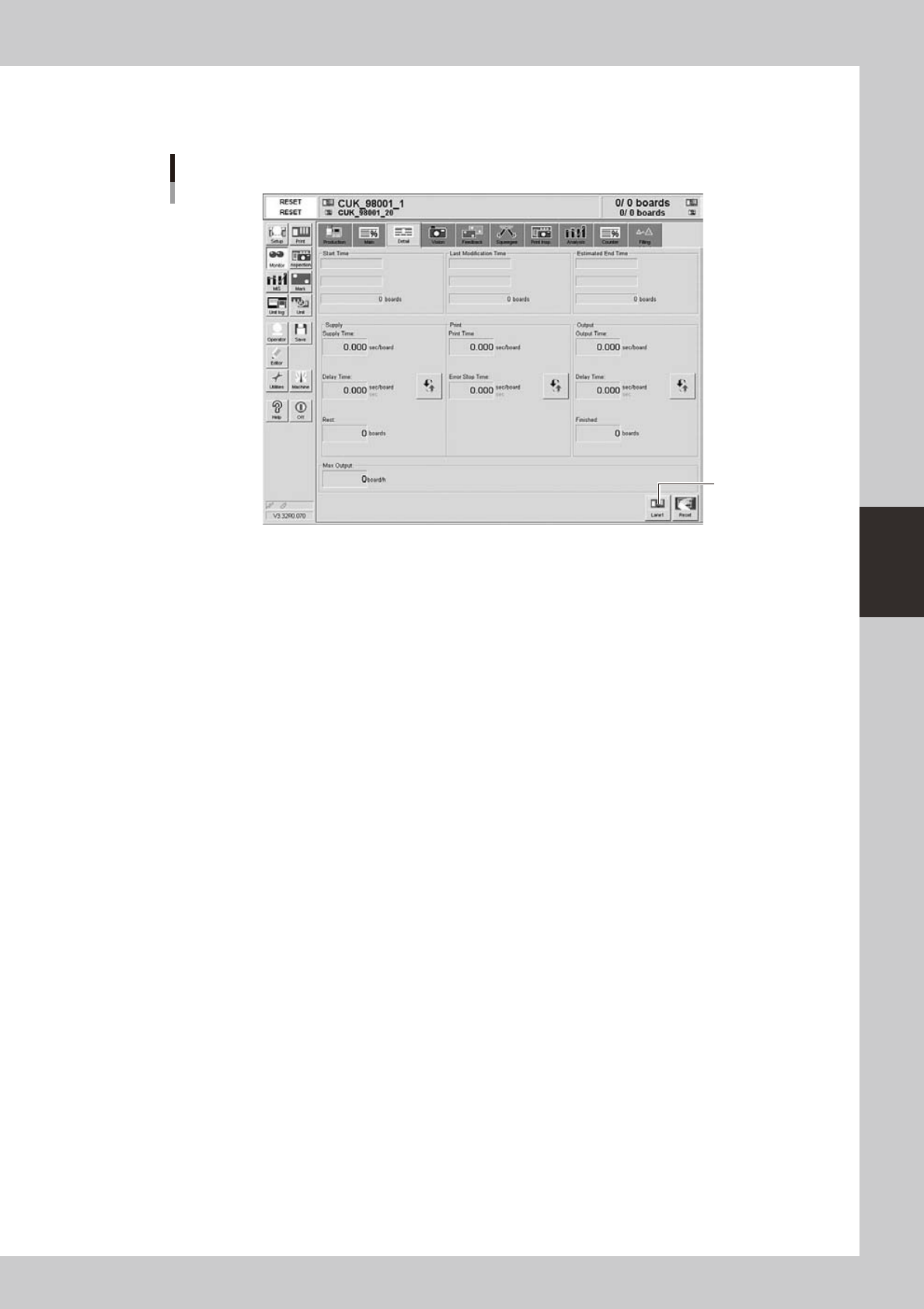

Monitor: Detail
The [Monitor] - [Detail] tab screen shows the detailed production status of the current production board data.
Monitor: Detail
[Lane] button
64416-N3-00
Start Time
Shows the time that production was started. The quantity at the start time is normally zero boards.
Last Production Time
Shows the display data update time (this is updated each time one board has been printed. The number of boards
produced up to the last update time is shown in the "boards" box.
Estimated End Time
Shows the estimated production end time. The number shown in the "boards" box is the scheduled production quantity
you entered on the Setup screen.
Supply Time (sec/board)
Shows the average loading time per board.
Delay Time (sec/board or sec)
Shows the time that the machine has waited for board loading. The average delay time per board (sec per board) or the
cumulative delay time (sec) can be displayed by pressing the unit change button on the right.
Rest (boards)
This is the value obtained by subtracting the production completed board quantity from the scheduled production
quantity.
Print Time (sec/board or sec)
Shows the average time needed for printing solder on one board. This time includes the fiducial mark recognition, mask
cleaning, solder-print inspection (when the inspection function is used).
Error Stop Time (sec/board or sec)
Shows the time that the machine has been stopped with an error, and is the total time from when the error occurs to
when the [CLEAR] button is pressed.
The average error stop time per board (sec per board) or the cumulative error stop time (sec) can be displayed by pressing
the by pressing the unit change button on the right.
Output Time (sec/board)
Shows the average unloading time per board.
Delay Time (sec/board or seconds)
Shows the time that the machine has waited for board unloading. The average unloading delay time per board (sec per
board) or the cumulative unloading delay time (sec) can be displayed by pressing the unit change button on the right.
Finished (boards)
Shows the quantity of finished boards.
