1. Data backup
Production board data and system data can be backed up. This section explains how to make a backup of
these data.
1.1 Making a backup of board data
A backup copy of board data can be stored on a USB memory device or on a network drive (including off-line
software). The YSP has a USB port as a standard feature to allow data backup using the USB memory device
that comes with the machine. This section describes how to back up the board data onto a USB memory device
using the Board Explorer.
c
c
c
TIP
You may use the [Save] button in the main menu button area to save board data to a USB memory device.
1
Insert a USB memory into the USB port.
Insert a specified USB memory device into the USB port of the machine.

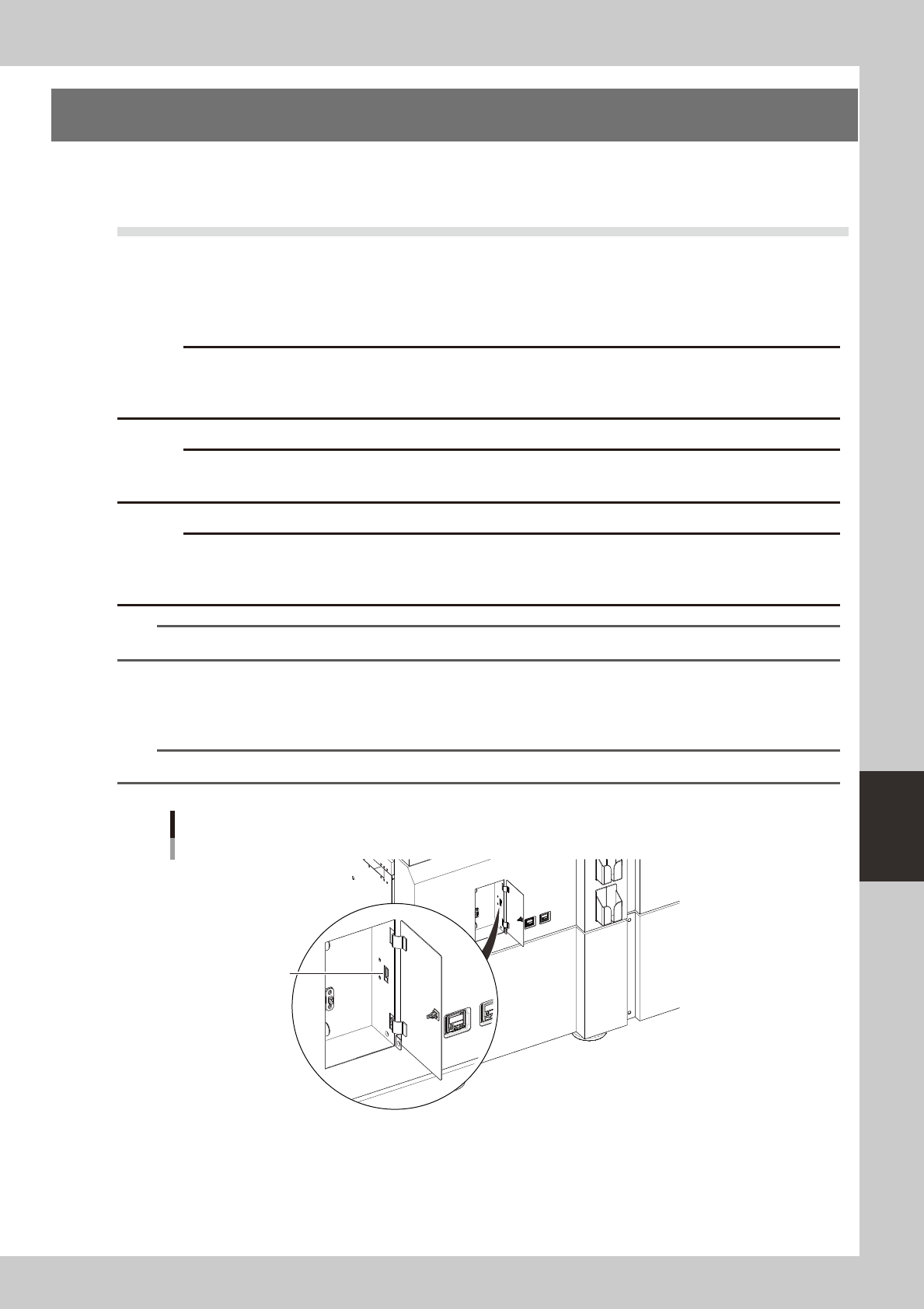

The USB port is located behind the left panel on the rear of the machine.
TIP
On left-to-right flow machines, the USB port is located on the front left of the machine.
USB port
USB port
Right-to-left flow
63501-N3-00
2
Close the media access door.
Before operating the USB drive, always close the media access door.
6-2
6
anaging the data
3
Check the USB memory device connection.
Check the indicator on the lower left of the operation display.
The connection is complete when the USB memory device icon appears red.
The connection is incomplete if the USB memory device icon is grayed out.
Checking the USB memory device connection
Not connectedConnected
Icon appears "red". Icon is grayed out.
64623-N3-10
4

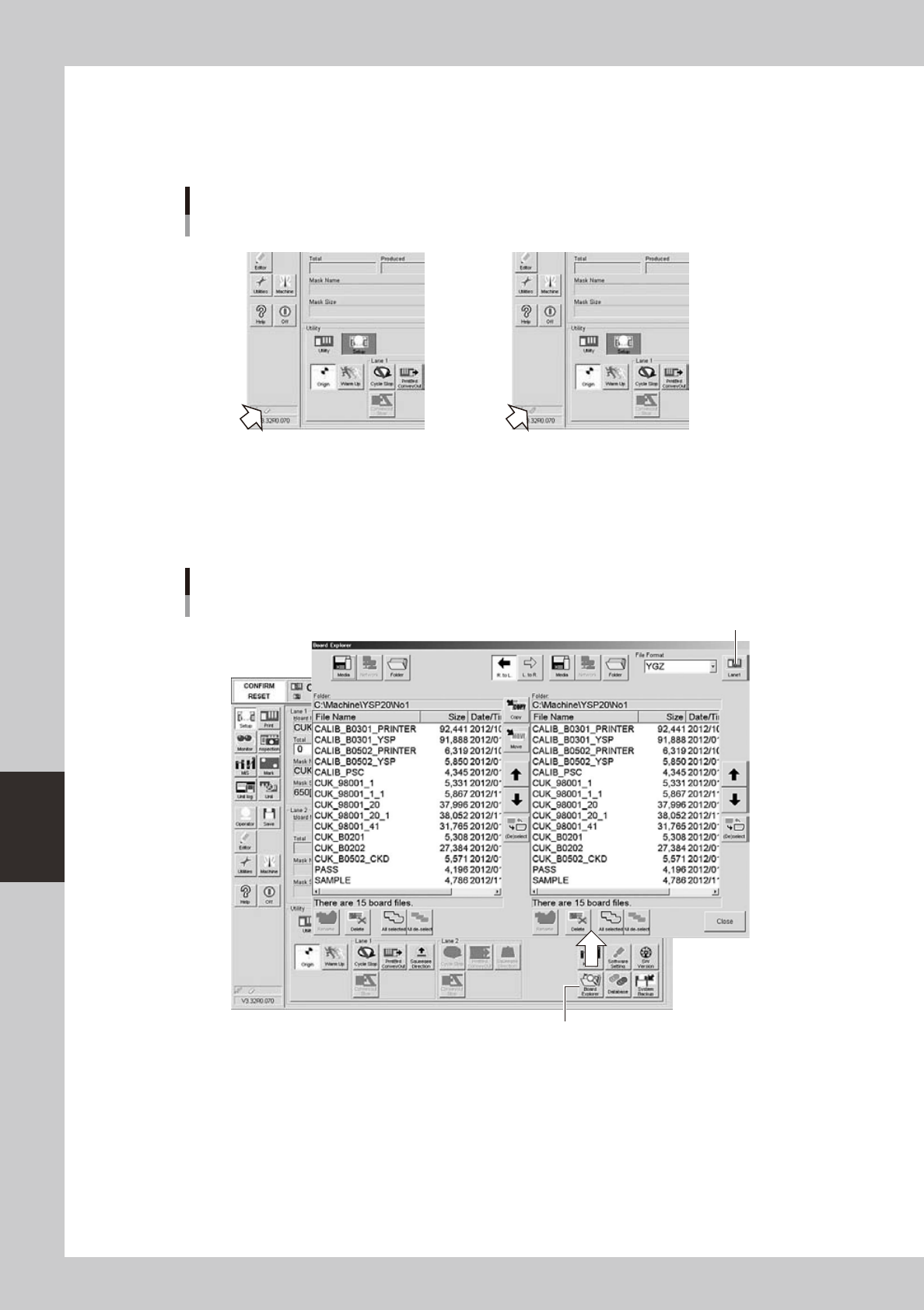

Press the [Board Explorer] button on the [Utility] tab of the Setup screen.
The Board Explorer dialog box appears and shows the lists of board data stored in the machine. (The
right-hand and left-hand lists will show the same contents when the Board Explorer first opens.)
Board Explorer dialog box
[Board Explorer] button
[Lane] button
64601-N3-10
