4-4 4 aily operation 3. Selecting the board data T o star t board production, first select the board data from the list of board data already created beforehand. 1 Select the board data. 1. When the board data is not y…
4-3
4
aily operation
4

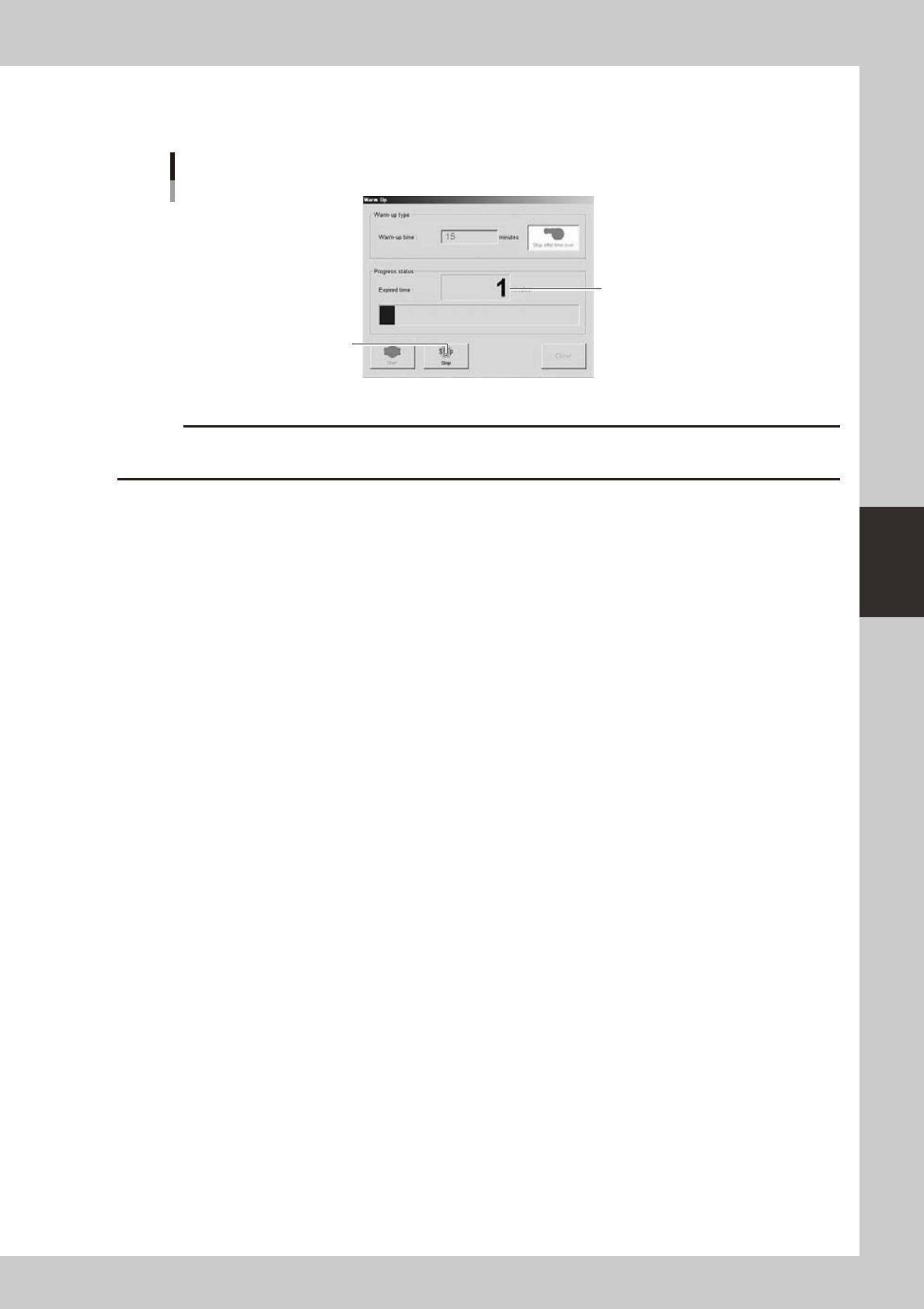

Press the [Start] button to start warm-up.
The warm-up progress time and status will appear in the Warm-up dialog box.
Warm-up screen
Warm-up elapsed time
Pressing this button will stop the
warm-up operation.
64403-N3-00
c
problem and eliminate it.
5
End the warm-up.
Warm-up will automatically stop when the time you set is reached. Press the [Close] button, and return
to the previous screen.
4-4
4
aily operation

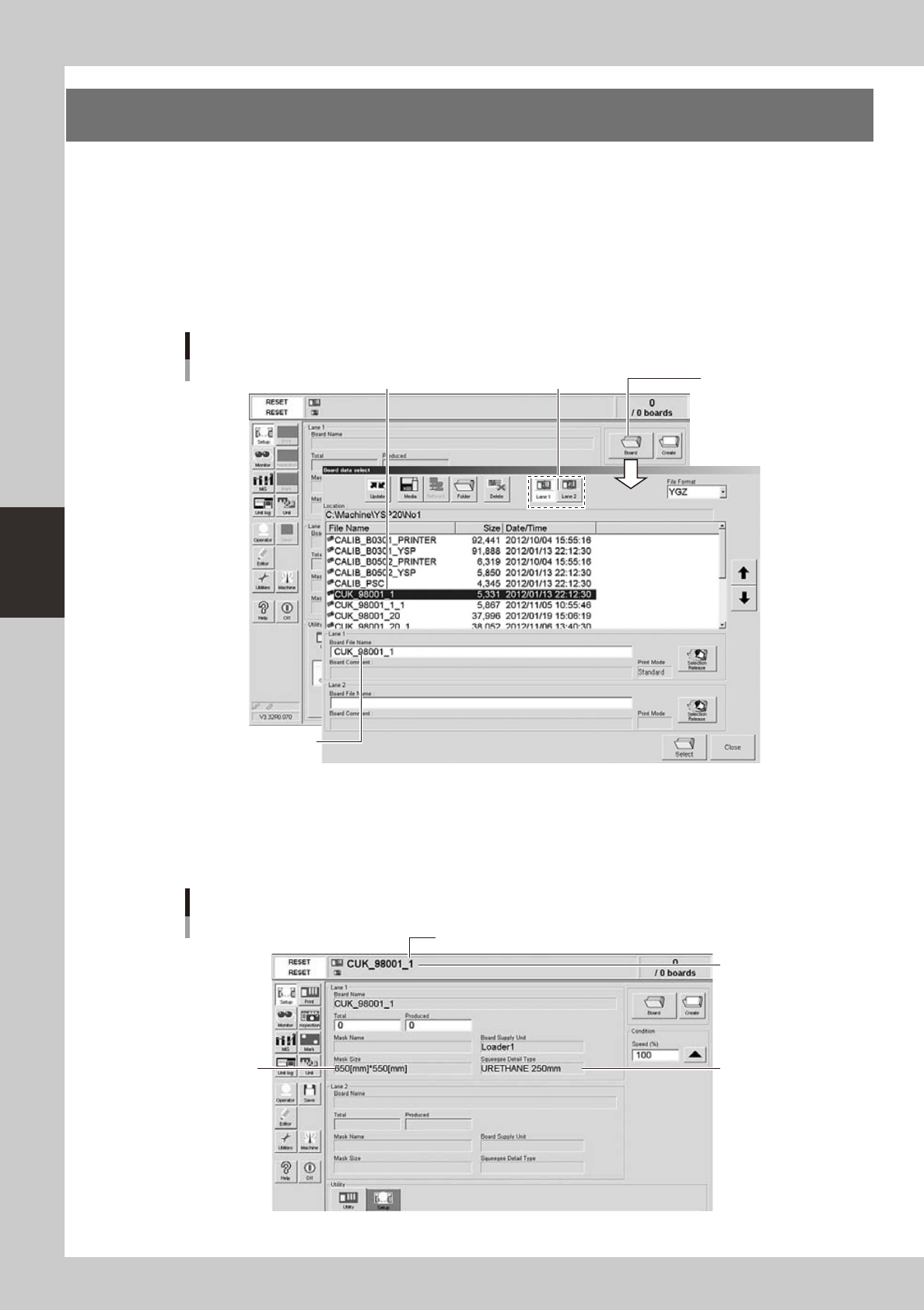

3. Selecting the board data
To start board production, first select the board data from the list of board data already created beforehand.
1
Select the board data.
1. When the board data is not yet selected, press the [Board] button on the Setup screen.
A list of board data appears.
2. Press the [Lane 1] or [Lane 2] button to select the lane for production. Then line up the cursor with
the board data name and press the [Select] button.
The machine loads the selected board data.
Selecting the board
Select board data from list.
Selected board data
name is displayed.
[Lane] button
[Board] button
64404-N3-00
2
Check the board data.
Check that the selected board data name is shown in the status area. Also check that the displayed
board size, mask size and squeegee type are correct.
Also check that the displayed mask size and squeegee type are correct.
Setup screen after selecting board data
Mask size
Squeegee type
Selected board
name
Board data for Lane 1
64405-N3-00
4-5
4
aily operation

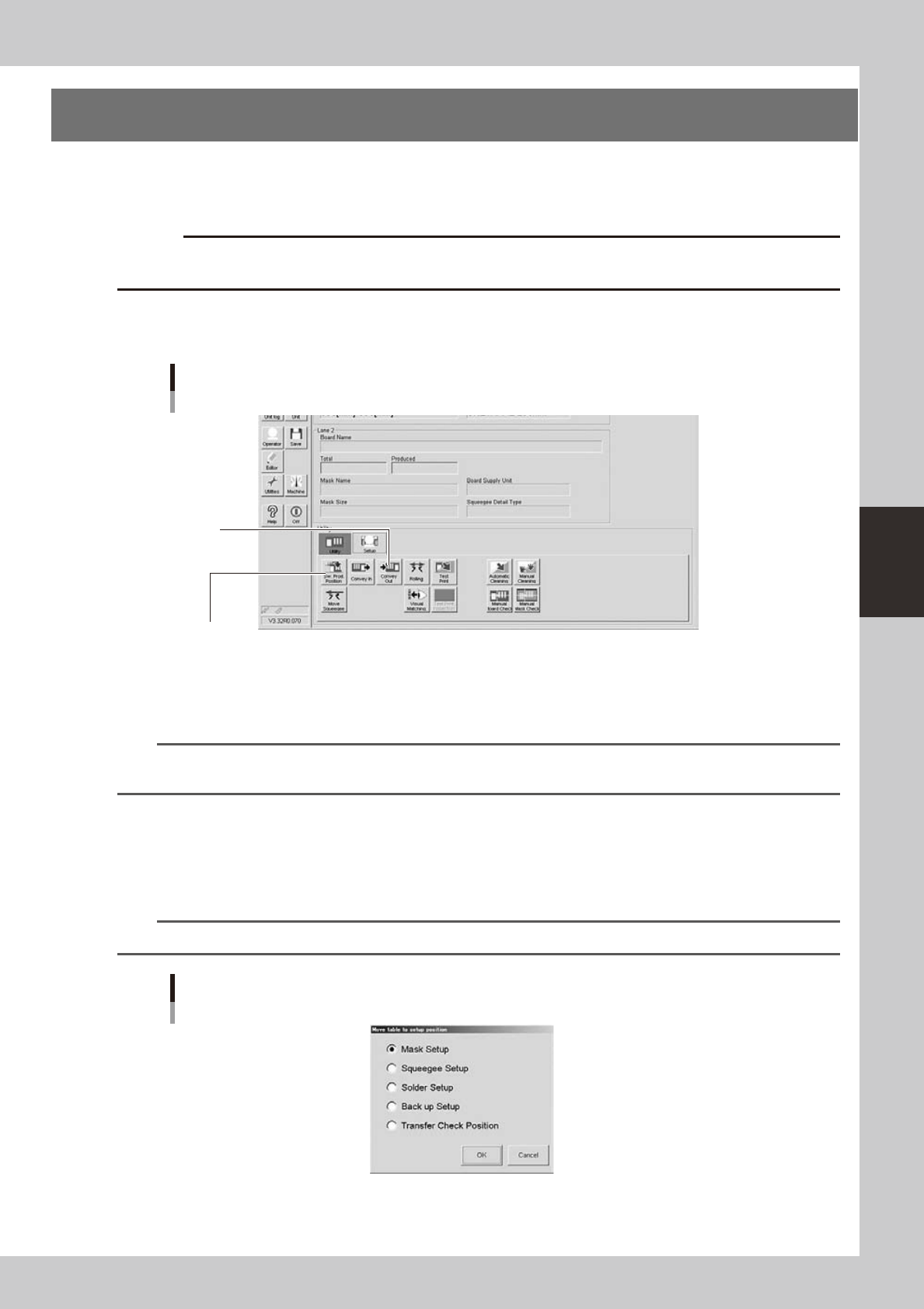

4. Changing the conveyor unit setup
When producing boards that are different from the previous production board, you need to change the
conveyor unit setup to match the selected board. (This procedure is not necessary when you are producing
the same board as last time.)
c
1
On the Setup screen, open the [Setup] tab under "Utility".
The buttons on this screen are used in the following steps to change the conveyor unit setup.
Setup screen
[Setup] tab
Step 2:
[SW. Prod. Position] button
Step 5:
[Convey In]
button
64406-N3-10
2
Press the [SW. Prod. Position] button.
Select the setup item.
n
NOTE
When both lanes are used for production, the dialog box for selecting the lane number appears, so select the lane.
The lane currently used in production is grayed out.
1. When rearranging the backup pins, select “Transfer Check Position”. The conveyor will move to the
setup position and the conveyor width will be automatically adjusted to match the board size.
2. When changing the whole matrix plate, select “Backup Setup”. The conveyor will move to the setup
position and the conveyor will be adjusted to the maximum width, allowing you to remove the matrix
plate.
n
NOTE
When removing the matrix plate, check for safety and then lift it straight up while holding firmly with both hands.
Dialog box for move table to setup position
64307-N3-00
