2-11 2 asic operations 2.2 Star ting the machine 1 T urn the Po wer switch ON. T ur n on the Power switch at the front lower right of the machine, by turning it to the right. The initialization screen appears to start …
2-10
2
asic operations
2.1 Inspecting before operation
The table below shows checkpoints you should make before turning the power on.
e
w
WARNING
n
Checkpoints before operation
Checkpoints Check items Refer to
Conveyor unit
Check that no foreign matter or debris is on the
conveyor unit.
Check that the push-up jigs or backup pins are
not set in areas wider than the board width to be
produced. Check that no backup pins come loose
from the push-up table.
"4. Conveyor unit" in Chapter 1
Mask camera
Check that no foreign matter is sticking to the mask
camera.
Squeegee
Check that the squeegee knobs are securely
tightened.
Check that the squeegee scrapers have no
scratches, nicks and wear.
Check that no solder and grit are adhering to the
squeegee.
"3. Printing section" in Chapter 1
Cleaning unit
Check that the cleaner gauze roll is set correctly.
Check that the tank is refilled with cleaning alcohol
sufficiently.
"5. Cleaning unit" in Chapter 1
Mask stopper
pin position
Check that the mask frame stopper positions are
correct.
"7.1. Mask size and mask stopper
pin position" in Chapter 4
safety cover, panels,
Setup cover
Check that the upper door and panels are all closed.
Solder
Check that solder has returned to room temperature
and is well agitated and rolled.
Solder manufacturer's instruction
manual
YTC (option)
Check that no board remains on the conveyor.
Check that no solder and debris adheres to the
conveyor.
Check that the safety cover is closed
Option manual "YTC".
2-11
2
asic operations
2.2 Starting the machine
1

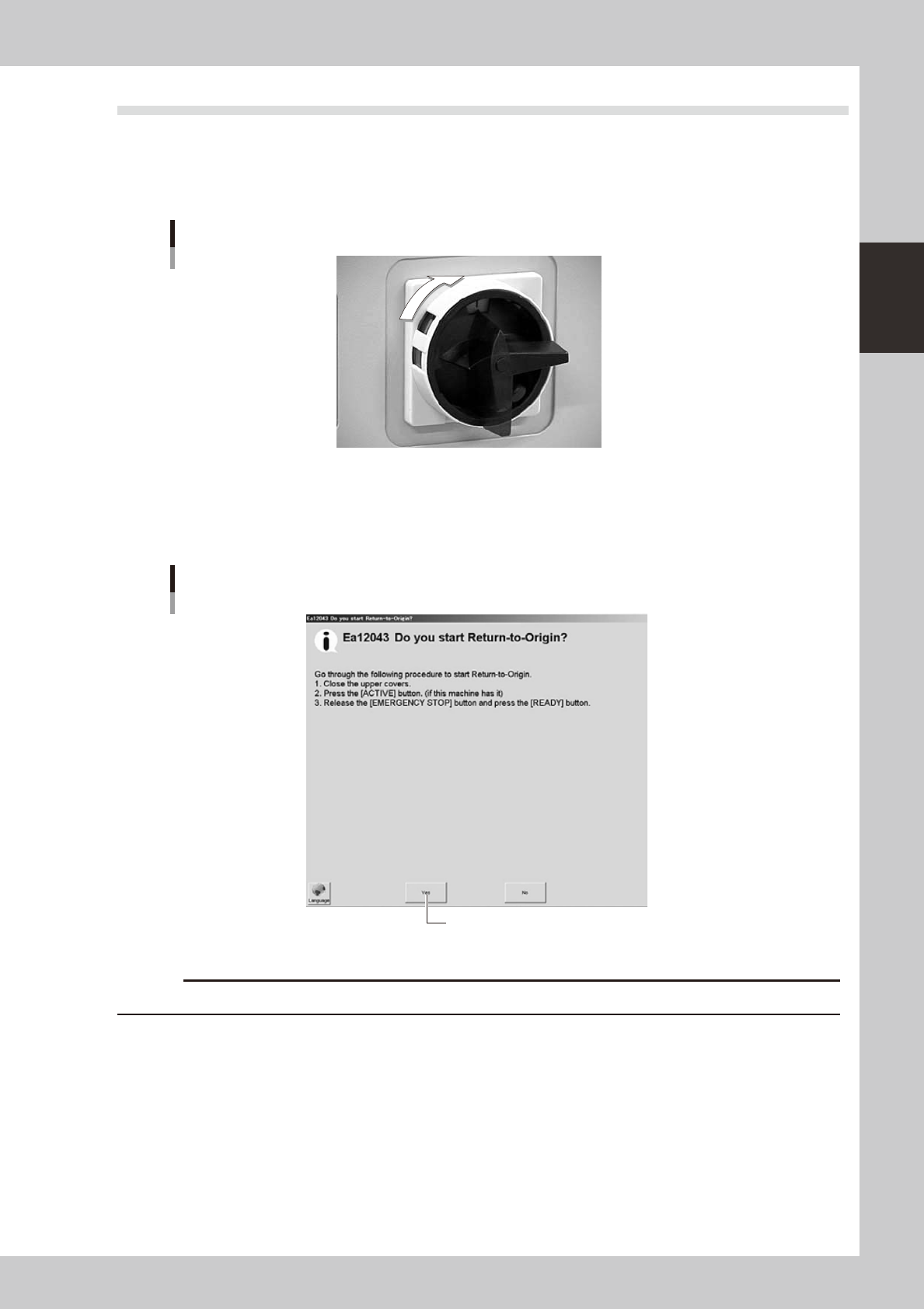

Turn the Power switch ON.
Turn on the Power switch at the front lower right of the machine, by turning it to the right. The
initialization screen appears to start loading the program needed for machine operation.
ON
OFF
Power switch
63204-N3-00
2
Perform return-to-origin.
The return-to-origin dialog box appears after initialization. Follow the instructions on the screen to start
return-to-origin operation. The main screen then appears when return-to-origin is complete.
Return-to-origin dialog box
Press [Yes] to start return-to-origin.
64203-N3-00
c
2-12
2
asic operations
3

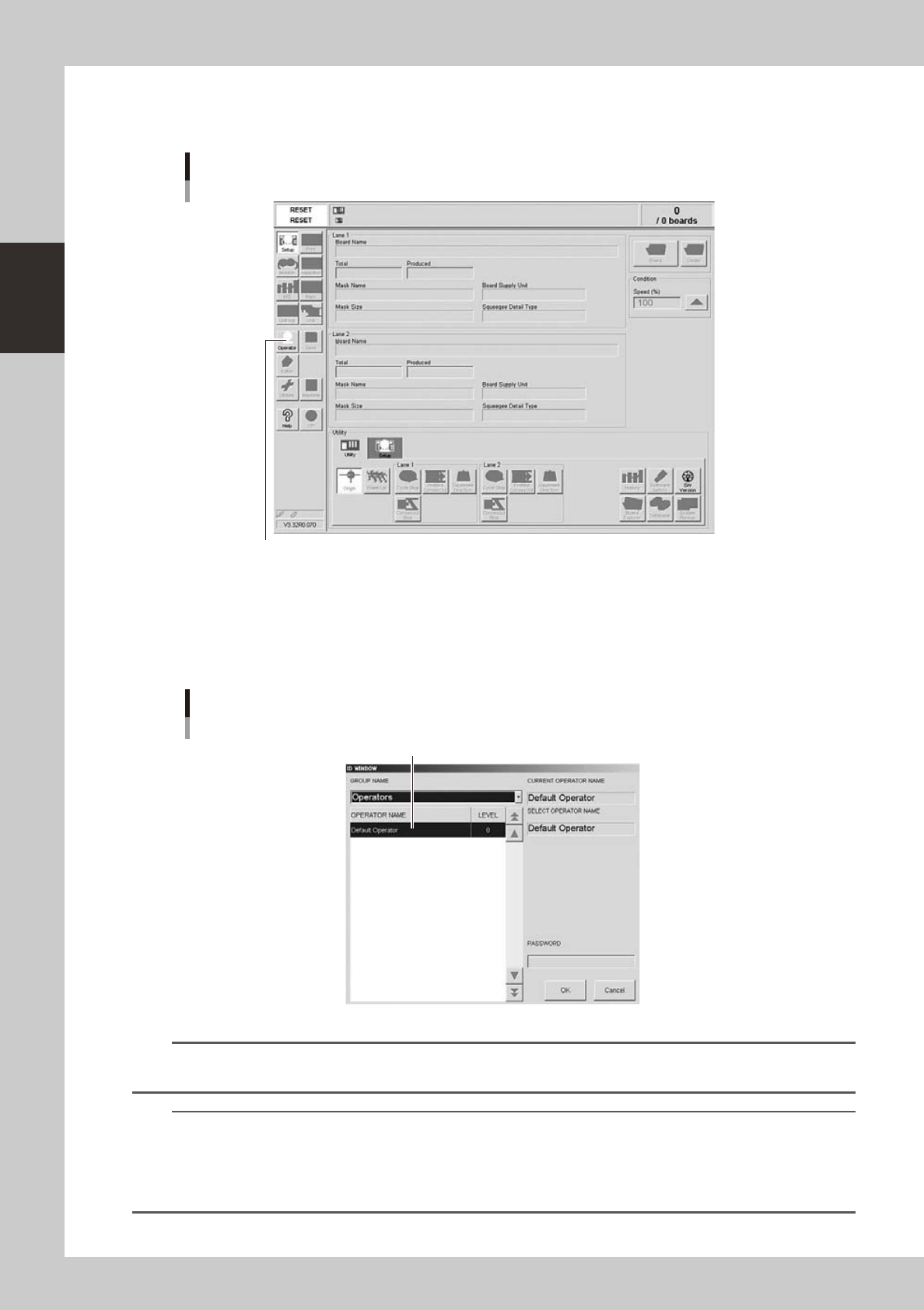

Press the [Operator] button on the operation screen.
The ID WINDOW dialog box appears for specifying the machine operator.
[Operator] button
[Operator] button
64204-N3-10
4
Specify the operator and enter the password.
You may select "Administrators" or "Operators" from the GROUP NAME dropdown list as needed.
If the password is correct, the initial screen (Setup screen before selecting a board) appears on the
screen.
Specifying the operator
Select operator and press [OK].
64205-N3-00
TIP
For information on how to select board data or how to operate the machine, see Chapter 4, "Daily operation", after
making sure that you understand the contents of this chapter.
TIP
Active menu buttons differ depending on the operation level setup. For example, when the machine is turned on with
the factory setup, the program starts up at an operation level called "Default Operator". This "Default Operator" level is
set to "Level 0" at the time of shipment to allow only basic operation items. This operation level can be changed as
needed. Operators and operation items can also be added and specified by setting the password and operation
level.
