1.3.2 NEXT INTERFACE connector
n
Lane 1
When the following three conditions are met, the NEXT INTERFACE circuit in the machine allows the board to
be carried out.
1. Machine is ready for carrying out the board (BA OUT: ON)
2. Board carry-in signal is input from the downstream machine. (BUSY IN [N011320] : ON)
3. Automatic operation signal is input from the downstream machine. (LR IN [N0110323] : ON)
n
NOTE
• When the automatic operation signal (LR IN) from the downstream machine turns off during transfer of a board,
the machine stops temporarily carrying out the PC.
• When the board being carried out is detected by the exit sensor, the BA OUT signal turns off.
• Carrying out the board is finished when both the BUSY IN and BA OUT turn off.
14
11
12
7
4
8
3
1

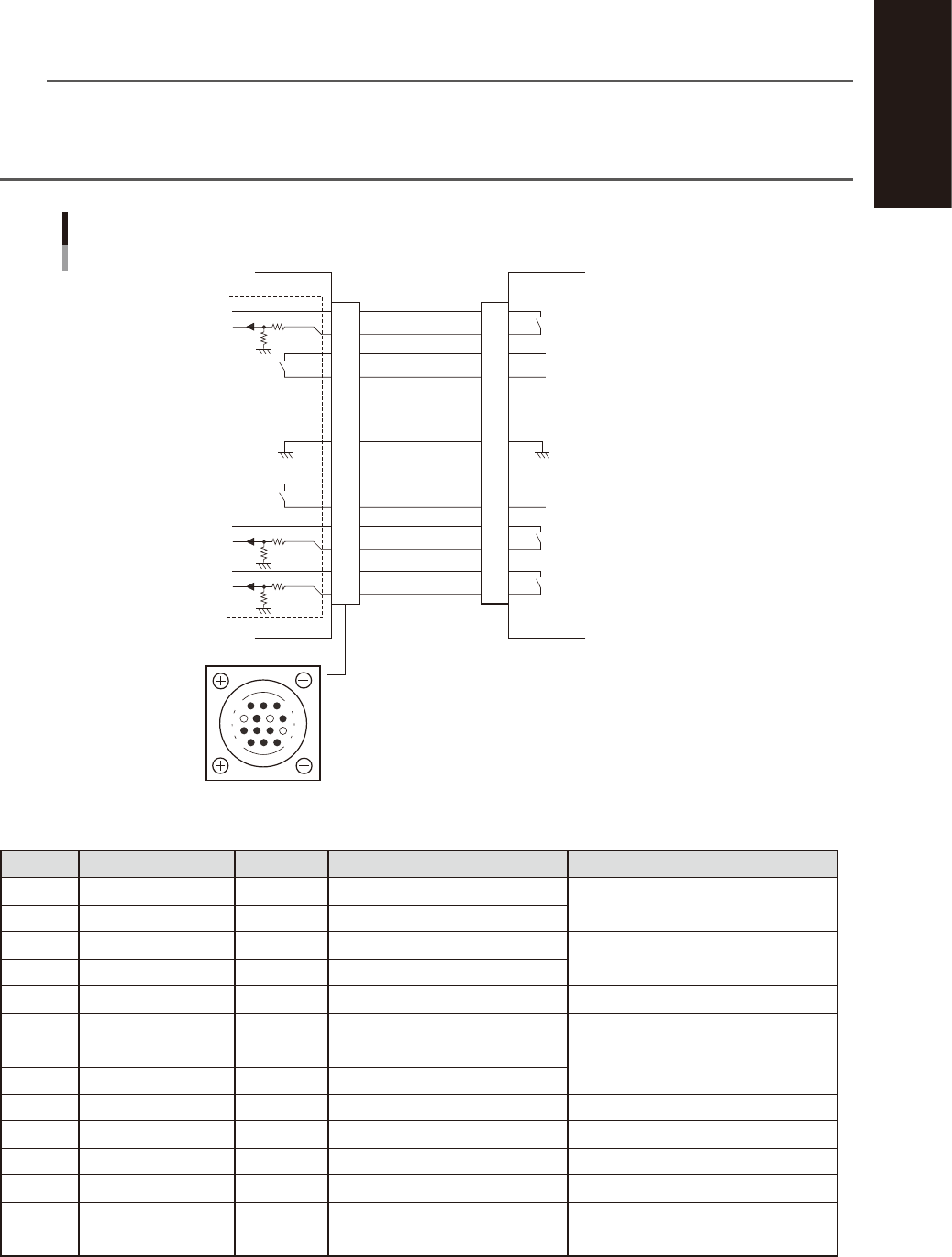

NEXT INTERFACE circuit
Lane 1
NEXT INTERFACE connector
This machine
Downstream machine
BUSY IN
(N0110320)
BUSY OUT
+24V
+24V
UR OUT
(T01100E6)
LR IN
(N0110323)
+24V
LS IN
(N0110324)
UR IN
LR OUT
LS OUT
BA OUT
(T01100E5)
BA IN
I/O BOARD
GND GND
1
2
3
4
5
6
7
8
9
10
11
12
13
14
53A07-N3-00
n
Board transfer signal specifications (NEXT INTERFACE)
Pin No. Signal name Address I/O specifications Signal specifications
1 +24V Input common (+24V) Signal input during board carry-in
2 BUSY IN N0110320 Voltage input
3 BA OUT T01100E5 Relay contact (zero voltage) output Signal output to request board carry-out
4 BA OUT T01100E5 Relay contact (zero voltage) output
5 NC
6 NC (with dummy pins) (Prevents misinsertion.)
7 GND
8 NC
9 UR OUT T01100E6 Relay contact (zero voltage) output Signal output during automatic operation
10 UR OUT T01100E6 Relay contact (zero voltage) output
11 +24V Input common (+24V) Signal input during automatic operation
12 LR IN N0110323 Voltage input
13 +24V Input common (+24V) Lane select signal input
14
LS IN
N0110324 Voltage input
A-7
Appendix
n
Lane 2
When the following three conditions are met, the NEXT INTERFACE circuit in the machine allows the board to
be carried out.
1. Machine is ready for carrying out the board (BA OUT 2 : ON)
2. Board carry-in signal is input from the downstream machine. (BUSY IN 2 [N01102A2] : ON)
3. Automatic operation signal is input from the downstream machine. (LR IN 2 [N01102A5] : ON)
n
NOTE
• When the automatic operation signal (LR IN 2) from the downstream machine turns off during transfer of a board,
the machine stops temporarily carrying out the PC.
• When the board being carried out is detected by the exit sensor, the BA OUT 2 signal turns off.
• Carrying out the board is finished when both the BUSY IN 2 and BA OUT 2 turn off.
14
11
12
7
4
8
3
1
NEXT INTERFACE circuit
Lane 2
NEXT INTERFACE connector
This machine
Downstream machine
BUSY IN 2
(N01102A2)
+24V
+24V
UR OUT 2
(T0110112)
LR IN 2
(N01102A5)
+24V
LS IN 2
(N01102A6)
BA OUT 2
(T0110111)
BUSY OUT 2
UR IN 2
LR OUT 2
LS OUT 2
BA IN 2
I/O BOARD
GND GND
1
2
3
4
5
6
7
8
9
10
11
12
13
14
53A08-N3-00
n
Board transfer signal specifications (NEXT INTERFACE)
Pin No. Signal name Address I/O specifications Signal specifications
1 +24V Input common (+24V) Signal input during board carry-in
2 BUSY IN N0110320 Voltage input
3 BA OUT T01100E5 Relay contact (zero voltage) output Signal output to request board carry-out
4 BA OUT T01100E5 Relay contact (zero voltage) output
5 NC
6 NC (with dummy pins) (Prevents misinsertion.)
7 GND
8 NC
9 UR OUT T01100E6 Relay contact (zero voltage) output Signal output during automatic operation
10 UR OUT T01100E6 Relay contact (zero voltage) output
11 +24V Input common (+24V) Signal input during automatic operation
12 LR IN N0110323 Voltage input
13 +24V Input common (+24V) Lane select signal input
14
LS IN
N0110324 Voltage input
