6-27
6
anaging the data
4.5 Specifying the destination to save the operation history data
The operation history data is stored in the specified files in a local drive each time the machine is turned off or
the board data is switched. You can also make settings to automatically output and save the operation history
data at a specified time.
1
Press the [Software Setting] button on the [Utility] tab of the Setup screen.
The "Setting" dialog box opens.
2
Select the [History] tab.
"Setting" dialog box
[History] tab
64620-N3-00
3
Press the [Unit Log] button.
The "Unit Log Setting" dialog box appears.
4
Check or specify the path to each folder where the operation history data will be
stored.
Enter the path or use the [Browse] button to specify the destination folder. You can set the destination
folder separately for "Conveyor", "Squeegee ", "Mask" and "Cleaner". After finished setting, press the [OK]
button.

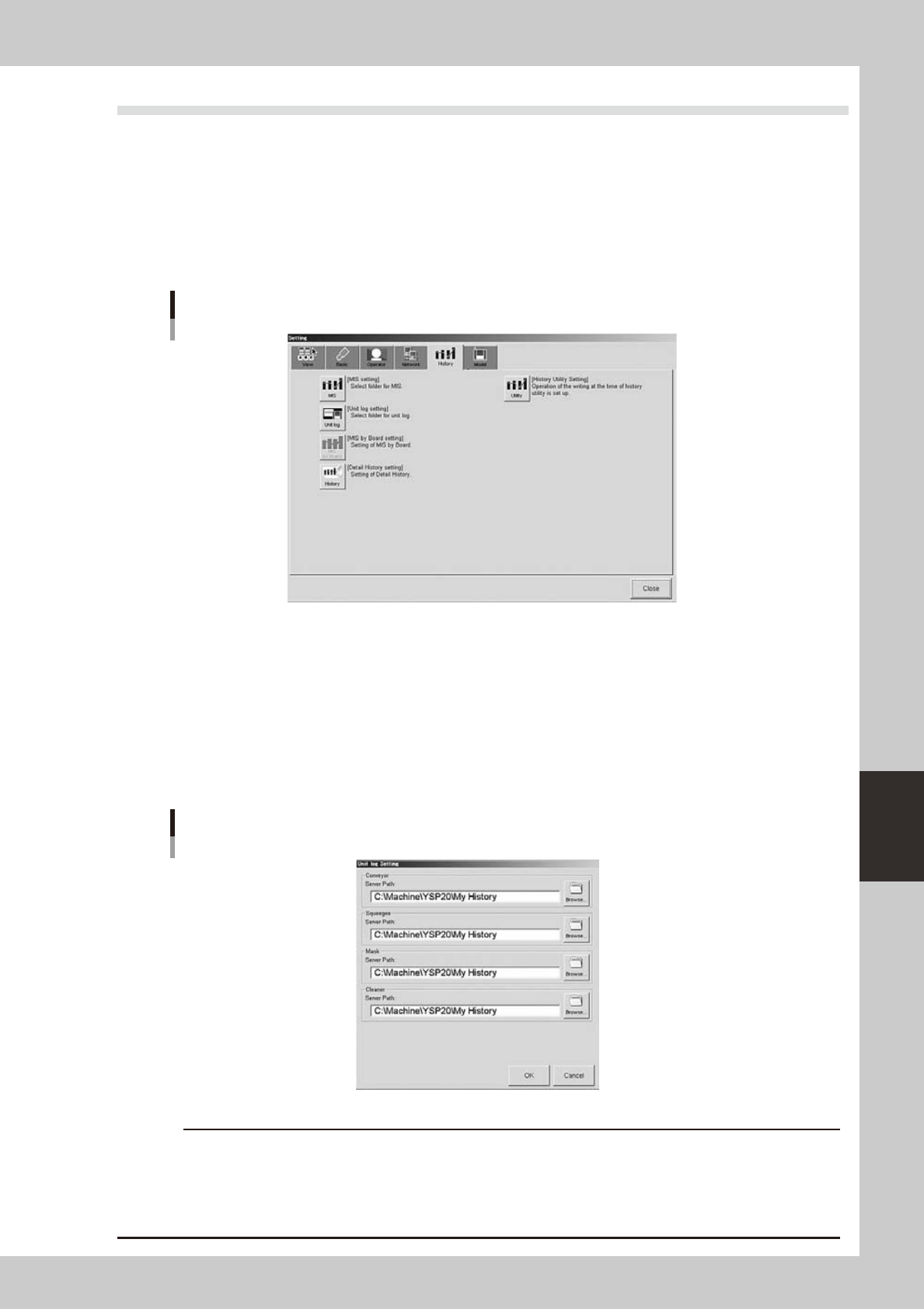

"Unit Log Setting" dialog box
64621-N3-00
c
board data or causing the machine to fail to start.
6-28
6
anaging the data
5
Press the [History] button in the "Setting" dialog box.
The "Setting Detail History" dialog box then appears.
"Setting Detail History" dialog box
64622-N3-00
6
Select the check boxes as needed.
• "Rememberthelotlog"checkbox
When this check box is selected, the board data that was in use when the machine power was
turned off will be loaded again the next time the power is turned on, in order to take over its
operation history data.
• "MultiLanguageOutput"checkbox
When this check box is selected, the operation history data can be saved or loaded in multi-
language mode.
• "FullASCII Output" check box
When this check box is selected, characters not applicable to this machine (illegal characters) are
converted automatically in the file read process.
Illegal characters (example): !#$%&@*<>?/, etc.
• "Historyoutputsettingofspecifiedtime"checkbox
Select this check box when you want to specify the time to output the operation history data.
After selecting this check box, enter the time in military time (24-hour clock format) in the “Specified
time” box. By making this setting, the machine automatically outputs and saves the operation history
data at the specified time every day.
When the “After the history output, the unit logs are reset” check box is selected, the “Unit log” data
will be reset after the production history data is output.
• "Limitsizeoftotalhistory"box
When you want to set a limit on the total amount of operation history data to be saved, enter it
here. An alarm will occur when the free space of the destination approaches the limit size specified
here. No limit will be placed when set to "0".
