5-43 5 Creating and setting the data 5 Pr ess the [Visual Matching] button. If a position offset (deviation) is found by graphic or visual alignment, you can adjust it in the "Visual Matching" screen that appea…
5-42
5
Creating and setting the data
4
Check the graphic alignment.
1. After closing the teach window, press the [Setup] button and select the [Setup] tab.
2. Press the [Visual Matching] button to open the dialog box for graphic alignment check.
3. The vision monitor in this dialog box shows an overlapped image of the board and mask, so check
the board and mask alignment.

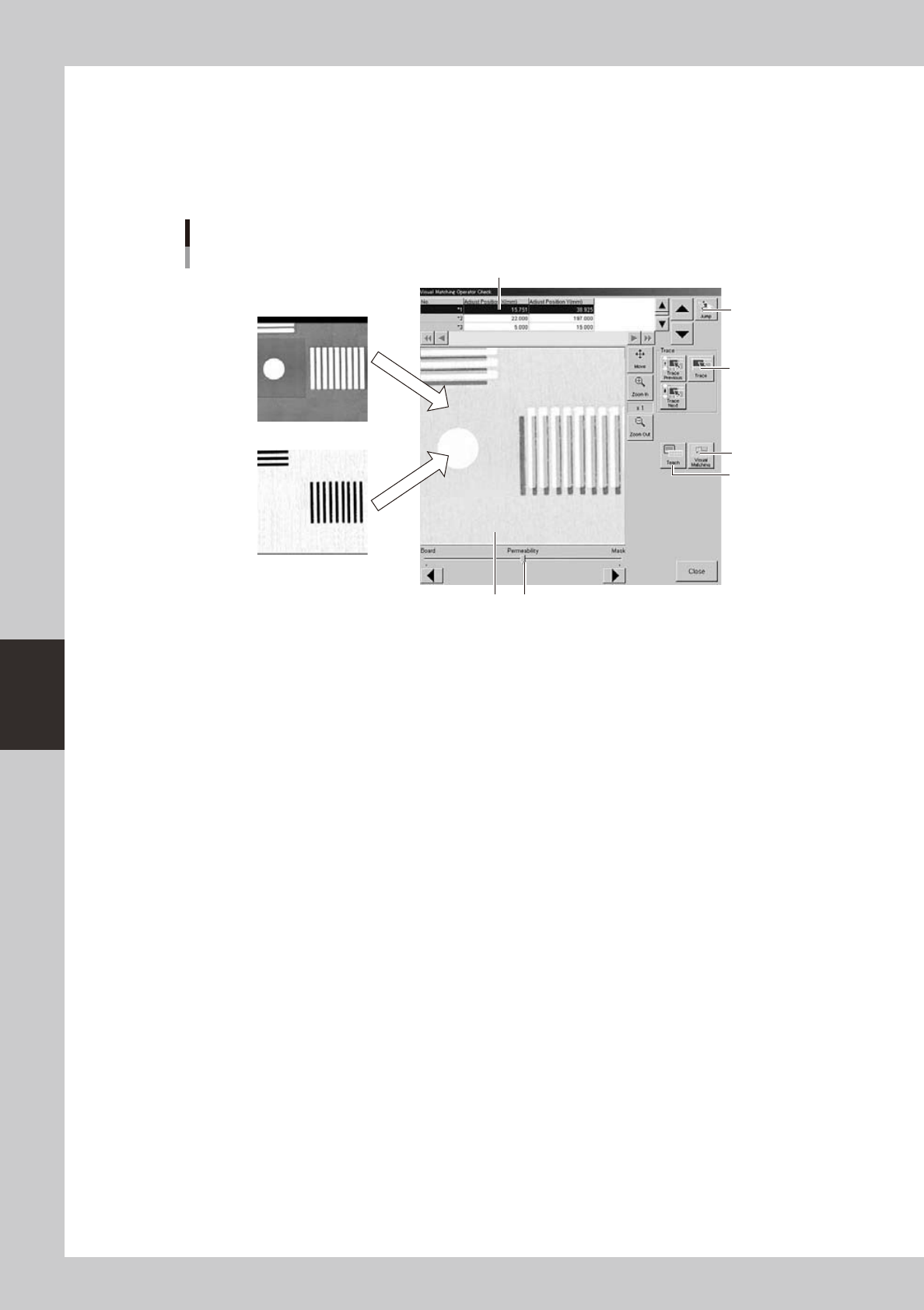

Dialog box for graphic alignment check
Board camera image
Mask camera image
1
4
5
7
6
2 3
64545-N3-00
1: Alignment coordinates
Select the coordinates where you want to check the board and mask alignment. These coordinates should first be set on
the [Print]-[Squeegee] tab screen. (See "5.1 Squeegee detail setting" earlier in this chapter.)
2: Vision monitor
Shows an overlapped image of the board and mask.
The image can be enlarged from 1 to 16 times by pressing the enlarge [ + ] button, or reduced to 1/16 of the original
image by pressing the reduce [ - ] button. With the [Move] button depressed, you can move the image by dragging it with
the mouse.
3: Permeability
The transmittance of the board image and mask image can be adjusted with the slide bar or the arrow buttons.
4: [Teach] button
Opens the teach screen.
5: [Visual Matching] button
Opens the "Visual Matching" screen for making fine position alignments when needed. (See step 5.)
6: [Jump] button
Allows jumping to any desired row in the alignment coordinate list.
7: [Trace] button
Pressing the [Trace] button displays an image of the currently selected alignment coordinates. Pressing the [Trace
Previous] button displays an image of the alignment coordinates one row up from the currently selected coordinates.
Pressing the [Trace Next] button displays an image of the alignment coordinates one row down.
5-43
5
Creating and setting the data
5
Press the [Visual Matching] button.
If a position offset (deviation) is found by graphic or visual alignment, you can adjust it in the "Visual
Matching" screen that appears when you press the [Visual Matching] button. (Skip this step when no
position offset is found.)
1. While moving the image in the XY directions using the [Arrow] buttons, make fine-alignments until
position offsets are no longer seen. The values in the "Offset X" and "Offset Y" boxes just above the
[Arrow] buttons change as you move the image.
2. After aligning the position, press the [Offset Set] button.
The number "1" appears in the "Count" box.
3. When you want to make alignments at other coordinates, select the coordinates and repeat the
same procedure.
The number in the "Count" box increments each time an alignment is made ([Offset Set] button is
pressed).

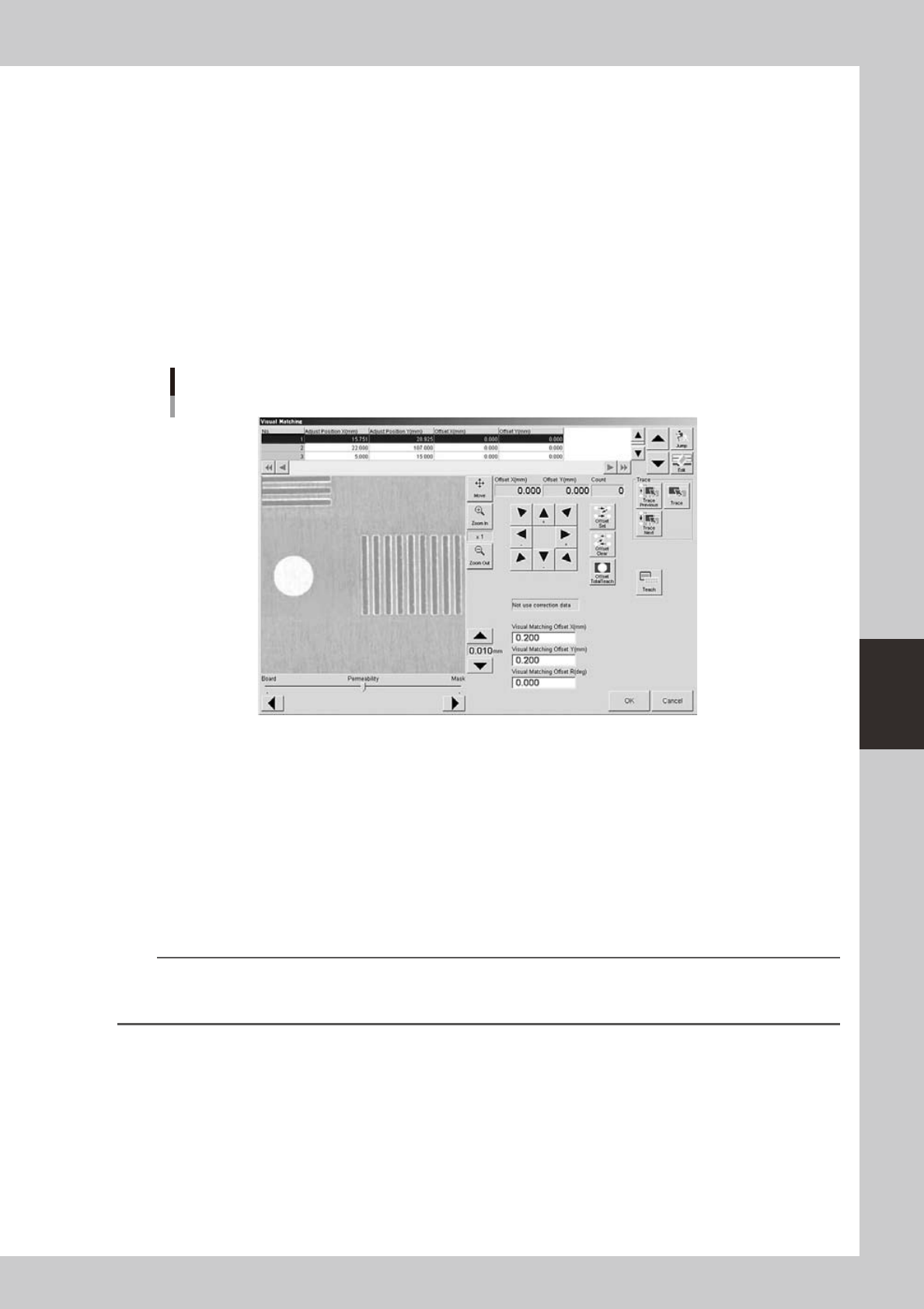

"Visual Matching" screen
64546-N3-10
6
When finished making alignments at the necessary coordinates, press the [Offset
Total Teach] button.
The offset amount for the entire board is then calculated based on the adjusted offset values and the
results displayed in the "Visual Matching Offset X", "Visual Matching Offset Y" and "Visual Matching Offset
R" boxes in the lower part of the screen.
Press the [Offset Clear] button if you want to clear the offset amount and retry from the beginning.
7
Press the [OK] button to update the offset amount.
The offset amount calculated here will be entered in the "F. Mask Offset XYR" and "B. Mask Offset XYR" in
the squeegee data. If you do not want to update the offset amount, press the [Cancel] button.
n
NOTE
If you want to align the printing position with a point other than the center of the board in order to compensate for
board or mask expansion, make graphic alignments after updating the offset by adjusting the center position and
rotational deviations.
8
Close the dialog box for graphic alignment.
After closing the dialog box, follow the message that appears and unload the board.
5-44
5
Creating and setting the data
9. Making a test print
When visual alignment on the created data has been made, make a test print before starting board
production, to check the printing conditions and accuracy and make necessary adjustments. In test print, we
recommend covering the board with a transparent sheet (option) to protect the board just as with the rolling
operation.
n
Note
When printing with newly created board data, always make a test print before starting production to check the
printing conditions and accuracy. Even when printing with board data you have used, we recommend making a test
print before beginning daily work.
1
Press the [Test Print] button on the Setup screen.
n
Note
When both lanes are used for production, the dialog box for selecting the lane number appears, so select the lane.
The lane currently used in production is grayed out.

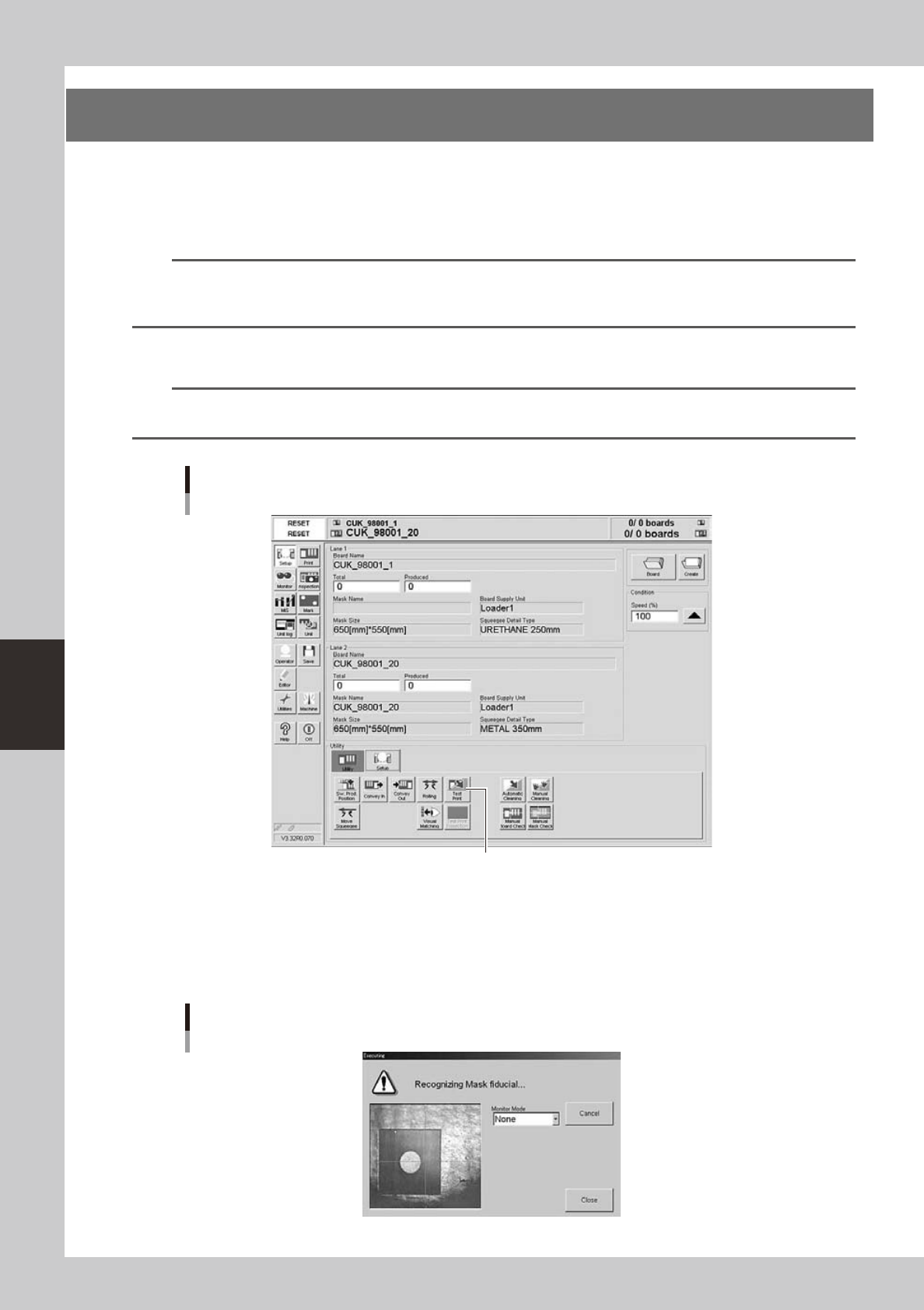

[Test Print] button
[Test Print] button
64547-N3-10
2
Follow the message on the screen to load a board on the conveyor.
This step is skipped when a board has already been clamped on the conveyor.
After the board is clamped, the board fiducial mark will be automatically recognized with the vision
camera. (This mark recognition is skipped if not using the fiducial mark function.)
Fiducial mark recognition screen
64548-N3-00
