3-6 3 Lubrication points 2.4 Conveyor unit 2.4.1 PU1-axis and PU2-axis PU-axis lubrication points Each table PU-axis guide Grease nipples PU-axis guide Grease nipples PU-axis guide shaft PU-axis guide shaft PU-axis ball …
3-5
3
Lubrication points
2.3 Mask table ASSY
2.3.1 MY-axis
MY-axis lubrication points
Guide
Guide
Ball screw
Ball screw
Guide
Ball screw
Ball screw
Guide
Guide
Guide
Grease gun:
Manual lubrication:
53306-N3-00
Lubrication section Lubrication point Interval Procedure
MY-axis guide 6
Monthly
Manual lubrication
MY-axis ball screw 4 Manual lubrication
2.3.2 MZ-axis
MZ-axis lubrication points
Each table
MZ-axis ball screw
Grease nipples
Grease gun:
Manual lubrication:
53307-N3-00
Lubrication section Lubrication point Interval Procedure
MZ-axis ball screw 4 (Each table) Monthly Grease gun
3-6
3
Lubrication points
2.4 Conveyor unit

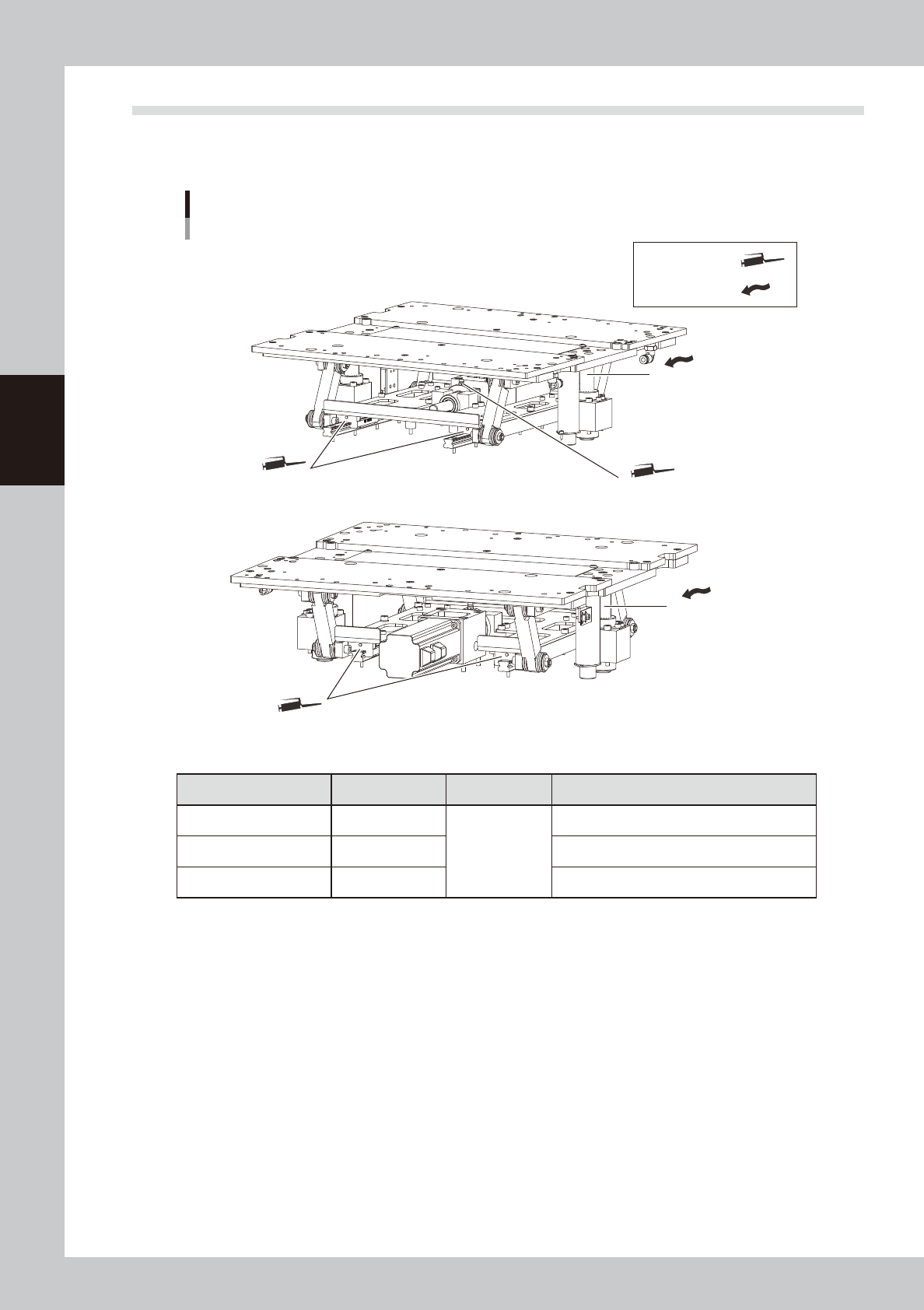

2.4.1 PU1-axis and PU2-axis
PU-axis lubrication points
Each table
PU-axis guide
Grease nipples
PU-axis guide
Grease nipples
PU-axis guide shaft
PU-axis guide shaft
PU-axis ball screw
Grease nipples
Grease gun:
Manual lubrication:
53308-N3-00
Lubrication section Lubrication point Interval Procedure
PU-axis guide 4 (Each table)
Monthly
Grease gun
PU-axis ball screw 1 (Each table) Grease gun
PU-axis guide shaft 2 (Each table) Manual lubrication
3-7
3
Lubrication points

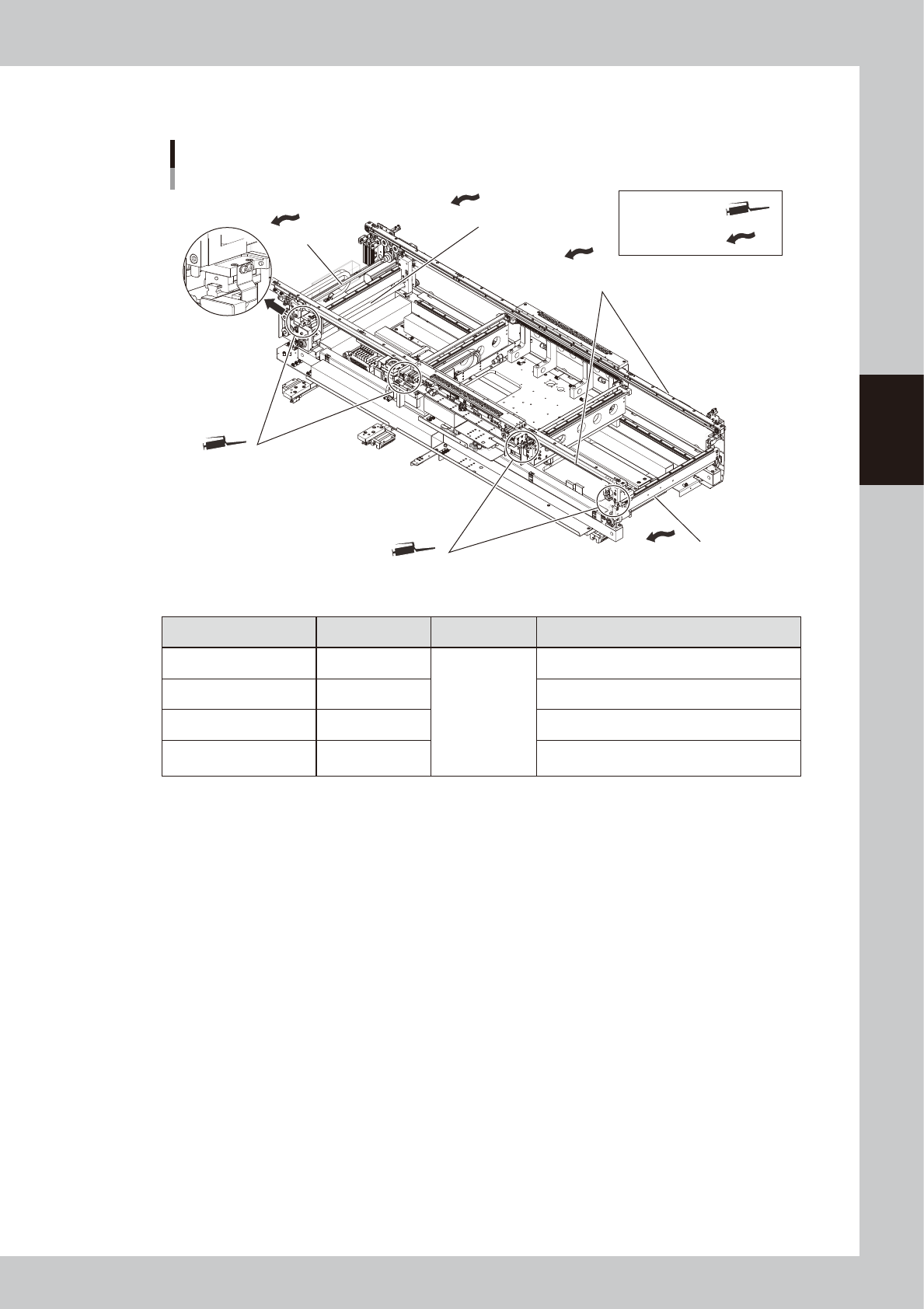

2.4.2 W1-axis and W2-axis (Conveyor auto width adjustment)
W-axis lubrication points
Each table
Conveyor rail
Linear guide
hexagon spline
W-axis ball screw
W-axis ball screw
W-axis guide
Grease nipples
W-axis guide
Grease nipples
Grease gun:
Manual lubrication:
53309-N3-00
Lubrication section Lubrication point Interval Procedure
W-axis guide 4 (Each table)
Monthly
Grease gun
W-axis ball screw 2 (Each table) Manual lubrication
W-axis hexagon spline 1 (Each table) Manual lubrication
Conveyor rail
Linear guide
2 (Each table) Manual lubrication
