4-7 4 aily operation 5. Replacing the cleaning gauze roll If the cleaning gauze roll is wound up completely or if the gauze roll with a different size needs to be used during the setup work, follow the steps below to r…
4-6
4
aily operation
3

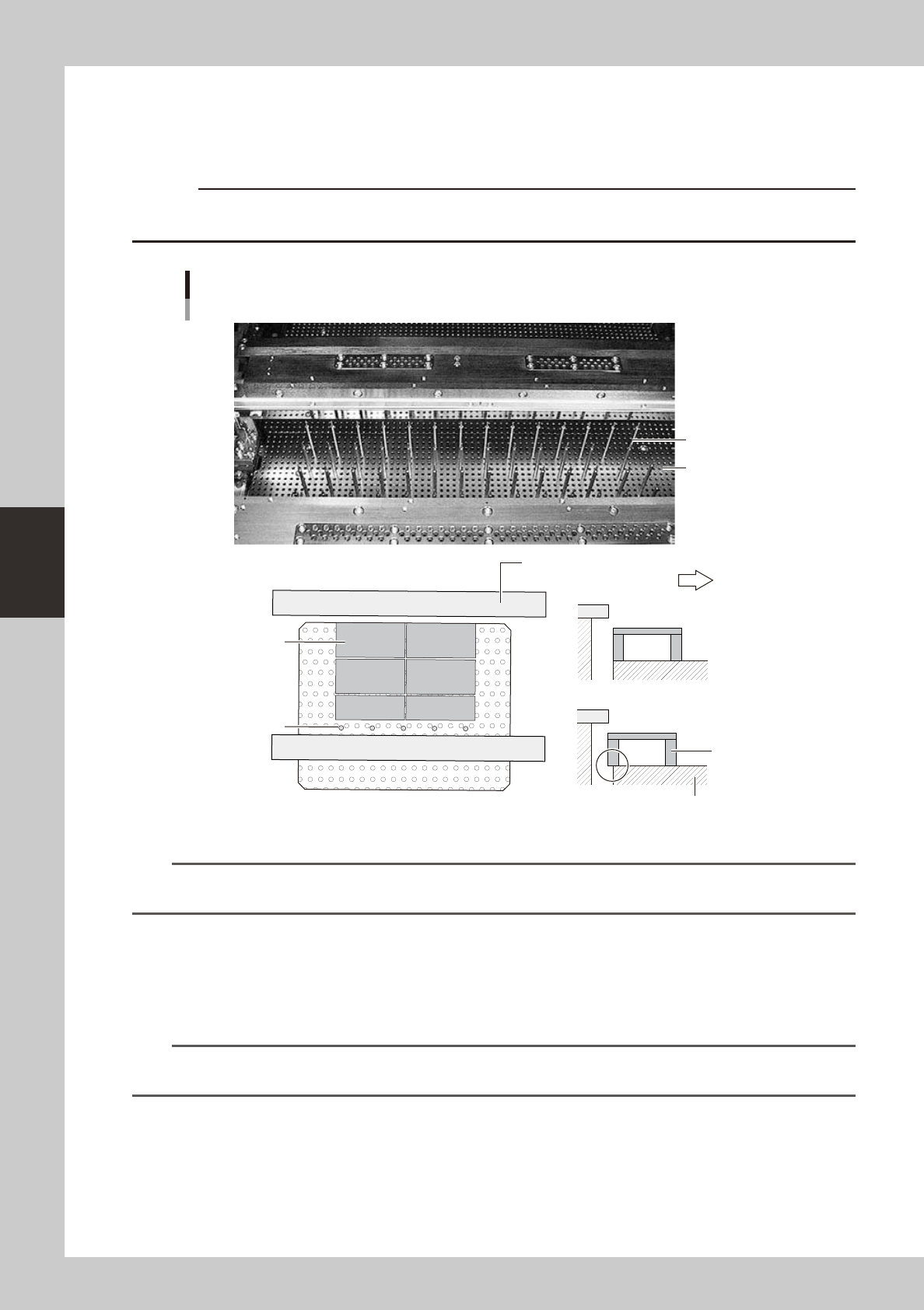

Set the backup pins (or board support jigs).
When the DOOR LOCK lamp turns off, open the safety cover and set the backup jigs on the matrix plate
to match the size of the board to be produced. If using optional board support jigs, they can be used
together with the backup pins.
c
immediately in case of emergency.
OK
NG
Arranging the backup pins
Backup pins
Backup pins
(When board support jigs and backup pins are used together)
Board support jig
Fixed conveyor rail
Board support jig
Machine front side
Matrix plate
Matrix plate
63402-N3-10
n
NOTE
When the backup pin arrangement has been input by pressing the [Backup Pin Pos.] button on the [Print]-[Board] tab
screen, this is convenient to arrange the backup pins. (For more details, see “3. Back pin arrangement” in Chapter 7.)
4
Close the cover and press the [READY] button.
5
Press the [Convey In] button to load a board into the machine.
Follow the instructions that appear on the screen to load a board into the machine. The board is
automatically clamped in the print position.
n
NOTE
When both lanes are used for production, the dialog box for selecting the lane number appears, so select the lane.
The lane currently used in production is grayed out.
6
Check the board clamp status.
1. Press the [SW Prod. Position] button and select “Transfer Check Position”.
2. When the DOOR LOCK lamp turns off, open the cover and touch the board to check for warpage
and backlash.
4-7
4
aily operation

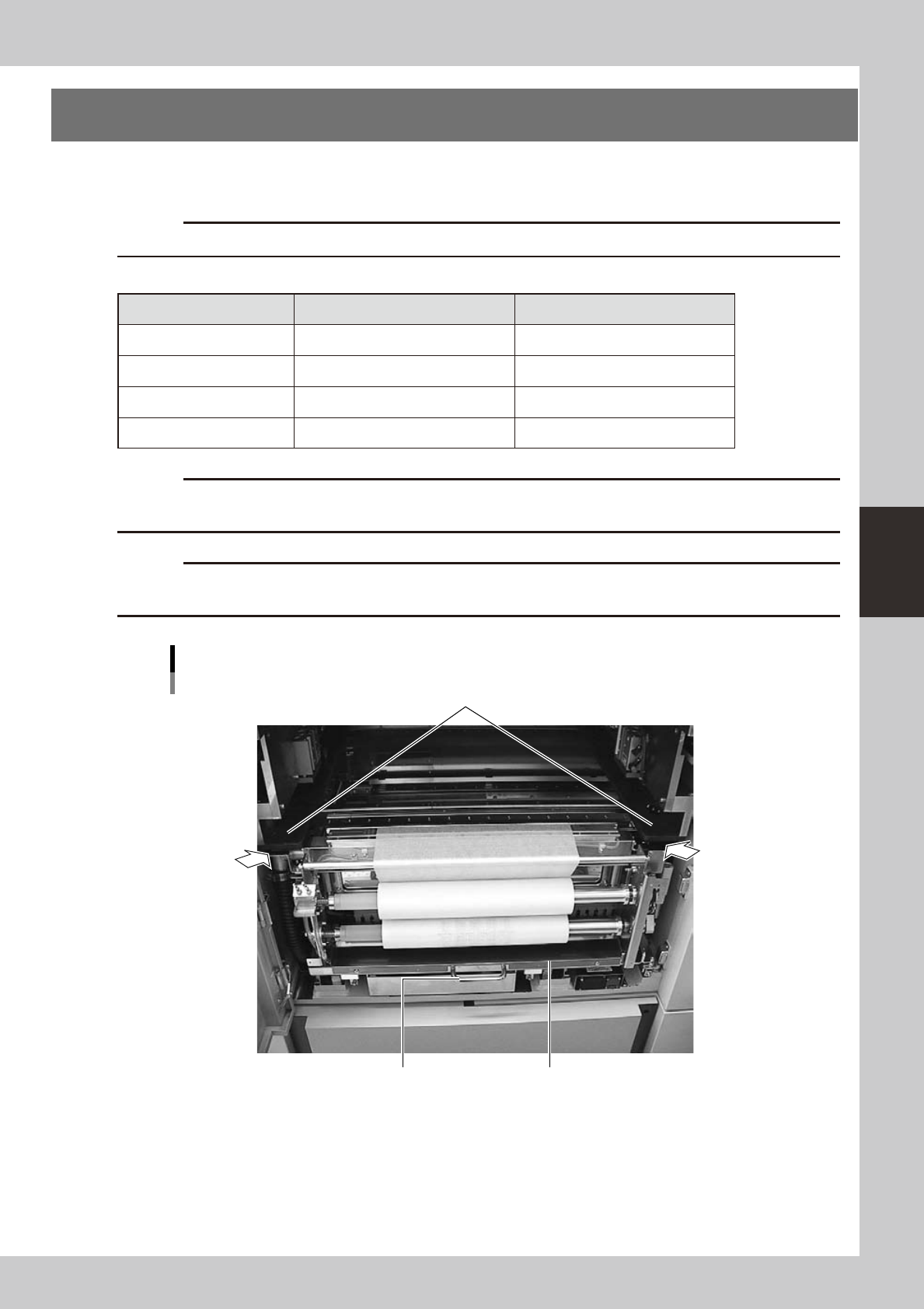

5. Replacing the cleaning gauze roll
If the cleaning gauze roll is wound up completely or if the gauze roll with a different size needs to be used
during the setup work, follow the steps below to replace the cleaning gauze roll.
c
n
Gauze roll part No.
Part No. Part name Notes
KHT-M3660-00X BENCOT,ROLL 530 Roll sheet width, 530 mm
KGY-M3660-A0X BENCOT,ROLL 440 Roll sheet width, 440 mm
KGY-M3660-B0X BENCOT,ROLL 360 Roll sheet width, 360 mm
KGY-M3660-C0X BENCOT,ROLL 260 Roll sheet width, 260 mm
c
Select a gauze roll width that matches the squeegee head size. Using the wrong gauze roll width might damage the
squeegee head and mask.
c
below) under the mask plate.
Cleaning unit
Mask plate
Cleaning unitHandle
63403-N3-00
4-8
4
aily operation
5.1 Using the same roll size
1
Open the cover.
1. On the Setup screen, press the [SW Prod.
Position] button and select “Mask Setup”.
2. When the DOOR LOCK lamp turns off,
open the cover.
c
operation. Use it only when you want to stop the
machine immediately in case of emergency.
n
NOTE
When a mask of 736 x 736 or larger is used, remove it.
2
Remove the used up gauze roll
from the take-up shaft.
With the used up gauze roll kept pushed
leftward, remove it from the take-up shaft
(lower shaft) along with the shaft holder fit
into the right end of the used up gauze roll.
3
Fit the roll core remaining on the
upper roll shaft onto the take-up
roll shaft.
Remove the empty roll core by pushing it to
the left along with the shaft holder fit into
the right end.
Then, press-fit the empty roll core into the
take-up shaft (lower shaft).
4

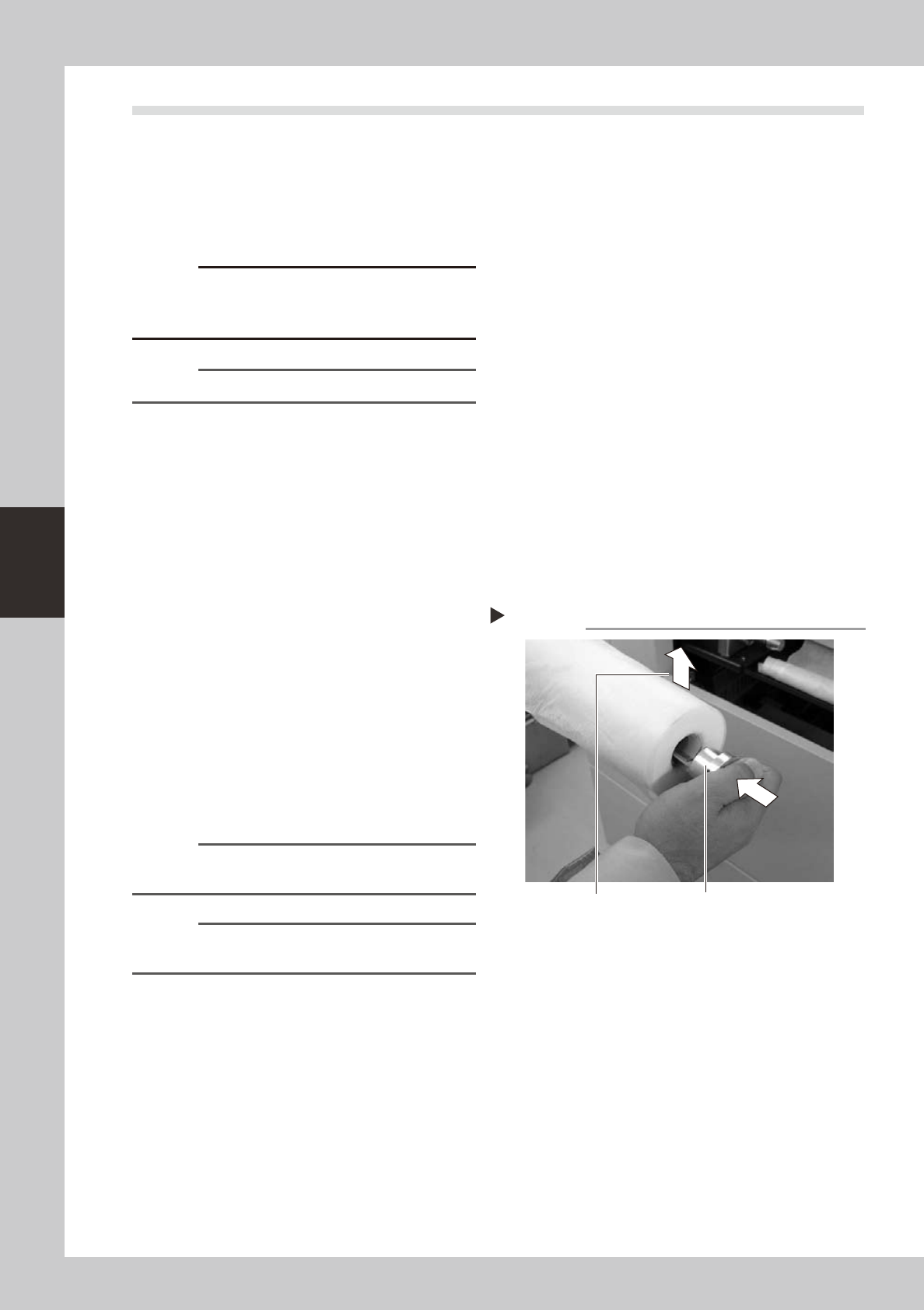

Insert the shaft holder into a new
gauze roll.
Remove the shaft holder inserted into the
right end of the used up gauze roll and insert
it into the right end of a new gauze roll.
63404-N3-00
n
NOTE
On Lane 2, the direction of inserting the shaft holder is
opposite, so use caution.
n
NOTE
Pay special attention to the gauze roll feed direction
when inserting the shaft holder into a new gauze roll.
5
Fit the new gauze roll onto the
upper roll shaft.
While pushing the gauze roll to the left, fit it
onto the upper roll shaft. Make sure that the
guide on the shaft holder is engaged
securely.
Inserting the shaft holder.
Step 4
Shaft holder
Gauze roll feed direction
