3-4 3 Lubrication points 2.2 Printing head 2.2.1 SY -axis SY -axis lubrication points Each table SY -axis guide Grease nipples Grease gun: Manual lubrication: 53304-N3-00 Lubrication section Lubrication point Interval Pr…
3-3
3
Lubrication points

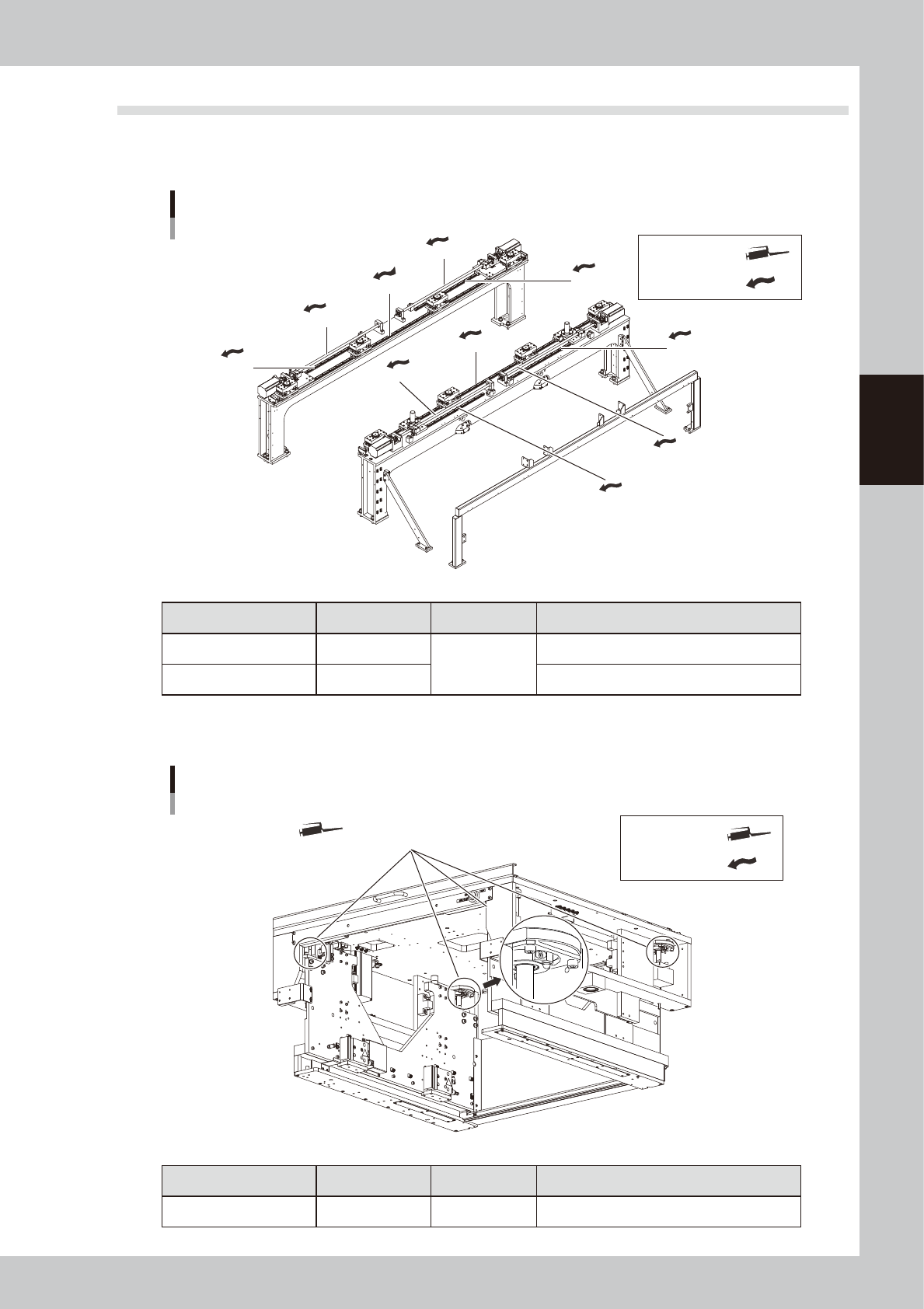

2.1.2 Y1-axis and Y2-axis
Y-axis lubrication points
Each table
Y-axis guide
Grease nipples
Y-axis ball screw
Grease nipples
Y-axis guide
Grease nipples
Grease gun:
Manual lubrication:
53303-N3-00
Lubrication section Lubrication point Interval Procedure
Y-axis guide 6 (Each table)
Monthly
Grease gun
Y-axis ball screw 1 (Each table) Grease gun
3-4
3
Lubrication points

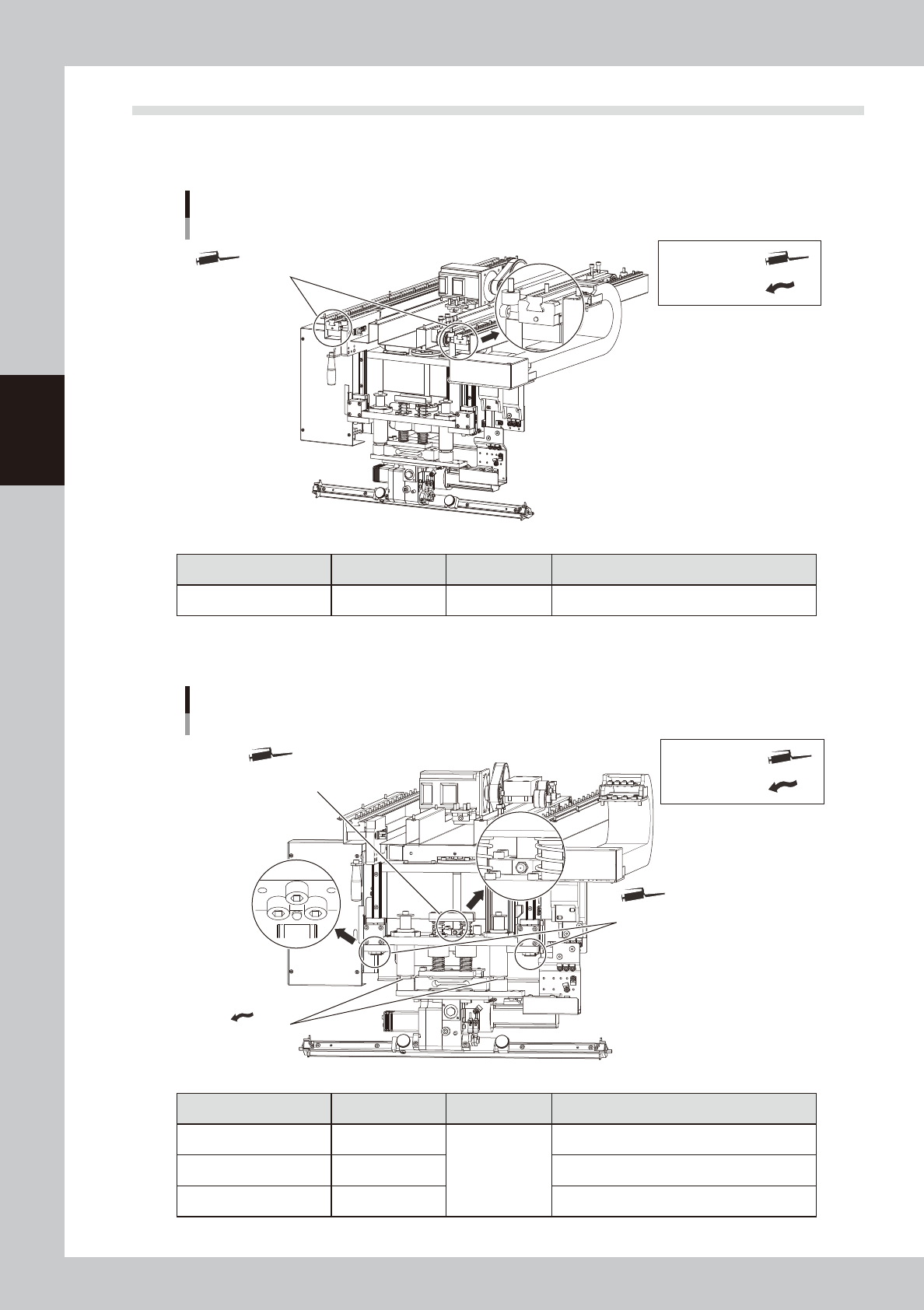

2.2 Printing head
2.2.1 SY-axis
SY-axis lubrication points
Each table
SY-axis guide
Grease nipples
Grease gun:
Manual lubrication:
53304-N3-00
Lubrication section Lubrication point Interval Procedure
SY-axis guide 2 (Each table) Monthly Grease gun
2.2.2 SZ-axis
SZ-axis lubrication points
Each table
SZ-axis ball screw
Grease nipples
Linear bushing
SZ-axis guide
Grease nipples
Grease gun:
Manual lubrication:
53305-N3-00
Lubrication section Lubrication point Interval Procedure
SZ-axis guide 2 (Each table)
Monthly
Grease gun
SZ-axis ball screw 1 (Each table) Grease gun
Linear bushing 2 (Each table) Manual lubrication
3-5
3
Lubrication points

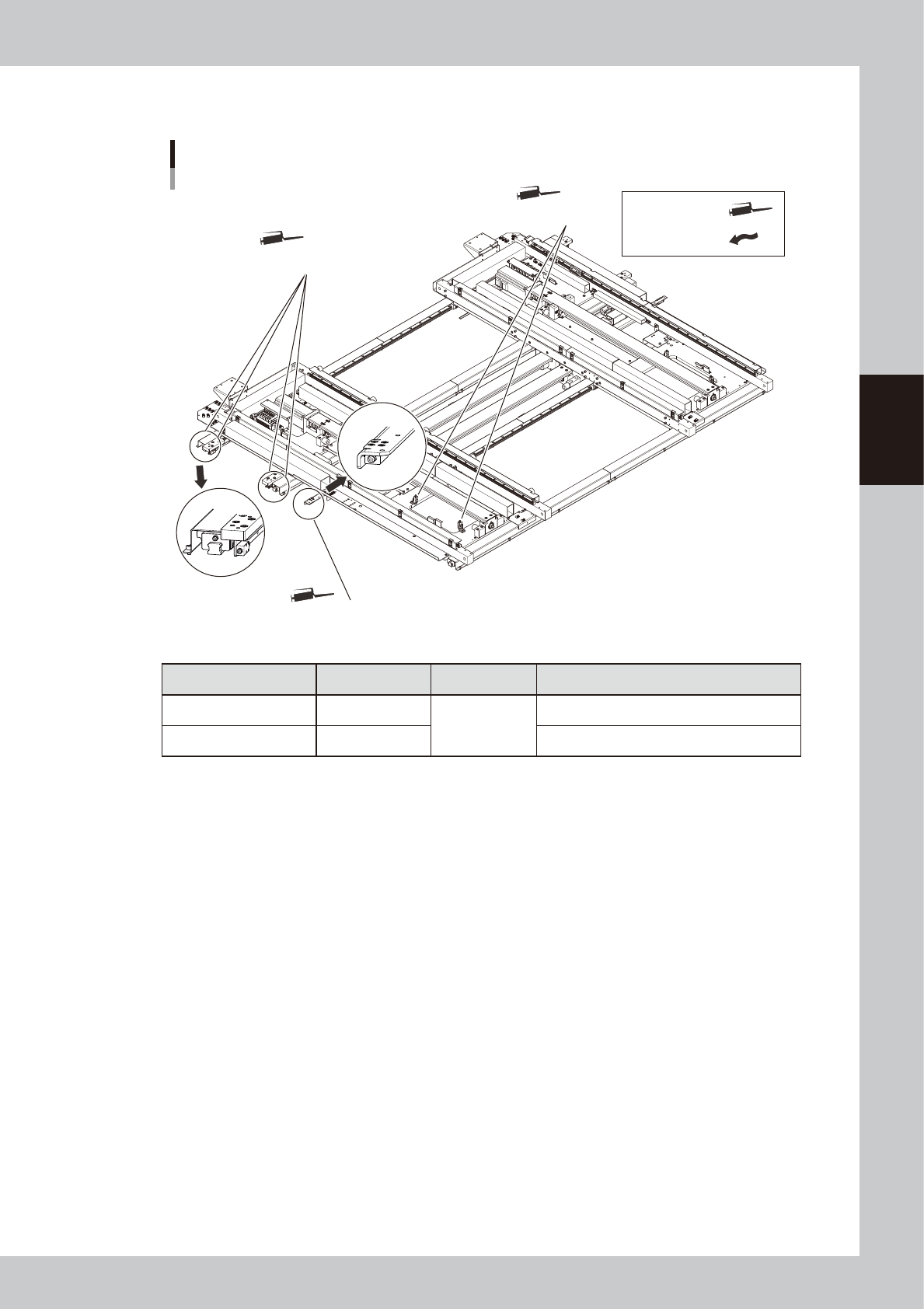

2.3 Mask table ASSY
2.3.1 MY-axis
MY-axis lubrication points
Guide
Guide
Ball screw
Ball screw
Guide
Ball screw
Ball screw
Guide
Guide
Guide
Grease gun:
Manual lubrication:
53306-N3-00
Lubrication section Lubrication point Interval Procedure
MY-axis guide 6
Monthly
Manual lubrication
MY-axis ball screw 4 Manual lubrication
2.3.2 MZ-axis
MZ-axis lubrication points
Each table
MZ-axis ball screw
Grease nipples
Grease gun:
Manual lubrication:
53307-N3-00
Lubrication section Lubrication point Interval Procedure
MZ-axis ball screw 4 (Each table) Monthly Grease gun
