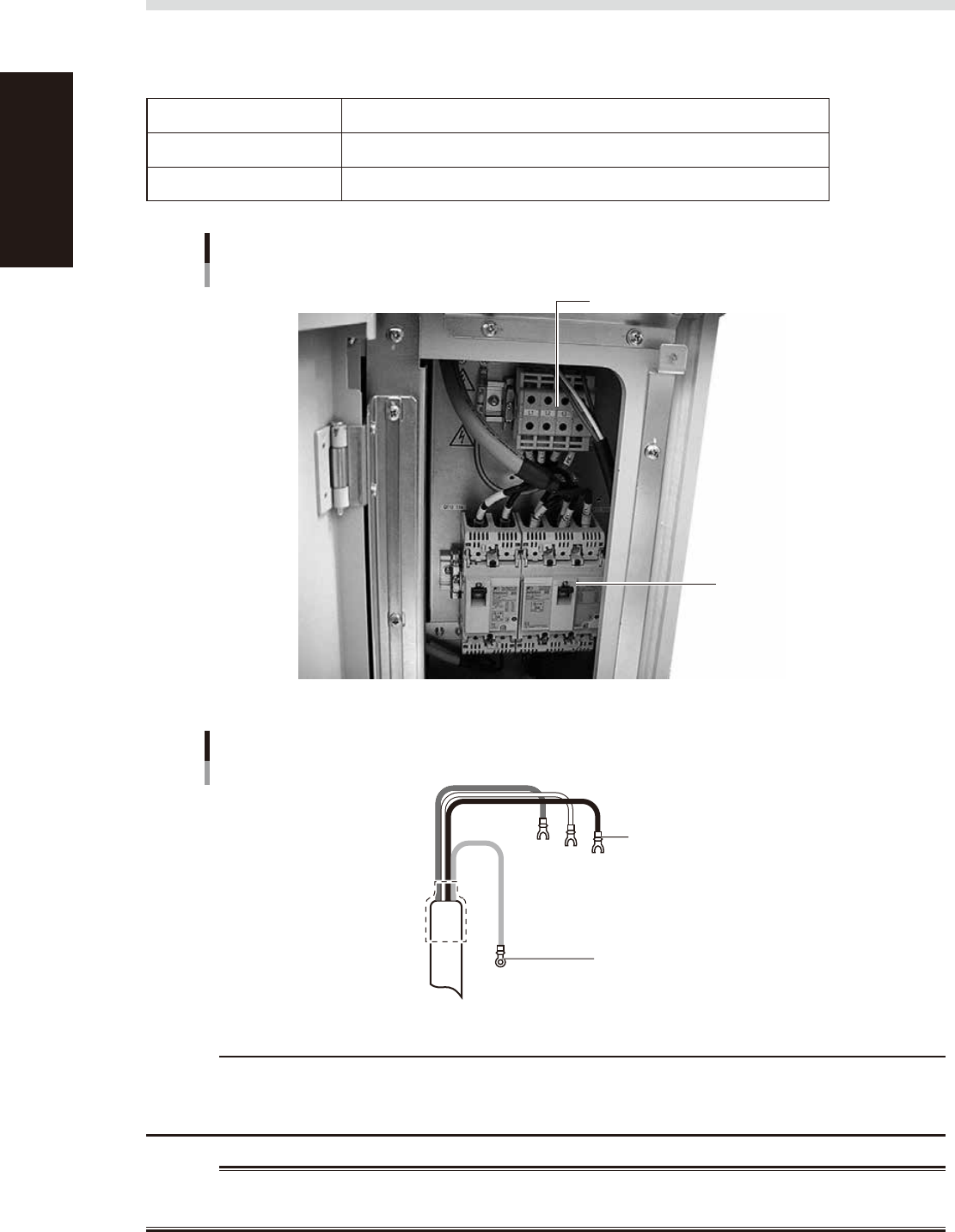

1.2 Power connection terminals
The power connection terminals are located inside the lower right panel on the front of the machine. Connect
the power cable leads as shown below to the L1, L2, L3 and ground terminal (PE) on the power terminal block.
n
Power supply specifications
Power 3-phase AC 200 / 208/ 220 / 240 / 380 / 400 / 416V ±10%
Frequency 50/60Hz
Power capacity 7.0KVA
Power connection terminals
Power input terminal (L1, L2, L3, PE)
Main breaker
53A02-N3-00
Power cable example
L1
U
L2
V
L3
W
Earth
Green
L=100mm
L=100mm
Ring tongue terminal
Fork tongue terminal
(vinyl-insulated)
53A03-N3-00
c
CAUTION
Use a power cable with a grade of AWG10 (cross-sectional area of the conductor is 5.5 mm
2
) or more.
Make sure that the power cable connections are correct. If misconnected, the vacuum operation of the suction unit
will be reversed (air blows outward).
w
WARNING
TO AVOID THE RISK OF ELECTRICAL SHOCK, MAKE SURE THAT THE POWER SOURCE IS OFF BEFORE CONNECTING THE
POWER CABLE. ALSO MAKE SURE THAT THE GROUND CABLE IS SECURELY CONNECTED TO THE MACHINE.
A-3
Appendix
1.3 Connection between machines
To exchange signals such as board request and operation status with the downstream or upstream machine, the
"NEXT INTERFACE" and "PREVIOUS INTERFACE" connectors located on the rear of the machine are used. The
"NEXT INTERFACE" connector connects to the downstream machine, and the "PREVIOUS INTERFACE"
connector connects to the upstream machine such as a loader. In the case of standard right-to-left flow, the
PREVIOUS INTERFACE connector is located inside the lower left panel on the rear of the machine while the
NEXT INTERFACE connector is located inside the lower right panel on the rear of the machine. Both connectors
use an AMP 206043-1 (14-pin receptacle).
PREVIOUS INTERFACE NEXT INTERFACE
Machine-to-machine interface connectors
Right-to-left flow machine
Connector : AMP 206043-1 (14-pin receptacle)
Connector : AMP 206043-1 (14-pin receptacle)
14
11
12
7
4
8
3
1
14
11
12
7
4
8
3
1
14
11
12
7
4
8
1
3
14
11
12
7
4
8
1
3
Lane 1 Lane 2 Lane 1 Lane 2
■ Left-to-right flow machine
PREVIOUS INTERFACE NEXT INTERFACE
14
11
12
7
4
8
3
1
14
11
12
7
4
8
3
1
14
11
12
7
4
8
1
3
14
11
12
7
4
8
1
3
Lane 2 Lane 1 Lane 2 Lane 1
53A04-N3-00
A-4
Appendix
1.3.1 PREVIOUS INTERFACE connector
n
Lane 1
When the following three conditions are met, the PREVIOUS INTERFACE circuit in the machine allows the next
board to be carried in.
1. Machine is ready for carrying in a board (BUSY OUT: ON)
2. Board carry-in signal is input from the upstream machine. (BA IN [N0108221] : ON)
3. Automatic operation signal is input from the upstream machine. (UR IN [N0108222] : ON)
n
NOTE
• When the automatic operation signal (UR IN) from the loader turns off during transfer of a board, the machine
temporarily stops carrying in the board.
• When the board being carried in is detected by the entrance sensor, the BUSY OUT signal turns off.
• Carrying in the board is finished when both the BUSY OUT and BA IN turn off.
7
12
4
8
1
14
11
3
PREVIOUS INTERFACE circuit
Lane 1
This machine Upstream machine
PREVIOUS INTERFACE connector
BUSY OUT
(T01100E4)
BUSY IN
+24V
+24V
LR OUT
(T01100E7)
LR IN
UR IN
(N0110322)
UR OUT
BA IN
(N0110321)
BA OUT
I/O BOARD
1
2
3
4
5
6
7
8
9
10
11
12
13
14
53A05-N3-00
n
Board transfer signal specifications (PREVIOUS INTERFACE)
Pin No. Signal name Address I/O specifications Signal specifications
1 BUSY OUT T01100E4 Relay contact (zero voltage) output Signal output during board carry-in
2 BUSY OUT T01100E4 Relay contact (zero voltage) output
3 +24V Input common (+24V) Signal input of board carry-out request
4 BA IN N0110321 Voltage input
5 NC (with dummy pins) (Prevents misinsertion.)
6 to 8 NC
9 +24V Input common (+24V) Signal input during automatic operation
10 UR IN N0110322 Voltage input
11 LR OUT T01100E7 Relay contact (zero voltage) output Signal output during automatic operation
12 LR OUT T01100E7 Relay contact (zero voltage) output
13 to 14 NC
