1-8 1 Part names and functions 3. Printing section This machine uses a printing pressure feedback head, highly-rigid dual stage, and dual mask (stencil) table to print solder paste at high speeds yet with high accuracy .…
1-7
1
Part names and functions

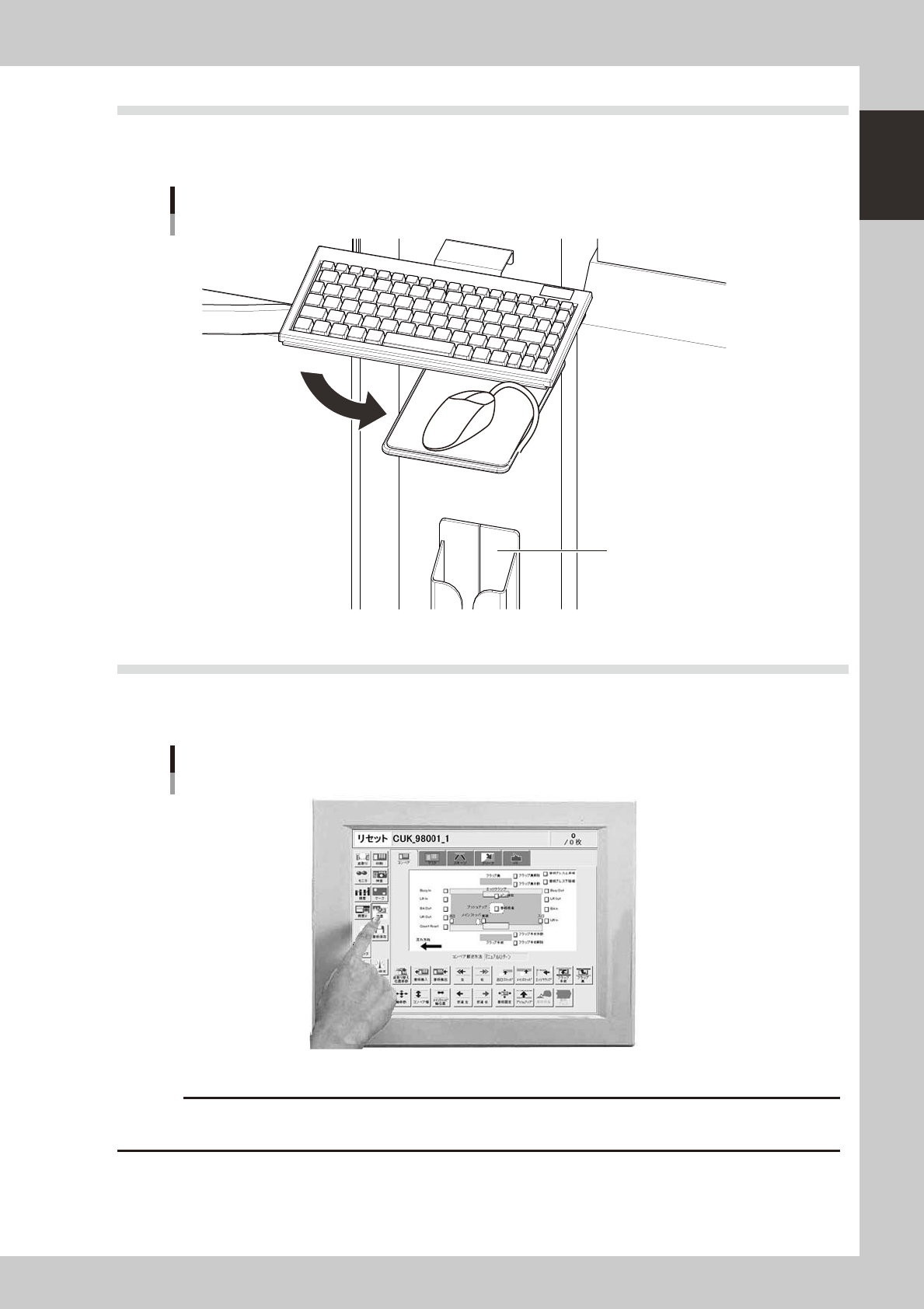

2.2 Keyboard and mouse
This machine is equipped with a keyboard and mouse as standard features to operate the machine or for data
editing. To select a menu button or parameter item on the operation screen, click it with the left mouse button.
Keyboard and mouse
Mouse holder
63107-N3-00
2.3 Liquid crystal touch screen (option)
Machines equipped with a touch screen (option) can be operated or data set by pressing icon buttons or
selecting parameter items on the screen without having to use the keyboard and mouse.
Touch screen
Option
63108-N3-00
c
1-8
1
Part names and functions
3. Printing section
This machine uses a printing pressure feedback head, highly-rigid dual stage, and dual mask (stencil) table
to print solder paste at high speeds yet with high accuracy.

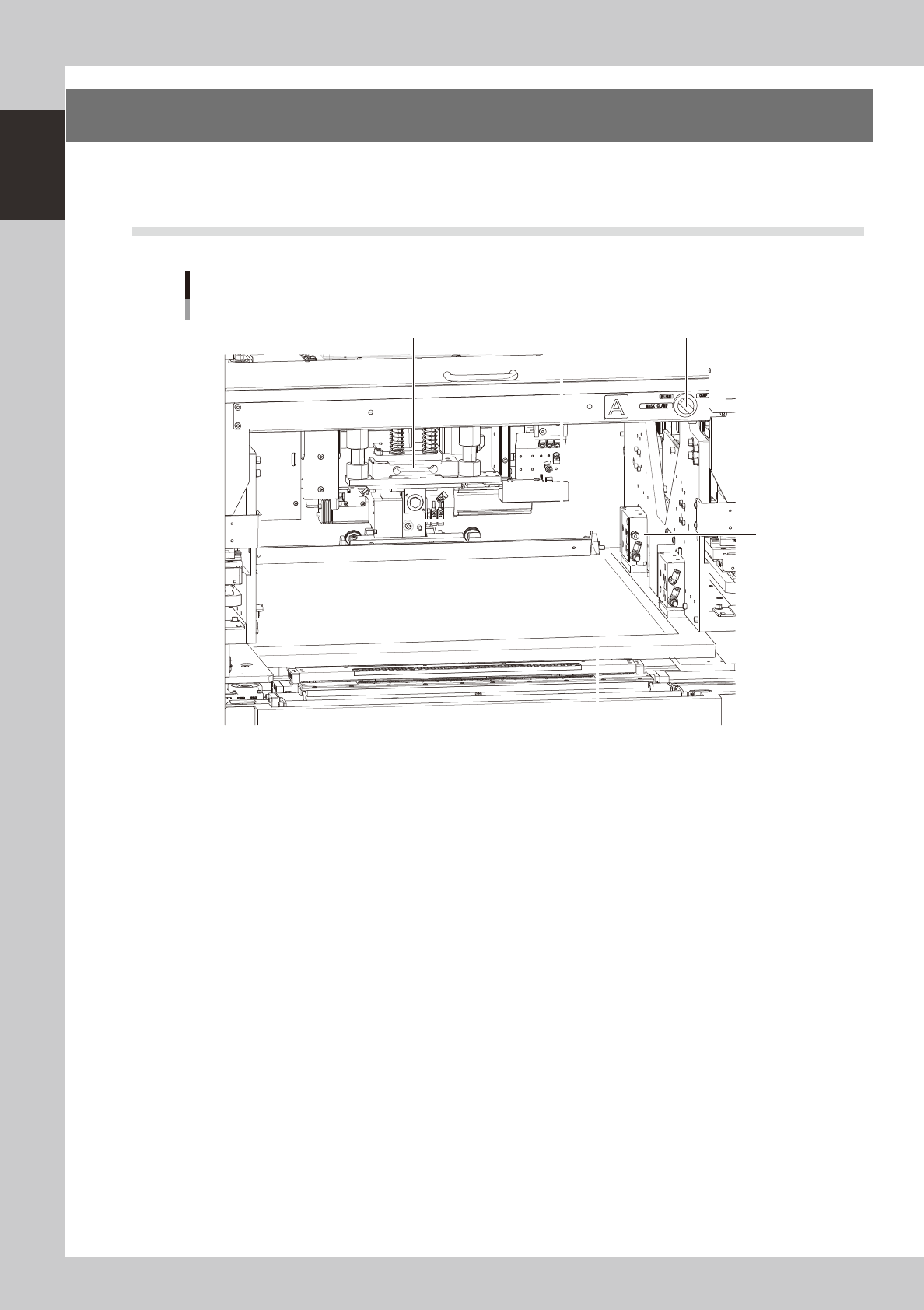

3.1 Squeegee head and printing table
Squeegee head and printing table
1 2 4
3
5
63109-N3-00
1. Squeegee head
Moves the squeegee vertically (along the SZ-axis) and forwards or backwards (along the SY-axis ). The 3S squeegee head
rotates slightly even in the R direction.
2. Squeegee holder
The squeegee can be easily mounted in this squeegee holder with two screws.
3. Mask clamps (a total of 8 clamps)
Clamp a mask (stencil) frame on the printing table. There are 4 clamps on each table (a total of 8 clamps).
4. Mask clamp switch
Turn this switch CCW or CW to release or clamp the mask.
5. Mask (prepared by user)
Various types of masks (stencils) with different frame sizes can be used by just changing the position of the stopper pin.
For information about the mask frame sizes and stopper pin positions, See "7.1. Mask size and mask stopper pin position"
in Chapter 4.
1-9
1
Part names and functions

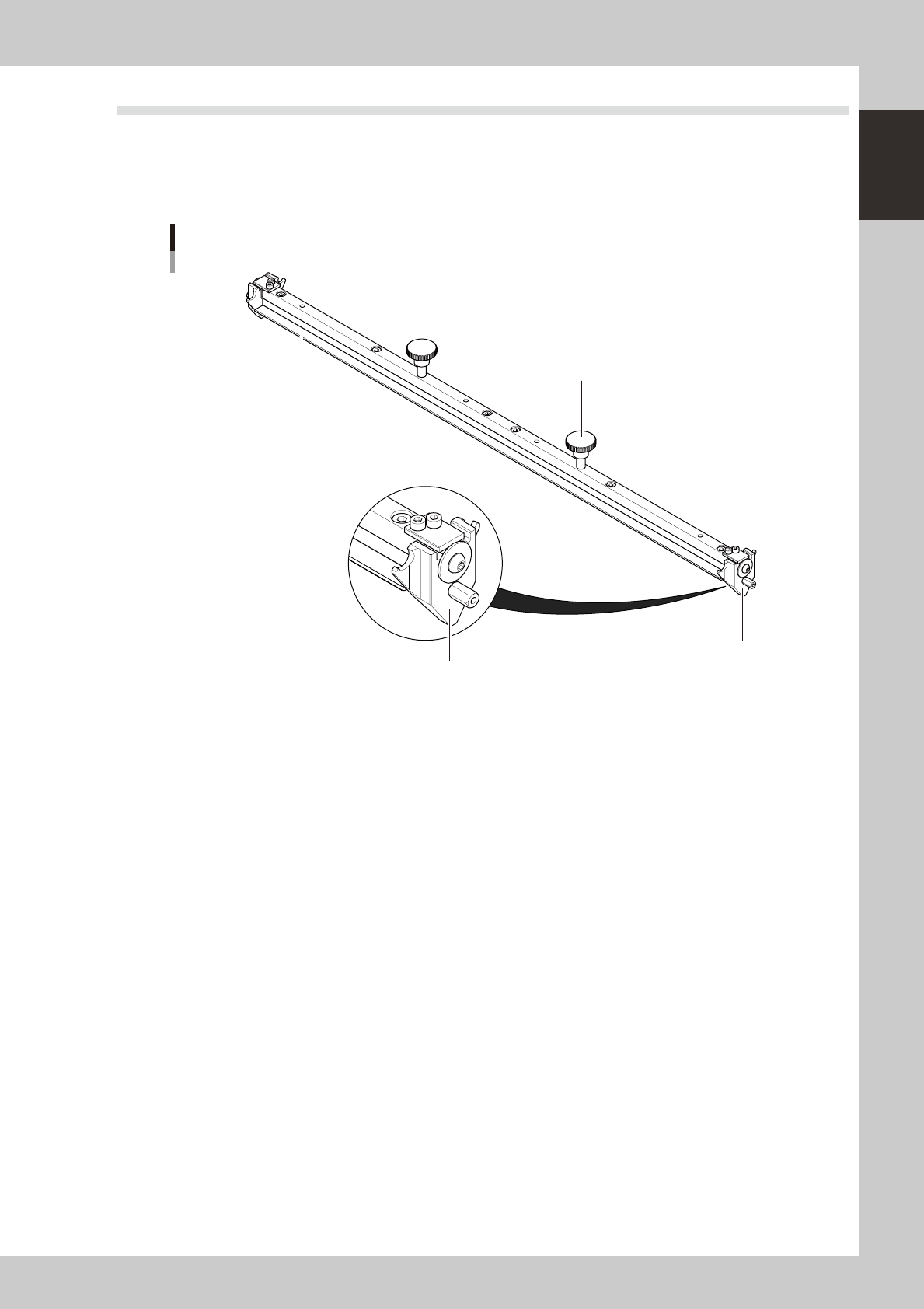

3.2 3S squeegee
This 3S squeegee allows you to adjust the squeegee scraper contact angle as needed. Since the same scraper
surface is used for solder printing in the forward and backward directions there will be less solder wasted.
Metal or urethane scraper 3S squeegees with a length of 250mm, 300mm, 350mm, 400mm, 440mm or 530mm
are supplied with the machine according to your order.
3S squeegee
1
2
3
3
63112-N3-00
1. Scraper
Prints solder patterns on a board while uniformly scraping solder paste placed on the mask. The 3S squeegee has
double-edge scrapers made of urethane or metal.
2. Mount knob
Tighten these mount knobs to install the squeegee on the squeegee holder.
3. Side plate
Prevents solder paste on the mask from spreading beyond the squeegee width. This side plate contains a snap-in
mechanism which allows you to easily detach or attach the side plate during the squeegee cleaning.
