4-10 4 aily operation 5.2 Changing the roll size If the roll size needs to be changed during the setup w ork, it is necessary to use a special cleaner width change unit (option). n Cleaner width change unit Part No. Pa…
4-9
4
aily operation
6
Feed the gauze roll through the
guides.
While keeping the parallelism between the
left and right, feed the gauze roll through
the guides as shown in the figure on the
right.
63406-N3-00
c
gauze roll.
7
Attach the top end of the new
gauze roll onto the roll core
inserted onto the take-up shaft.
Fasten the top end of the new gauze roll
with an adhesive tape or similar item so that
both ends feed in parallel with each other.
After that, turn the take-up shaft 2 or 3
rotations to wind up the gauze roll.
8
Close the safety cover and cancel
the emergency stop.
Feeding the gauze roll through the guides.
Step 6
Take-up shaft
New gauze roll
Rear cover
4-10
4
aily operation
5.2 Changing the roll size
If the roll size needs to be changed during the setup work, it is necessary to use a special cleaner width change
unit (option).
n
Cleaner width change unit
Part No. Part name Notes
KHT-M36C0-00X ROLL UNIT 530 Shaft holder 2 sets, roll core, plate (for 530 mm)
KHT-M36C0-A0X ROLL UNIT 440 Shaft holder 2 sets, roll core, plate (for 440mm)
KHT-M36C0-B0X ROLL UNIT 360 Shaft holder 2 sets, roll core, plate (for 360mm)
KHT-M36C0-C0X ROLL UNIT 260 Shaft holder 2 sets, roll core, plate (for 260mm)
1
Open the cover.
1. On the Setup screen, press the [SW Prod.
Position] button and select “Mask Setup”.
2. When the DOOR LOCK lamp turns off,
open the cover.
c
operation. Use it only when you want to stop the
machine immediately in case of emergency.
2
Cut the roll sheet.
Remove the roll from the wind-up side (lower
side) and cut the roll sheet.
63406-N3-00
3
Remove also the roll from the feed
side (upper side).
Remove the roll from the feed side
completely in the same manner as
described for the wind-up side.
c
If a roll having a different size is used without
flow out or the cleaning effect to lower.
Always replace the plate with a one having an
appropriate size.
4
Remove the plate.
Use an Allen wrench to remove the plate
that becomes the cleaning solvent blow out
port.
63407-N3-00
Removing the roll sheet.
Step 2
Cut the roll sheet.
Removing the plate.
Step 4
Plate
Allen wrench
4-11
4
aily operation
5
Install a new plate.
Next, install a plate suitable for the roll sheet
width to be used.
63408-N3-00
6
Insert the shaft holders into the roll
on the feed side (upper side).
Insert the shaft holders into both sides while
carefully checking the direction of the roll
sheet.
7
Install the roll on the take-up side
(lower side).
Insert the shaft holders onto the roll core in
the same manner as described for the feed
side and install the roll at the set position.
63409-N3-00
8
Feed the gauze roll through the
guides.
Feed the gauze roll through the guides while
keeping the parallelism between the left
and right.
c
gauze roll.
9
Attach the top end of the new
gauze roll onto the roll core
inserted onto the take-up shaft.
Fasten the top end of the new gauze roll
with an adhesive tape or similar item so that
both ends feed in parallel with each other.
After that, turn the take-up shaft 2 or 3
rotations to wind up the gauze roll.
0
Close the cover and press the
[READY] button.

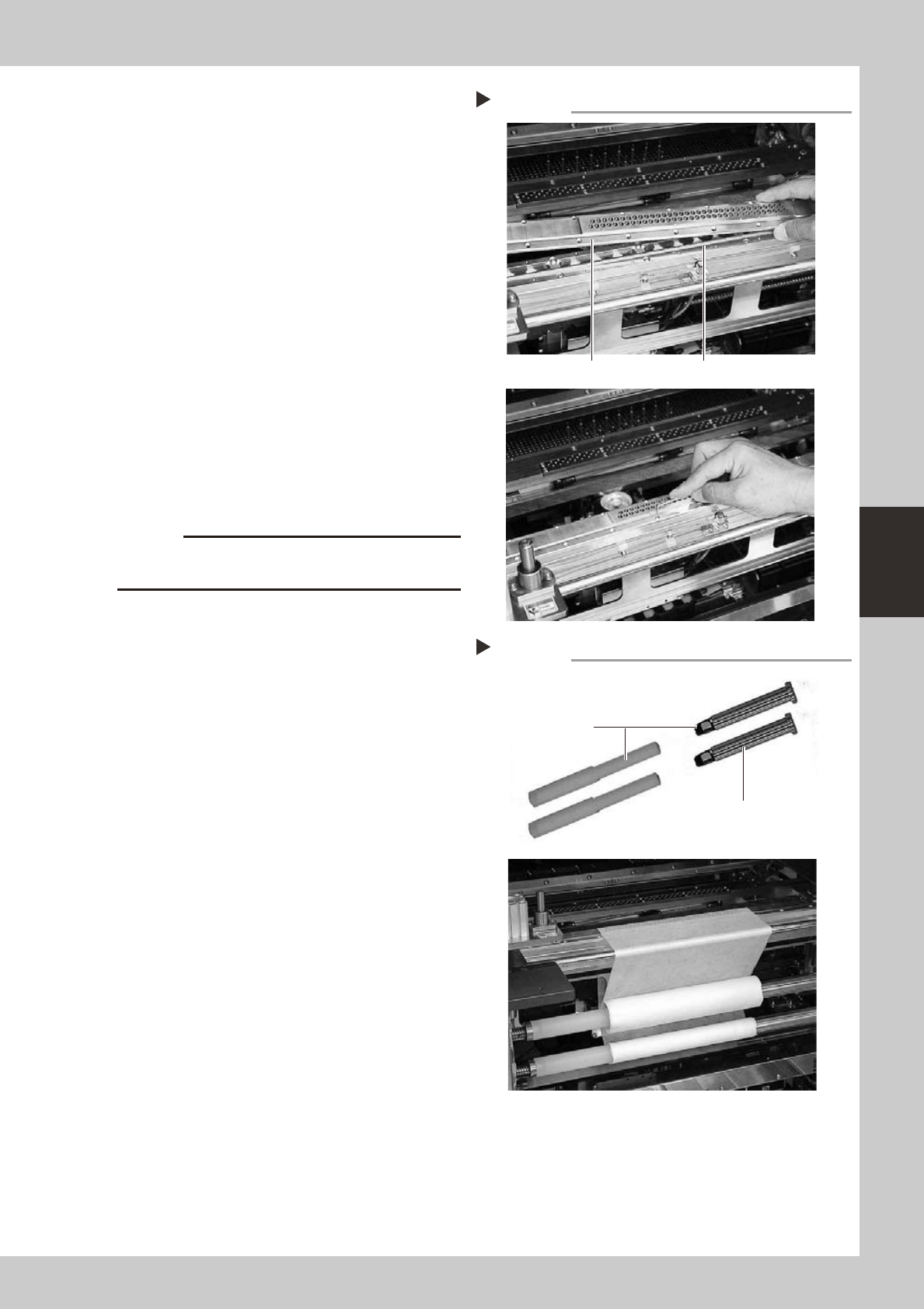

Mounting a new plate.
Step 5
Plate (for replacement) Portion where the solvent accumulates.
Mounting the adaptor (shaft holder).
Step 7
Roll adaptor on drive side
(Shaft holder)
Insert this part onto
the roll core.
