Press the [OK] button when the shutdown confirmation dialog box appears.
The application software automatically closes.
e
5
Press the emergency stop button.
When the emergency stop dialog box appears, press the emergency stop button and then press the
[OK] button.
6
Turn off the machine power switch.
When the message "Ready to shut down" appears, press the [OK] button and then turn off the machine
power switch by turning it to the left.
c
c
2-15
2
asic operations
3. Operation screen description
This section explains the basic configuration of a typical operation screen, data input methods and Help
screens.
3.1 Basic configuration of operation screen
The operation screen can be divided into the "Status", "Main menu button" and "Submenu button and
parameter" areas as shown below.

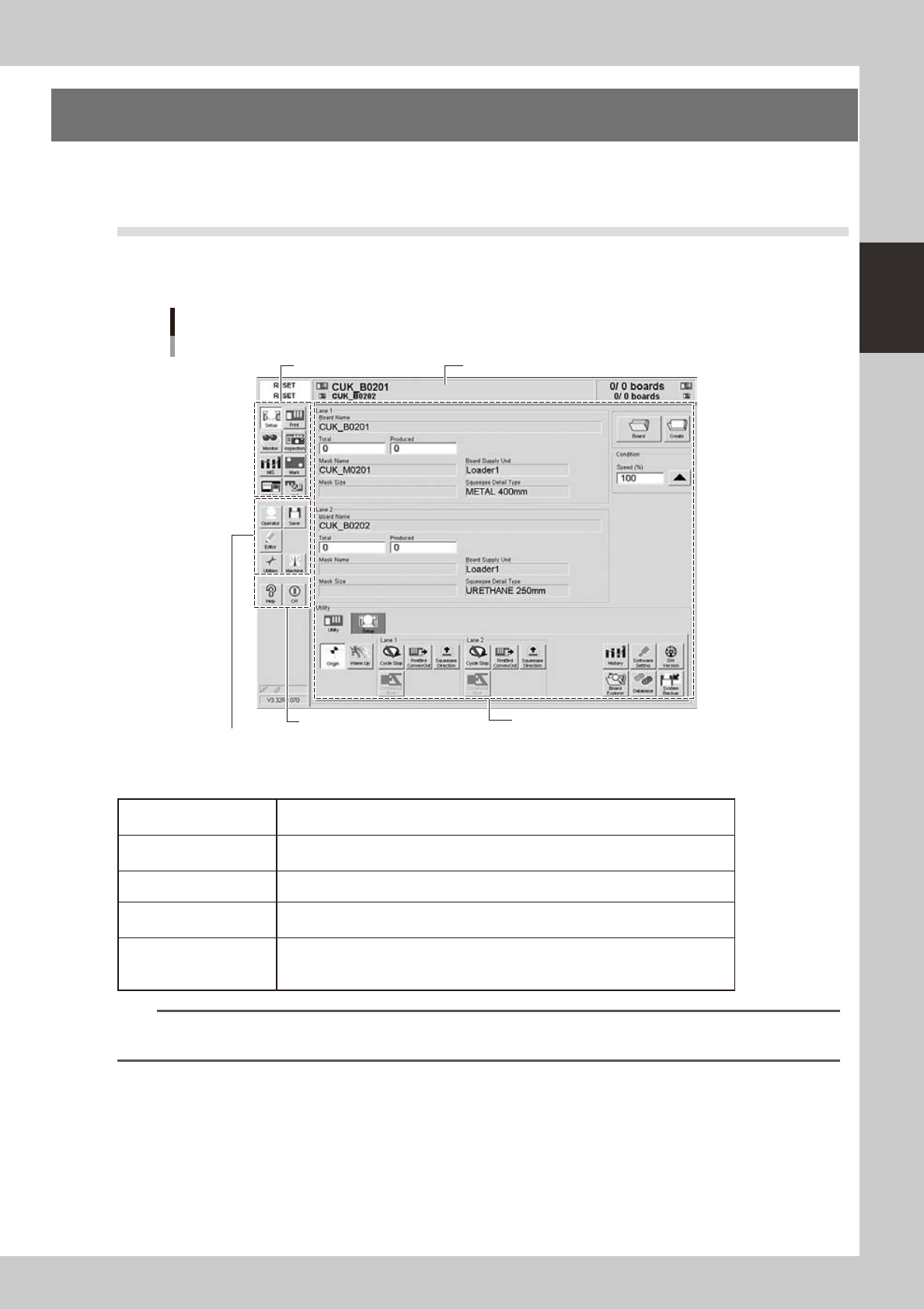

Operation screen basic elements
Setup screen (after selecting board data)
Submenu button
and parameter area
Main menu button area 1
Main menu button area 3
Main menu button area 2
Status area
64208-N3-10
n
Description of each area
Status area
Displays the current machine status on the left end, the selected board data name
in the middle and the number of boards that were produced on the right end.
Main menu button area 1
Shows the main menu buttons used to operate the machine. The submenu button
and parameter area will change according to the selected main menu button.
Main menu button area 2 Shows the menu buttons used to call up auxiliary functions.
Main menu button area 3
Shows the [Help] button to call out the help screen and also the [Off] button to quit
the software.
Submenu button and
parameter area
Displays the submenu buttons and parameters for machine operation and data
setting.
This area will change according to the selected main menu button.
TIP
The submenu button and parameter area will change according to the selected main menu button. For details on
the menu button functions and parameter items on the operation monitor, see Chapters 4 and 7 in this manual.
2-16
2
asic operations
3.2 Various buttons and parameter input grids
Various types of buttons, selection tabs and parameter input grids are used on the operation screen.
Operation screen basic elements

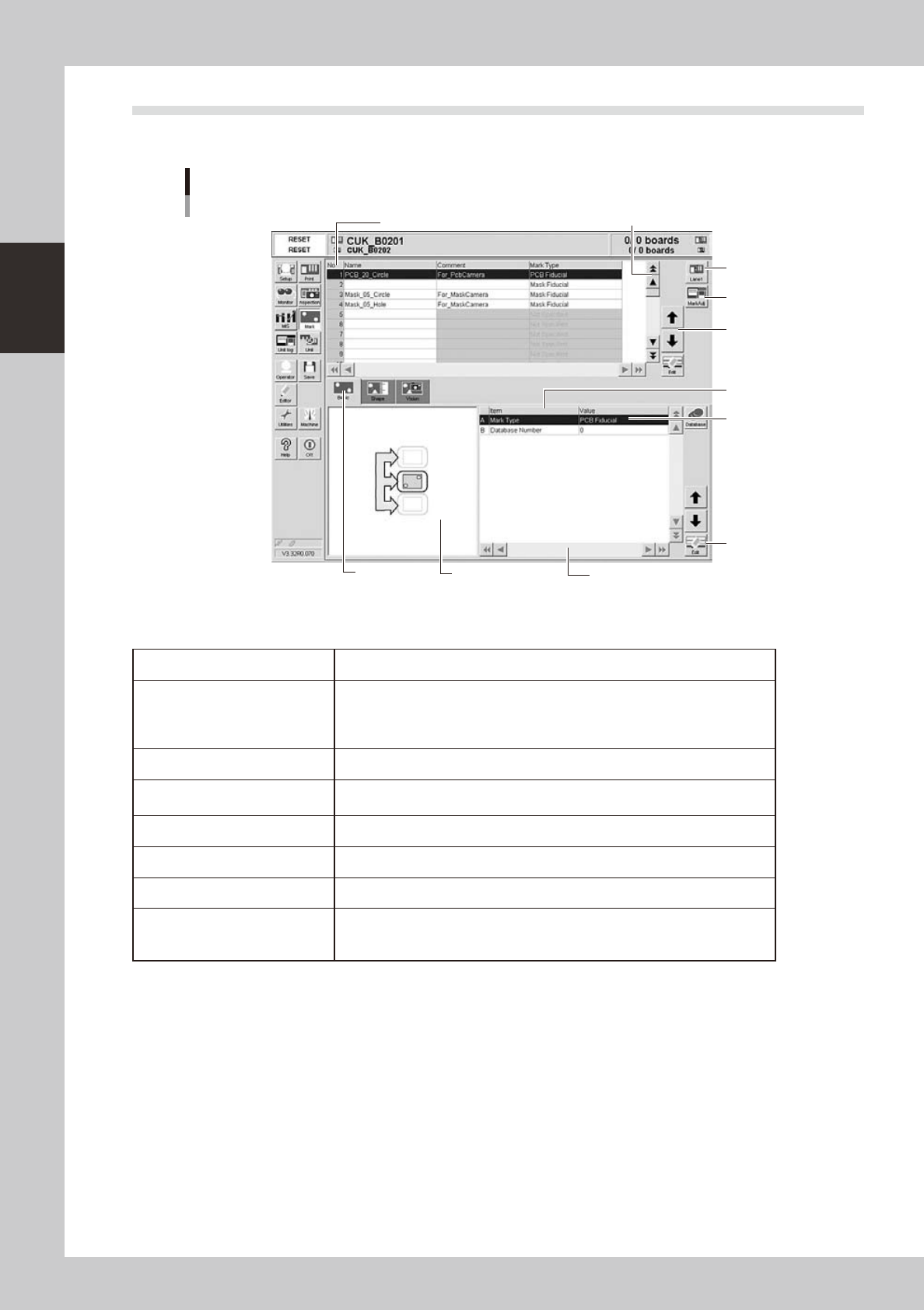

Mark screen
Line up/down
button
Vertical scroll bar & button
Edit button
Operation
button
Lane
button
Horizontal scroll bar & button
Assistant
screen
Selection
tab
Parameter
list
Parameter
input box
Data No. list
64209-N3-10
n
Buttons and basic elements on operation screen
Selection tab Select this tab to switch the parameter input screen.
Parameter input box
Select, enter or edit parameters here. When the keyboard is used, double-click
on a parameter input box to enter or edit the data.
When a touch screen (option) is used, press the [Edit] button on the lower right
of the parameter list. The edit box then pops up for data input and editing.
Scroll bar and button Use the scroll bars or arrow buttons to see hidden items in the parameter list.
Lane button
Use this button to change dual-lane board data.
This button is not displayed when single-lane board data is selected.
Operation button Press these buttons to open the next operation screen or dialog box.
Cursor up/down button Use these buttons to move the cursor up or down through the parameter list.
Edit button Press this button to open the edit dialog box for the selected parameter item.
Assistance screen
Shows an illustration or information useful for parameter input or editing.
Alphabet characters shown in the parameter list and in the illustration on this
screen correspond to each other.
