Tg0699-PM-D2
0207-001 Chapter 1 2-45
2.3 "Print" Tab
*5 Squeegee Select
Push the text box twice. The text box changes to a combo box.
Push the down arrow to open the drop-down list. Select "270",
"350" or "480" from the drop-down list.
*6 Squeegee Spd.
Make the ten-key window appear and enter values in the "Back."
and "For." text boxes.

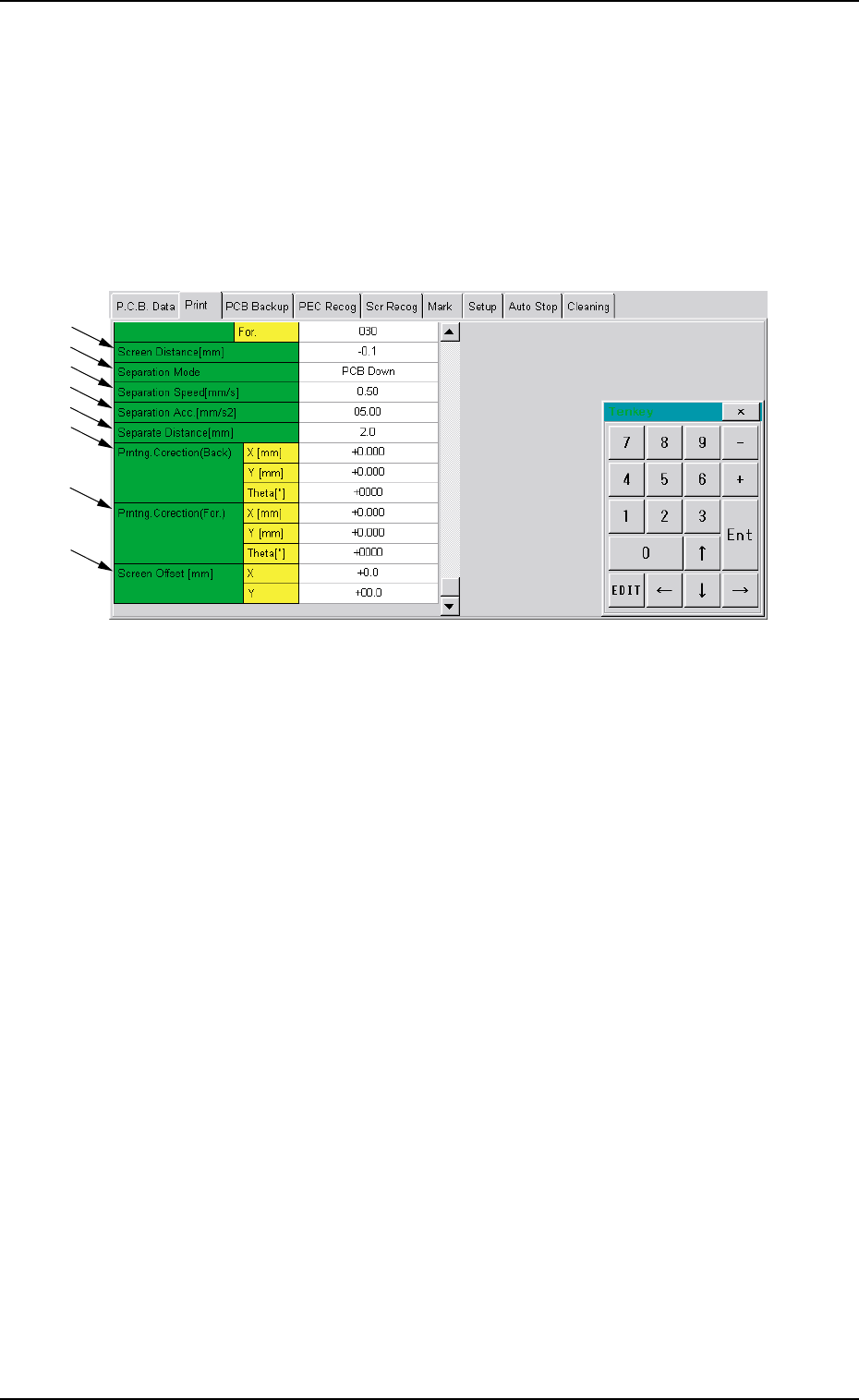

Fig. 3B88 "Print" Tab Sheet (2)
*7 Screen Distance
Make the ten-key window appear and enter a value in the text
box.
*8 Separation Mode
Push the text box twice. The text box changes to a combo box.
Push the down arrow to open the drop-down list. Select "PCB
Down" or "Squeegee Up" from the drop-down list.
*9 Separation Speed [mm/s]
Make the ten-key window appear and enter a value in the text
box.
*10 Separation Acc. [mm/s2]
Make the ten-key window appear and enter a value in the text
box.
*11 Separate Distance [mm]
Make the ten-key window appear and enter a value in the text
box.
*7
*8
*9
*10
*11
*12
*13
*14
Tg0699-PM-D2
0207-001 Chapter 1 2-46
2.3 "Print" Tab
*12 Prntng. Correction (Back.)
Make the ten-key window appear and enter values in the "X
[mm]", "Y [mm]", and "θ [ " ]" text boxes.
*13 Prntng. Correction (For.)
Make the ten-key window appear and enter values in the "X
[mm]", "Y [mm]", and "θ [ " ]" text boxes.
*14 Screen Offset [mm]
Make the ten-key window appear and enter values in the text
boxes.
Tg0699-PM-D2
2.4 "PCB Backup" Tab
0207-001 Chapter 1 2-47
2.4 "PCB Backup" Tab
This tab sheet can be used to specify how to support a P.C.B.
••
••
• Sheet Layout
When you push the "PCB Backup" tab in the "Pattern Program"
edit window, the following tab sheet appears.
Fig. 3B89 "PCB Backup" Tab Sheet
••
••
• Sheet Composition
*1 Chuck Stage Select
Push the text box twice. The text box changes to a combo box.
Push the down arrow to open the drop-down list. Select "Backup
Jig", "Support Pin", "Vacuum Pick-up" or "Vacuum Pick-up (No
clamp)" from the drop-down list.
*2 PCB Warpage Protection
Push the text box twice. The text box changes to a combo box.
Push the down arrow to open the drop-down list. Select "OFF" or
"ON" from the drop-down list.
*3 Vacuum Release Mode
Push the text box twice. The text box changes to a combo box.
Push the down arrow to open the drop-down list. Select "Before"
or "After" from the drop-down list.
The value can be changed only when "Vacuum Plate" is
selected in the "Chuck Stage Select" text box *1.
*1
*7
*6
*4
*5
*3
*2
