Tg0699-PM-D2

1.2 Operation Data

0207-001 Chapter 1 2-4

Screen Center

Squeegee

(-)

P.C.B.

Pattern

Program

Origin

(+)

Origin

Depth

+ 000.00

Fig.3B6

(4) Print Area

Set parameters as offset values of the P.C.B. end plane in the

Y direction.

Unit : mm

Enter the offset values based on the pattern program

coodinates of the end planes on the origin and rear sides.

When the defaults "0" (zero) are set, the whole area of the

P.C.B. is printed.

Various offsets are considered in the actual printing range as

shown below.

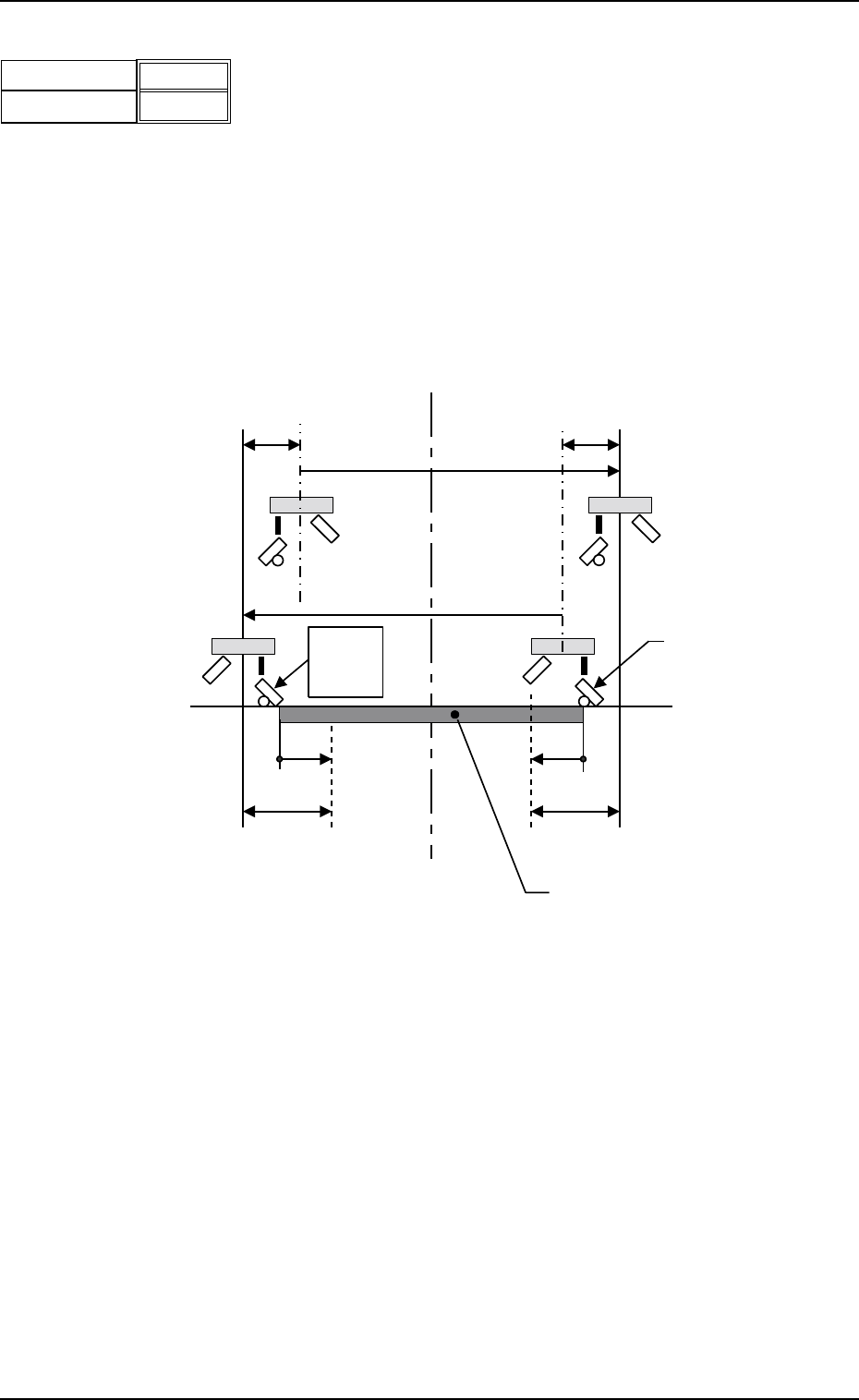

Fig. 3B7

L1, L2 : Printing Area Data (based on the pattern program

origin)

X2 : Overshoot at End of Printing

So : Travel from Previous End Position at Printing Start

(Squeegee Offset)

Data Input Range

Origin Side : -10 to +381

Rear Side : -381 to +10

Tg0699-PM-D2

0207-001 Chapter 1 2-5

1.2 Operation Data

1.2.2 Print Data

(1) Screen Basis

Select a reference type of the screen frame.

Center Ref. : The center of the screen frame is regarded as a

reference point.

Front Ref. : The front side of the screen frame is regarded

as a reference point.

Rear Ref. : The rear side of the screen frame is regarded

as a reference point.

(2) Round-Way Printing

It can be selected whether or not the round-way printing opera-

tion should be performed.

ON : The machine performs the round-way printing opera-

tion.

OFF : The machine does not perform the round-way printing

operation.

(3) Frame Select

Select dimensions of the screen frame to be used.

Uni t: mm

736

××

×736 550

××

×550 720

××

×720 650

××

×550

600

××

×550 550

××

×650 750

××

×650 650

××

×750

(4) Prntg. Press.

Set the printing pressures of the front and rear squeegees.

Unit : N

Data Input Range : 9 to 200

If the same solder paste is used for a long time, vis-

cosity might increase, causing printing error. To pre-

vent that, we recommend setting the printing pressure

as high as possible, enabling printing without hin-

drance.

(5) Squeegee Select

Select the length of squeegee to be used.

Unit : mm

270 350 480

Front Side

Rear Side

040

Fig.3B11

Fig.3B8

Screen Basis

Center Ref.

Round-Way Printing

OFF

Fig.3B9

Frame Select

650

××

550

Fig.3B10

Squeegee Select

350

Fig.3B12

Tg0699-PM-D2

(6) Squeegee Spd.

Select the speed at which the squeegees move back and forth

for printing.

Unit : mm/s

For. : Set the speed at which the squeegees move forward

(from the rear to the front side).

Back. : Set the speed at which the squeegees move back-

ward (from the front to the rear side).

(7) Screen Distance

Set the clearance between the screen and the upper surface

of the P.C.B. during printing operation.

Unit : mm

Data Input Range : -1.5 to 3.0

(8) Separation Mode

Set a parameter to determine whether or not the squeegees

must move up after the P.C.B. has descended or the P.C.B.

must move down after the squeegees have ascended when

the screen frame is separated from the P.C.B. after the

completion of printing.

Select "PCB Down" in normal cases.

PCB Down : The squeegees move up after the P.C.B. has

descended.

Squeegee Up : The P.C.B. moves down after the squeegees

have ascended.

(9) Separation Speed

Set the speed at which the screen frame should be separated

from the P.C.B. after the end of printing.

Unit : mm/s

Data Input Range : 0.05 to 3.00

(10) Separation Acc.

Set the acceleration rate at which the screen frame should be

separated from the P.C.B. after the end of printing.

Unit : mm/s

Data Input Range : 0.1 to 50.0

Screen Distance

-0.1

Fig.3B14

1.2 Operation Data

0207-001 Chapter 1 2-6

Separation Acc. [mm/s

]

50.00

Fig.3B17

Separation Speed [mm/s]

0.05

Fig.3B16

Separation Mode PCB Down

Fig.3B15

005

FOR.

BACK

Fig.3B13
