Tg0699-PM-D2 Spline Shaft for Width Adjustment Clean the shaft with an oiled rag. Note : Remove waste thread if any . Cleaning Ball Screw for Width Adjustment Cleaning Guide Bushing for Width Adjustment Cleaning Clean th…
Tg0699-PM-D2

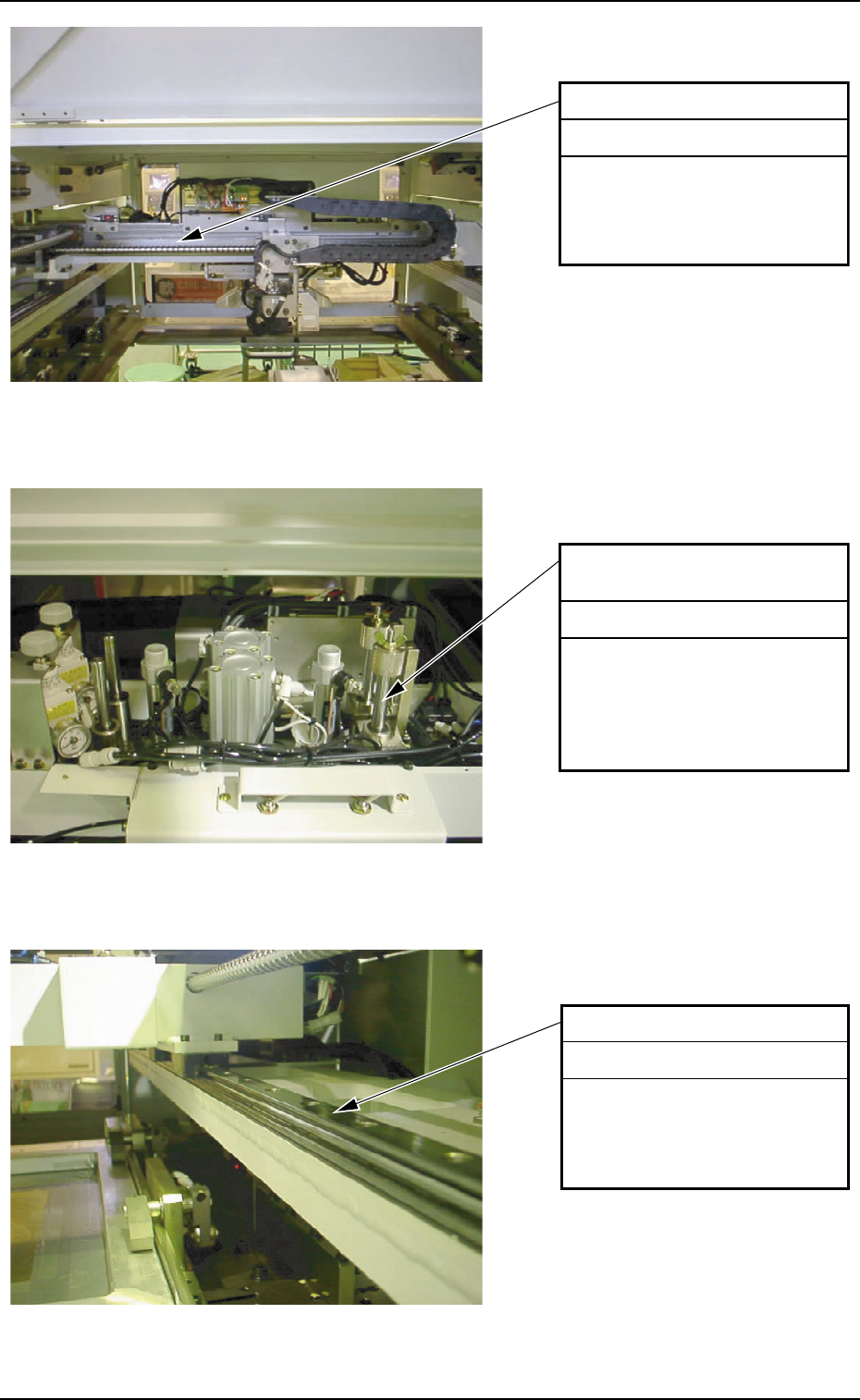

Fig. 5A29 Squeegee Head Section
Fig. 5A30 Squeegee Head Section
Fig. 5A31 Screen Holder Section
6. Monthly Maintenance
0207-001 Chapter 3 1-23
X-Axis Linear Guide
Clean the guide with an
oiled rag.
Note : Remove waste thread
if any.
Cleaning
Guide Bushing for Squeegee
Up/Down Movement
Remove the squeegee cover
and then, clean the bushing
with an oiled rag.
Note : Remove waste thread
if any.
Cleaning
Screen Y-Axis Linear Guide
Clean the guide with an
oiled rag.
Note : Remove waste thread
if any.
Cleaning
Tg0699-PM-D2
Spline Shaft for Width
Adjustment
Clean the shaft with an
oiled rag.
Note : Remove waste thread
if any.
Cleaning
Ball Screw for Width
Adjustment
Cleaning
Guide Bushing for Width
Adjustment
Cleaning
Clean the screw with an
oiled rag.
Note : Remove waste thread
if any.
Clean the bushing with an
oiled rag.
Note : Remove waste thread
if any.
Spline Shaft for Width
Adjustment
Clean the shaft with an
oiled rag.
Note : Remove waste thread
if any.
Cleaning
Ball Screw for Width
Adjustment
Cleaning
Guide Bushing for Width
Adjustment
Cleaning
Clean the screw with an
oiled rag.
Note : Remove waste thread
if any.
Clean the bushing with an
oiled rag.
Note : Remove waste thread
if any.
6. Monthly Maintenance

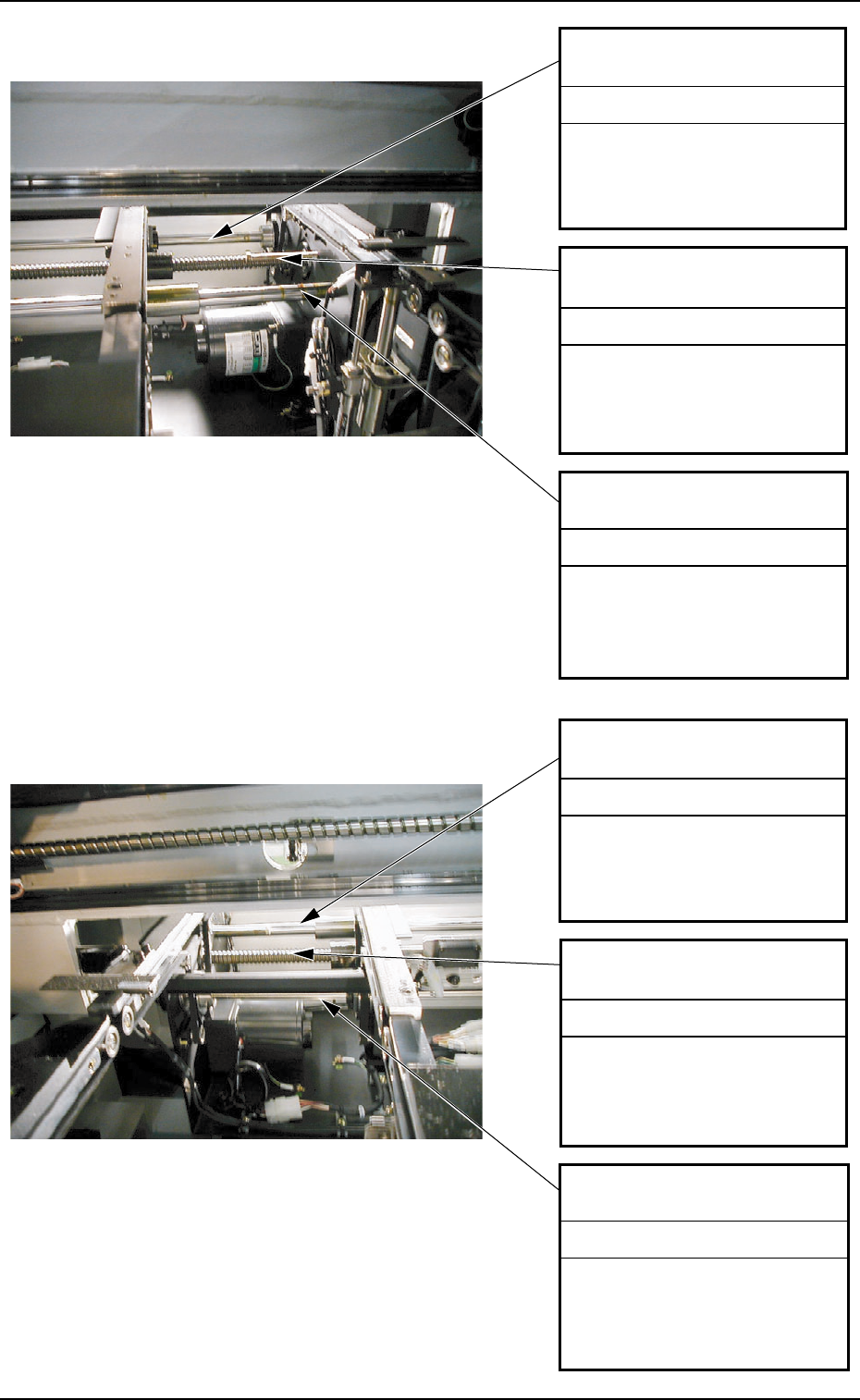

Fig. 5A32 L Conveyor Section
Fig. 5A33 R Conveyor Section
0207-001 Chapter 3 1-24
Tg0699-PM-D2
7. Maintenance (Every 3 Months after Initial Month)
NM1: MOLYNOC GREASE AP 1
7. Maintenance (Every 3 Months after Initial Month)

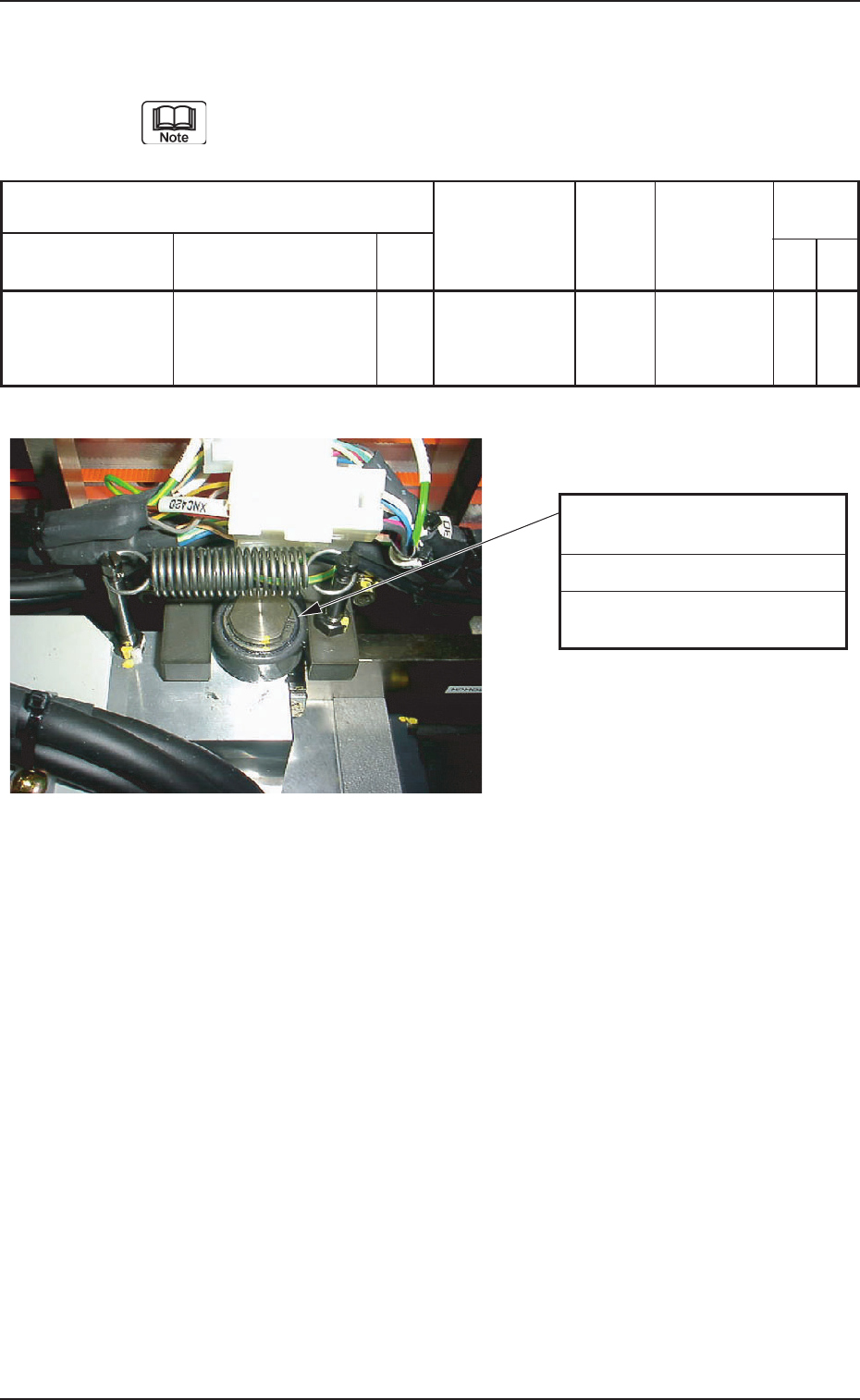

Fig. 5A34 Table Section
Outer Circumference of
θ-Axis Movable Bearing
Apply grease with a brush or
a spatula.
Lubrication
0509-002 Chapter 3 1-25
Table 5A7
Maintenance Spots
Description
Grease
Cleaning
Check
Tools,
Nozzles,
etc.
Table Section
Outer Circumference
5A34 Lubrication NM1 Brush,
of θ-Axis Movable Spatula
Bearing
Block Name Detailed Name
Fig.
No.
