Tg0699-PM-D2 3.1 General View Fig. 5A6 Rear View 0207-001 Chapter 3 1-7 Cleaning Unit Utility Section
Tg0699-PM-D2
3. Maintenance Spots
3. Maintenance Spots
3.1 General View

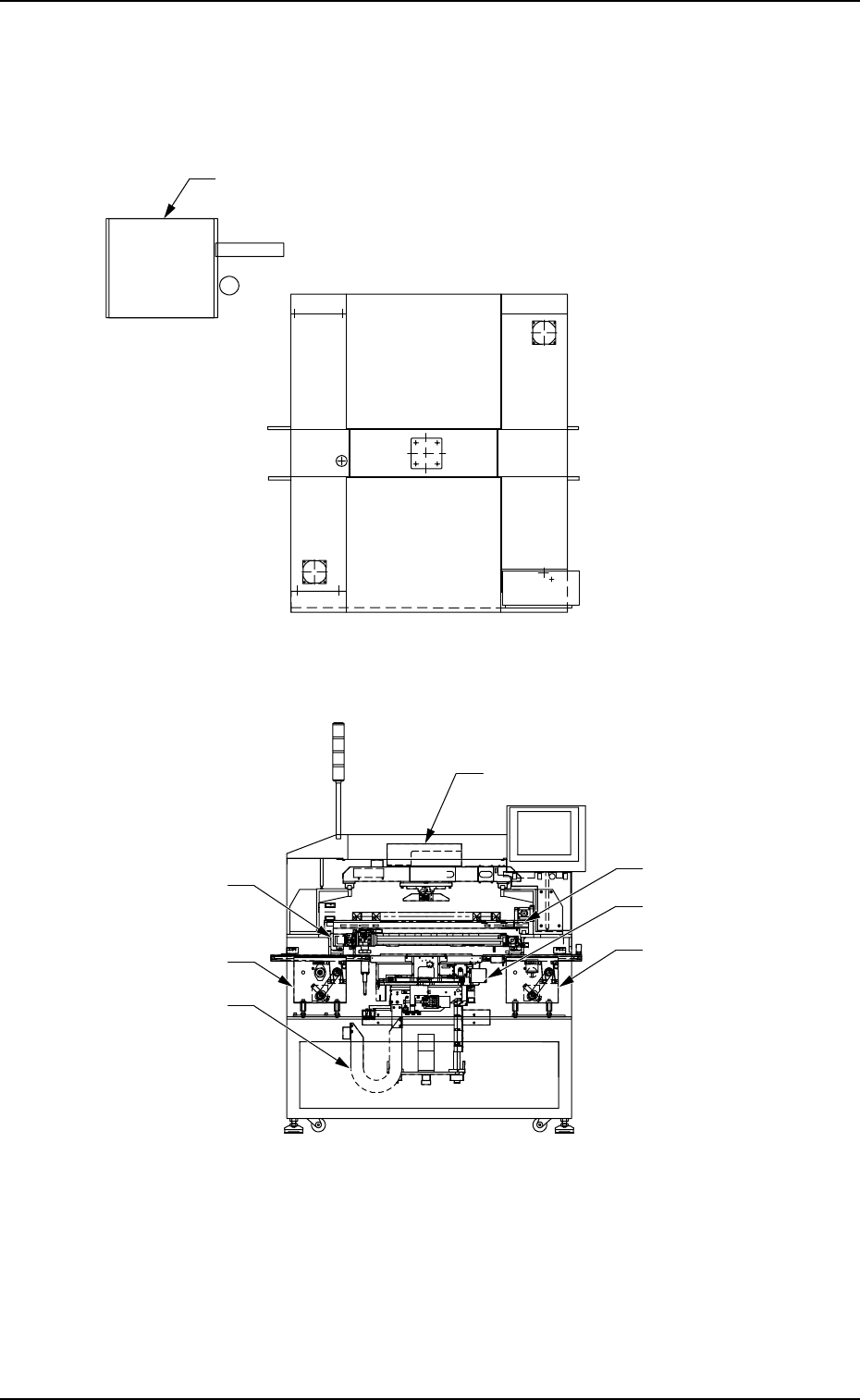

Fig. 5A5 Front View
Fig. 5A4 Top View
0207-001 Chapter 3 1-6
Blower Unit (Vacuum Source)
Squeegee Head Section
Screen Holder Section
R Conveyor Section
L Conveyor Section
Table Section
P.E.C. Recognition Section
P.C.B. Chuck Section
Tg0699-PM-D2
3.1 General View

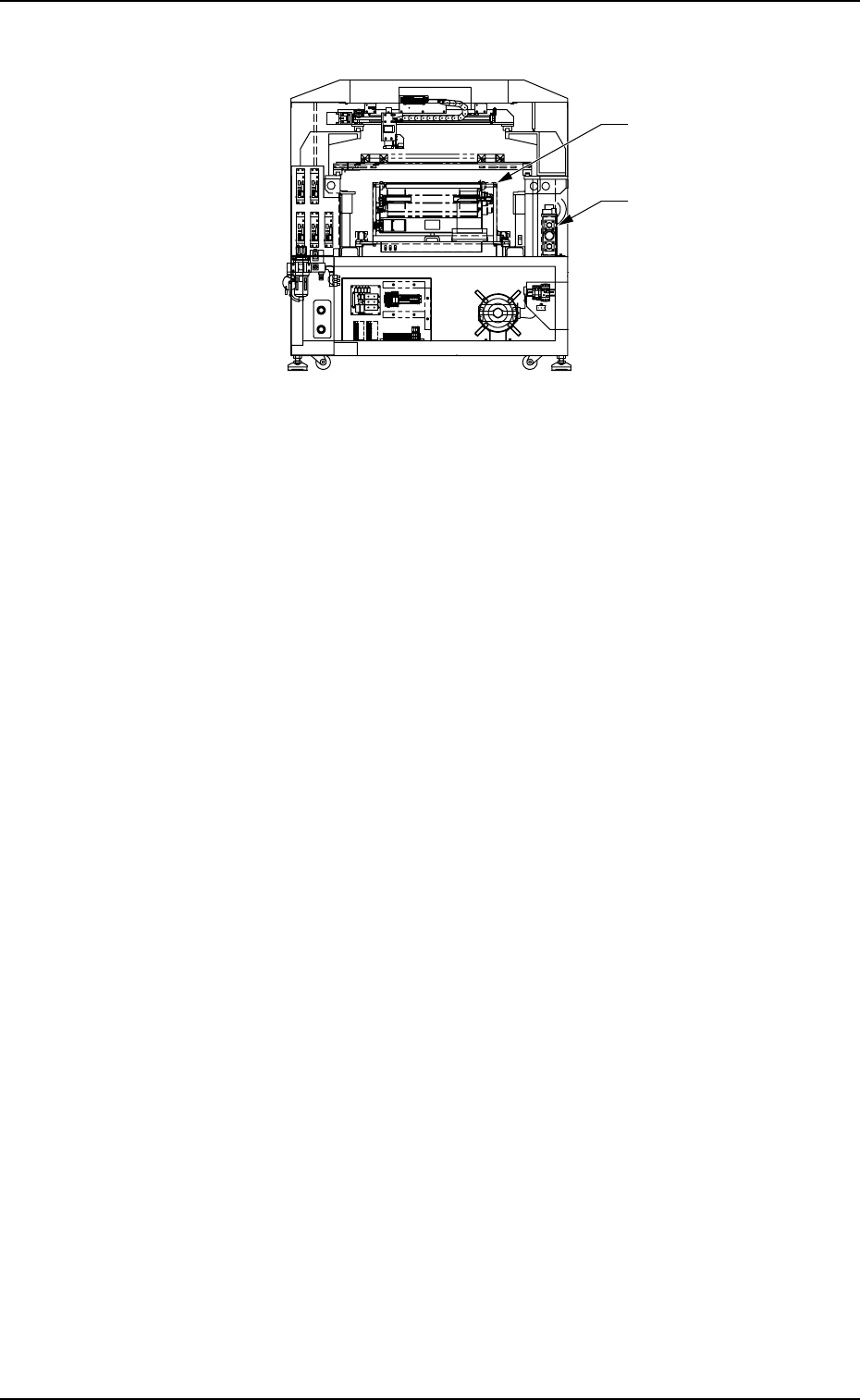

Fig. 5A6 Rear View
0207-001 Chapter 3 1-7
Cleaning Unit
Utility Section
Tg0699-PM-D2
4. Daily Maintenance
0509-002 Chapter 3 1-8
4. Daily Maintenance
Table 5A4
Maintenance Spots
Description
Grease
Cleaning
Check
Tools,
Nozzles,
etc.
P.C.B. Chuck Upper Surface of 5A7 Cleaning - Vacuum
Section P.C.B. Transfer Belt Cleaner
P.C.B. Positioning 5A7 Cleaning - Vacuum
Side and Upper Cleaner
Surface
Squeegee Head Squeegee 5A8 Cleaning - Rag, and
Section
Industrial
Alcohol
(solvent)
Glass Surface of 5A9 Cleaning - Vacuum
Recognition Lighting
Camera (Lens) 5A9 Cleaning - Vacuum
Cleane
Upper Surface of 5A10 Cleaning - Cleaner
Screen Holder Rag
Screen Printing 5A10 Cleaning -
Rag,
Patterns
Industrial
Alcohol
(solvent), and
Ultrasonic
Cleaning
Lower Surface of 5A10 Cleaning -
Rag, and
Screen
Industrial
Alcohol
(solvent)
L Conveyor Upper Surface of 5A11 Cleaning - Vacuum
Section P.C.B. Transfer Belt Cleaner
R Conveyor Upper Surface of 5A12 Cleaning - Vacuum
Section P.C.B. Transfer Belt Cleaner
P.E.C. Recognition
Glass Surface of 5A13 Cleaning - Vacuum
Section
Recognition Lighting Cleaner
Cleaning Section Hose and Hose Joint
5A9-1 Liquid Leakage
- Rag
5A9-3 Check, Cleaning
Solvent Tank and
5A9-2 Liquid Leakage
- Rag
Pan
Check, Cleaning
Block Name Detailed Name
Fig.
No.
