Tg0699-PM-D2 3.2 Location of Sensors and Loads in T able Section 0207-001-(M782YE---0001) Chapter 3 3-38-6 Width Error Detection P.C.B. Horizonal Clamping Forward End Table Width Axis Motor Origin Vacuum Switch Width Ori…
Tg0699-PM-D2

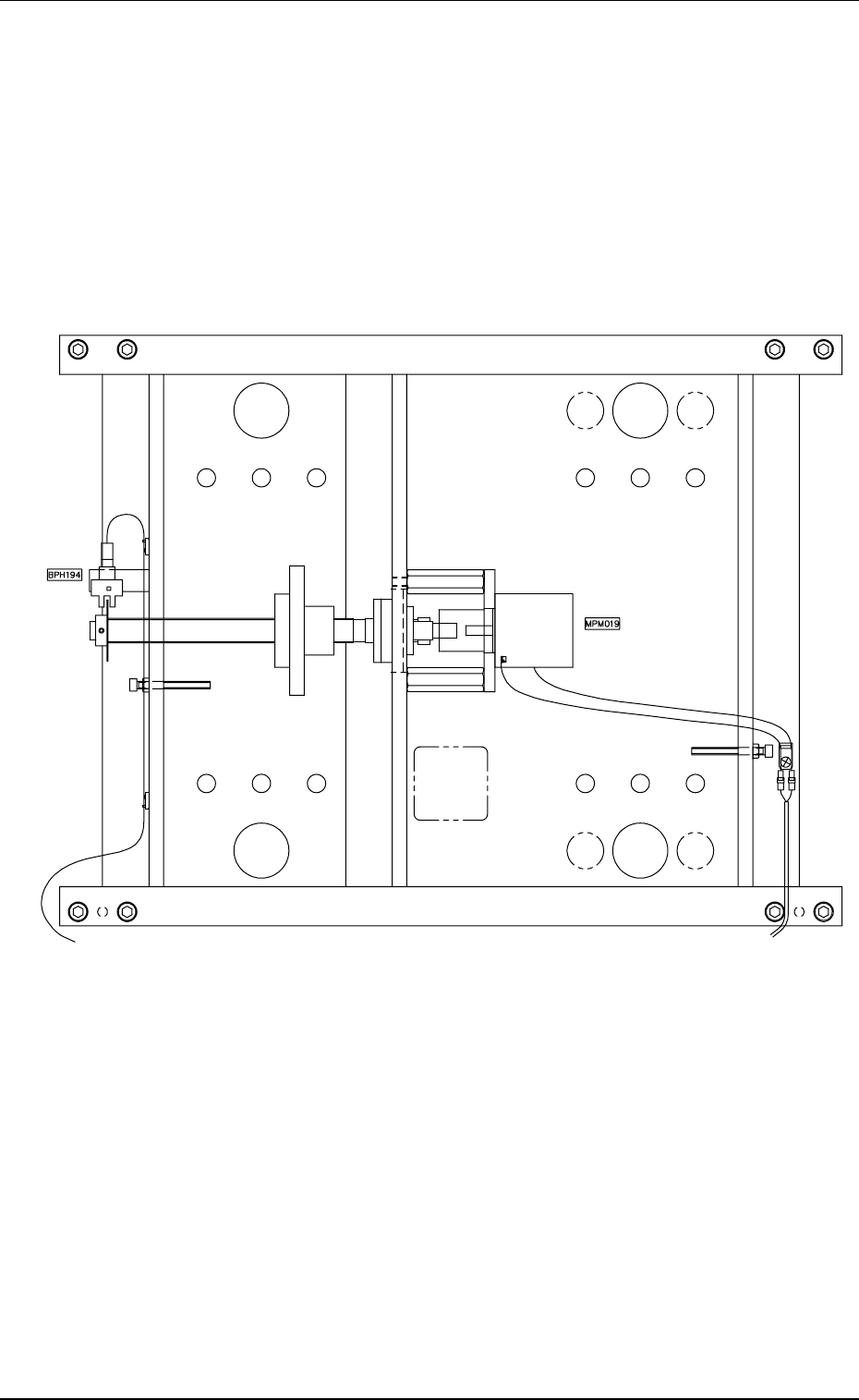

3.2 Location of Sensors and Loads in Table Section
0207-001-(M782YB---0002) Chapter 3 3-38-5
Table X-Axis
Pulse Motor
Rotational Origin
Tg0699-PM-D2
3.2 Location of Sensors and Loads in Table Section
0207-001-(M782YE---0001) Chapter 3 3-38-6
Width Error
Detection
P.C.B. Horizonal Clamping Forward End
Table Width Axis Motor
Origin
Vacuum
Switch
Width
Origin
Cable Bearer
P.C.B. U/D Axis Pulse Motor
Table Conveyor Moto
r
Tg0699-PM-D2
3.2 Location of Sensors and Loads in Table Section
0207-001 Chapter 3 3-38-7
Table 5C3
Symbols Name
BPH050 P.C.B. Horizontal Clamping Forward Limit
BPH051 Width Error Detection (Light Emitting Side)
B051 Width Error Detection (Light Receiving Side)
SVS052 Vacuum Switch
BPH053 Table Z-Axis Interlock
BPH054 Table Z-Axis Correction Position
BPH171 Table Z-Axis Origin
BPH172 Table Z-Axis Limit (+)
BPH173 Table Z-Axis Limit (-)
BPH191 Table X-Axis Origin
BPH192 Table X-Axis Limit (+)
BPH193 Table X-Axis Limit (-)
BPH194 Table X-Axis Rotational Origin
BPH211 Table θ -Axis Origin
BPH212 Table θ -Axis Limit (+)
BPH213 Table θ -Axis Limit (-)
BPH214 Table θ -Axis Rotational Origin
BPH231 P.C.B. U/D Axis Origin
BPH232 P.C.B. U/D Axis Limit (+)
BPH233 P.C.B. U/D Axis Limit (-)
BPH251 Rail Axis Origin
MSMD017 Table Z-Axis Servomotor
MPM019 Table X-Axis Pulse Motor
MPM021 Table θ -Axis Pulse Motor
