1.2 No Display on Touch Screen

0207-001 Chapter 2 2-4

1.2 No Display on Touch Screen

Table 4B3

Symptom Nothing appears on the touch screen.

Cause (Cause 1) The monitor protection function is working.

(Cause 2) Power is not supplied from the source.

Remedy (Remedy 1) Touch the touch screen to resume the screen you left and

continue working.

(Remedy 2) Refer to "1.1 Power Operation Impossible" for details.

Tg0699-PM-D2

2. Troubleshooting after Error Display

0207-001 Chapter 2 2-5

2. Troubleshooting after Error Display

Assuming "ID/ITEM/CONTENT" in the "ERROR" window as an

index, retrieve the related page of the instruction manual.

Refer to "2.1 Typical Description" for the detailed description.

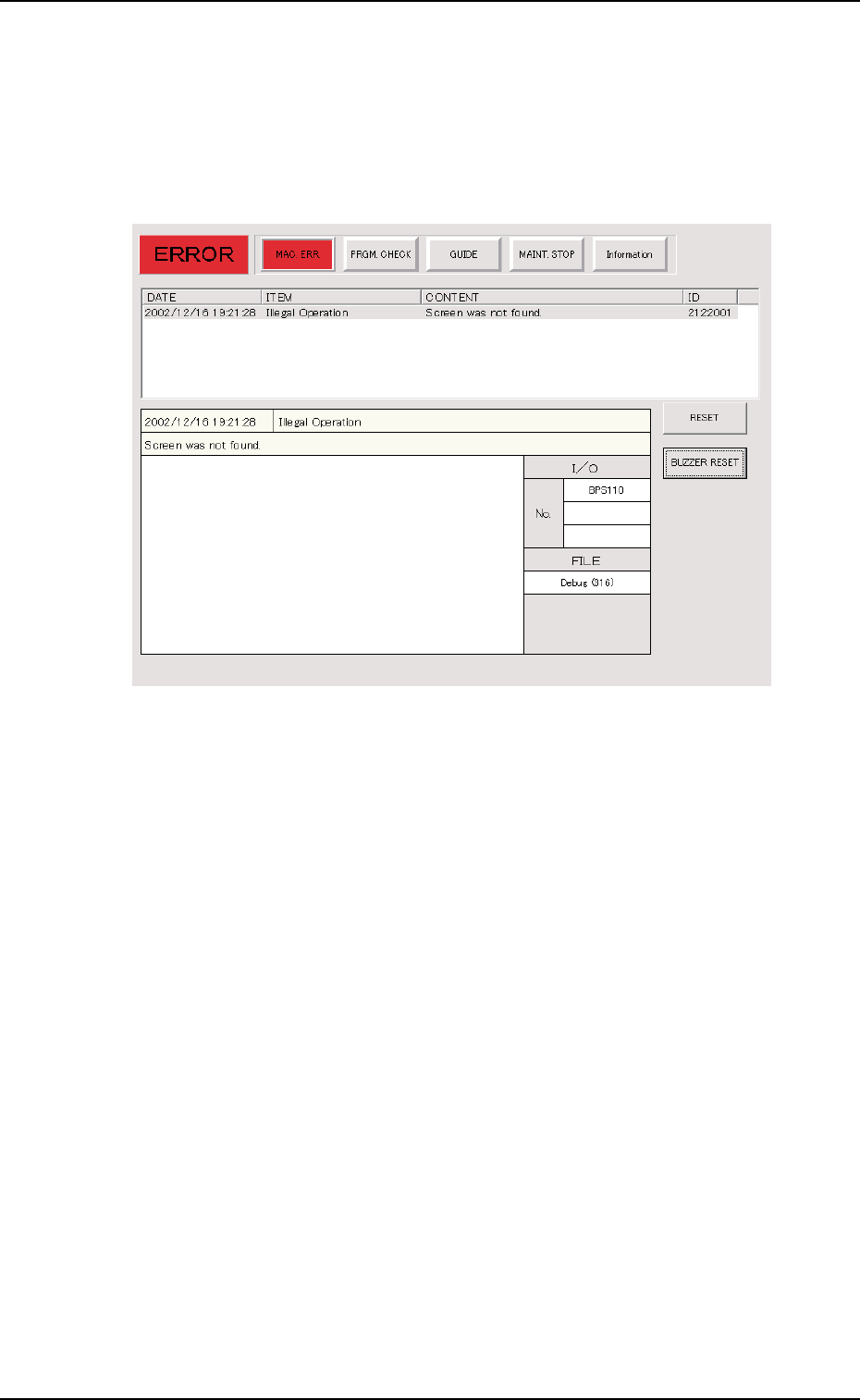

Fig. 4B3 Example of "ERROR" Window

Tg0699-PM-D2

2.1 Typical Description

0207-001 Chapter 2 2-6

2.1 Typical Description

Table 4B4

Error ID Item Description

110401 L Conveyor Width Limit The plus (+) Limit was detected.

(BPH77) E/NR (+)

E/NR: Light Emitted and Not Received

110402 L Conveyor Width Limit The minus (-) Limit was detected.

(BPH77) E/NR (-)

(Cause 1) An optical beam of the sensor is shielded.

(Cause 2) Dirt adheres to the sensor and the optical beam is shielded.

(Cause 3) The sensor is defective.

(Remedy 1) Turn off the power supply and move the conveyor width with the

manual knob for easier operation. Re-attach the light shield plate or

the sensor securely (remove the looseness).

(Remedy 2) Wipe off dirt on the sensor and zero the L conveyor again.

(Remedy 3) Replace the sensor with a new one.

120101 R Conveyor Width Origin The excitation monitor signal was not de-

tected.

(Cause 1)

(Remedy 1)

(Continued to the next page)

*1 The error IDs (IDs displayed in the "ERROR" window) are de-

scribed in the numerical order.

*2 Described are the classification (ITEM) and explanation (CON-

TENT) in the "ERROR" window.

*3 Described are the causes and remedial procedures of the errors

in "*2 (Classification and Explanation)".

The causes and remedies are correlated as follows.

(Cause 1)

ÆÆ

Æ (Remedy 1)

(Cause 2)

ÆÆ

Æ (Remedy 2)

(Cause 3)

ÆÆ

Æ (Remedy 3)

*4 This indicates that the related contents are described subse-

quently on the next page.
