Tg0699-PM-D2
2.7 "Mark" Tab
0207-001 Chapter 1 2-53
*4 *6 *7 *8*1 *2 *3 *5
2.7 "Mark" Tab
••
••
• Sheet Layout
When you push "Mark" tab in the "Pattern Program" edit window,
the following tab sheet appears.

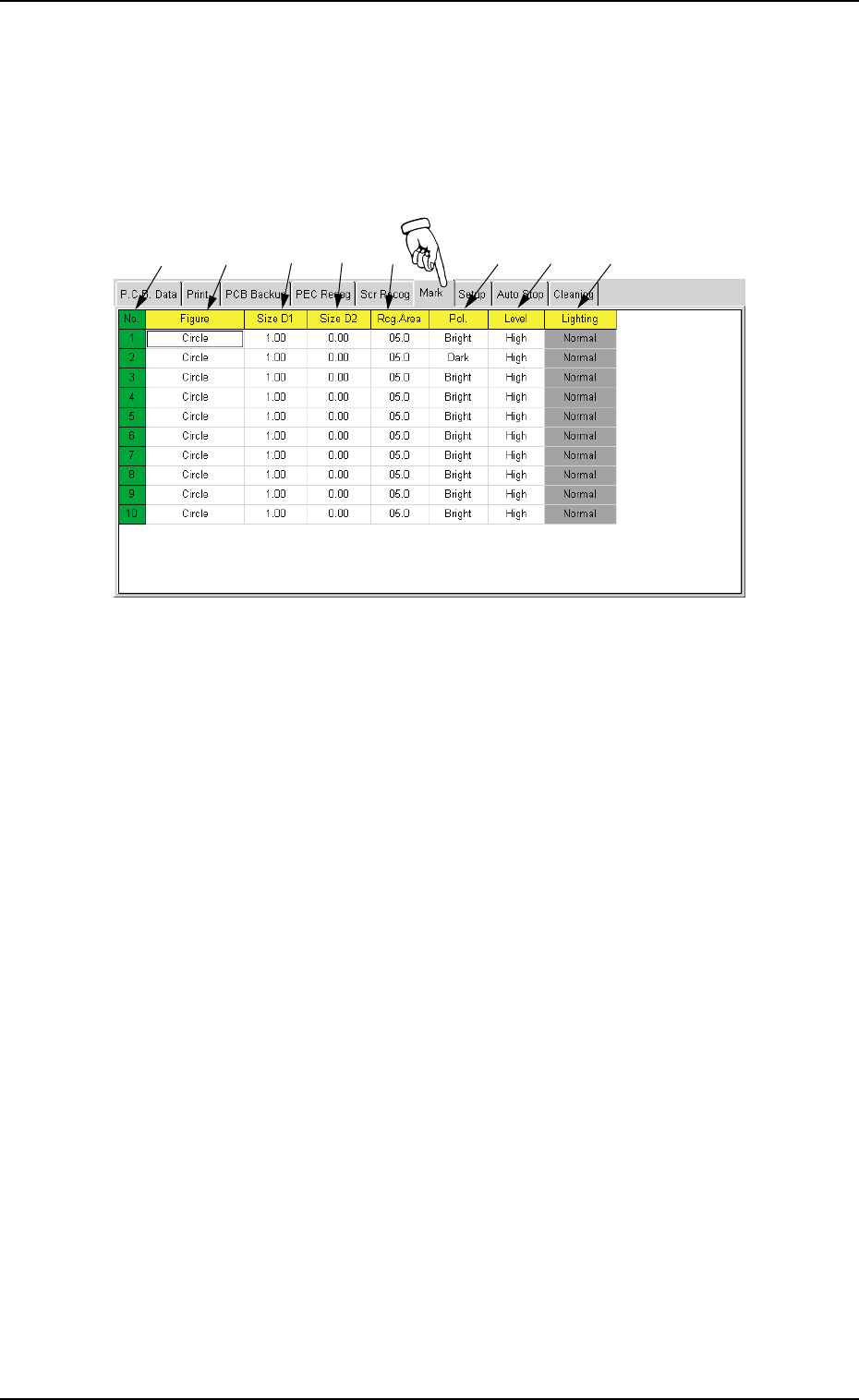

Fig. 3B92 "Mark" Tab Sheet
• Sheet Composition
*1 Code
Mark codes are displayed.
*2 Figure
Push a text box twice. The text box changes to a combo box.
Push the down arrow to open the drop-down list. Select a proper
figure (shape) of the fiducial mark from the drop-down list.
*3 Size D1
Make the ten-key window appear and enter a value in each text
box.
*4 Size D2
Make the ten-key window appear and enter a value in each text
box.
*5 Rcg. Area
Make the ten-key window appear and enter a value in each text
box.
Tg0699-PM-D2
0207-001 Chapter 1 2-54
2.7 "Mark" Tab
*6 Pol.
Push a text box twice. The text box changes to a combo box.
Push the down arrow to open the drop-down list. Select "Bright"
or "Dark" from the drop-down list.
*7 Level
Push a text box twice. The text box changes to a combo box.
Push the down arrow to open the drop-down list. Select "High",
"Middle" or "Low" from the drop-down list.
*8 Lighting
Only "Normal" can be selected for the standard machine (stan-
dard specifications).
Tg0699-PM-D2
2.8 "Setup" Tab
0207-001 Chapter 1 2-55
*1
*2
*3
*4
2.8 "Setup" Tab
••
••
• Sheet Layout
When you push "Setup" tab in the "Pattern Program" edit window,
the following tab sheet appears.

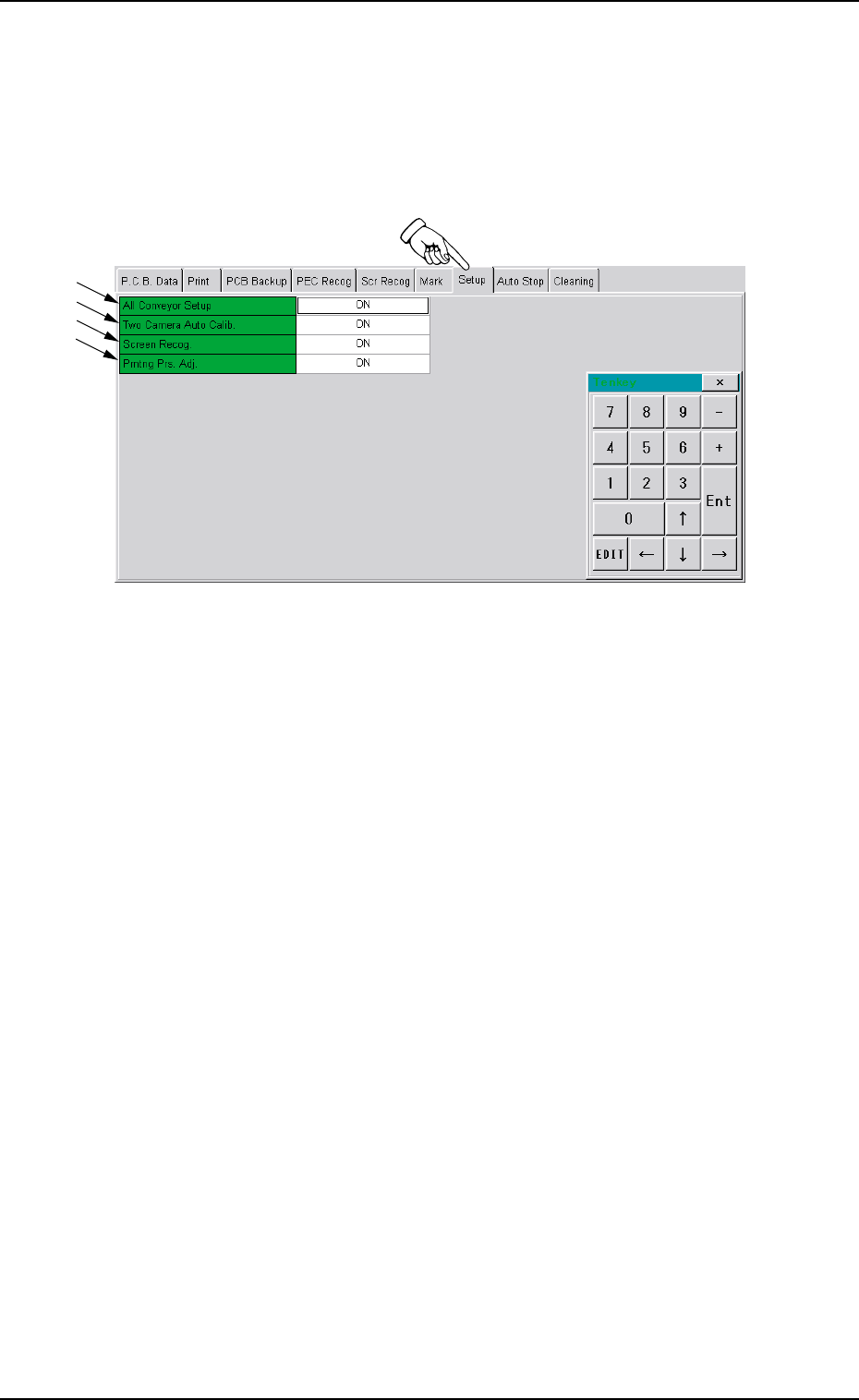

Fig. 3B93 "Setup" Tab Sheet
••
••
• Sheet Composition
*1 All Conveyor Setup
Push the text box twice. The text box changes to a combo box.
Push the down arrow to open the drop-down list. Select "OFF" or
"ON" from the drop-down list.
*2 Two Camera Auto Calib.
Push the text box twice. The text box changes to a combo box.
Push the down arrow to open the drop-down list. Select "OFF" or
"ON" from the drop-down list.
*3 Screen Recog.
Push the text box twice. The text box changes to a combo box.
Push the down arrow to open the drop-down list. Select "OFF" or
"ON" from the drop-down list.
*4 Prntng Prs. Adj.
Set whether or not the printing pressure is adjusted in the “Over-
all Setup” menu.
