Tg0699-PM-D2 0207-001 Chapter 3 1-51 12. Replacement of Cleaning Paper (How to change the cleaning paper width) (13) Fasten the paper end securely to the take-up roller shaft with a gummed cloth tape, etc. Fig. 5A79 Fast…
Tg0699-PM-D2
0207-001 Chapter 3 1-50
12. Replacement of Cleaning Paper (How to change the cleaning paper width)
(10) Insert the end of the cleaning paper and follow the steps *1
through *4 to thread it.
Note the rolling direction of the paper.
(11) Mount the supply roller by turning the knob counterclockwise
while supporting the new supply roller such that the notch of the
left adapter is engaged with the pin of the left flange on the
cleaning unit.
Mount the roller while tilting the right side up because
the right adapter easily falls off from the roller shaft.
Fig. 5A77
Fig. 5A78
Knob
Tg0699-PM-D2
0207-001 Chapter 3 1-51
12. Replacement of Cleaning Paper (How to change the cleaning paper width)
(13) Fasten the paper end securely to the take-up roller shaft with a
gummed cloth tape, etc.
Fig. 5A79
Fasten the paper such that the edges become perpen-
dicular to the roller shaft to equalize the uneven pull of
the paper (to avoid forming a spiral pattern).
(14) Turn the knob of the take-up roller clockwise to unlock the roller
free.
(15) Rotate the take-up roller by hand to wrap two or three turns of
paper around it.
(16) Turn the knob of the take-up roller counterclockwise to lock the
roller.
Roller Shaft
Gummed Cloth Tape, etc.
Paper Edge
Fig. 5A80
Tg0699-PM-D2
0509-002 Chapter 3 1-52

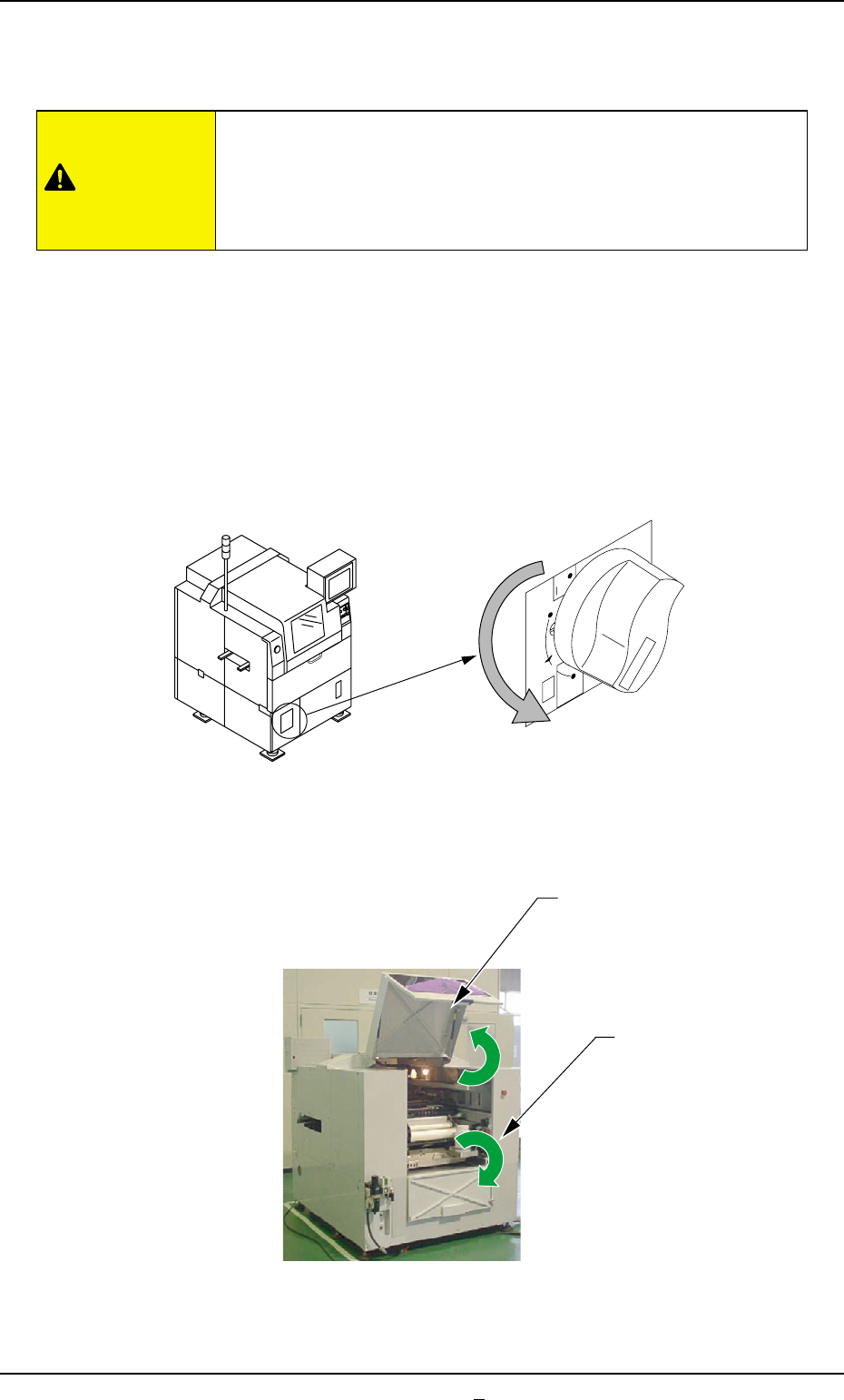

12.1 Replenishment of Cleaning Solvent
• Use industrial alcohol as a cleaning solvent for this machine.
Refer to "2.1 Preparation for Cleaning Tools" for the kinds of
industrial alcohol.
Operation Procedure
(1) Shut down the power to the machine.
Fig. 5A81
(2) Open the safety doors on the rear side of the machine.
Fig. 5A82
12.1 Replenishment of Cleaning Solvent
ON
tripped
reset
OFF
0
push
to
trip
Industrial alcohol supply must be replenished with the power switch
of the machine being turned "OFF".
Only the person in charge of maintenance work should perform this
operation.
CAUTION
Safety Door
Safety Doo
r
