Tg0699-PM-D2 P .C.B. Stopper Clean the stopper with an oiled rag. Note : Remove waste thread if any . Cleaning P .C.B. W arpage T op Holder (Outer Circumference of Roller) Remove dirt on the outer circumference of the ro…
Tg0699-PM-D2
5. Weekly Maintenance
5. Weekly Maintenance
DE1: DAPHNE EPONEX GREASE No. 1
Fig. 5A14 P.C.B. Chuck Section
Upper Surface of Backup
Table and Pin Hole Section
Cleaning
Remove solder paste and
dust with a vacuum cleaner.
Table 5A5
Maintenance Spots
Description
Grease
Cleaning
Check
Tools,
Nozzles,
etc.
P.C.B. Chuck Upper Surface of 5A14 Cleaning - Vacuum
Section Backup Table and Cleaner
Pin Hole Section
P.E.C. P.C.B. Stopper 5A15 Cleaning DE1 Oiled Rag
Recognition P.C.B. Warpage 5A15 Cleaning - Rag
Section Top Holder
(Outer Circumfe-
rence of Roller)
Air Source Drain 5A16 Cleaning - Container,
etc.
L Conveyor Interlock 5A17 Cleaning - Vacuum
Section Cleaner
R Conveyor Interlock 5A18 Cleaning - Vacuum
Section Cleaner
Blower Filter 5A19 Cleaning - Air and
Vacuum
Cleaner
0509-002 Chapter 3 1-13
Block Name Detailed Name
Fig.
No.
Tg0699-PM-D2
P.C.B. Stopper
Clean the stopper with an
oiled rag.
Note : Remove waste thread
if any.
Cleaning
P.C.B. Warpage Top Holder
(Outer Circumference of
Roller)
Remove dirt on the outer
circumference of the roller
with a soft cloth, etc.
Cleaning

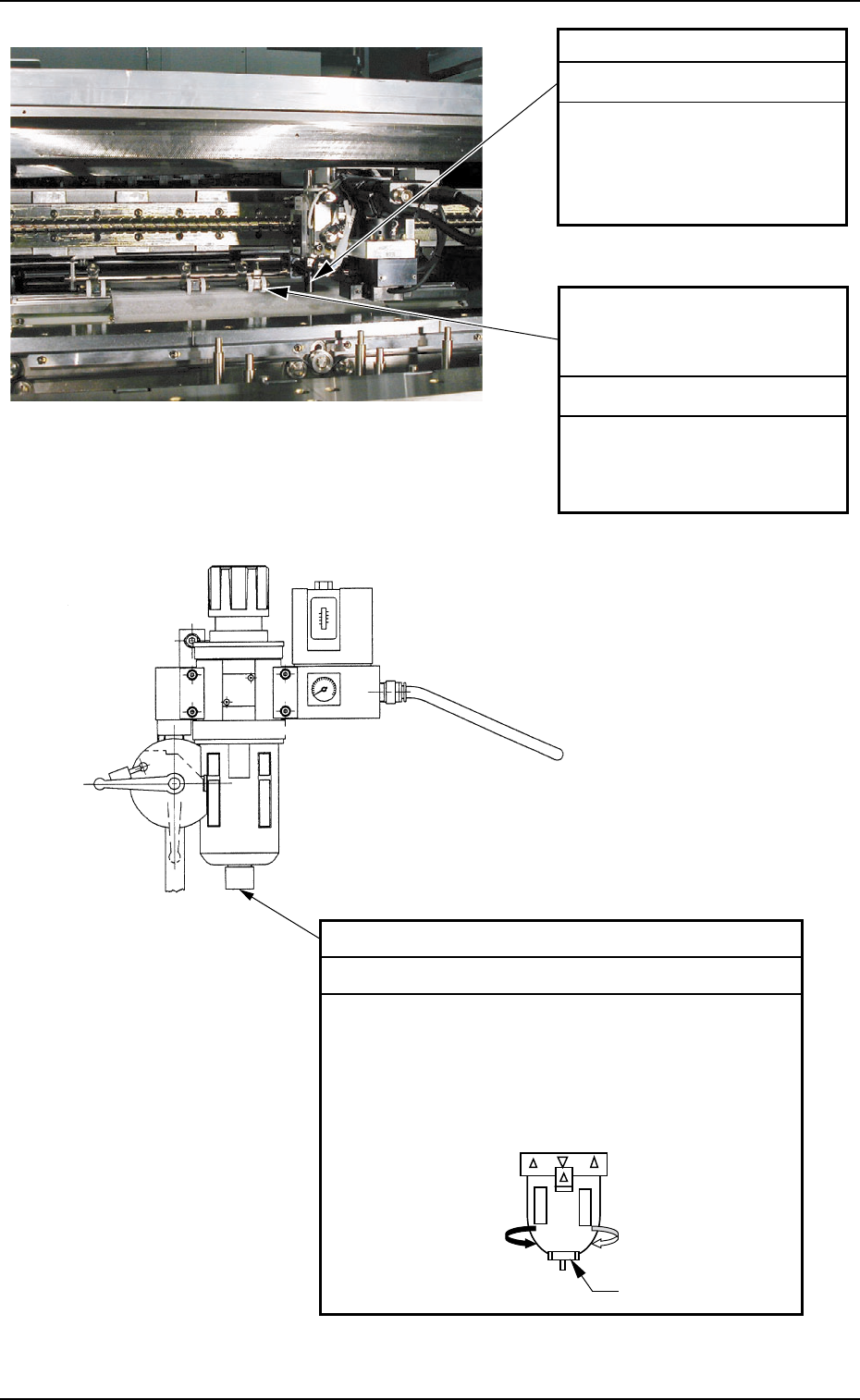

Fig. 5A16 Air Source
Fig. 5A15 P.E.C. Recognition Section
5. Weekly Maintenance
Drain
Follow the steps below to purge the drain.
(1) Put a container under the drain outlet.
(2) Slowly turn the cap (located on the housing
bottom of each air filter) in Arrow Direction A.
Note: If the cap is turned excessively, dirty
water will gush out.
Cleaning
Cap
#
0207-001 Chapter 3 1-14
Tg0699-PM-D2
Fig. 5A17 L Conveyor Section
Fig. 5A18 R Conveyor Section
5. Weekly Maintenance
Interlock Sensor
Remove dust with a vacuum
cleaner.
Cleaning
0207-001 Chapter 3 1-15
Interlock Sensor
Remove dust with a vacuum
cleaner.
Cleaning
