Tg0699-PM-D2 Fig. 5A9 Squeegee Head Section 4. Daily Maintenance 0509-002 Chapter 3 1-10 Glass Surface of Recognition Lighting Remove dirt and dust, etc., with a vacuum cleaner . Cleaning Remove dirt and dust, etc., with…

Tg0699-PM-D2

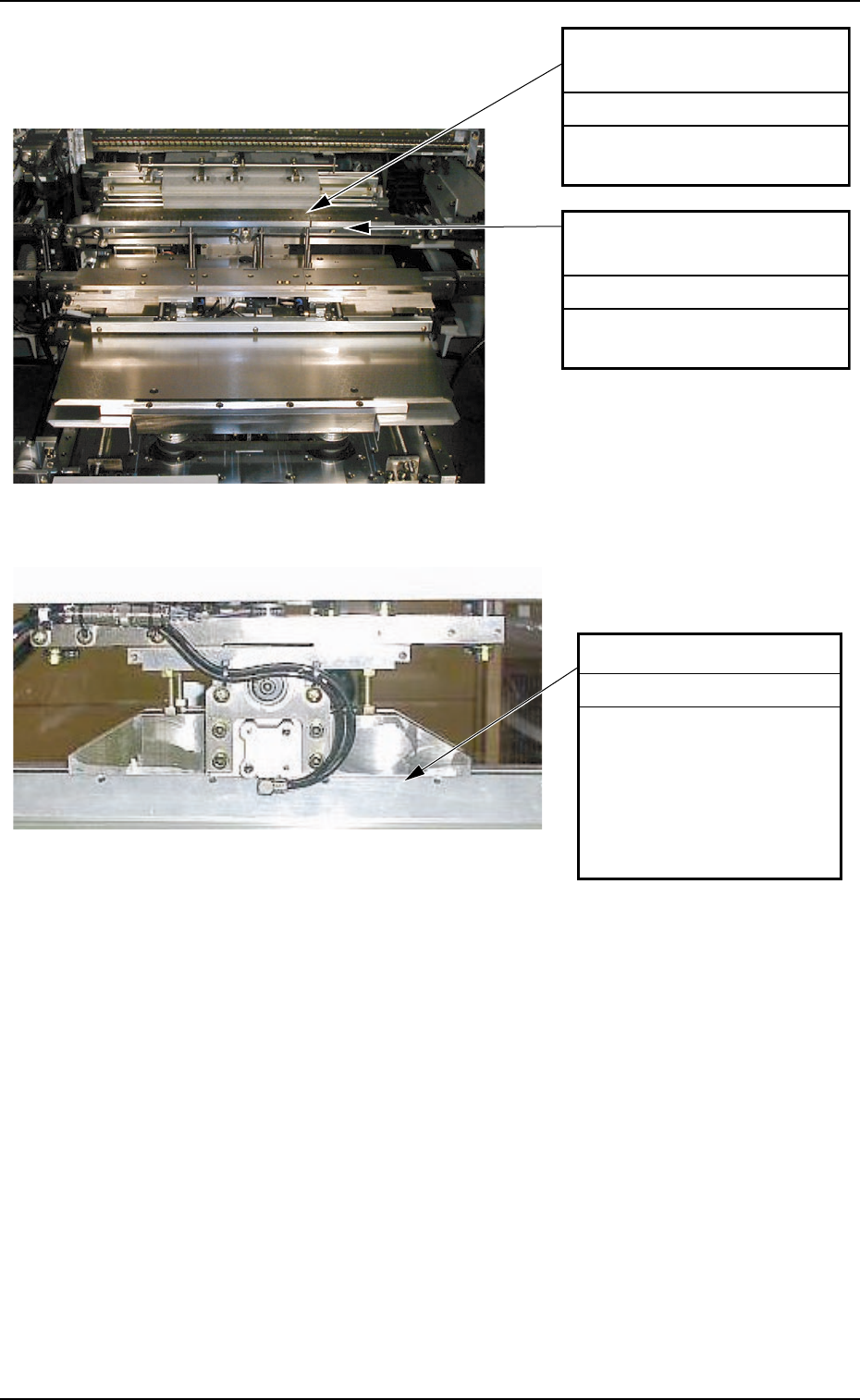

Squeegees

Cleaning

Clean the squeegees with

a rag soaked in industrial

alcohol (solvent) or with

industrial alcohol (solvent).

Remove deteriorated solder

paste.

Fig. 5A7 P.C.B. Chuck Section

Fig. 5A8 Squeegee Head Section

0509-002 Chapter 3 1-9

4. Daily Maintenance

P.C.B. Positioning Side and

Upper Surface

Remove solder paste and

dust with a vacuum cleaner.

Cleaning

Upper Surface of

P.C.B Transfer Belt

Remove solder paste and

dust with a vacuum cleaner.

Cleaning

Tg0699-PM-D2

Fig. 5A9 Squeegee Head Section

4. Daily Maintenance

0509-002 Chapter 3 1-10

Glass Surface of Recognition

Lighting

Remove dirt and dust, etc.,

with a vacuum cleaner.

Cleaning

Remove dirt and dust, etc.,

with a vacuum cleaner.

Cleaning

Camera (Lens)

Tg0699-PM-D2

4. Daily Maintenance

0509-001 Chapter 3 1-10-1

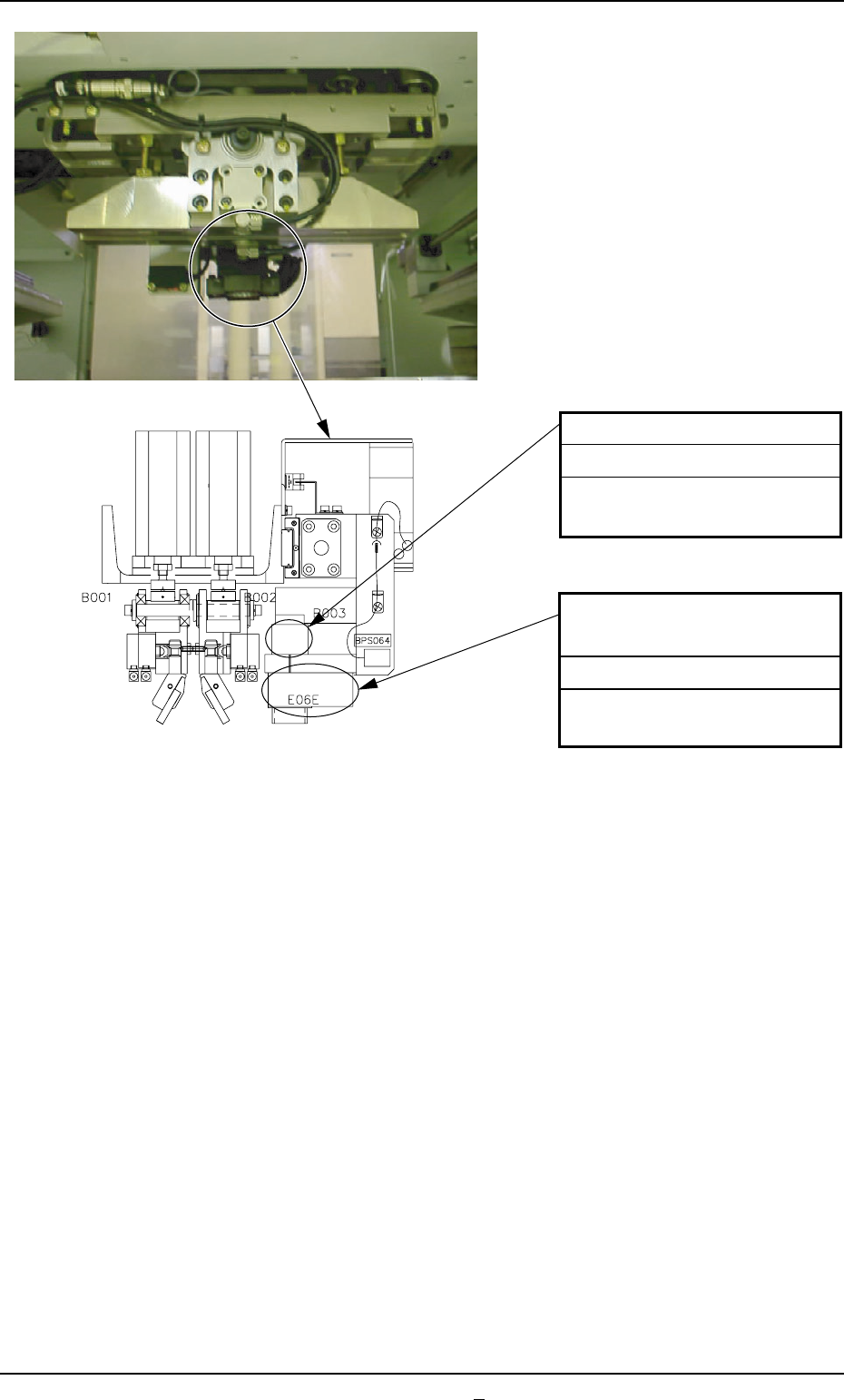

Lower Part of Cleaning Nozzle

Hose and Hose Joint

Check if industrial alcohol is leaking

or not.

If leakage is found, wipe off the

alcohol with a rag.

Check the joint and packing.

Check and Cleaning

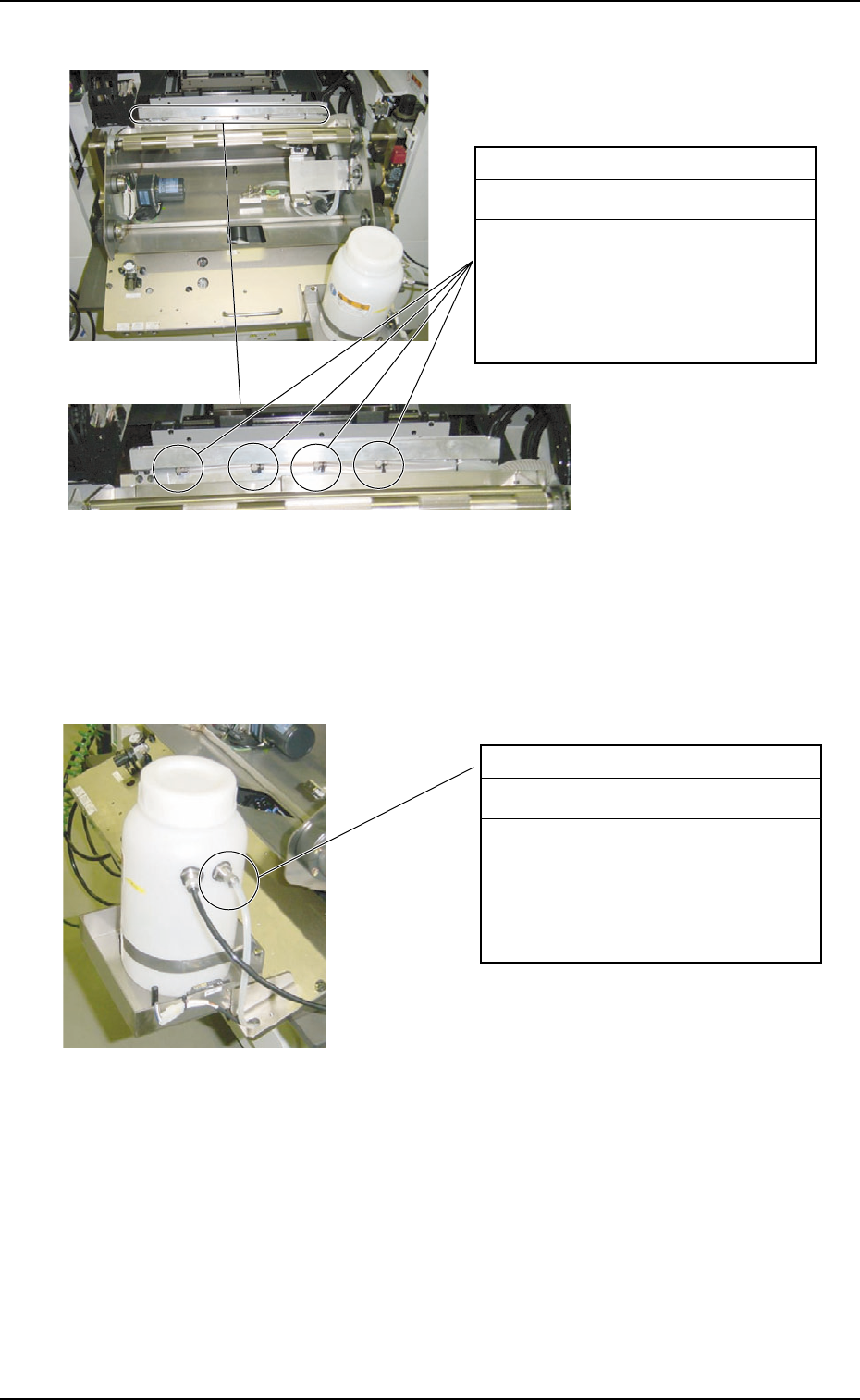

Solvent Tank and Pan

Check if industrial alcohol is leaking

or not.

If leakage is found, wipe off the

alcohol with a rag.

Check the joint and packing.

Check and Cleaning

Fig. 5A9-1

Fig. 5A9-2
