Tg0699-PM-D2

0207-001 Chapter 1 4-25-1

3.3 "Printing Condition" Tab

*4 Squeegee Up Setting

The after-printing squeegee lift is set. This data is to stop any

solder paste flow. The moving direction should be that of the

solder paste.

Y-Axis Move Distance : Sets the movement distance of the

Y-axis.

Y-Axis Move Speed : Sets the moving speed of the Y-axis.

Tg0699-PM-D2

0207-001 Chapter 1 4-26

4. "Offset Data" Submenu

••

• Window Layout

When the [OFFSET DATA] button is pressed in the "SYSTEM"

submenu bar, the following window appears.

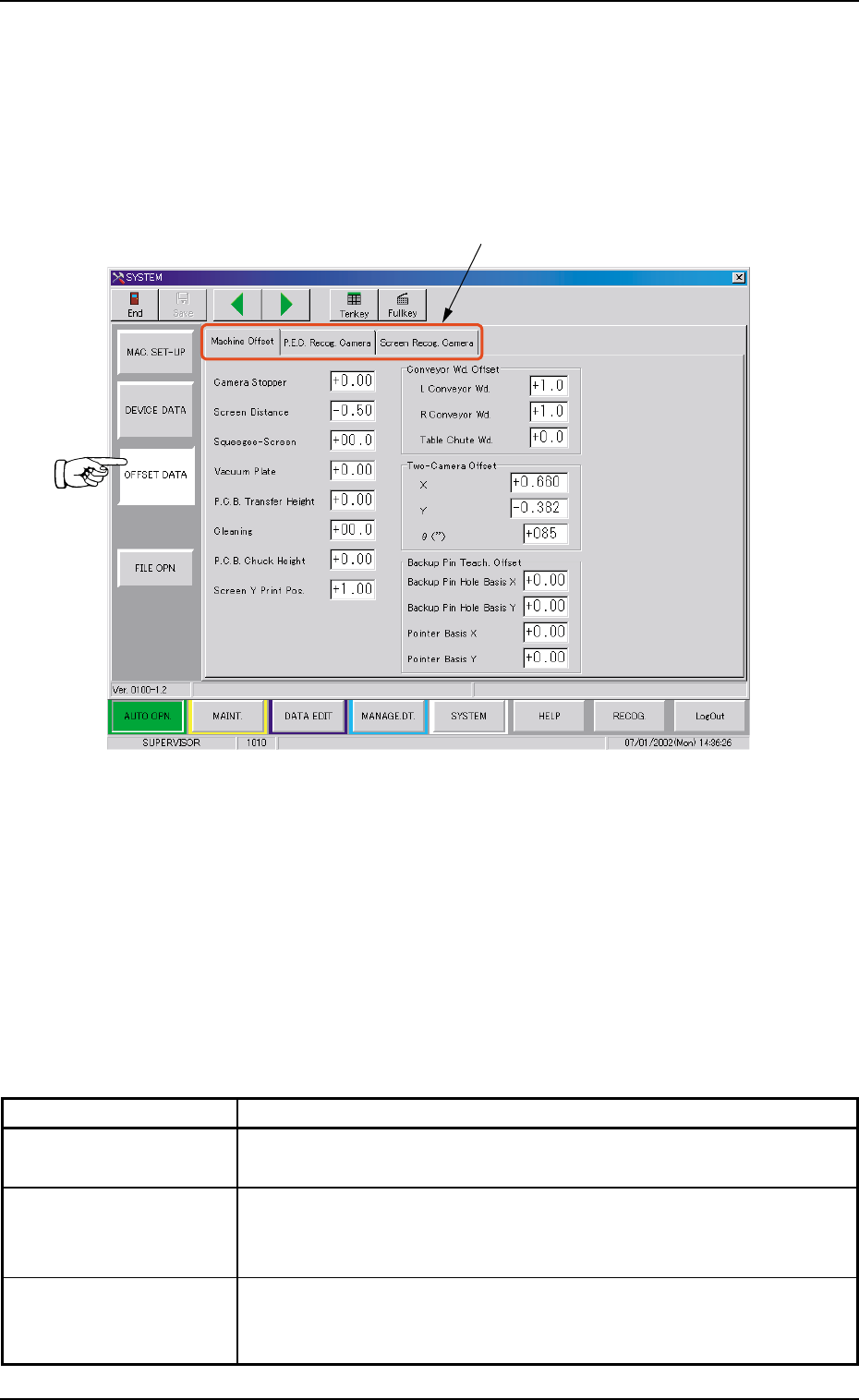

Fig. 3D17 "Offset Data" Window (Submenu)

••

• Window Composition

*1 Tabs

The "Offset Data" window (submenu) is provided with 3 tab

sheets.

Every time a tab is pressed, the corresponding tab sheet ap-

pears.

Table 3D5

Tabs Description

Machine Offset This tab sheet enables the operator to set offset values for each

section of the machine.

P.E.C. Recog. Camera This tab sheet enables the operator to set offset values and magni-

fications of the P.E.C. recognition camera and gain & level (contrast

and brightness difference) of the fiducial mark.

Screen Recog. Camera This tab sheet enables the operator to set offset values and magni-

fications of the screen recognition camera and gain & level (contrast

and brightness difference) of the fiducial mark.

Tg0699-PM-D2

0207-001 Chapter 1 4-27

4.1 "Machine Offset" Tab

*2 *3

4.1 "Machine Offset" Tab

This tab sheet enables the operator to set offset values for each

section of the machine.

••

• Sheet Layout

When "Machine Offset" tab is pressed at the "OFFSET DATA"

window (submenu), the following tab sheet appears.

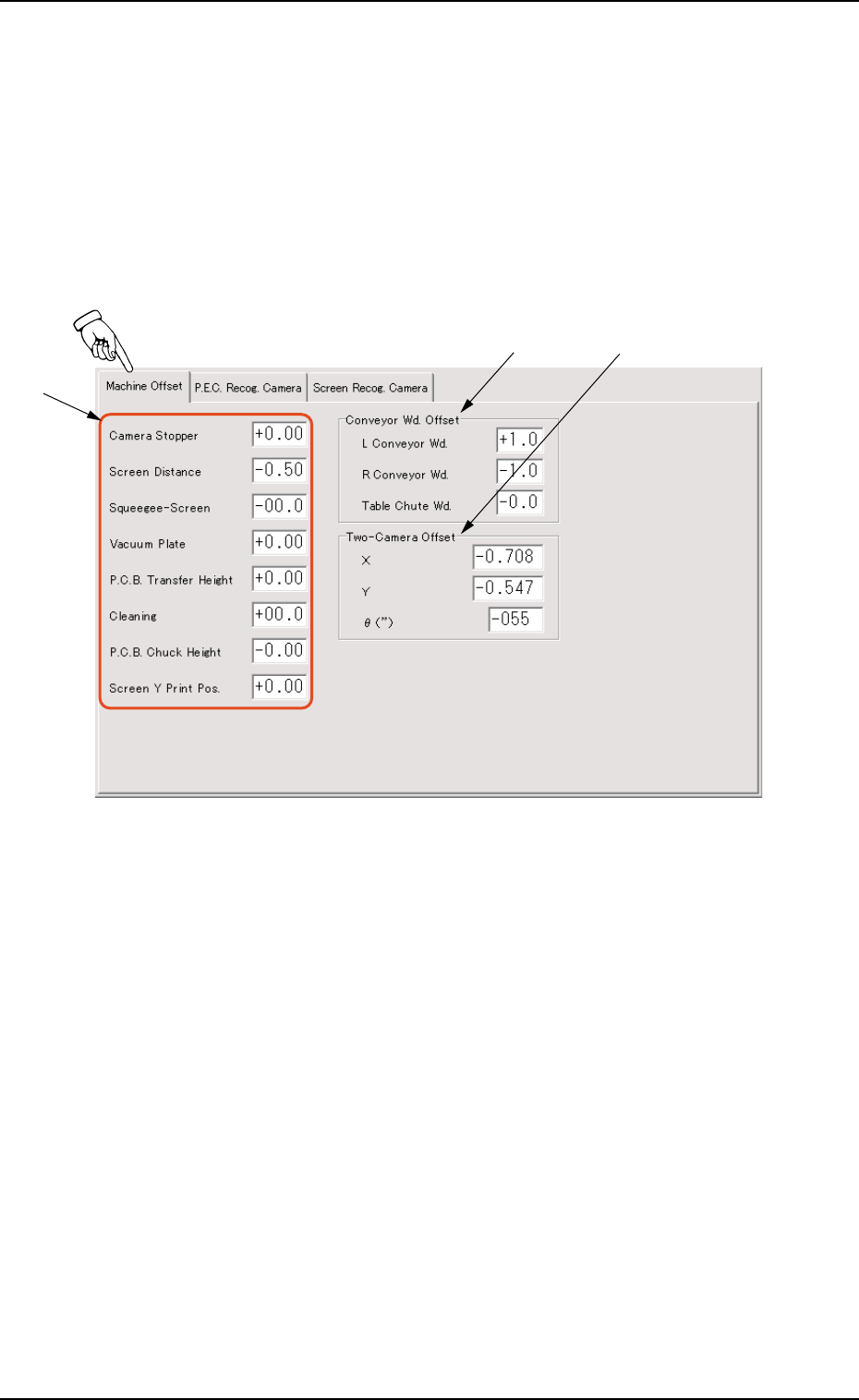

Fig. 3D18 "Machine Offset" Tab Sheet
