Tg0699-PM-D2 Spline Shaft for Width Adjustment Apply grease with a brush or a spatula. Lubrication Ball Screw for Width Adjustment Lubrication Guide Bushing for Width Adjustment Lubrication Apply grease with a brush or a…
Tg0699-PM-D2
Apply grease with a brush.
Note : If a large amount of
grease is applied to the
ball screw, it may be
dispersed over a P.C.B.
and the screen. After
applying grease to the
ball screw, brush the
surface until a small
amount of grease
remains.
Lubrication
Y-Axis Ball Screw
Y-Axis Linear Guide
Apply grease with a brush.
Lubrication

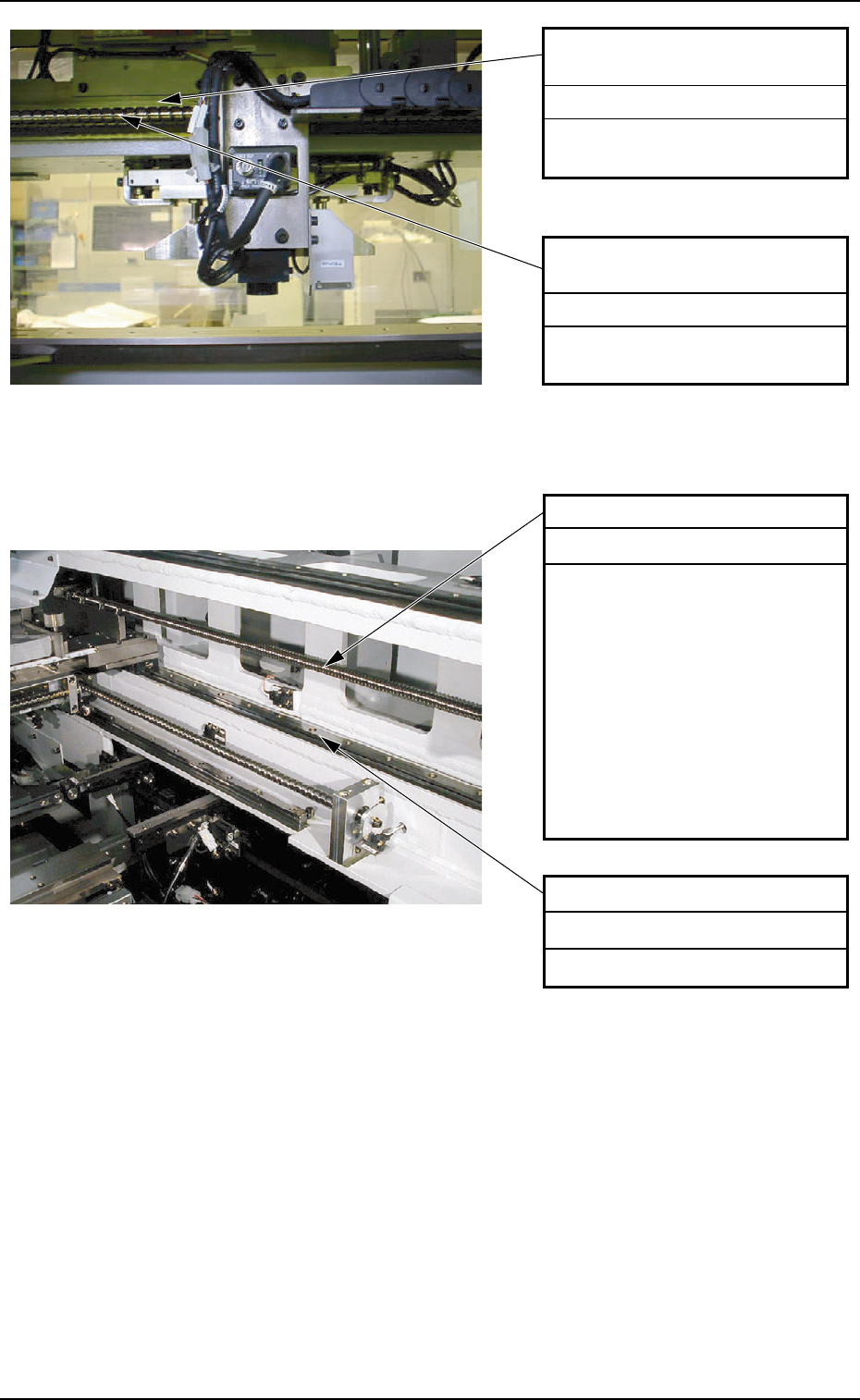

Fig. 5A47 Screen Recognition X-Axis
Fig. 5A48 Squeegee Head Section
8. Half-Yearly Maintenance
0207-001 Chapter 3 1-35
Screen Recognition X-Axis
Linear Guide
Inject grease into the grease
nipple with a grease gun.
Lubrication
Screen Recognition X-Axis
Ball Screw
Apply grease with a brush or a
spatula.
Lubrication
Tg0699-PM-D2
Spline Shaft for Width
Adjustment
Apply grease with a brush or
a spatula.
Lubrication
Ball Screw for Width
Adjustment
Lubrication
Guide Bushing for Width
Adjustment
Lubrication
Apply grease with a brush or
a spatula.
Apply grease with a brush or
a spatula.
Spline Shaft for Width
Adjustment
Apply grease with a brush or
a spatula.
Lubrication
Ball Screw for Width
Adjustment
Lubrication
Guide Bushing for Width
Adjustment
Lubrication
Apply grease with a brush or
a spatula.
Apply grease with a brush or
a spatula.

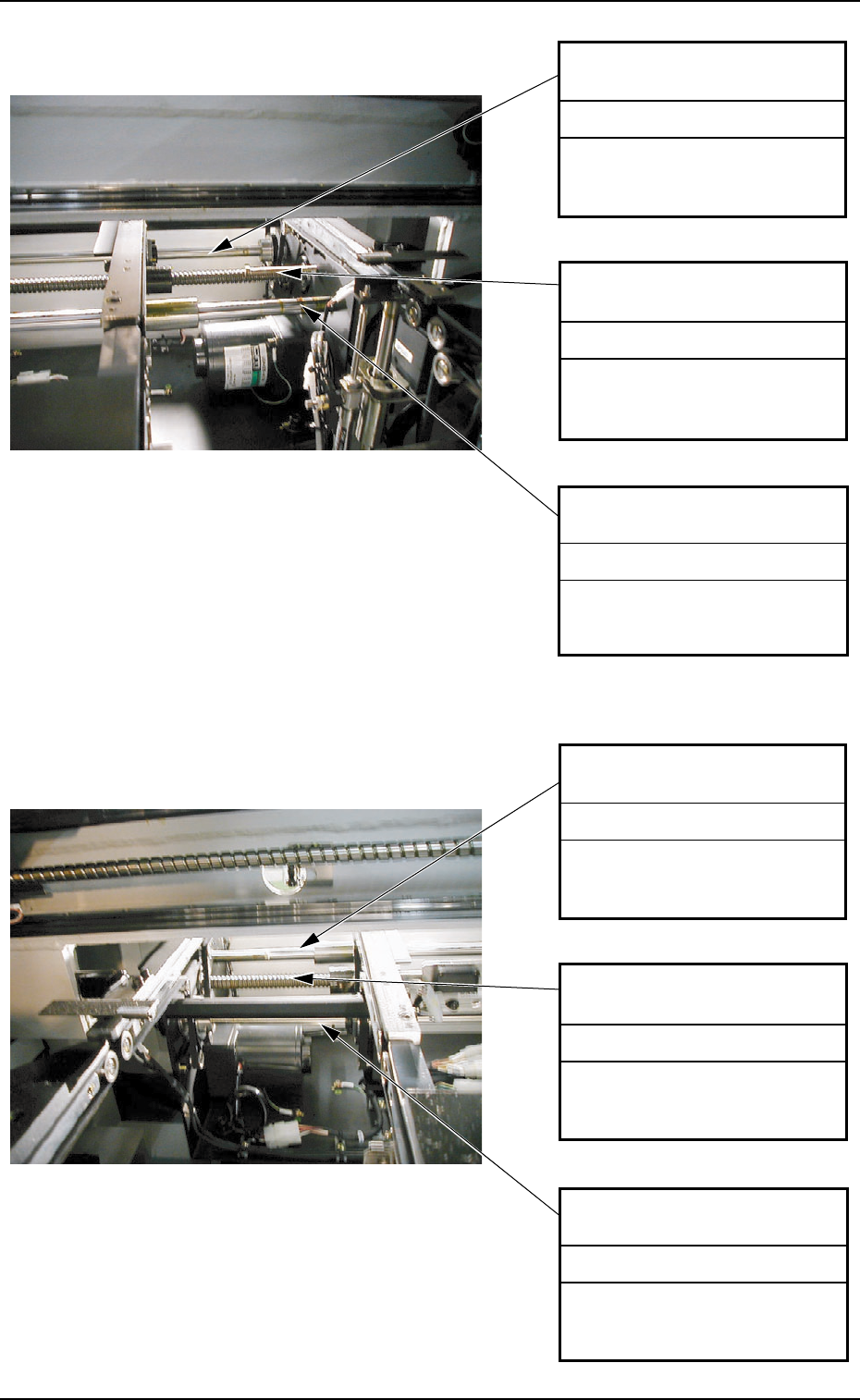

Fig. 5A49 L Conveyor
Fig. 5A50 R Conveyor
8. Half-Yearly Maintenance
0207-001 Chapter 3 1-36
Tg0699-PM-D2
Fig. 5A51 Cover Section
Fig. 5A52 Cover Section
8. Half-Yearly Maintenance
0207-001 Chapter 3 1-37
Front Safety Door Gas
Damper (Upper)
Apply grease to the damper
with a brush.
Lubrication
Front Safety Door Gas
Damper (Lower)
Apply grease to the damper
with a brush.
Lubrication
