Tg0699-PM-D2 4. Daily Maintenance 0509-001 Chapter 3 1-10-2 Fig. 5A9-3 Needle V alve Solenoid V alve Hose and Hose Joint Check if industrial alcohol is leaking or not. If leakage is found, wipe off the alcohol with a rag…
Tg0699-PM-D2
4. Daily Maintenance
0509-001 Chapter 3 1-10-1
Lower Part of Cleaning Nozzle
Hose and Hose Joint
Check if industrial alcohol is leaking
or not.
If leakage is found, wipe off the
alcohol with a rag.
Check the joint and packing.
Check and Cleaning
Solvent Tank and Pan
Solvent Tank and Pan
Check if industrial alcohol is leaking
or not.
If leakage is found, wipe off the
alcohol with a rag.
Check the joint and packing.
Check and Cleaning
Fig. 5A9-1
Fig. 5A9-2
Tg0699-PM-D2
4. Daily Maintenance
0509-001 Chapter 3 1-10-2

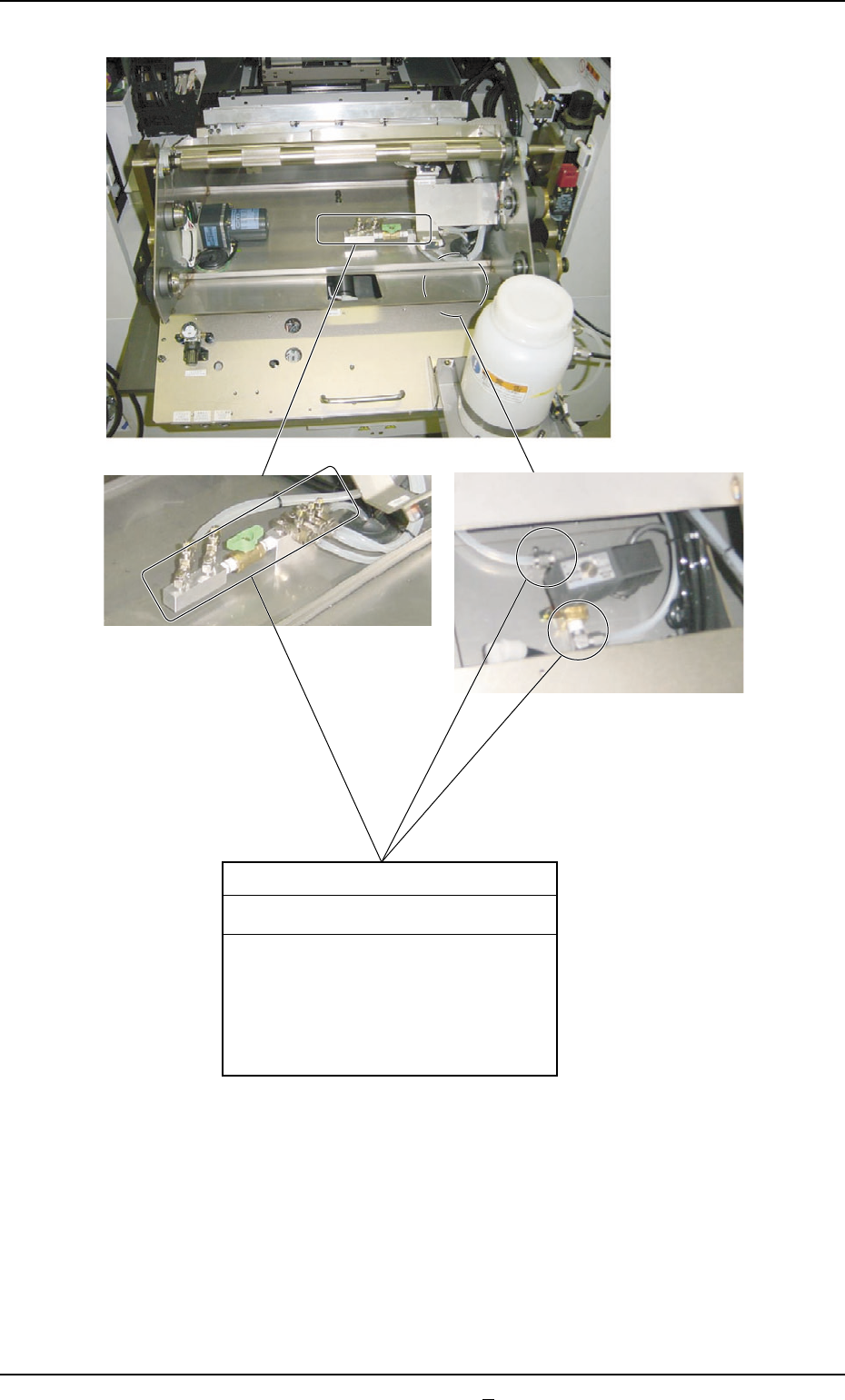

Fig. 5A9-3
Needle Valve
Solenoid Valve
Hose and Hose Joint
Check if industrial alcohol is leaking
or not.
If leakage is found, wipe off the
alcohol with a rag.
Check the joint and packing.
Check and Cleaning
Tg0699-PM-D2
4. Daily Maintenance
Fig. 5A11 L Conveyor Section
0207-001 Chapter 3 1-11
Lower Surface of Screen
Clean the scren bottom with
a rag soaked in industrial al-
cohol (solvent).
Clean
Upper Surface of Screen
Holder
Remove dirt on the upper
surface and side face with a
rag if any.
Cleaning
Screen Printing Patterns
After using the screen, use
industrial alcohol (solvent)
and the ultrasonic cleaner
to clean the screen such
that the mesh (pores) of the
screen (screen patterns) is
not clogged.
Cleaning
Fig. 5A10 Screen Holder Section
Upper Surface of P.C.B.
Transfer Belt
Remove solder paste and
dust with a vacuum cleaner.
Clean
