0207-001 Chapter 1 2-36
2.1 Navigations in Window
"Help" Menu Table 3B9
Command Menus Functions Icons
Contents... Not Available
Help Topics... Not Available
About... This displays the version of the current application
(software).
"Others" Menu Table 3B10
Command Menus Functions Icons
The
"Ten-Key" window is displayed.
The simple explanation about the data item is indicated.
The tool bar is extended.
The extended tool bar is closed.
The value of the selected data is set to the initial value.
The PCB recognition coordinates (1st Point and 2nd Point)
are copied on the screen. This is used when the same rec-
ognition mark is used on the PCB and screen.
This button is used in Printing Inspection (Option).
This indicates the menu bar.
Tg0699-PM-D2
0207-001 Chapter 1 2-37
2.1 Navigations in Window
(2) Entry of Numerical Values

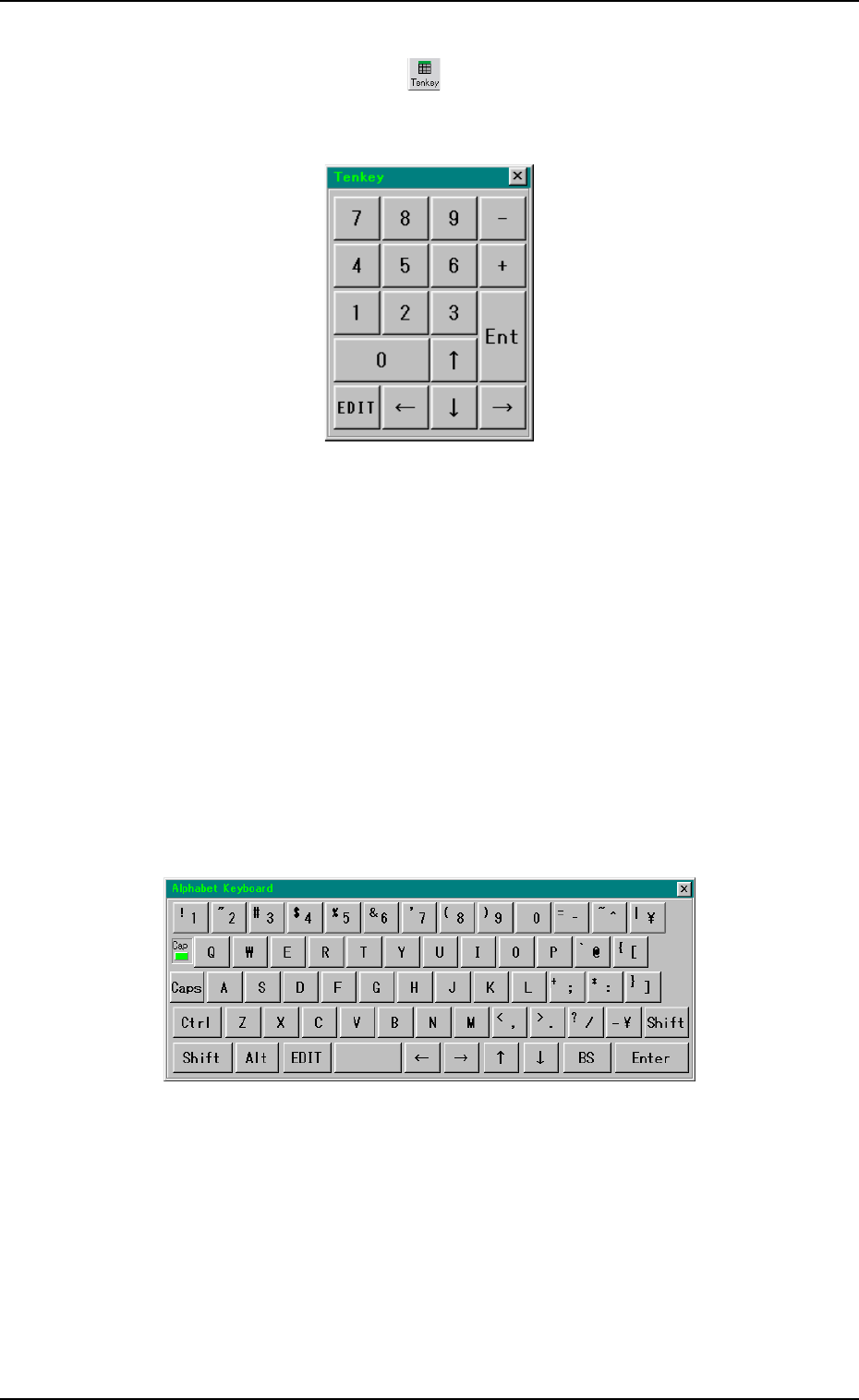

When the "Tenkey" icon on the toolbar is pressed, the
following ten-key window appears.
Fig. 3B78 Ten-key Window
Fig. 3B79 Virtual Keyboard (Alphabet Keyboard )
Use the alphabetic keys to enter a parameter and press the
[Enter] key.
When you double-push a text box quickly in which a numerical
value should be entered, the parameter in the text box is high-
lighted, indicating that a numerical value should be entered.
Enter a value, using the number keys on the ten-key window
and press the [Ent] key.
(3) Entry of Alphabetic Characters
When a pattern program must be loaded or saved or a file name
must be entered, the following virtual keyboard (Alphabet Key-
board) appears.
Tg0699-PM-D2
2.1 Navigations in Window
0207-001 Chapter 1 2-38
(4) Selection of Set Value
A combo box is like a text box and a list box combined and pro-
vided to make it easier to select a specific value from a list of
pre-defined values.

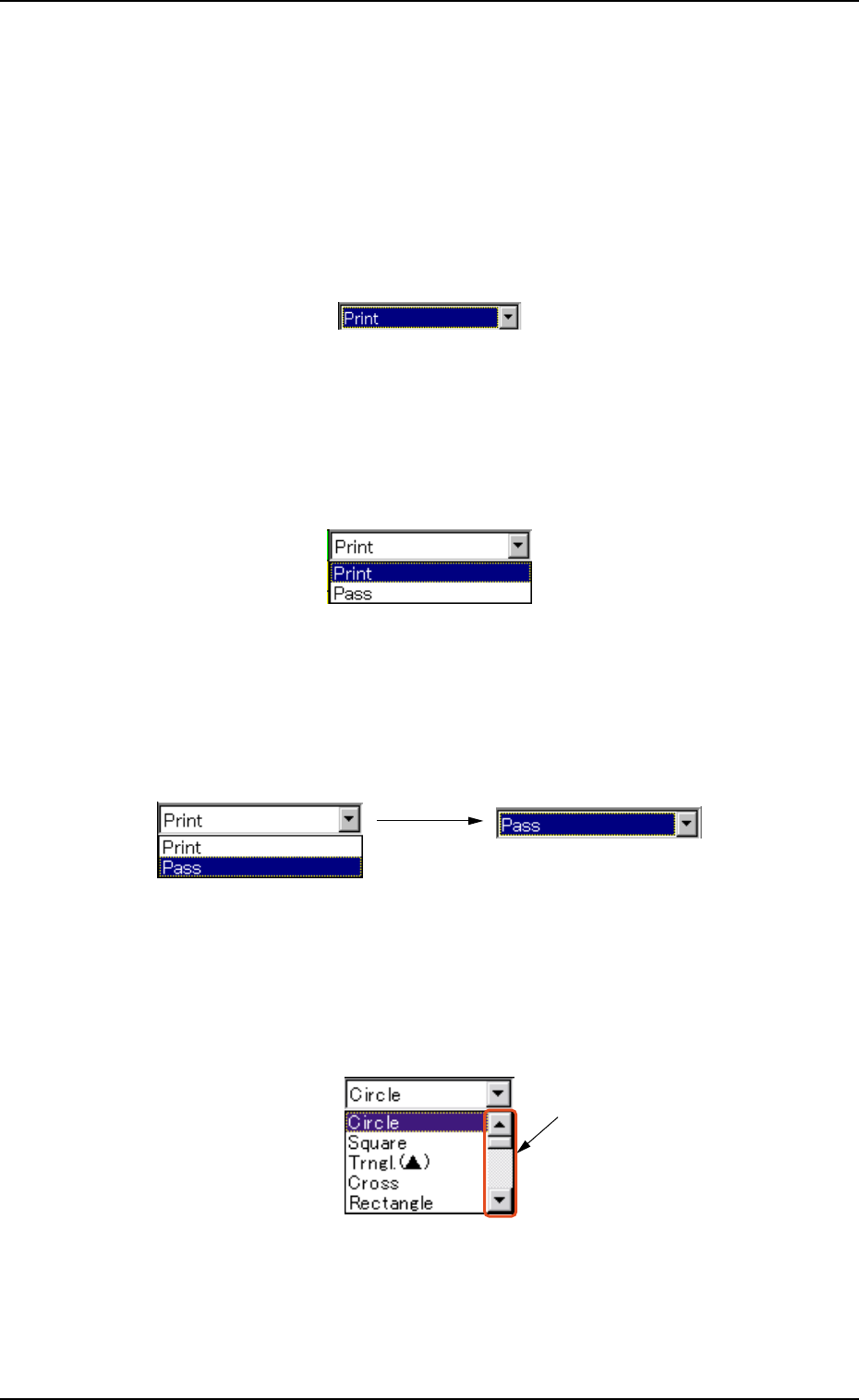

Step 1
When you double-push a text box quickly, the text box is
changed to a combo box that has a down arrow on the right
side.
Fig. 3B80
Step 2
When you push the down arrow, a drop-down list box opens,
showing the rows of data to be selected.
Fig. 3B81
Step 3
When you push the desired data in the list, it is reflected in the
text box.
Fig. 3B82
When too many options are in the list box, a scrollbar appears
on the right side of the list box. Scroll the list and select the
desired option.
Fig. 3B83
Step 4
When another text box is selected, the combo box is changed to
a text box.
Scrollbar
