Tg0699-PM-D2
Fig. 5A51 Cover Section
Fig. 5A52 Cover Section
8. Half-Yearly Maintenance
0207-001 Chapter 3 1-37
Front Safety Door Gas
Damper (Upper)
Apply grease to the damper
with a brush.
Lubrication
Front Safety Door Gas
Damper (Lower)
Apply grease to the damper
with a brush.
Lubrication
Tg0699-PM-D2
Fig. 5A53 Cover Section
Fig. 5A54 Cover Section
8. Half-Yearly Maintenance
0207-001 Chapter 3 1-38

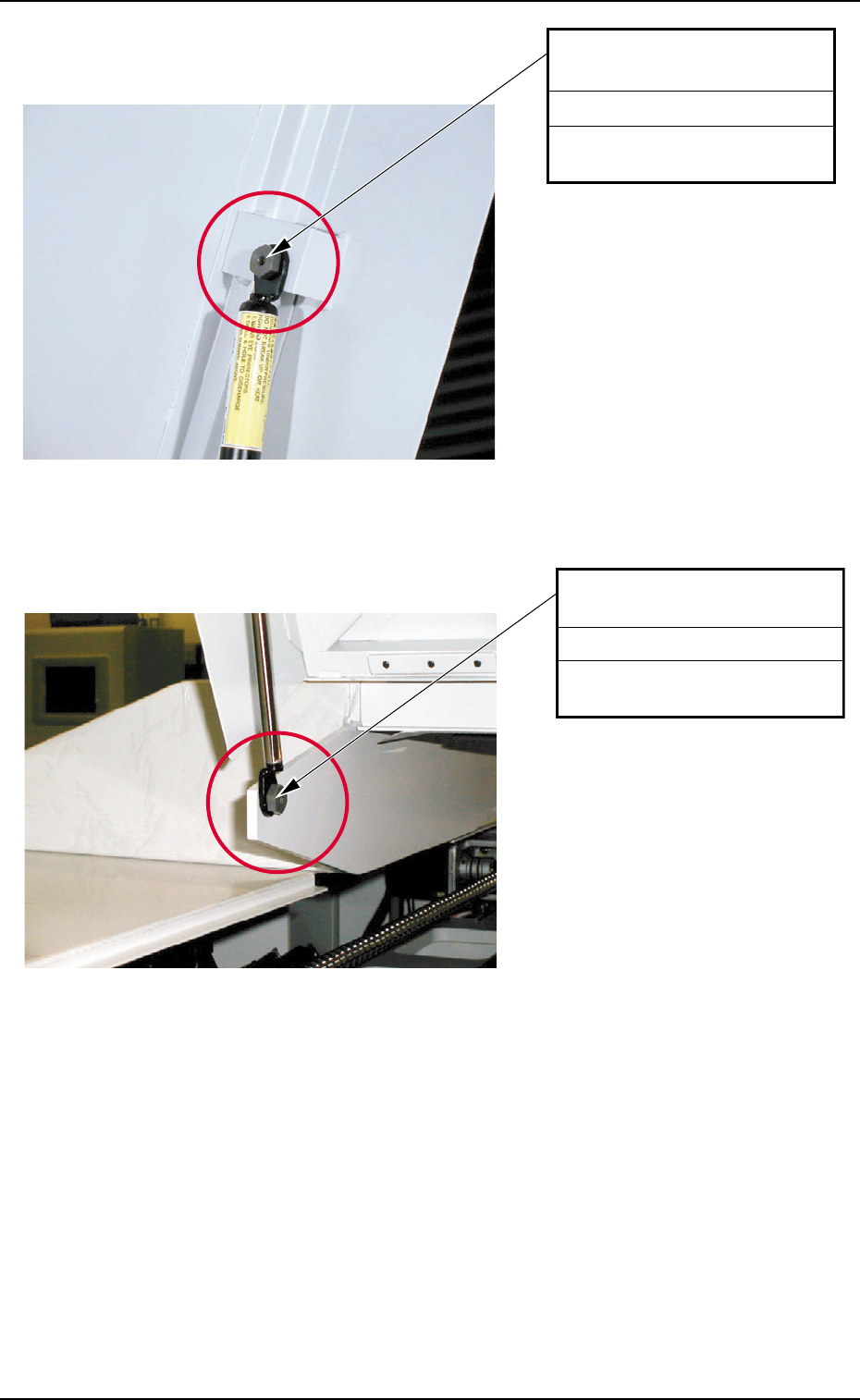

Rear Safety Door Gas
Damper (Upper)
Apply grease to the damper
with a brush.
Lubrication
Rear Safety Door Gas
Damper (Lower)
Apply grease to the damper
with a brush.
Lubrication
Tg0699-PM-D2
0207-001 Chapter 3 1-39
9. Replacement of Consumables and Adjustment
9. Replacement of Consumables and Adjustment
9.1 Replacement of Squeegees
When the squeegee edge is worn out or deformed by solvent, etc.,
replace the squeegee with a new one to avoid any hindrance in
printing.
• Loosen the squeegee anchor bolt and detach the squeegee.
• Attach a new squeegee as shown in Fig. 5A37 and tighten the
anchor bolt. At this time, be sure to push Plane A of the squeegee
against the flat surface such as a surface plate and tighten the bolt
evenly without any warpage.
• After tightening the bolt, put the edge against a flat surface to
confirm that straightness is secured without any clearance.
The confirmation should be made with the squeegee pushed
against the surface plate at 60° (fixed).
(a) Squeegee Width (mm) Part No.
270 630 112 2939
350 630 112 2946
480 630 112 2953
(b) It is advisable that plane A should be polished with the
squeegee being mounted to secure the straightness of
the squeegee for good printing.
Especially, it is effective to print fine-pitched patterns and
keep the coating of the printed patterns in accurate
shape.
Fig. 5A55
Squeegees
Plane
A
Edge Section
Squeegee
Anchor Bolts
Plane A
Edge Section
60q
60q
