Tg0699-PM-D2
2.5 "PEC Recog" Tab
0207-001 Chapter 1 2-49
2.5 "PEC Recog" Tab
••
••
• Sheet Layout
When you push the "PEC Recog" tab in the "Pattern Program" edit
window, the following tab sheet appears.
Fig. 3B90 "PEC Recog" Tab Sheet
••
••
• Sheet Composition
*1 P.E.C. Recog. Function
Only "2-Point Recognition" is performed.
*2 Center Recognition
Push the text box twice. The text box changes to a combo box.
Push the down arrow to open the drop-down list. Select "OFF" or
"ON" from the drop-down list.
*3 Fiducial Mark #1
Make the ten-key window appear and input the values for X
(horizontal), Y (vertical), Code, Gain (only when the automatic
gain adjustment is not used) and Level (only when the automatic
gain adjustment is not used).
*1
*2
*3
*4
*5
*6
*7
Tg0699-PM-D2
2.5 "PEC Recog" Tab
0207-001 Chapter 1 2-50
*4 Fiducial Mark #2
Make the ten-key window appear and input the values for X
(horizontal), Y (vertical), Code, Gain (only when the automatic
gain adjustment is not used) and Level (only when the automatic
gain adjustment is not used).
*5 Recog. Adjust Correct
Push the text box twice. The text box changes to a combo box.
Push the down arrow to open the drop-down list. Select "OFF" or
"ON" from the drop-down list.
*6 Recog. Adjust Point
Make the ten-key window appear and enter values (coordinates)
in the "X (horizontal)" and "Y (vertical)" text boxes.
When the [ ] button is pressed on the tool bar, the
[Extended] tool bar is indicated.
When the [RP.Cpy] button is pressed on the [Extended]
tool bar, the PCB recognition coordinate data can be
transmitted to the screen recognition coordinate data.
*7 Auto Gain Adj.
Press the text box twice to show the lower direction arrow. Then,
select "ON" or "OFF" in the drop down list. Normally, select
"ON".
Tg0699-PM-D2
2.6 "Scr Recog" Tab
0207-001 Chapter 1 2-51
*1
*2
*3
*4
*5
2.6 "Scr Recog" Tab
••
••
• Sheet Layout
When you push "Scr Recog" tab in the "Pattern Program" edit win-
dow, the following tab sheet appears.

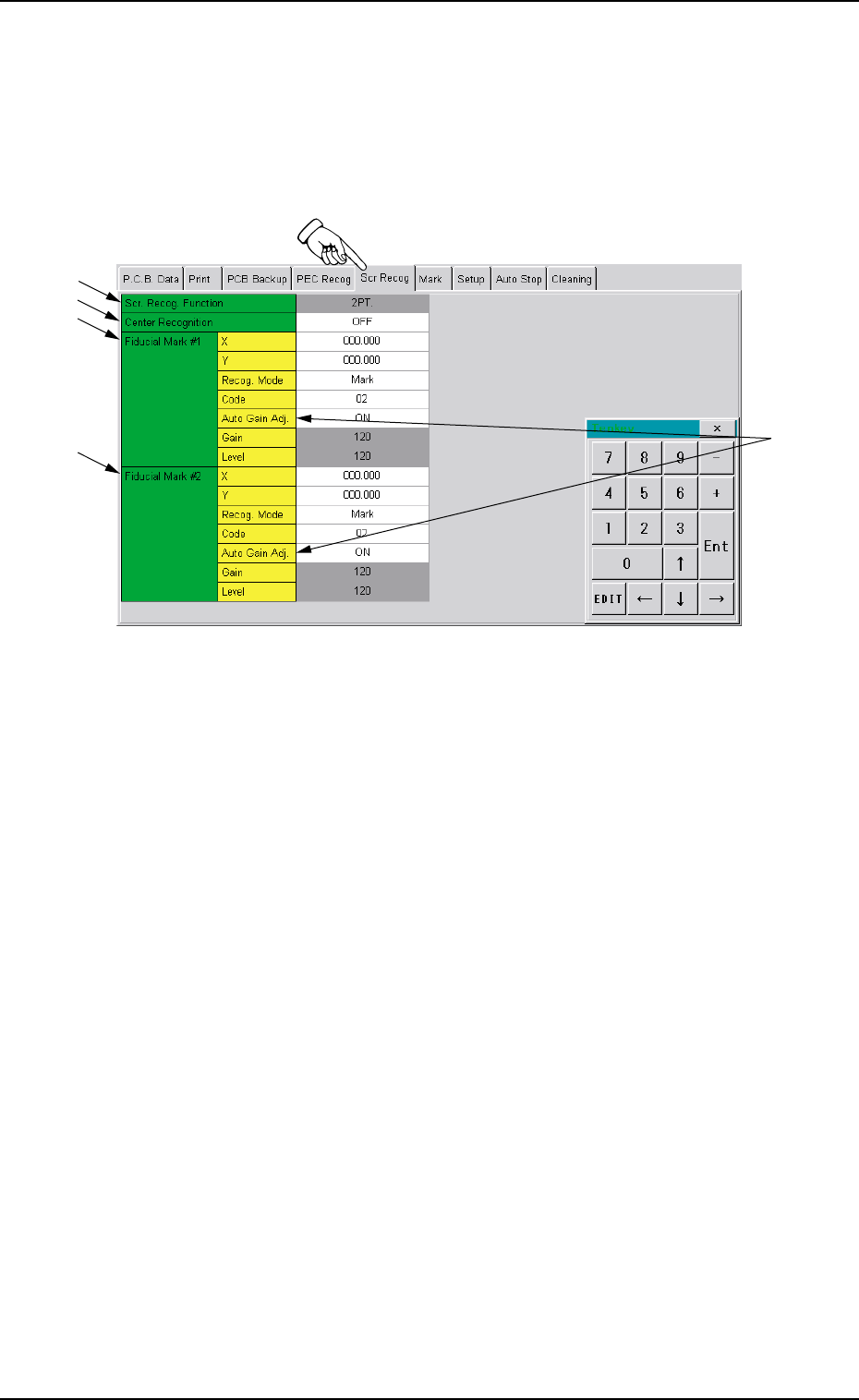

Fig. 3B91 "Scr Recog" Tab Sheet
••
••
• Sheet Composition
*1 Scr. Recog. Function
Only "2-Point Recognition" is performed.
*2 Center Recognition
Push the text box twice. The text box changes to a combo box.
Push the down arrow to open the drop-down list. Select "OFF" or
"ON" from the drop-down list.
*3 Fiducial Mark #1
Make the ten-key window appear and input the values for X
(horizontal), Y (vertical), Code, Gain (only when the automatic
gain adjustment is not used) and Level (only when the automatic
gain adjustment is not used).
