Tg0699-PM-D2 2.3 Error IDs and Remedial Procedures 0207-001 Chapter 2 2-71 T able 4B69 Error ID Item Description 1403000 Printing Pressure Front squeegee printing pressure exceeded upper set range. Setting 1404000 Printi…
Tg0699-PM-D2
2.3 Error IDs and Remedial Procedures
0207-001 Chapter 2 2-70

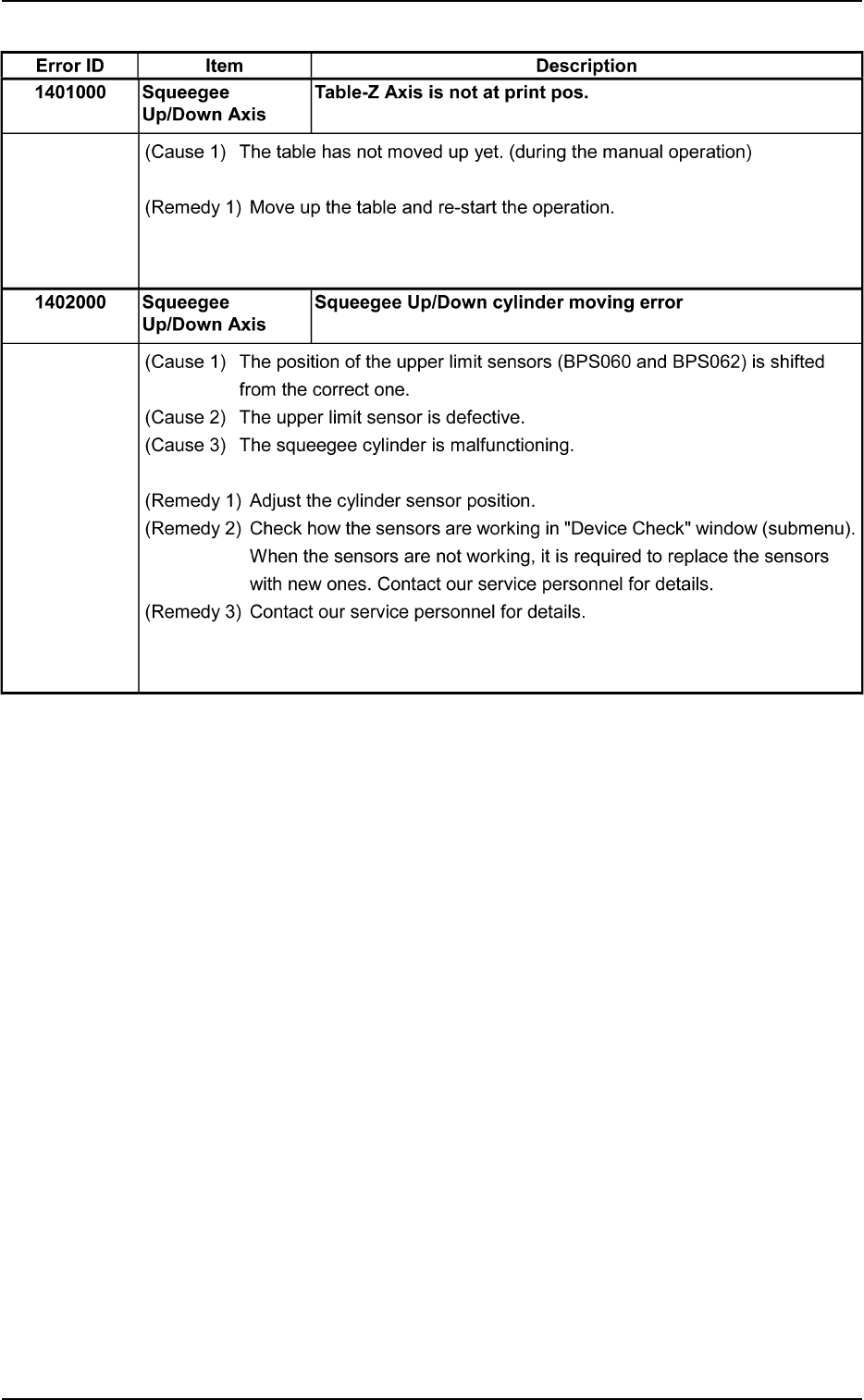

Table 4B68
Tg0699-PM-D2
2.3 Error IDs and Remedial Procedures
0207-001 Chapter 2 2-71
Table 4B69
Error ID Item Description
1403000 Printing Pressure Front squeegee printing pressure exceeded upper set range.
Setting
1404000 Printing Pressure Rear squeegee printing pressure exceeded upper set range.
Setting
(Cause 1) The feedback data is corrupted.
(Remedy 1) Press the [FeedBack DataClear] button in the "Printing Pressure" tab
sheet. (Vol.1, Chapter 2, Section 5, 2.5 "Printing Pressure" Tab)
1405000 Printing Pressure Printing pressure exceeded upper range.
Setting
(Cause 1) The output value of the load cell is abnormal.
(Remedy 1) Check for any foreign substances around the squeegee up/down cylin-
der and confirm that the squeegee is correctly installed.
When the same error still occurs, contact our service personnel for de-
tails.
1406000 Printing Pressure Printing pressure exceeded upper range. (Average Value)
Setting
(Cause 1) The printing pressure got out of the specified one during printing.
(Remedy 1) Check the parameter set in the "Average" text box of the "Printing Press.
Error Setting" group box in the "Operation Mode" tab sheet.
Increase the value when the threshold severer than required is specified.
(Target Value: 50N)
Check if the amount of the supplied solder paste is too much or not.
When the same error still occurs after the above-described checking,
contact our service personnel for details.
1407000 Printing Pressure Front squeegee pressure exceeded minimum limit.
Setting
1408000 Printing Pressure Rear squeegee pressure exceeded minimum limit.
Setting
(Cause 1) The feedback data is corrupted.
(Remedy 1) Press the [FeedBack DataClear] button in the "Printing Pressure" tab
sheet. (Vol.1, Chapter 2, Section 5, 2.5 "Printing Pressure" Tab)
Tg0699-PM-D2
2.3 Error IDs and Remedial Procedures
0207-001 Chapter 2 2-72
Table 4B70
Error ID Item Description
1409000 Printing Pressure Printing pressure exceeded upper range. (Peak)
Setting
(Cause 1) The printing pressure was not constant temporarily.
(Cause 2) The output value of the load cell is abnormal.
(Remedy 1) Check for any foreign substances on the production P.C.B. and the screen.
(Remedy 2) Check for any foreign substances near the load cell.
When the same error still occurs, contact our service personnel for de-
tails.
1410000 Squeegee Up/Down Squeegee up/down cylinder, Squge.Y axis was not at
Interlock safety area.
(Cause 1) The range of the squeegee movement has exceeded the limited one.
(Remedy 1) Check if the parameters in the "Origin" and "Depth" text boxes of "Print
Area" in the P.C.B. Data" tab sheet ("Pattern Program" window) and the
parameters in the "Paste Size" and "Print Margin" group boxes in the
"Printing Condition" tab sheet ("OPN. MODE" window) are too large or
not.
1412000 Squeegee Up/Down Squeegee up/down cylinder, PCB was not checked.
Interlock
(Cause 1) The squeegee was moved down when a P.C.B. was not clamped on the
table. (during the manual operation)
(Remedy 1) Clamp the P.C.B. in the table section and move up the table. After that,
re-start the operation.
