Tg0699-PM-D2 3.4 Location of Sensors and Loads for Screen Holder/Squeegee Section 0207-001-(M782YRF--0002) Chapter 3 3-38-1 1 3.4 Location of Sensors and Loads for Screen Holder/Squeegee Section Fixing with Insulation Ti…
Tg0699-PM-D2
3.3 Location of Sensors and Loads for P.E.C. Recognition Section
0207-001 Chapter 3 3-38-10
Table 5C5
Symbols Name
BPH042 P.E.C. Recognition Y-Axis Interlock
BPS070 P.C.B. Stopper Upper Limit
BPS071 P.C.B. Stopper Lower Limit
BPH072 P.C.B. Check
BPH073 P.C.B. Warpage Top Holding Output Side
BPH074 P.C.B. Warpage Top Holding Input Side
(Overlapped P.C.B. Detection)
BPH331 P.E.C. Recognition Y-Axis Origin
BPH332 P.E.C. Recognition Y-Axis Limit (+)
BPH333 P.E.C. Recognition Y-Axis Limit (-)
BPH334 P.E.C. Recognition Y-Axis Rotational Origin
BPH351 P.E.C. Recognition X-Axis Origin
BPH352 P.E.C. Recognition X-Axis Limit (+)
BPH353 P.E.C. Recognition X-Axis Limit (-)
BPH354 P.E.C. Recognition X-Axis Rotational Origin
MPM035 P.E.C. Recognition X-Axis Pulse Motor
YSV078 P.C.B. Warpage Top Holding Upper Limit Solenoid Valve
YSV079 P.C.B. Stopper Solenoid Valve
Tg0699-PM-D2
3.4 Location of Sensors and Loads for Screen Holder/Squeegee Section
0207-001-(M782YRF--0002) Chapter 3 3-38-11

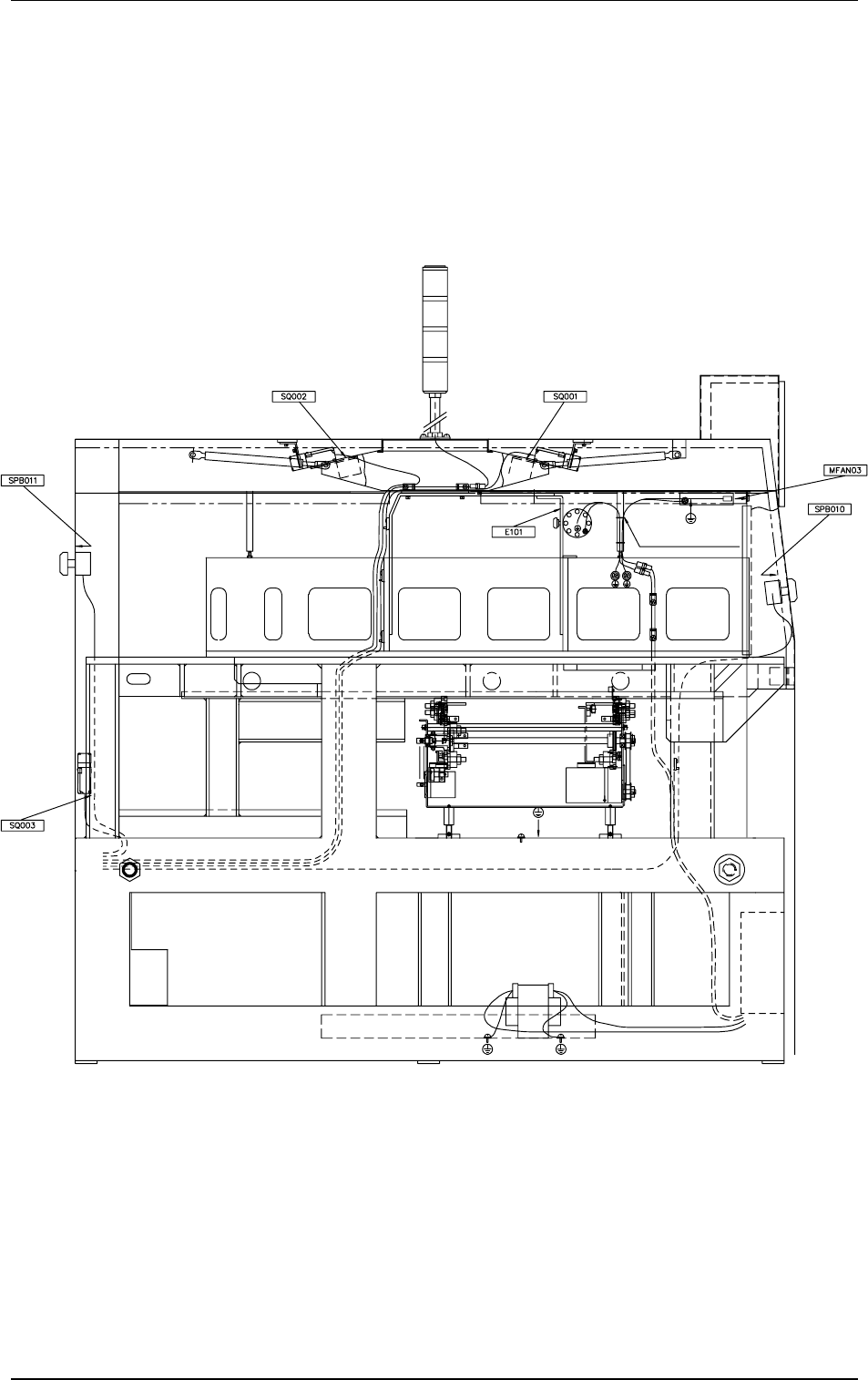

3.4 Location of Sensors and Loads for Screen
Holder/Squeegee Section
Fixing with Insulation
Tie Wrap
Tg0699-PM-D2
3.4 Location of Sensors and Loads for Screen Holder/Squeegee Section
0207-001-(M782YFA--0002) Chapter 3 3-38-12

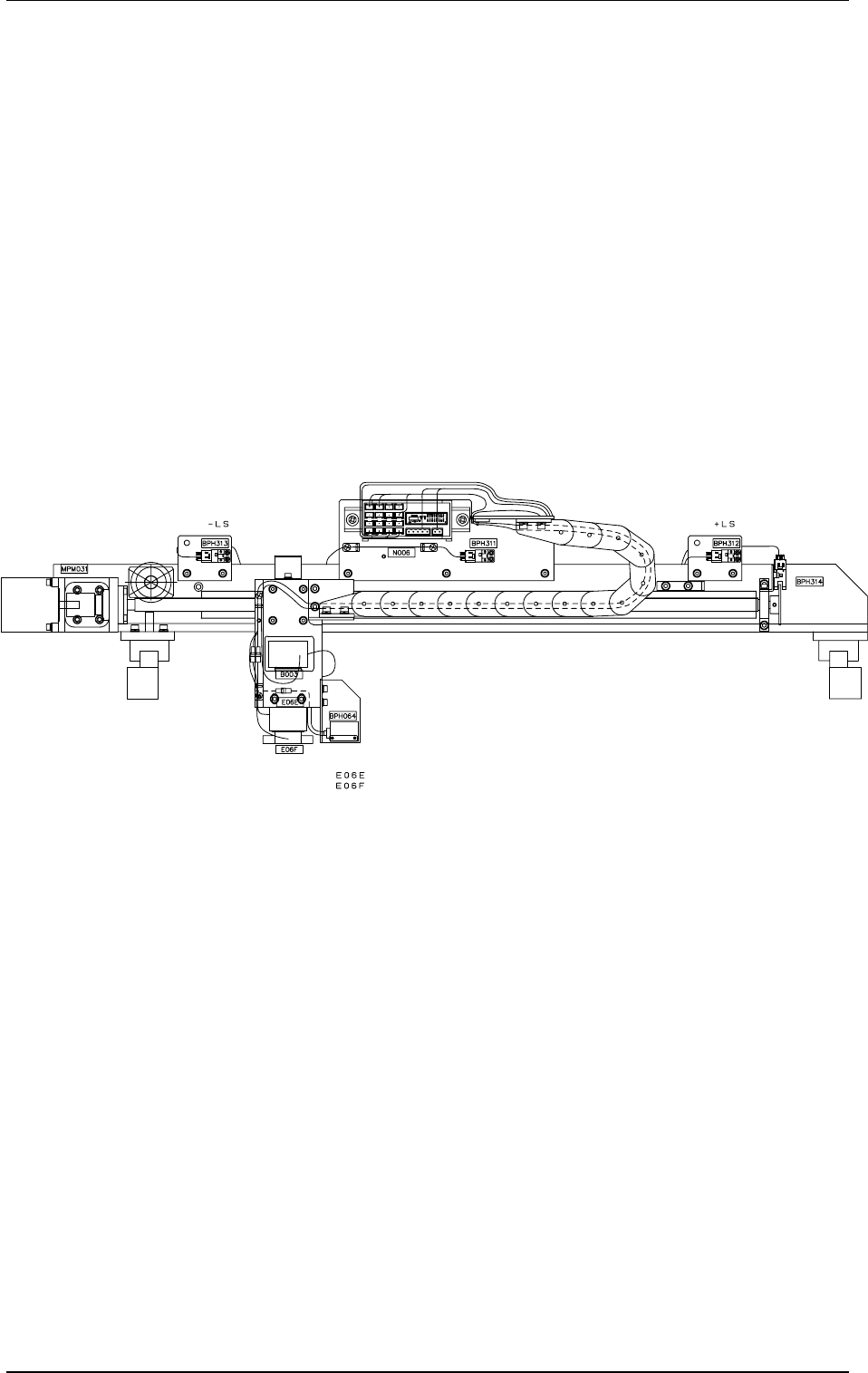

Screen Recognition
X-Axis Pulse Motor
Screen Recognition Camera
Origin
Rotational Origin
Paste Height Detection
Lighting for Screen Recognition :
Lighting for Screen Recognition (Ring) :
