3.1 Location of Sensors and Loads in Conveyor Section
0207-001-(M782YHR--0001) Chapter 3 3-38-2

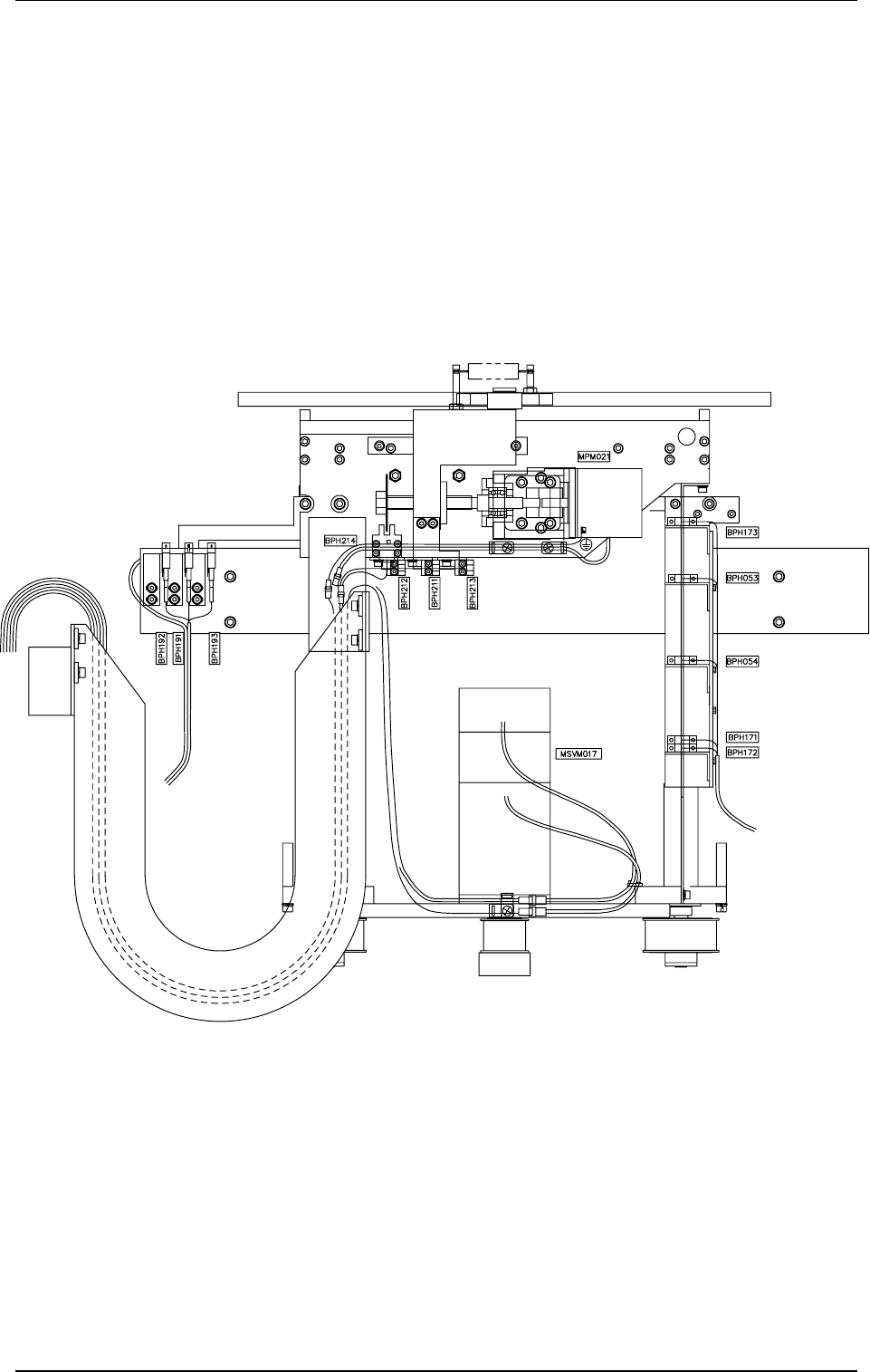

(2) R Conveyor Section
Direction of P.C.B. Transfer
Table Z-Axis
Up Movement I. L. Fix Side
Origin
Conveyor Motor
P.C.B. Passage Check
P.C.B. Arrival Check
Connected to
the Frame
Conveyor Width Axis
Pulse Motor
Table Z-Axis Up Movement I.L.
Movement Side
Tg0699-PM-D2
YSV04E
YSV04A
YSV04F
YSV04B
3.1 Location of Sensors and Loads in Conveyor Section
0304-002 Chapter 3 3-38-3
Fig. 5C2
Table 5C2
Symbols Name
BPH044 P.C.B. Arrival Check
BPH045 P.C.B. Passage Check
BPH391 R Conveyor Rail Width Limit (+)
M003 R Conveyor Motor
MPM039 R Conveyor Width Pulse Motor
YSV04E P.C.B. Stopper Solenoid Valve (Outward)
YSV04F P.C.B. Stopper Solenoid Valve (Backward)
Tg0699-PM-D2
3.2 Location of Sensors and Loads in Table Section
0207-001-(M782YB---0001) Chapter 3 3-38-4
3.2 Location of Sensors and Loads in Table Sec-
tion
[Table X-Axis]
+ L S
- L S
Origin
+ L S
- L S
Origin
[Table θ-Axis]
Table θ-Axis Pulse Motor
- L S
+ L S
Origin
[Table Z-Axis]
Interlock
Table Z-Axis
Servo Motor
Rotational Origin
Correction Position
