Tg0699-PM-D2 0509-002 Chapter 3 1-52 12.1 Replenishment of Cleaning Solvent • Use industrial alcohol as a cleaning solvent for this machine. Refer to "2.1 Preparation for Cleaning T ools" for the kinds of indus…
Tg0699-PM-D2
0207-001 Chapter 3 1-51
12. Replacement of Cleaning Paper (How to change the cleaning paper width)
(13) Fasten the paper end securely to the take-up roller shaft with a
gummed cloth tape, etc.
Fig. 5A79
Fasten the paper such that the edges become perpen-
dicular to the roller shaft to equalize the uneven pull of
the paper (to avoid forming a spiral pattern).
(14) Turn the knob of the take-up roller clockwise to unlock the roller
free.
(15) Rotate the take-up roller by hand to wrap two or three turns of
paper around it.
(16) Turn the knob of the take-up roller counterclockwise to lock the
roller.
Roller Shaft
Gummed Cloth Tape, etc.
Paper Edge
Fig. 5A80
Tg0699-PM-D2
0509-002 Chapter 3 1-52
12.1 Replenishment of Cleaning Solvent
• Use industrial alcohol as a cleaning solvent for this machine.
Refer to "2.1 Preparation for Cleaning Tools" for the kinds of
industrial alcohol.
Operation Procedure
(1) Shut down the power to the machine.
Fig. 5A81
(2) Open the safety doors on the rear side of the machine.
Fig. 5A82
12.1 Replenishment of Cleaning Solvent
ON
tripped
reset
OFF
0
push
to
trip
Industrial alcohol supply must be replenished with the power switch
of the machine being turned "OFF".
Only the person in charge of maintenance work should perform this
operation.
CAUTION
Safety Door
Safety Doo
r
Tg0699-PM-D2
0509-001 Chapter 3 1-52-1
12.1 Replenishment of Cleaning Solvent

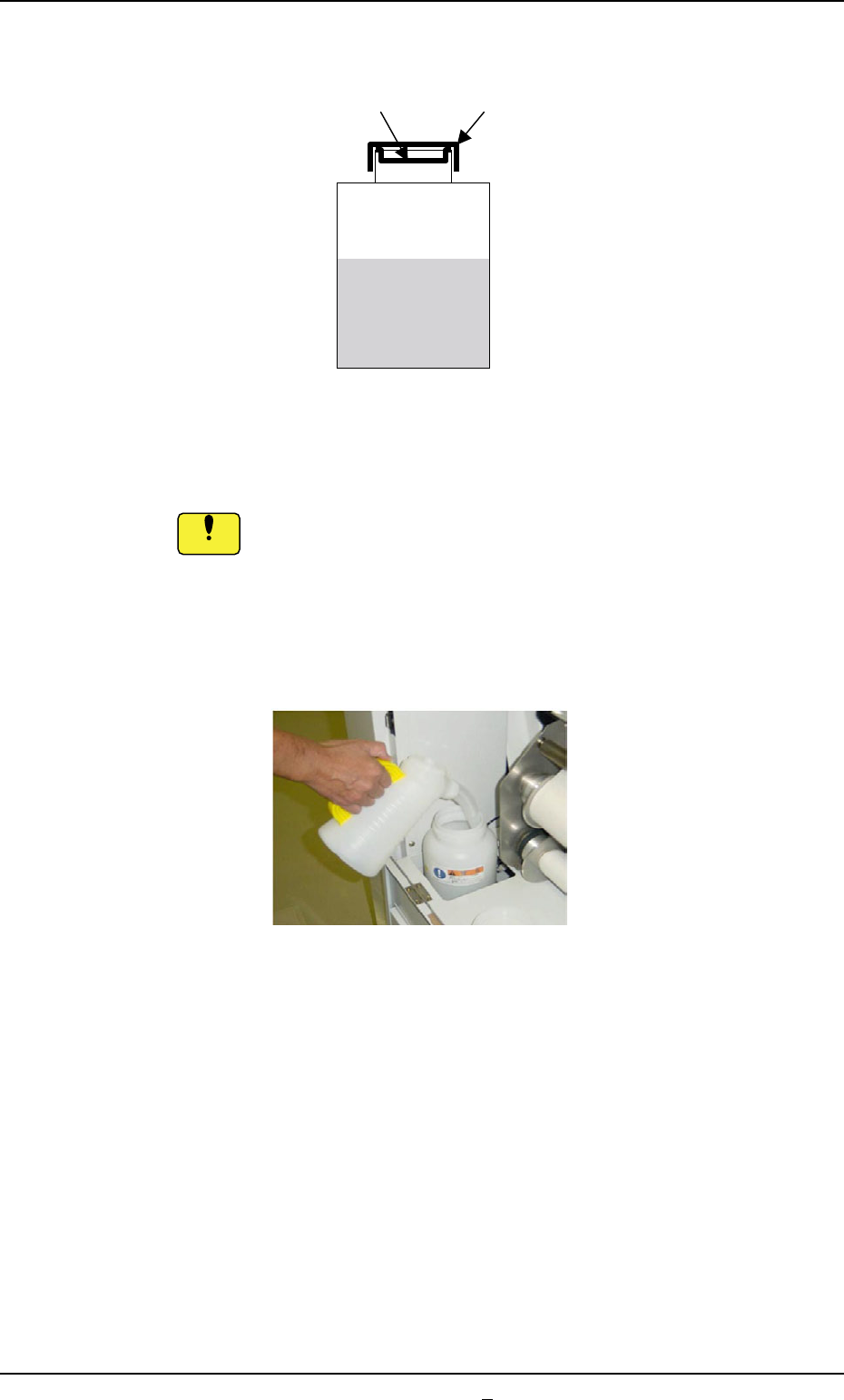

(3) Remove the cap and the internal lid of the solvent tank.
Fig. 5A83Fig. 5A83
Fig. 5A83Fig. 5A83
Fig. 5A83
(4) Replenish the solvent tank with additional industrial alcohol,
using the replenishment container.
To avoid solvent drips, be sure to use the replenishment
container equipped with a nozzle.
If you spill solvent by mistake, clean it up with a rag as soon
as possible.
After cleaning up the spilt solvent, confirm that it has dried
completely and enough ventilation is provided. After that,
turn on the power switch of the machine.
Fig. 5A83-1Fig. 5A83-1
Fig. 5A83-1Fig. 5A83-1
Fig. 5A83-1
Cap
Internal Lid
Notice
